TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

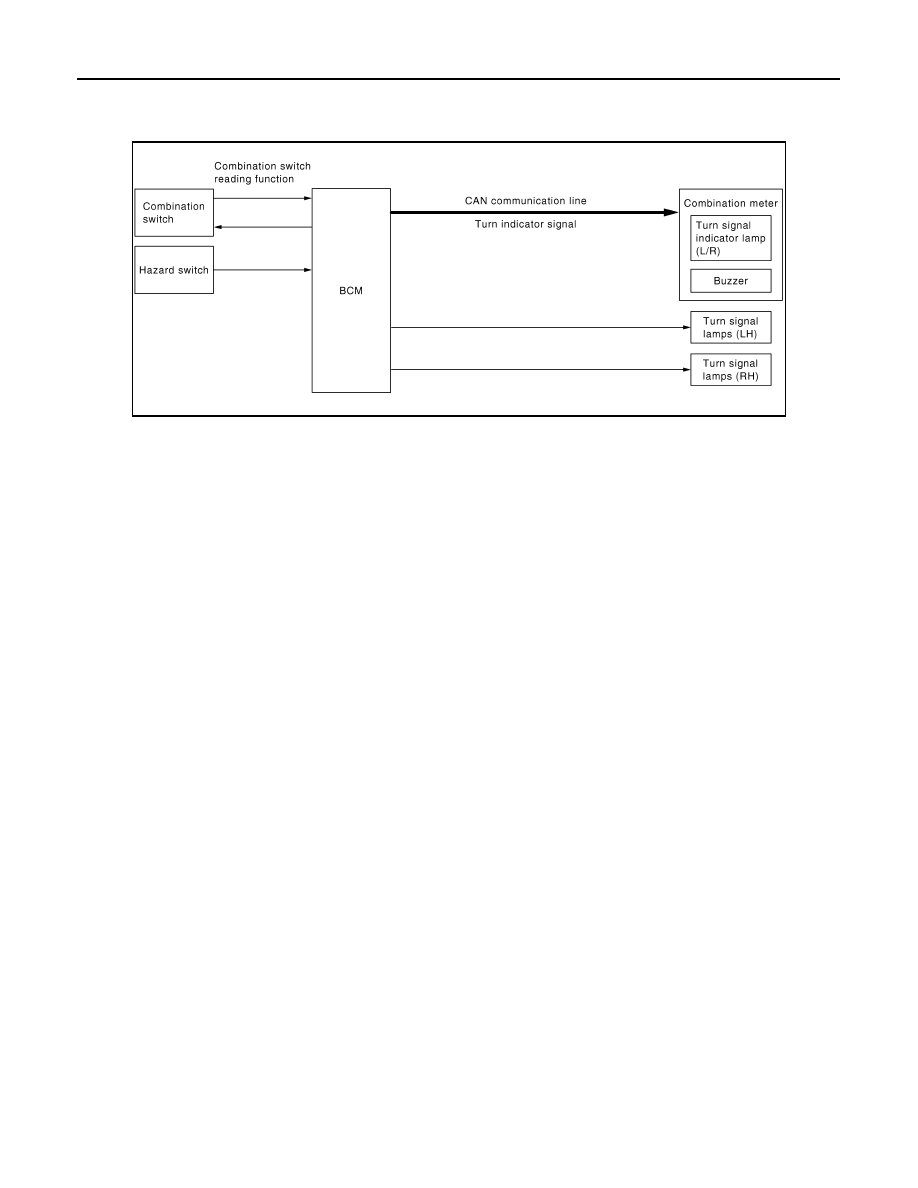

System Diagram

INFOID:0000000003894289

System Description

INFOID:0000000003894290

OUTLINE

Turn signal lamp and the hazard warning lamp is controlled by combination switch reading function and the
flasher control function of BCM.

TURN SIGNAL LAMP OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM supplies voltage to the right (left) turn signal lamp circuit when the ignition switch is turned ON and the

turn signal switch is in the right (left) position. BCM blinks the turn signal lamp.

HAZARD WARNING LAMP OPERATION

BCM supplies voltage to both turn signal lamp circuit when the hazard switch is turned ON. BCM blinks the
hazard warning lamp.

TURN SIGNAL INDICATOR LAMP AND TURN SIGNAL SOUND OPERATION

• BCM transmits the turn indicator signal to the combination meter with CAN communication while the turn sig-

nal lamp and the hazard warning lamp are operating.

• Combination meter outputs the turn signal sound with the integrated buzzer while blinking the turn signal

indicator lamp according to the turn indicator signal.

HIGH FLASHER OPERATION (FAIL-SAFE)

• BCM detects the turn signal lamp circuit status by the terminal current value.
• BCM increases the turn signal lamp blinking speed if the bulb or harness open is detected with the turn sig-

nal lamp operating.
NOTE:
The blinking speed is normal while operating the hazard warning lamp.

JPLIA0180GB

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

EXL-207

< FUNCTION DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

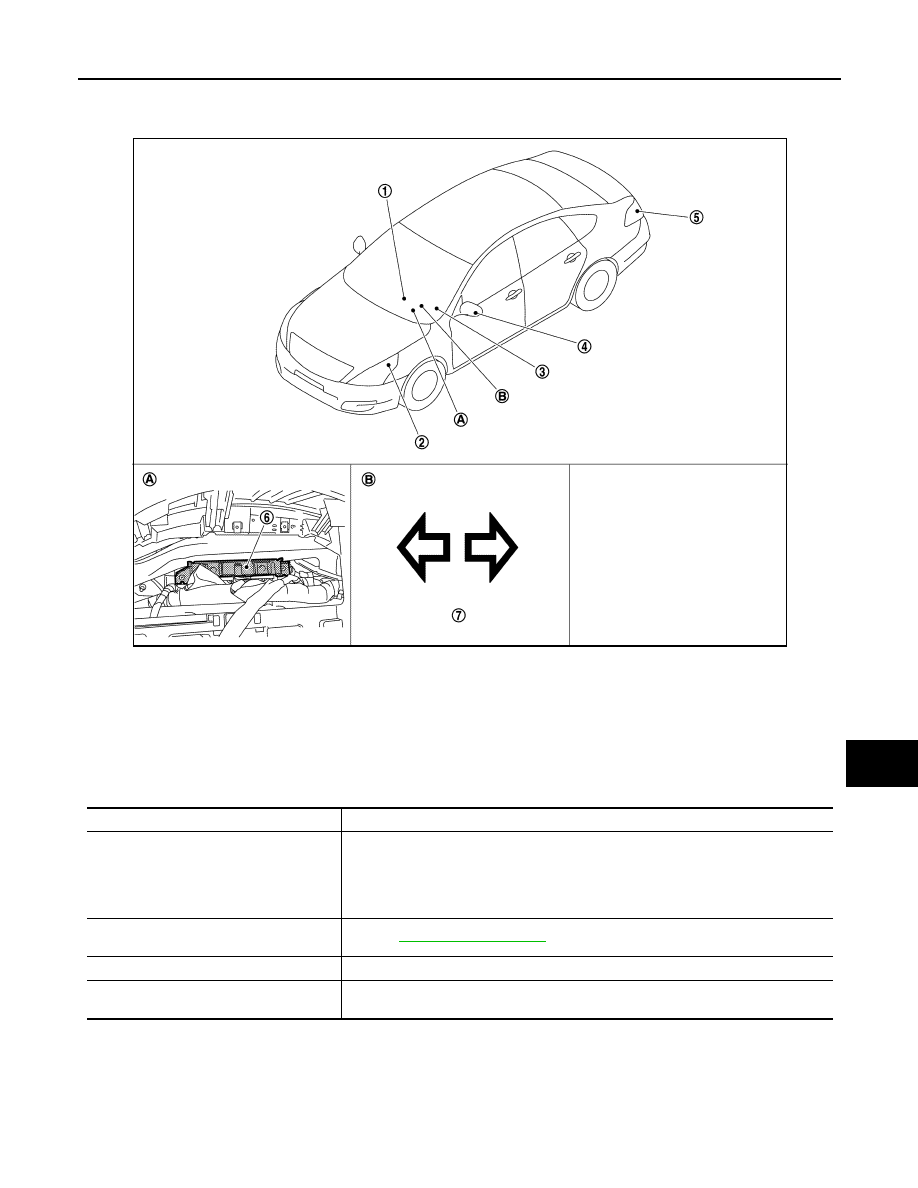

Component Parts Location

INFOID:0000000003894291

Component Description

INFOID:0000000003894292

1.

Hazard switch

2.

Front turn signal lamp

3.

Combination switch

4.

Side turn signal lamp

5.

Rear turn signal lamp

6.

BCM

7.

Turn signal indicator lamp

A.

Behind the combination meter

B.

On the combination meter

JPLIA1122ZZ

Part

Description

BCM

• Detects each switch condition by the combination switch reading function.
• Judges the blinks of the turn signal lamp and the hazard warning lamp from each

switch status. The applicable turn signal lamp blinks.

• Requests the turn signal indicator lamp blink to the combination meter (with CAN

communication).

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-8, "System Diagram"

.

Hazard switch

Inputs the hazard switch ON/OFF signal to BCM.

Combination meter
(Turn signal indicator lamp & buzzer)

Blinks the turn signal indicator lamp and outputs the turn signal operating sound with
integrated buzzer according to the request from BCM (with CAN communication).

EXL-208

< FUNCTION DIAGNOSIS >

[HALOGEN TYPE]

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

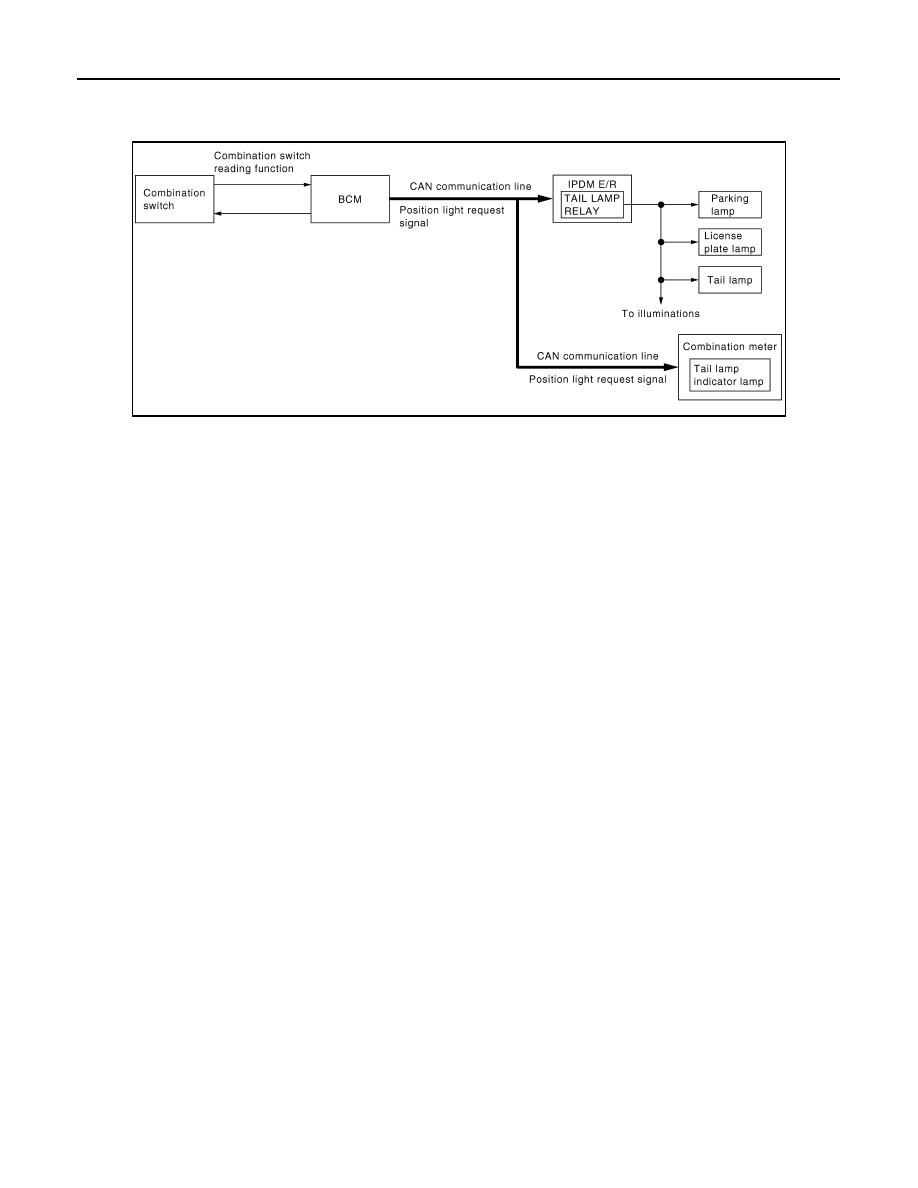

System Diagram

INFOID:0000000003894293

System Description

INFOID:0000000003894294

OUTLINE

Parking, license plate and tail lamps are controlled by combination switch reading function and headlamp con-
trol function of BCM, and relay control function of IPDM E/R.

PARKING, LICENSE PLATE AND TAIL LAMPS OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM transmits the position light request signal to IPDM E/R and the combination meter with CAN communi-

cation according to the ON/OFF condition of the parking, license plate and tail lamps.

Parking, license plate and tail lamps ON condition

- Lighting switch 1ST
- Lighting switch 2ND
- Lighting switch AUTO (auto light function ON judgment)
• IPDM E/R turns the integrated tail lamp relay ON and turns the parking lamp, license plate and tail lamps ON

according to the position light request signal.

• Combination meter turns the tail lamp indicator lamp ON according to the position light request signal.

JPLIA0181GB

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

EXL-209

< FUNCTION DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

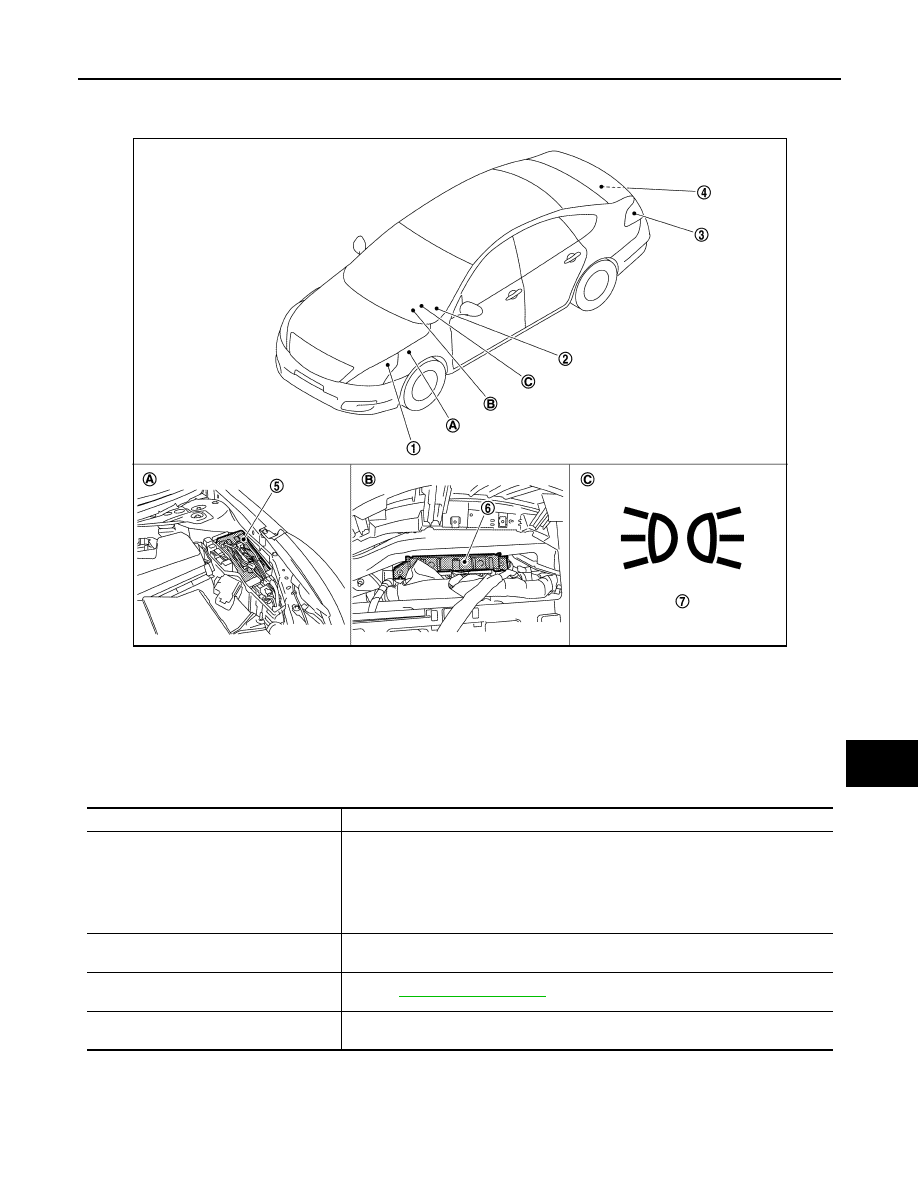

Component Parts Location

INFOID:0000000003894295

Component Description

INFOID:0000000003894296

1.

Parking lamp

2.

Combination switch

3.

Tail lamp

4.

License plate lamp

5.

IPDM E/R

6.

BCM

7.

Tail lamp indicator lamp

A.

Engine room (LH)

B.

Behind the combination meter

C.

On the combination meter

JPLIA1123ZZ

Part

Description

BCM

• Detects each switch condition by the combination switch reading function.
• Judges the ON/OFF status of the parking, license plate and tail lamps according to

the vehicle condition.

- Requests the tail lamp relay ON to IPDM E/R (with CAN communication).
- Requests the tail lamp indicator lamp ON to the combination meter (with CAN com-

munication).

IPDM E/R

Controls the integrated relay and supplies voltage to the load according to the request
from BCM (with CAN communication).

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-8, "System Diagram"

.

Combination meter
(Tail lamp indicator lamp)

Turns the tail lamp indicator lamp ON according to the request from BCM (with CAN
communication).
