EXL-158

< ECU DIAGNOSIS >

[XENON TYPE]

AUTO LEVELIZER CONTROL UNIT

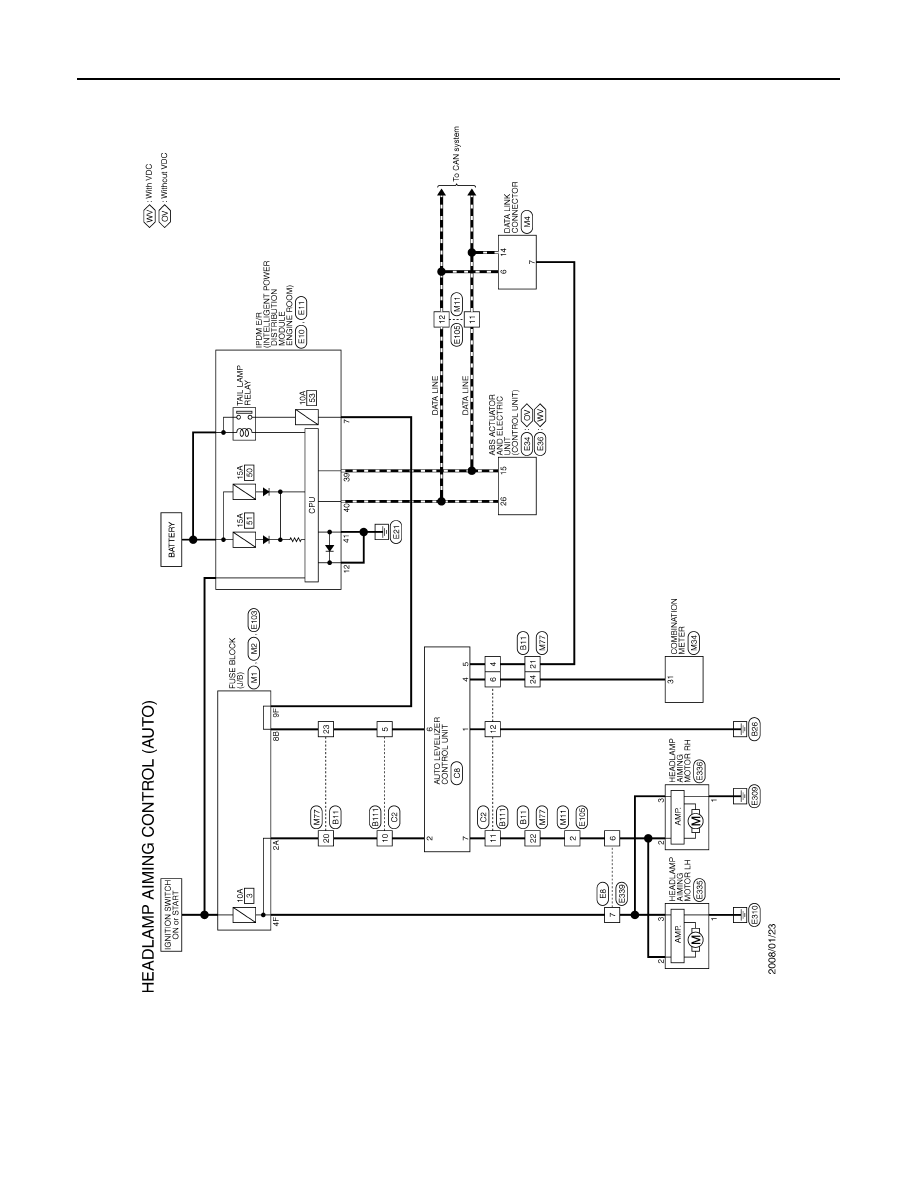

Wiring Diagram — HEADLAMP AIMING CONTROL SYSTEM —

INFOID:0000000003805623

JCLWM1451GB

AUTO LEVELIZER CONTROL UNIT

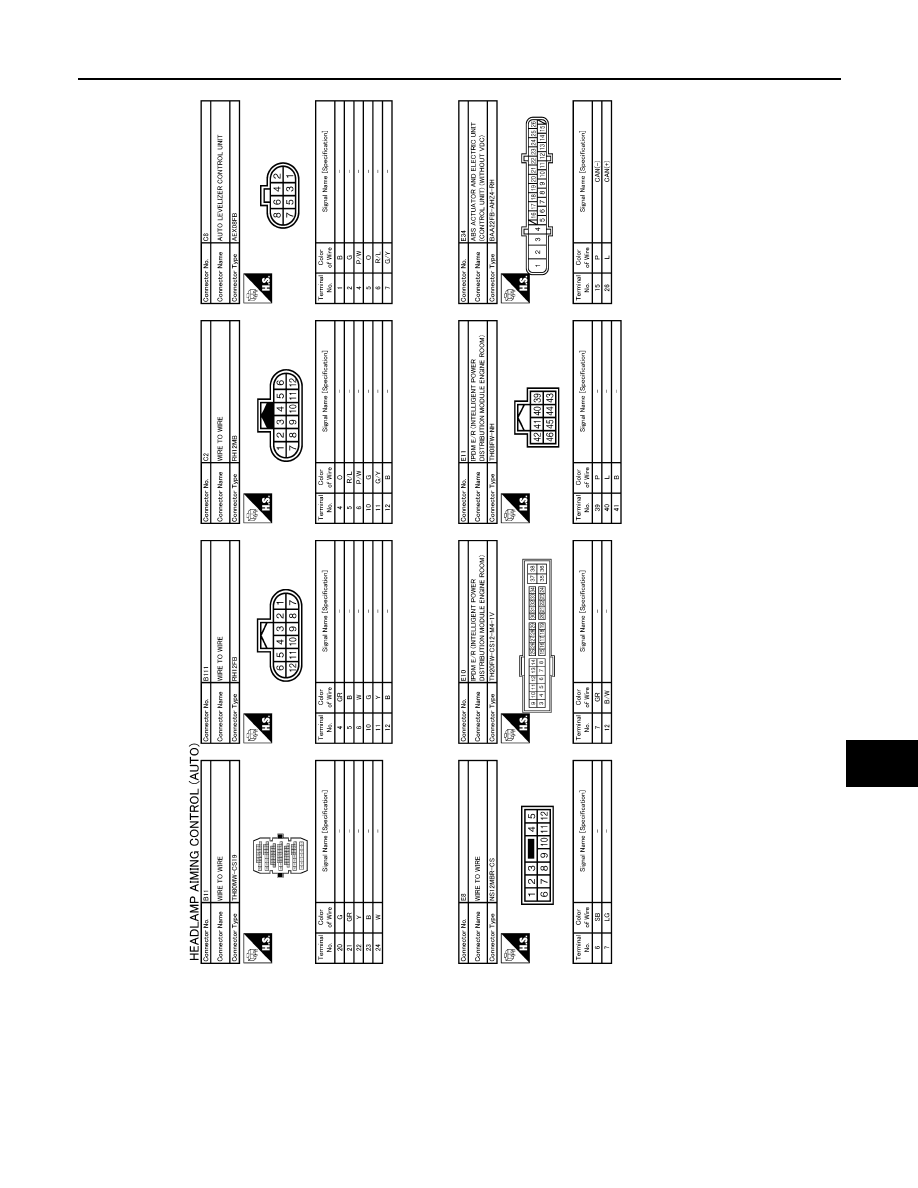

EXL-159

< ECU DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

JCLWM1452GB

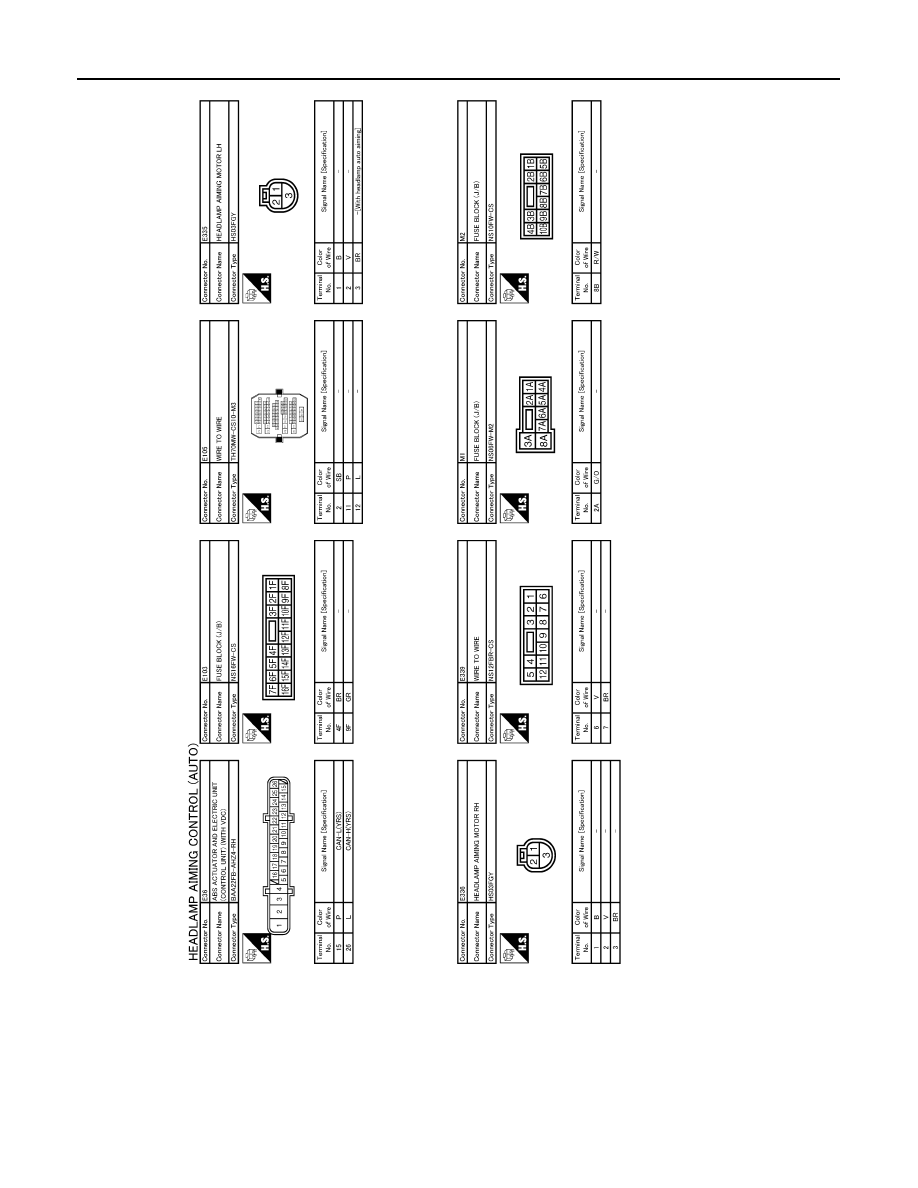

EXL-160

< ECU DIAGNOSIS >

[XENON TYPE]

AUTO LEVELIZER CONTROL UNIT

JCLWM1453GB

AUTO LEVELIZER CONTROL UNIT

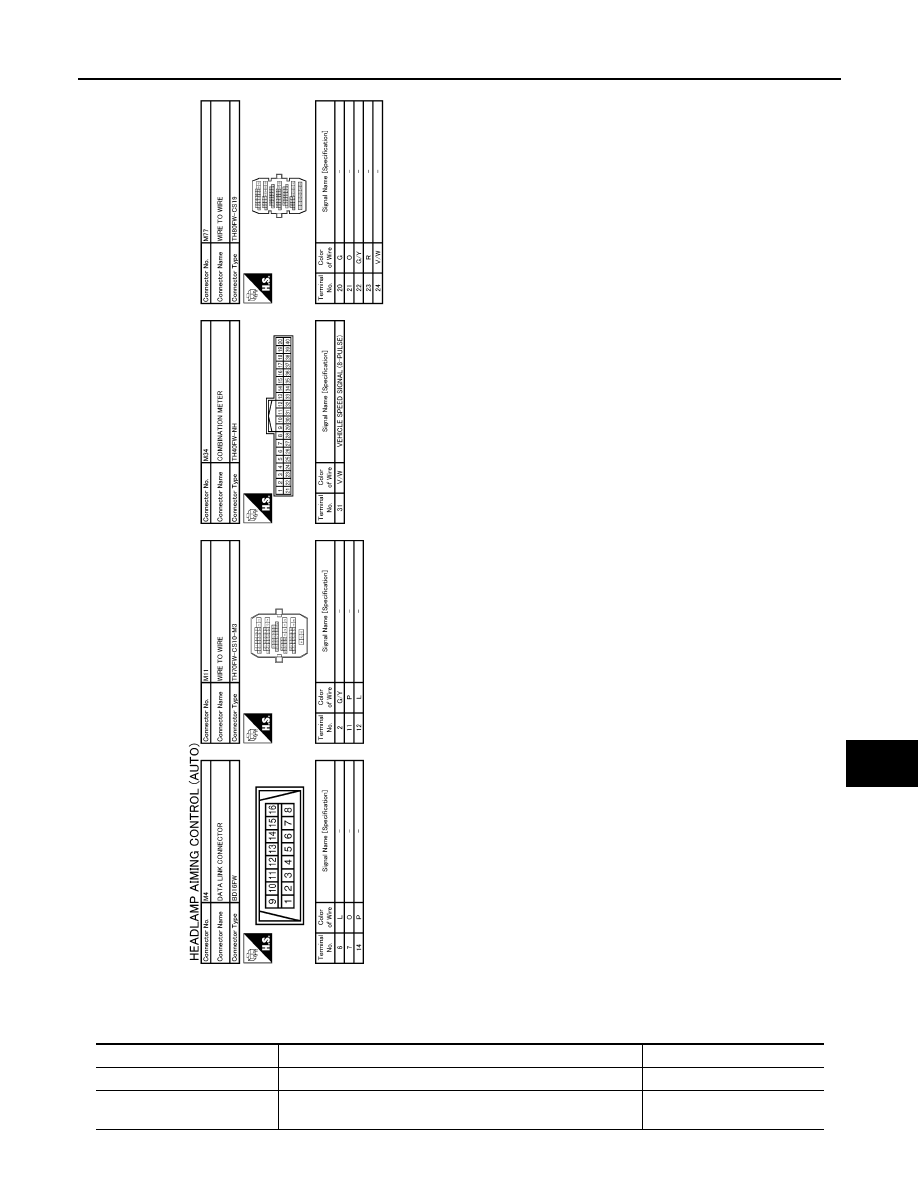

EXL-161

< ECU DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Fail-safe

INFOID:0000000003805624

JCLWM1454GB

DTC

Fail-safe

Cancellation

B2080: ECU TROUBLE

Fix aiming motor drive signal to approximately 0 V

Ignition switch OFF

B2081: INITIAL NOT DONE

Fix with the light axis facing downward

When sensor initialization is
completed
