EXL-22

< FUNCTION DIAGNOSIS >

[XENON TYPE]

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

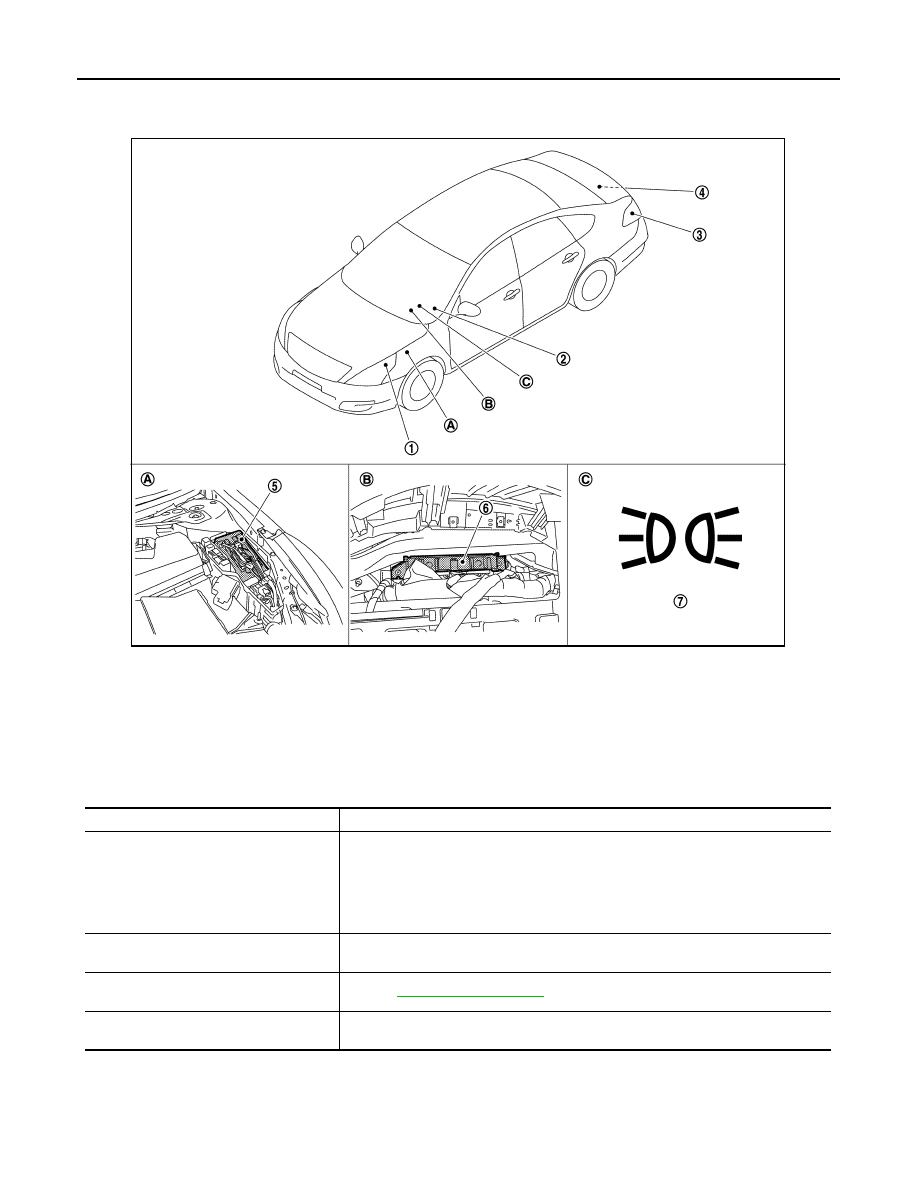

Component Parts Location

INFOID:0000000003773541

Component Description

INFOID:0000000003773542

1.

Parking lamp

2.

Combination switch

3.

Tail lamp

4.

License plate lamp

5.

IPDM E/R

6.

BCM

7.

Tail lamp indicator lamp

A.

Engine room (LH)

B.

Behind the combination meter

C.

On the combination meter

JPLIA1123ZZ

Part

Description

BCM

• Detects each switch condition by the combination switch reading function.
• Judges the ON/OFF status of the parking, license plate and tail lamps according to

the vehicle condition.

- Requests the tail lamp relay ON to IPDM E/R (with CAN communication).
- Requests the tail lamp indicator lamp ON to the combination meter (with CAN com-

munication).

IPDM E/R

Controls the integrated relay and supplies voltage to the load according to the request
from BCM (with CAN communication).

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-8, "System Diagram"

.

Combination meter
(Tail lamp indicator lamp)

Turns the tail lamp indicator lamp ON according to the request from BCM (with CAN
communication).

REAR FOG LAMP SYSTEM

EXL-23

< FUNCTION DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REAR FOG LAMP SYSTEM

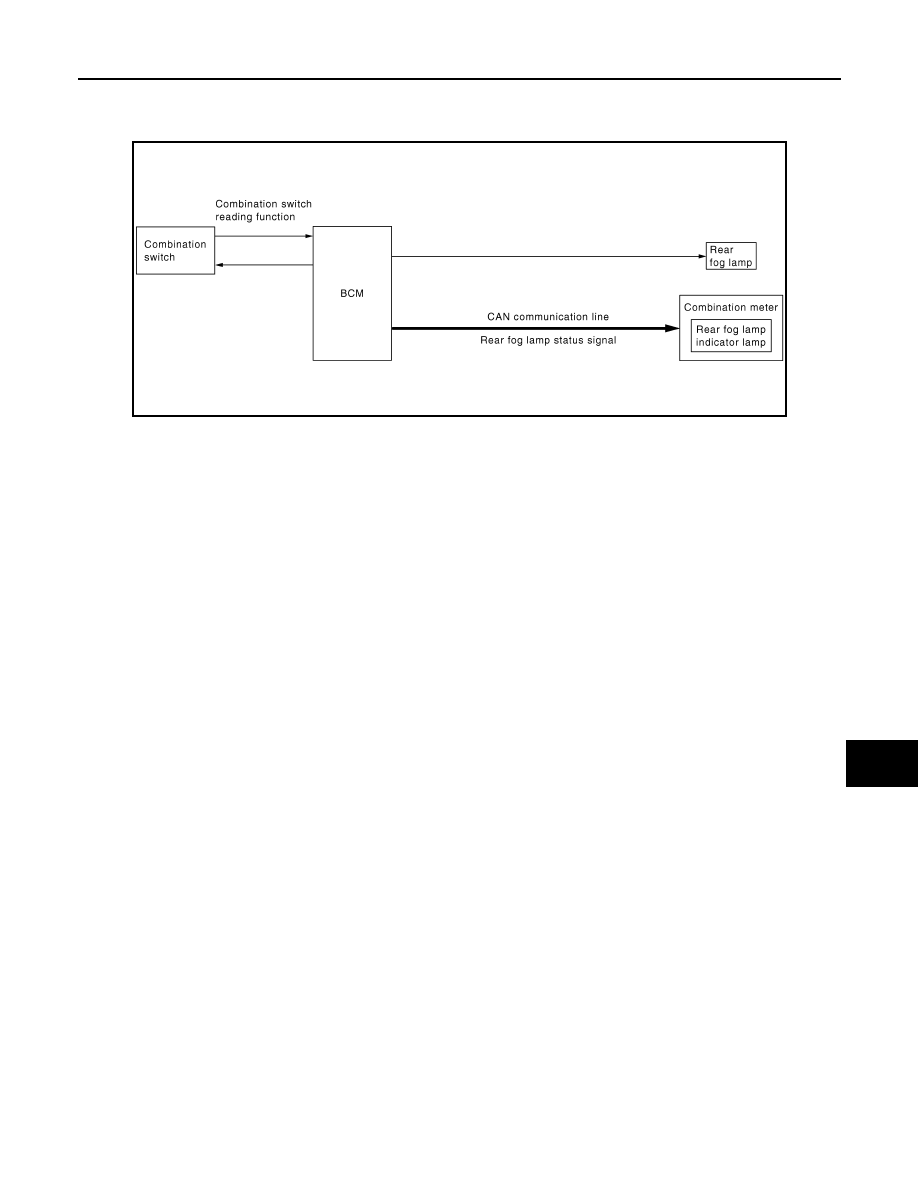

System Diagram

INFOID:0000000003811061

System Description

INFOID:0000000003811062

OUTLINE

Rear fog lamp is controlled with the combination switch reading function and the rear fog lamp control function
of BCM.

REAR FOG LAMP OPERATION

• BCM detects the condition of the combination switch by the combination switch reading function.
• BCM supplies voltage to rear fog lamp according to the rear fog lamp ON condition.

Rear fog lamp ON condition

- Rear fog lamp switch signal is input with front fog lamp ON and rear fog lamp OFF

Rear fog lamp switch ON with any of following condition.

- Lighting switch 2ND
- Lighting switch 1ST, and front fog lamp switch ON
• BCM transmits the rear fog lamp status signal to the combination meter with CAN communication.
• Combination meter turns the rear fog lamp indicator lamp ON according to the rear fog lamp status signal.

JPLIA0179GB

EXL-24

< FUNCTION DIAGNOSIS >

[XENON TYPE]

REAR FOG LAMP SYSTEM

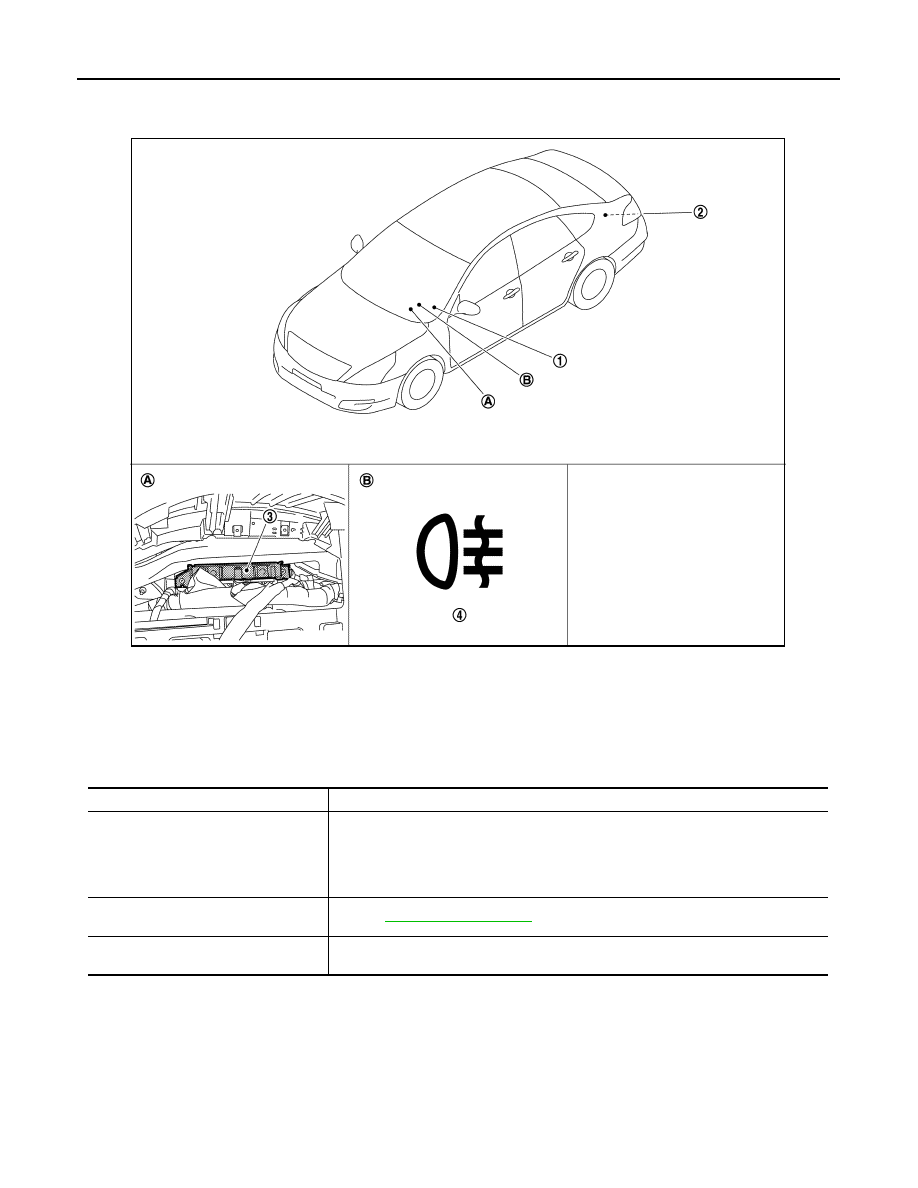

Component Parts Location

INFOID:0000000003811063

Component Description

INFOID:0000000003811064

1.

Combination switch

2.

Rear fog lamp

3.

BCM

4.

Rear fog lamp indicator lamp

A.

Behind the combination meter

B.

On the combination meter

JPLIA1125ZZ

Part

Description

BCM

• Detects each switch condition by the combination switch reading function.
• Judges that the rear fog lamp is turned ON according to the vehicle status
- Supplies voltage to the rear fog lamp
- Requests the rear fog lamp indicator lamp ON to the combination meter (with CAN

communication).

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-8, "System Diagram"

.

Combination meter
(Rear fog lamp indicator lamp)

Turns the rear fog lamp indicator lamp ON according to the request from BCM (with CAN
communication).

EXTERIOR LAMP BATTERY SAVER SYSTEM

EXL-25

< FUNCTION DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

EXTERIOR LAMP BATTERY SAVER SYSTEM

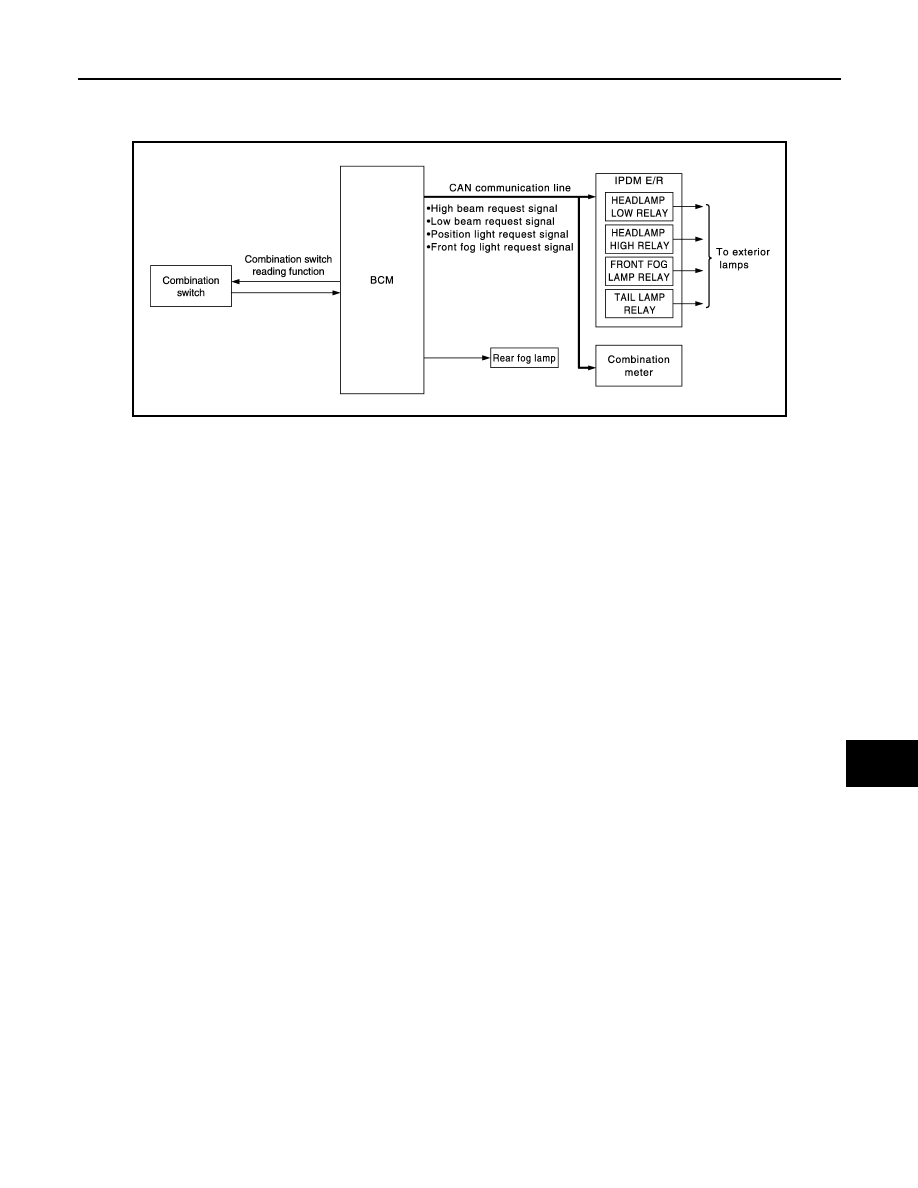

System Diagram

INFOID:0000000003773543

System Description

INFOID:0000000003773544

OUTLINE

• Exterior lamp battery saver system is controlled by each function of BCM and IPDM E/R.

Control by BCM

- Combination switch reading function
- Headlamp control function
- Exterior lamp battery saver function

Control by IPDM E/R

- Relay control function
• BCM turns the exterior lamp* OFF after a period of time to prevent the battery from over-discharge when the

ignition switch is turned OFF with the exterior lamp ON.

*: Headlamp (LO/HI), parking lamp, tail lamp, license plate lamp, front fog lamp and rear fog lamp.

EXTERIOR LAMP BATTERY SAVER ACTIVATION

BCM activates the timer and turns the exterior lamp OFF 5 minutes after the ignition switch is turned from ON

→

 OFF with the exterior lamps ON.

NOTE:
• Headlamp control function turns the exterior lamps ON normally when the ignition switch is turned ACC or

the engine started (both before and after the exterior lamp battery saver is turned OFF).

• The timer starts at the time that the lighting switch is turned from OFF

→

 1ST or 2ND with the exterior lamp

OFF.

JPLIA1084GB
