EXL-10

< BASIC INSPECTION >

[XENON TYPE]

INSPECTION AND ADJUSTMENT

SENSOR INITIALIZE : Description

INFOID:0000000003774311

HEADLAMP AIMING CONTROL SYSTEM

Perform the sensor initialize when installing, removing and replacing the auto levelizer control unit and sus-
pension components.

SENSOR INITIALIZE : Special Repair Requirement (HEADLAMP AIMING CONTROL
SYSTEM)

INFOID:0000000003774312

1.

VEHICLE CONDITION CHECK

1.

Park the vehicle in the straight-forward position.

2.

Unload the vehicle (no passenger aboard).

>> GO TO 2.

2.

SENSOR INITIALIZE

CONSULT-III WORK SUPPORT

1.

Select "SENSOR INITIALIZE" of HEADLAMP LEVELIZER work support item.

2.

Select "START".

3.

When "INITIALIZE COMPLETE", select "END".

CAUTION:

If "INITIALIZE NOT DONE" is indicated, auto levelizer control unit detects that the sensor lever sig-
nal changes. The sensor initialize is cancelled. In this case, turn the ignition switch OFF to prevent
the vehicle from the height change. Perform the sensor initialize again.

Is the sensor initialize completed?

YES

>> GO TO 3.

NO

>> Perform the sensor initialize again.

3.

SELF-DIAGNOSIS RESULT CHECK

Perform the self-diagnosis with CONSULT-III. Check that any DTC is not detected.
Is any DTC detected?

YES

>> GO TO 2.

NO

>> Sensor initialize completed

HEADLAMP SYSTEM

EXL-11

< FUNCTION DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

FUNCTION DIAGNOSIS

HEADLAMP SYSTEM

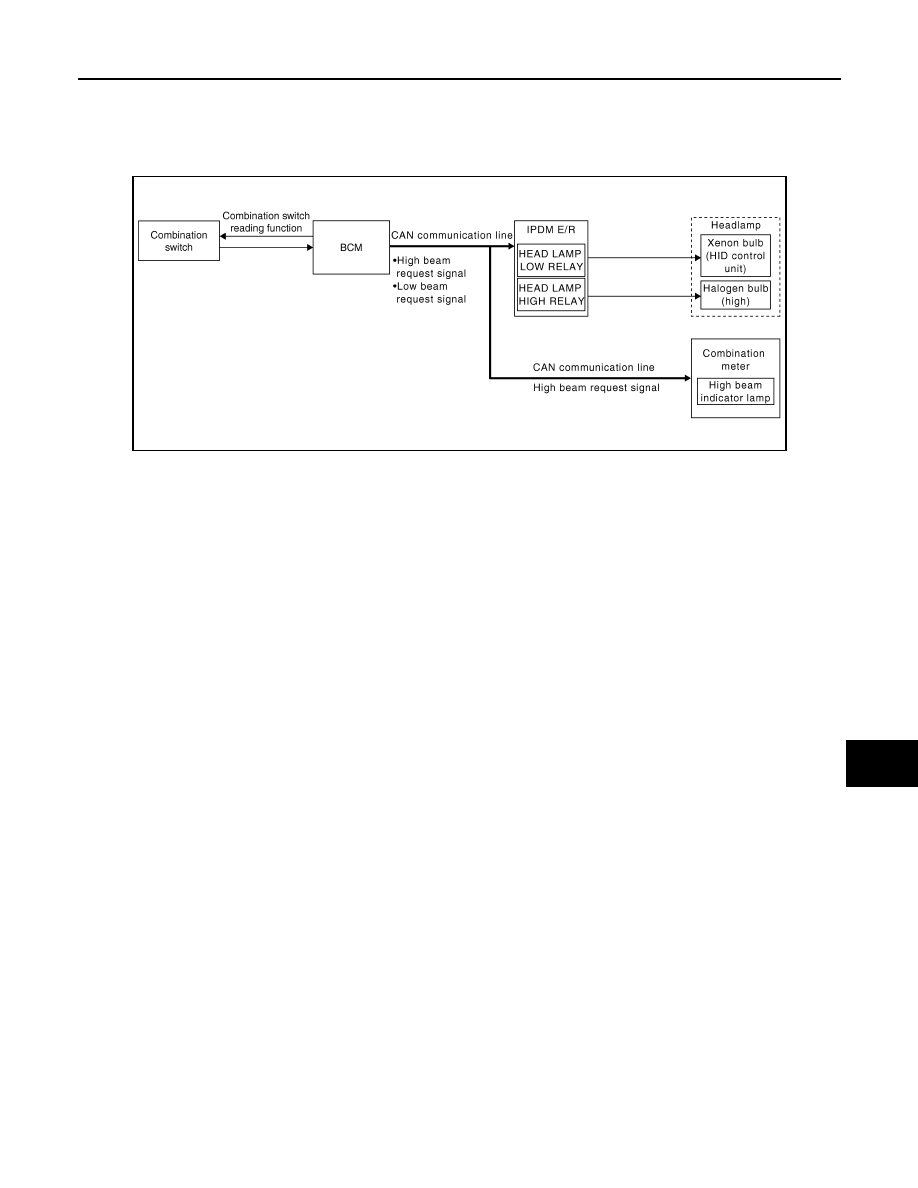

System Diagram

INFOID:0000000003774356

System Description

INFOID:0000000003774357

OUTLINE

Headlamp is controlled by combination switch reading function and headlamp control function of BCM, and
relay control function of IPDM E/R.

HEADLAMP (LO) OPERATION

• BCM detects the combination switch condition with the combination switch reading function.
• BCM transmits the low beam request signal to IPDM E/R with CAN communication according to the head-

lamp (LO) ON condition.

Headlamp (LO) ON condition

- Lighting switch 2ND
- Lighting switch AUTO (auto light function ON judgment)
• IPDM E/R turns the integrated headlamp low relay ON, and turns the headlamp ON according to the low

beam request signal.

HEADLAMP (HI) OPERATION

• BCM transmits the high beam request signal to IPDM E/R and the combination meter with CAN communica-

tion according to the headlamp (HI) ON condition.

Headlamp (HI) ON condition

- Lighting switch HI with the lighting switch 2ND or AUTO (auto light function ON judgment)
- Lighting switch PASS
• Combination meter turns the high beam indicator lamp ON according to the high beam request signal.
• IPDM E/R turns the integrated headlamp high relay ON, and turns the headlamp ON according to the high

beam request signal.

JPLIA0168GB

EXL-12

< FUNCTION DIAGNOSIS >

[XENON TYPE]

HEADLAMP SYSTEM

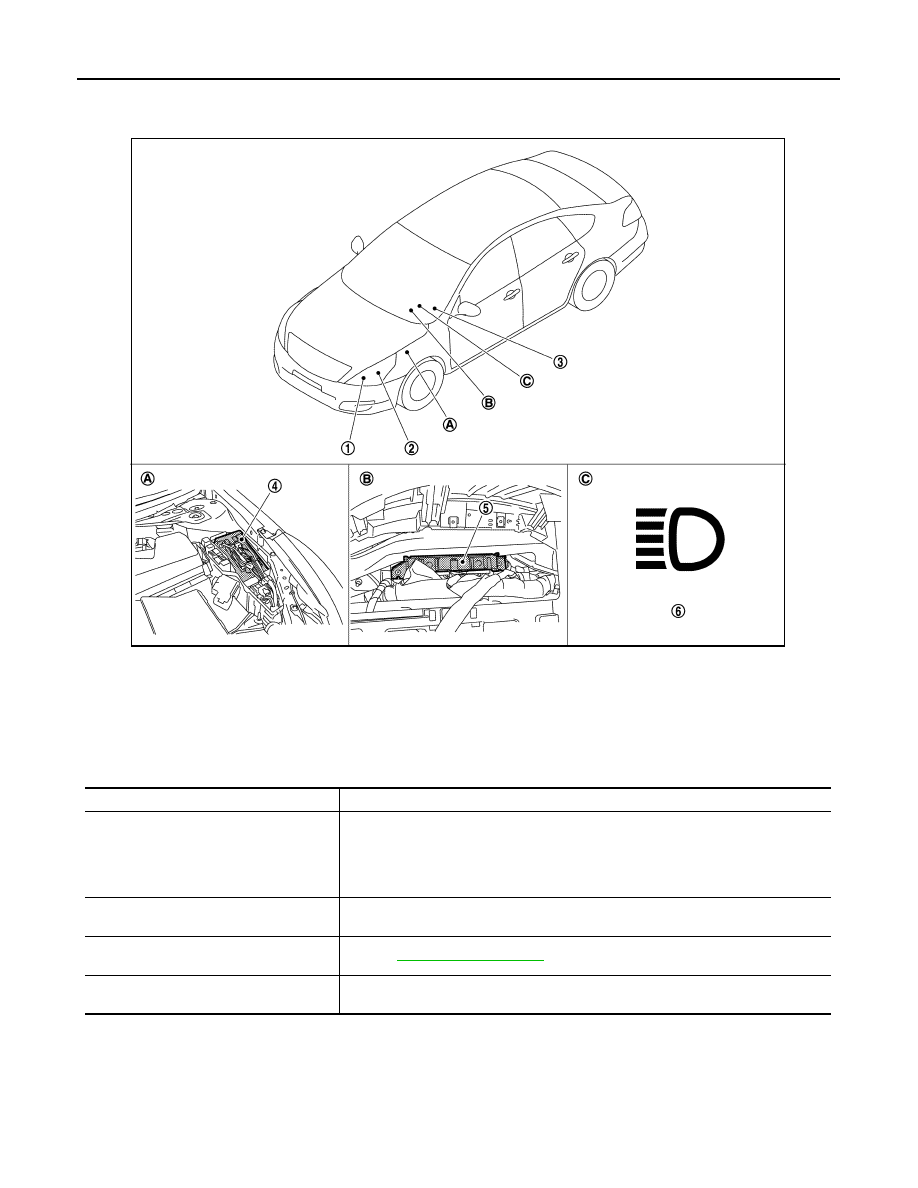

Component Parts Location

INFOID:0000000003774358

Component Description

INFOID:0000000003774359

1.

Headlamp (HI)

2.

Headlamp (LO)

3.

Combination switch

4.

IPDM E/R

5.

BCM

6.

High beam indicator lamp

A.

Engine room (LH)

B.

Behind the combination meter

C.

On the combination meter

JPLIA1118ZZ

Part

Description

BCM

• Detects each switch condition by the combination switch reading function.
• Judges that the headlamp is turned ON according to the vehicle condition.
- Requests the headlamp relay (HI/LO) ON to IPDM E/R (with CAN communication).
- Requests the high beam indicator lamp ON to the combination meter (with CAN

communication).

IPDM E/R

Controls the integrated relay, and supplies voltage to the load according to the request
from BCM (with CAN communication).

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-8, "System Diagram"

.

Combination meter
(High beam indicator lamp)

Turns the high beam indicator lamp ON according to the request from BCM (with CAN
communication).

AUTO LIGHT SYSTEM

EXL-13

< FUNCTION DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

AUTO LIGHT SYSTEM

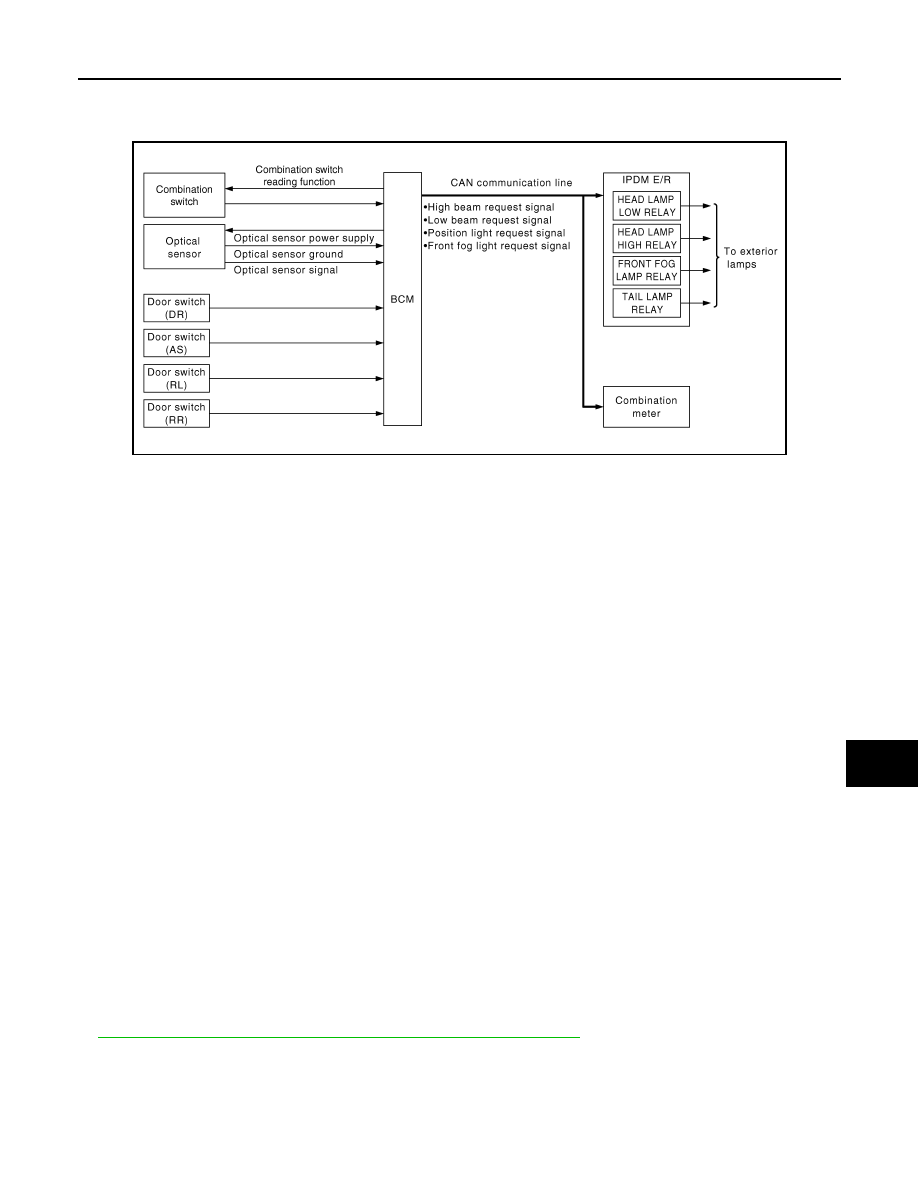

System Diagram

INFOID:0000000003773527

System Description

INFOID:0000000003773528

OUTLINE

•  Auto light system is controlled by each function of BCM and IPDM E/R.

Control by BCM

- Combination switch reading function
- Headlamp control function
- Auto light function
- Delay timer function

Control by IPDM E/R

- Relay control function
• Auto light system has the auto light function and the delay timer function.
- Auto light function turns the exterior lamps* and each illumination ON/OFF automatically according to the

outside brightness.

- When auto light system turns the exterior lamps ON with the ignition switch OFF, delay timer function turns

the exterior lamps OFF depending on the vehicle condition with the auto light function after a certain period
of time.

*: Headlamp (LO/HI), parking lamp, tail lamp and front fog lamp (Headlamp HI and front fog lamp depend on
the combination switch condition.)

AUTO LIGHT FUNCTION

• BCM detects the combination switch condition with the combination switch reading function.
• BCM supplies voltage to optical sensor when the ignition switch is turned ON or ACC.
• Optical sensor converts outside brightness (lux) to voltage and transmits the optical sensor signal to BCM.
• BCM judges outside brightness from the optical sensor signal and judges ON/OFF condition of the exterior

lamp and each illumination according to the outside brightness.

• BCM transmits each request signal to IPDM E/R with CAN communication according to ON/OFF condition

by the auto light function.

NOTE:
ON/OFF timing differs based on the sensitivity from the setting. The setting can be set by CONSULT-III. Refer
to

EXL-28, "HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)"

.

DELAY TIMER FUNCTION

BCM turns the exterior lamp OFF depending on the vehicle condition with the auto light function when the igni-
tion switch is turned OFF.
• Turns the exterior lamp OFF 5 minutes after detecting that any door opens (Door switch ON).
• Turns the exterior lamp OFF a certain period of time* after closing all doors (Door switch ON

→

OFF).

JPLIA0804GB
