EM-136

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Drive Belt

INFOID:0000000003802301

DRIVE BELT

Spark Plug

INFOID:0000000003802302

SPARK PLUG

Unit: mm (in)

Intake Manifold

INFOID:0000000003802303

INTAKE MANIFOLD

Unit: mm (in)

Exhaust Manifold

INFOID:0000000003802304

EXHAUST MANIFOLD

Unit: mm (in)

Camshaft

INFOID:0000000003802305

CAMSHAFT

Unit: mm (in)

Tension of drive belt

Belt tension is not necessary, as it is automatically adjusted by drive belt auto-tensioner.

Make

DENSO

Standard type

VQ25DE

FXE20HR11

VQ35DE

FXE22HR11

Gap (Nominal)

Standard

1.1 (0.043)

Limit

1.4 (0.055)

Items

                                Limit

Surface distortion

Intake manifold

0.1 (0.004)

Items

                                Limit

Surface distortion

Exhaust manifold

0.3 (0.012)

Items

Standard

Limit

VQ25DE

VQ35DE

Camshaft journal oil clearance

No. 1

0.045 - 0.086 (0.0018 - 0.0034)

0.15 (0.0059)

No. 2, 3, 4

0.035 - 0.076 (0.0014 - 0.0030)

Camshaft bracket inner diameter

No. 1

26.000 - 26.021 (1.0236 - 1.0244)

—

No. 2, 3, 4

23.500 - 23.521 (0.9252 - 0.9260)

—

Camshaft journal diameter

No. 1

25.935 - 25.955 (1.0211 - 1.0218)

—

No. 2, 3, 4

23.445 - 23.465 (0.9230 - 0.9238)

—

Camshaft end play

0.115 - 0.188 (0.0045 - 0.0074)

0.24 (0.0094)

Camshaft cam height “A”

Intake

44.665 - 44.855

(1.7585 - 1.7659)

45.465 - 45.655

(1.7900 - 1.7974)

0.2 (0.008)*

1

Exhaust

44.775 - 44.965

(1.7628 - 1.7703)

45.475 - 45.665

(1.7904 - 1.7978)

0.2 (0.008)*

1

Camshaft runout [TIR*

2

]

Less than 0.02 (0.0008)

0.05 (0.0020)

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-137

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

*

1

: Cam wear limit

*

2

: Total indicator reading

VALVE LIFTER

Unit: mm (in)

VALVE CLEARANCE

Unit: mm (in)

*: Approximately 80

°

C (176

°

F)

AVAILABLE VALVE LIFTER

VQ25DE

Unit: mm (in)

Camshaft sprocket runout [TIR*

2

]

—

0.15 (0.0059)

SEM671

Items

Standard

VQ25DE

VQ35DE

Valve lifter outer diameter

Intake

33.980 - 33.990 (1.3378 - 1.3382)

33.980 - 33.990 (1.3378 - 1.3382)

Exhaust

29.977 - 29.987 (1.1802 - 1.1806)

Valve lifter hole diameter

Intake

34.000 - 34.016 (1.3386 - 1.3392)

34.000 - 34.016 (1.3386 - 1.3392)

Exhaust

29.997 - 30.013 (1.1810 - 1.1816)

Valve lifter clearance

0.010 - 0.036 (0.0004 - 0.0014)

Items

Cold

Hot* (reference data)

Intake

0.26 - 0.34 (0.010 - 0.013)

0.304 - 0.416 (0.012 - 0.016)

Exhaust

0.29 - 0.37 (0.011 - 0.015)

0.308 - 0.432 (0.012 - 0.017)

Intake

Exhaust

Identification (stamped) mark

Thickness

Identification (stamped) mark

Thickness

788P

7.88 (0.3102)

666U

6.66 (0.2622)

790P

7.90 (0.3110)

668U

6.68 (0.2630)

792P

7.92 (0.3118)

670U

6.70 (0.2638)

794P

7.94 (0.3126)

672U

6.72 (0.2646)

796P

7.96 (0.3134)

674U

6.74 (0.2654)

798P

7.98 (0.3142)

676U

6.76 (0.2661)

800P

8.00 (0.3150)

678U

6.78 (0.2669)

802P

8.02 (0.3157)

680U

6.80 (0.2677)

804P

8.04 (0.3165)

682U

6.82 (0.2685)

806P

8.06 (0.3173)

684U

6.84 (0.2693)

808P

8.08 (0.3181)

686U

6.86 (0.2701)

810P

8.10 (0.3189)

688U

6.88 (0.2709)

EM-138

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

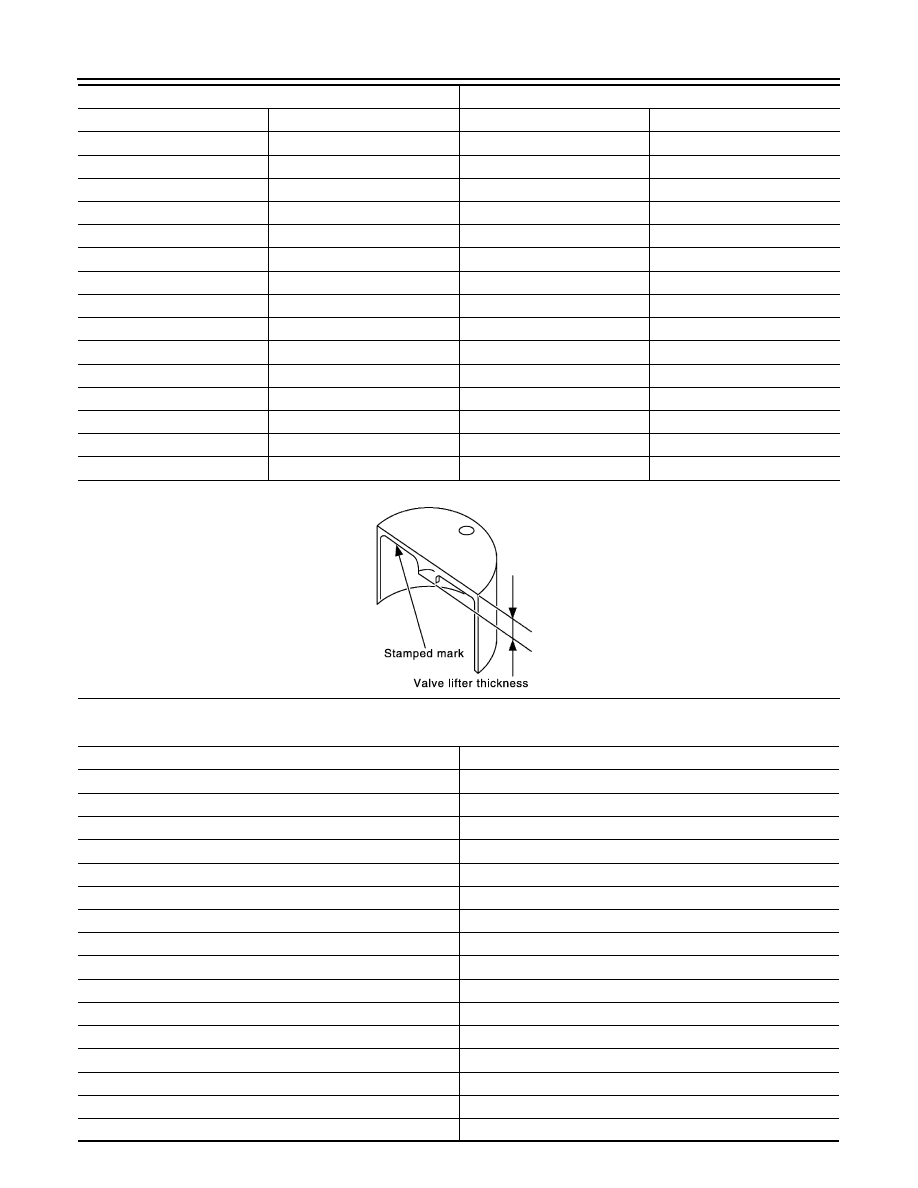

VQ35DE

Unit: mm (in)

812P

8.12 (0.3197)

690U

6.90 (0.2717)

814P

8.14 (0.3205)

692U

6.92 (0.2724)

816P

8.16 (0.3213)

694U

6.94 (0.2732)

818P

8.18 (0.3220)

696U

6.96 (0.2740)

820P

8.20 (0.3228)

698U

6.98 (0.2748)

822P

8.22 (0.3236)

700U

7.00 (0.2756)

824P

8.24 (0.3244)

702U

7.02 (0.2764)

826P

8.26 (0.3252)

704U

7.04 (0.2772)

828P

8.28 (0.3260)

706U

7.06 (0.2780)

830P

8.30 (0.3268)

708U

7.08 (0.2787)

832P

8.32 (0.3276)

710U

7.10 (0.2795)

834P

8.34 (0.3283)

712U

7.12 (0.2803)

836P

8.36 (0.3291)

714U

7.14 (0.2811)

838P

8.38 (0.3299)

716U

7.16 (0.2819)

840P

8.40 (0.3307)

718U

7.18 (0.2827)

Intake

Exhaust

Identification (stamped) mark

Thickness

Identification (stamped) mark

Thickness

SEM758G

Identification (stamped) mark

Thickness

788P

7.88 (0.3102)

790P

7.90 (0.3110)

792P

7.92 (0.3118)

794P

7.94 (0.3126)

796P

7.96 (0.3134)

798P

7.98 (0.3142)

800P

8.00 (0.3150)

802P

8.02 (0.3157)

804P

8.04 (0.3165)

806P

8.06 (0.3173)

808P

8.08 (0.3181)

810P

8.10 (0.3189)

812P

8.12 (0.3197)

814P

8.14 (0.3205)

816P

8.16 (0.3213)

818P

8.18 (0.3220)

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-139

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

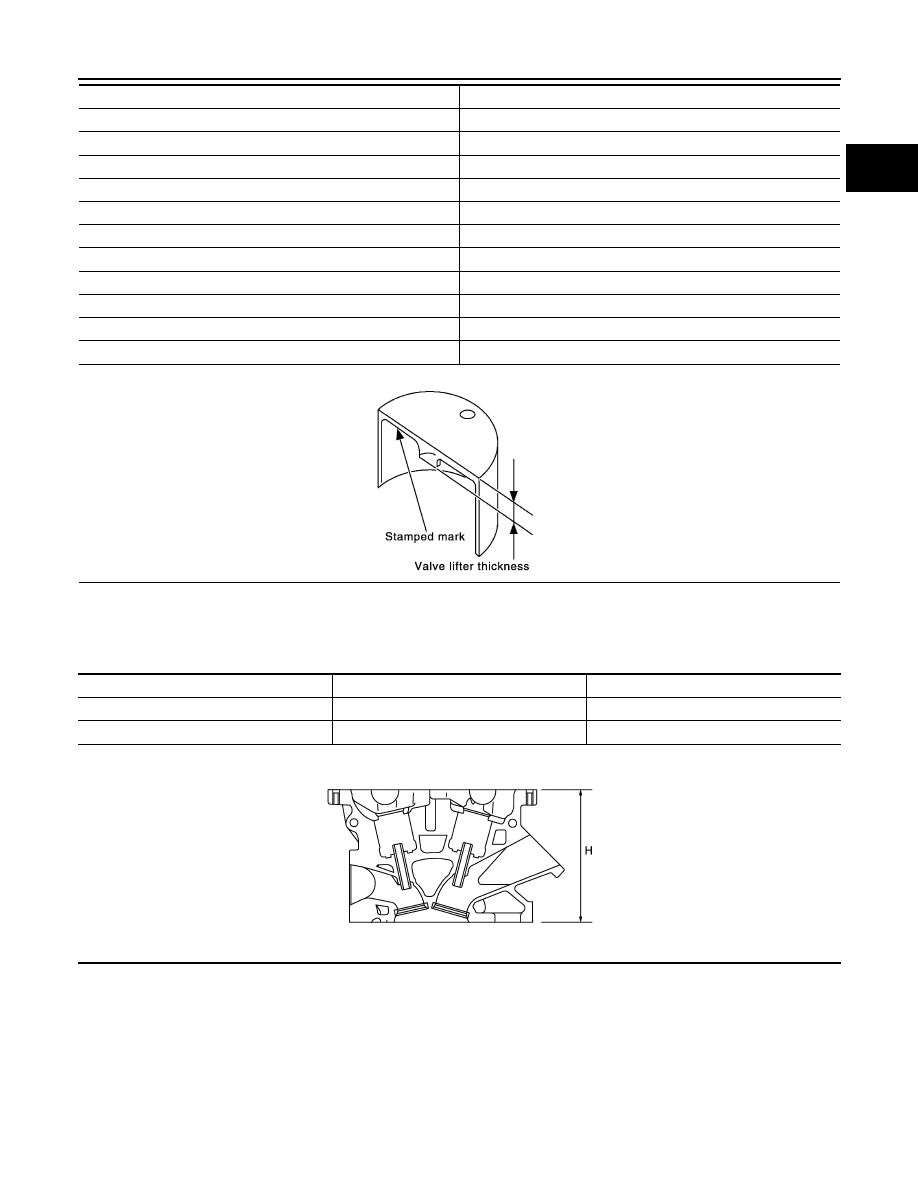

Cylinder Head

INFOID:0000000003802306

CYLINDER HEAD

Unit: mm (in)

VALVE DIMENSIONS

820P

8.20 (0.3228)

822P

8.22 (0.3236)

824P

8.24 (0.3244)

826P

8.26 (0.3252)

828P

8.28 (0.3260)

830P

8.30 (0.3268)

832P

8.32 (0.3276)

834P

8.34 (0.3283)

836P

8.36 (0.3291)

838P

8.38 (0.3299)

840P

8.40 (0.3307)

Identification (stamped) mark

Thickness

SEM758G

Items

Standard

Limit

Head surface distortion

Less than 0.03 (0.0012)

0.1 (0.004)

Normal cylinder head height “H”

126.3 - 126.5 (4.97 - 4.98)

—

PBIC0924E
