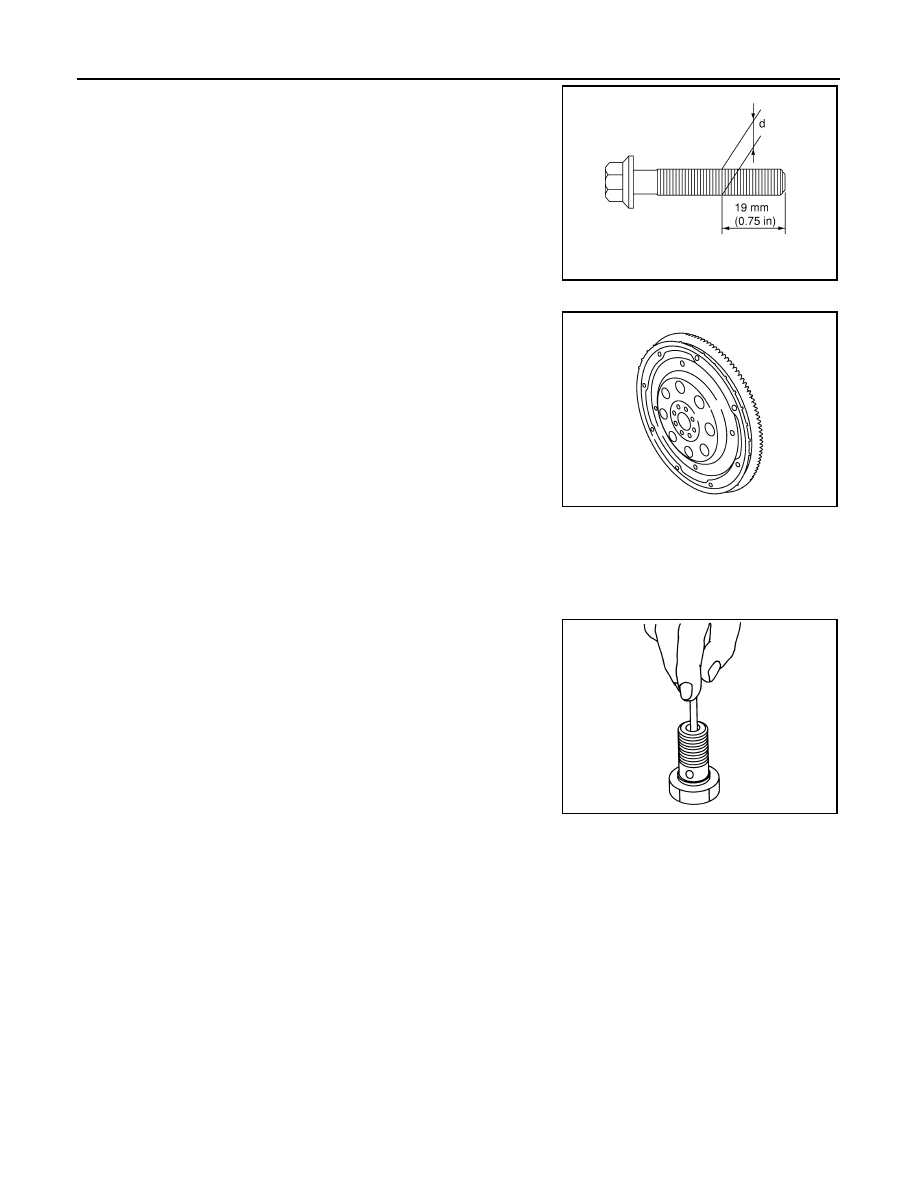

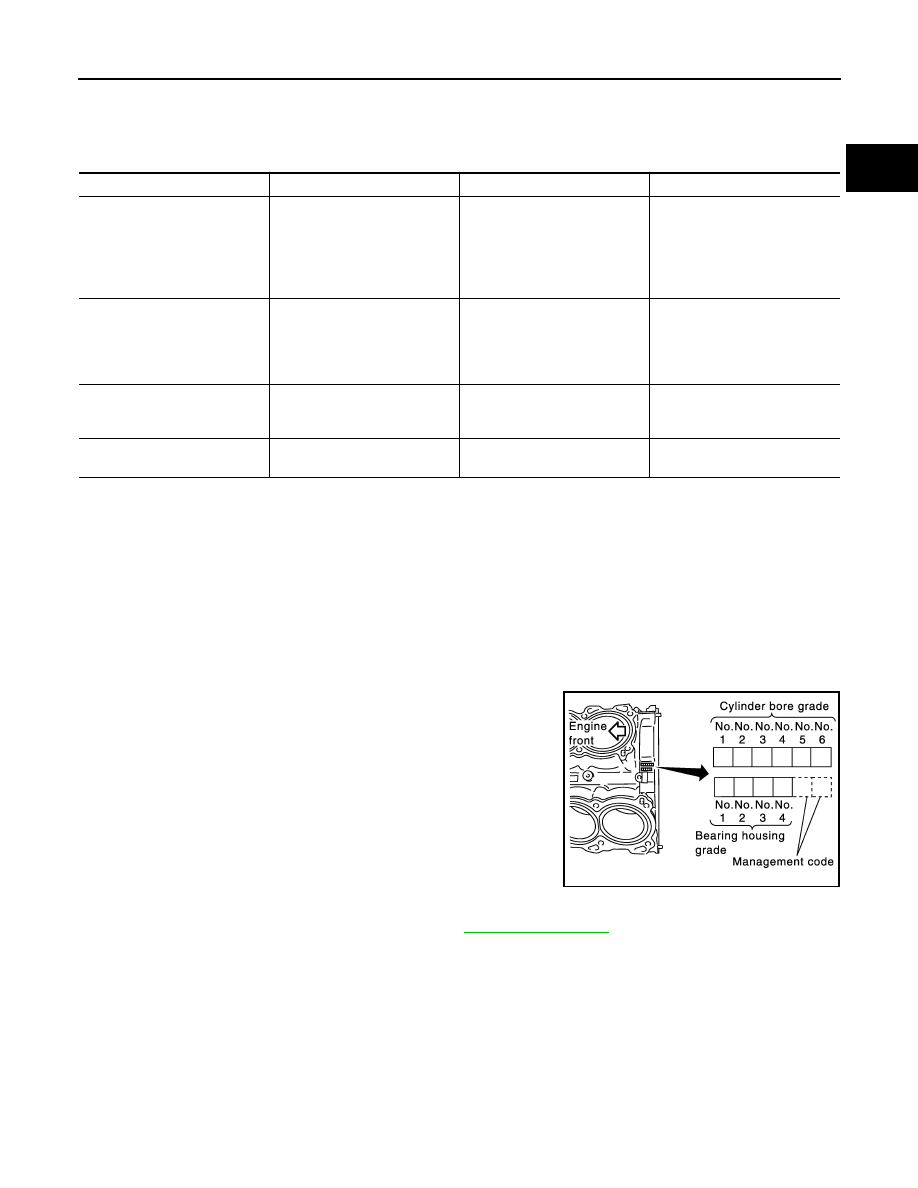

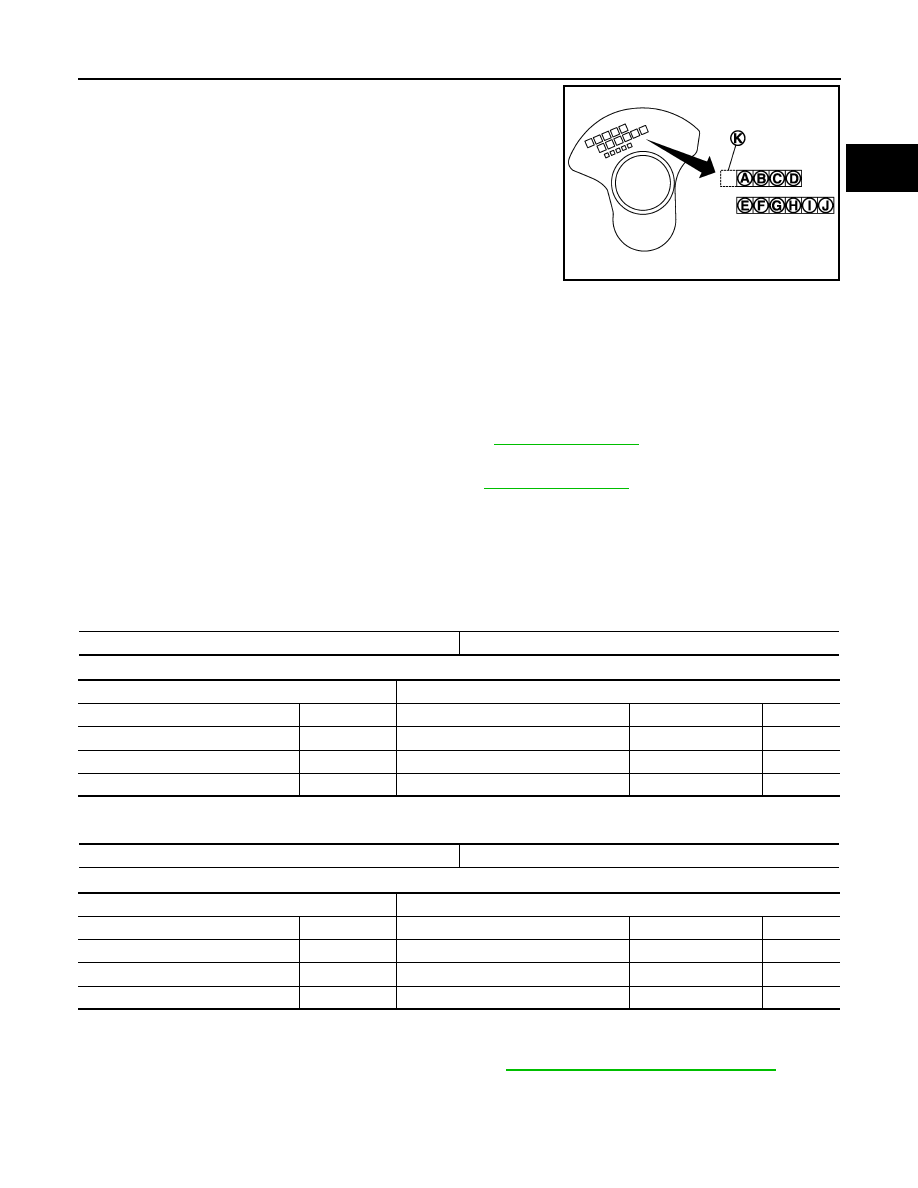

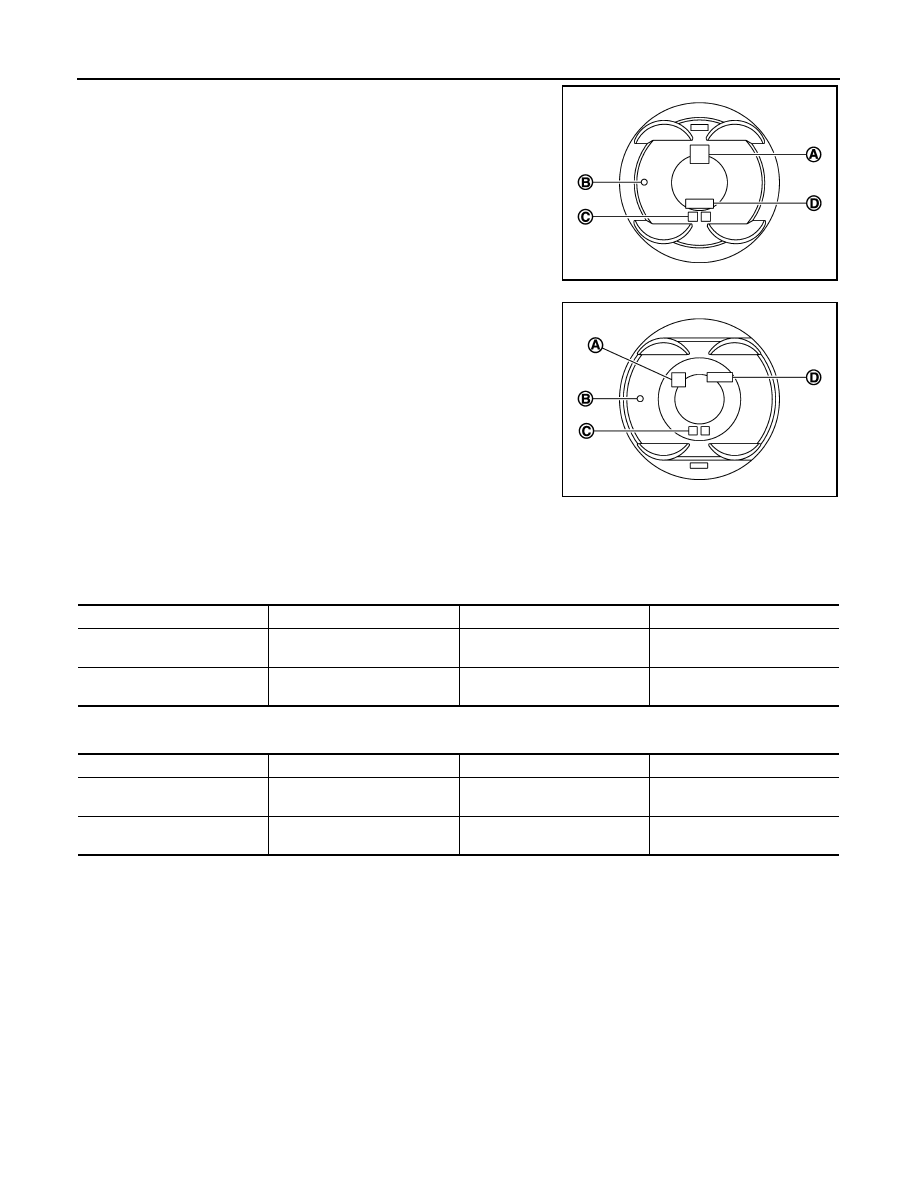

EM-128 < DISASSEMBLY AND ASSEMBLY > CYLINDER BLOCK • Measure the outer diameter (d) at position shown in the figure. • When (d) exceeds the limit (when it becomes thinner), replace connecting rod bolt with new one. DRIVE PLATE • Check drive plate and signal plate for deformation or damage. CAUTION: • Never disassemble drive plate. scratch it. • Handle signal plate in a manner that prevents it from becom- ing magnetized. • If anything is found, replace drive plate. OIL JET (VQ35DE) • Check nozzle for deformation and damage. OIL JET RELIEF VALVE (VQ35DE) • Using a clean plastic stick, press check valve in oil jet relief valve. Check that valve moves smoothly with proper reaction force. • If it is not satisfied, replace oil jet relief valve. Standard : 7.90 - 8.00 mm (0.3110 - 0.3150 in) Limit : 7.75 mm (0.3051 in) PBIC0912E JPBIA0192ZZ EMU0468D |
