CAMSHAFT

b.

Disconnect ignition coil and injector harness connectors. Refer to

EM-49, "Exploded View"

 and

EM-44,

"Exploded View"

.

3.

Remove intake valve timing control solenoid valve. Refer to

EM-79, "Exploded View"

.

4.

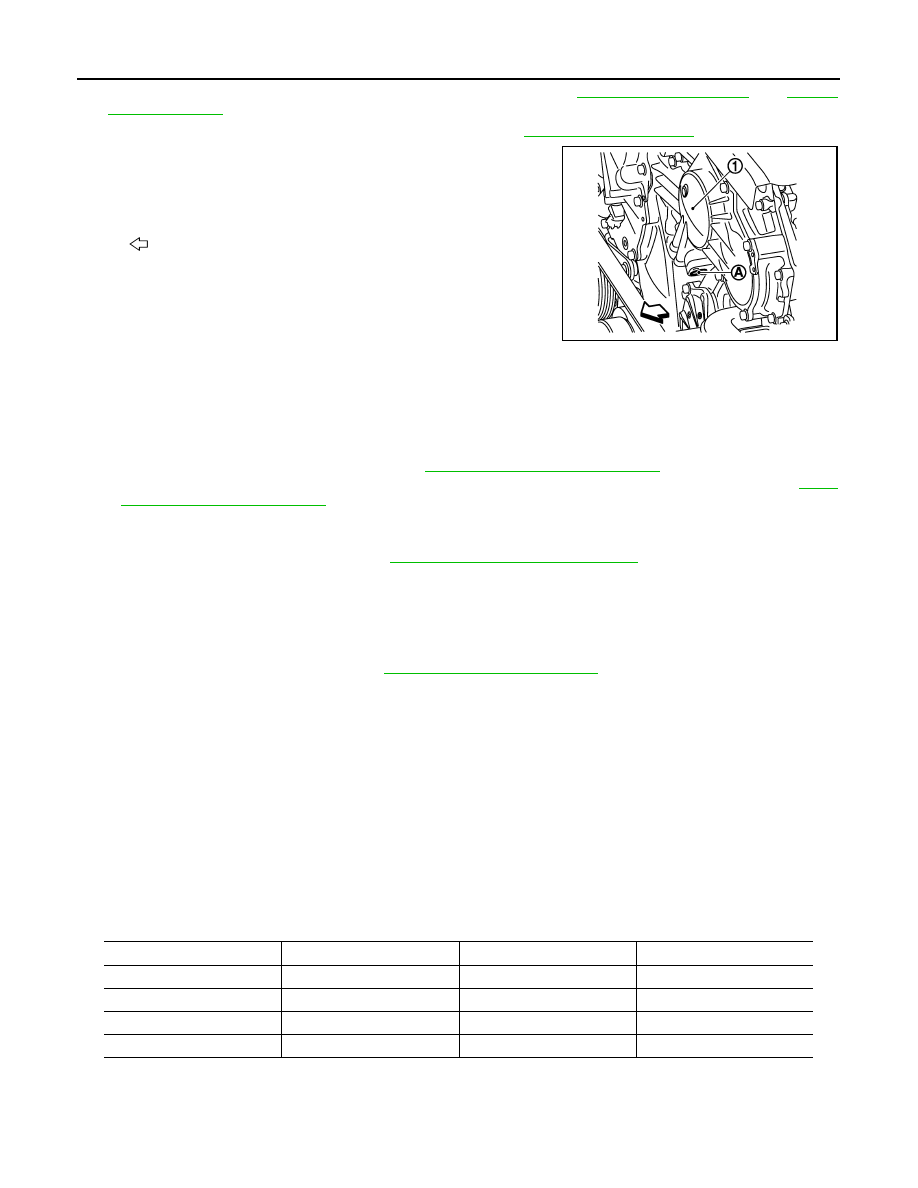

Crank engine, and then check that engine oil comes out from
intake valve timing control solenoid valve hole (A). End crank
after checking.

WARNING:

Be careful not to touch rotating parts. (drive belt, idler pul-
ley, and crankshaft pulley, etc.)

CAUTION:

• Prevent splashing by using a shop cloth so as to prevent

the worker from injury from engine oil and so as to prevent engine oil contamination.

• Prevent splashing by using a shop cloth so as to prevent engine oil from being splashed to

engine and vehicle. Especially, be careful no to apply engine oil to rubber parts of drive belt,
engine mounting insulator, etc. Wipe engine oil off immediately if it is splashed.

5.

Perform the following inspection if engine oil does not come out from intake valve timing control solenoid
valve oil hole of the cylinder head.
• Remove oil filter, and then clean it. Refer to

LU-10, "Removal and Installation"

.

• Clean oil groove between oil strainer and intake valve timing control solenoid valve. Refer to

LU-2,

"Engine Lubrication System"

.

6.

Remove components between intake valve timing control solenoid valve and camshaft sprocket (INT),
and then check each oil groove for clogging.
• Clean oil groove if necessary. Refer to

LU-2, "Engine Lubrication System"

.

7.

After inspection, install removed parts in the reverse order.

Inspection for Leakage

The following are procedures for checking fluids leak, lubricates leak.

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-11, "Fluids and Lubricants"

.

• Use procedure below to check for fuel leakage.
- Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-

age at connection points.

- Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.

NOTE:
If hydraulic pressure inside timing chain tensioner drops after removal/installation, slack in the guide may
generate a pounding noise during and just after engine start. However, this is normal. Noise will stop after
hydraulic pressure rises.

• Warm up engine thoroughly to check there is no leakage of fuel, or any oil/fluids including engine oil and

engine coolant.

• Bleed air from lines and hoses of applicable lines, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the

specified level, if necessary.

Summary of the inspection items:

*: Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.

1

: Valve timing control cover (bank 2)

: Engine front

JPBIA1783ZZ

Items

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Other oils and fluid*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

OIL SEAL

EM-93

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

OIL SEAL

VALVE OIL SEAL

VALVE OIL SEAL : Removal and Installation

INFOID:0000000003802286

REMOVAL

1.

Remove camshaft relating to valve oil seal to be removed. Refer to

EM-84, "Exploded View"

.

2.

Remove valve lifters. Refer to

EM-84, "Exploded View"

.

3.

Turn crankshaft until the cylinder requiring new oil seals is at TDC. This will prevent valve from dropping
into cylinder.

4.

Remove valve collet.

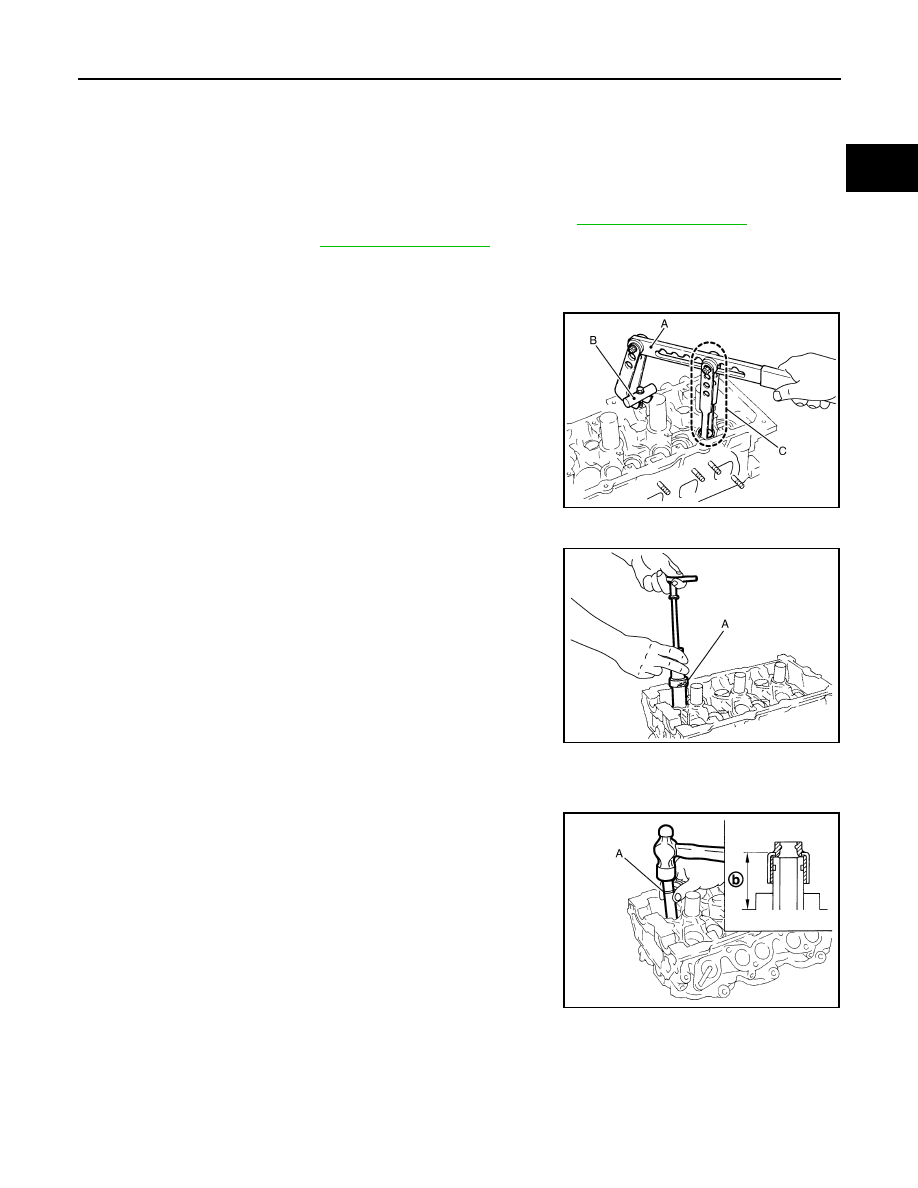

• Compress valve spring with the valve spring compressor [SST:

KV10116200 (J26336-A)] (A), the attachment [SST:
KV10115900 (J26336-20)] (C), the adapter [SST:
KV10109220 (

)] (B). Remove valve collet with a magnet

hand.

CAUTION:

When working, take care not to damage valve lifter holes.

5.

Remove valve spring retainer, and valve spring.

6.

Remove valve oil seal using the valve oil seal puller [SST:
KV10107902 (J38959)] (A).

INSTALLATION

1.

Apply new engine oil on new valve oil seal joint and seal lip.

2.

Using the valve oil seal drift [SST: KV10115600 (J-38958)] (A),
press fit valve seal to height (b) shown in the figure.
NOTE:
Dimension: Height measured before valve spring seat installa-
tion

3.

Install in the reverse order of removal after this step.

FRONT OIL SEAL

FRONT OIL SEAL : Removal and Installation

INFOID:0000000003802287

REMOVAL

JPBIA0180ZZ

JPBIA0177ZZ

Intake and exhaust

: 14.3 - 14.9 mm (0.563 - 0.587 in)

JPBIA0178ZZ

EM-94

< DISASSEMBLY AND ASSEMBLY >

OIL SEAL

1.

Remove the following parts:
• Road wheel and tire (RH)
• Splash guard (RH): Refer to

EXT-22, "FENDER PROTECTOR : Exploded View"

.

• Drive belt: Refer to

EM-12, "Removal and Installation"

.

• Crankshaft pulley: Refer to

EM-52, "Exploded View"

.

2.

Remove front oil seal using a suitable tool.

CAUTION:

Be careful not to damage front timing chain case and crank-
shaft.

INSTALLATION

1.

Apply new engine oil to both oil seal lip and dust seal lip of new front oil seal.

2.

Install front oil seal.

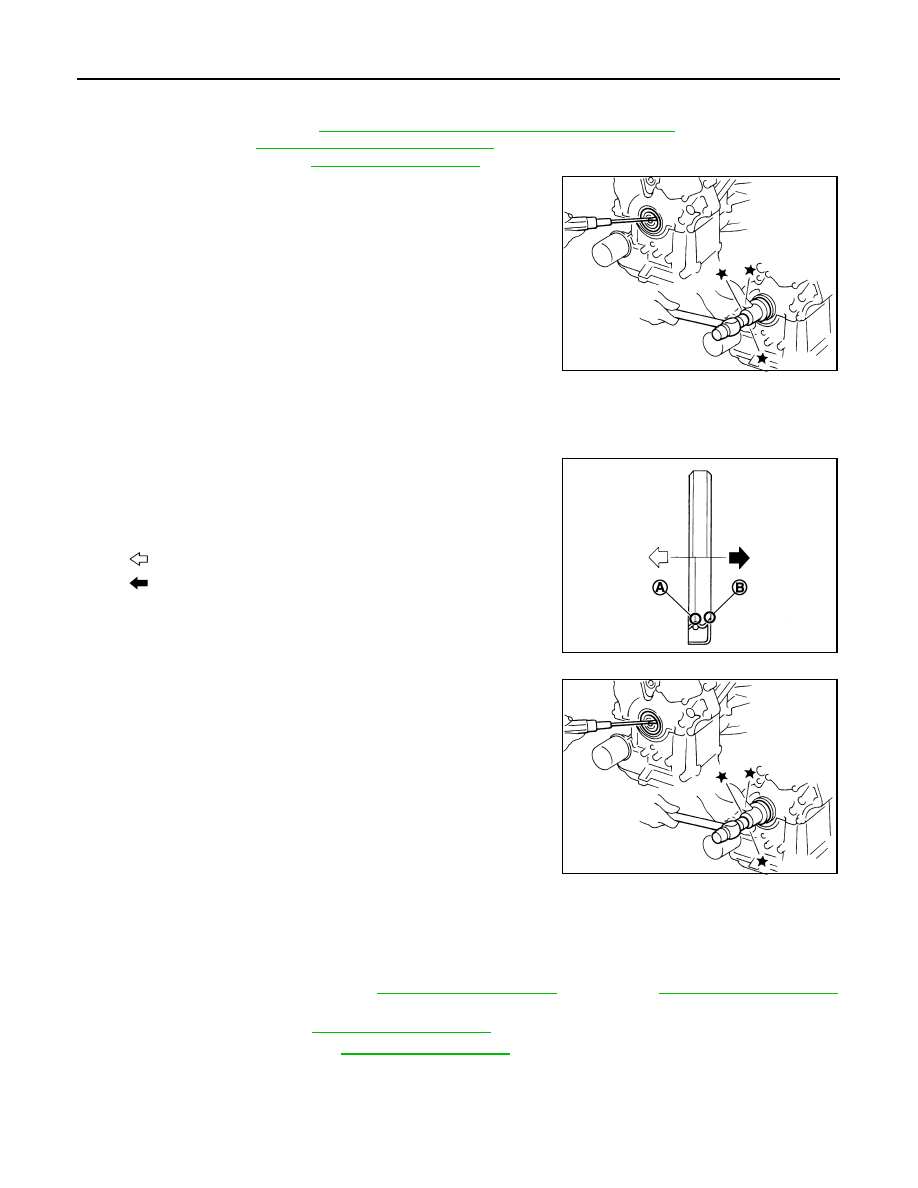

• Install front oil seal so that each seal lip is oriented as shown in

the figure.

• Using a suitable drift, press-fit until the height of front oil seal is

level with the mounting surface.

- Suitable drift: outer diameter 60 mm (2.36 in), inner diameter

50 mm (1.97 in).

• Check the garter spring is in position and seal lips not inverted.

CAUTION:

• Be careful not to damage front timing chain case and

crankshaft.

• Press-fit straight and avoid causing burrs or tilting oil

seal.

3.

Install in the reverse order of removal after this step.

REAR OIL SEAL

REAR OIL SEAL : Removal and Installation

INFOID:0000000003802288

REMOVAL

1.

Remove transaxle assembly. Refer to

TM-332, "Exploded View"

 (VQ25DE) or

TM-168, "Exploded View"

(VQ35DE).

2.

Remove drive plate. Refer to

EM-107, "Exploded View"

.

3.

Remove oil pan (upper). Refer to

EM-38, "Exploded View"

.

SEM829E

A

:  Oil  seal  lip

B

: Dust seal lip

: Engine inside

: Engine outside

JPBIA0054ZZ

SEM829E

OIL SEAL

EM-95

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

4.

Use a seal cutter (SST) to cut away liquid gasket and remove
rear oil seal retainer.

CAUTION:

Be careful not to damage mating surfaces.
NOTE:
Regard both rear oil seal and retainer a an assembly.

INSTALLATION

1.

Remove old liquid gasket on mating surfaces of cylinder block and oil pan (upper) using scraper.

2.

Apply new engine oil to both oil seal lip and dust seal lip of new oil seal retainer.

3.

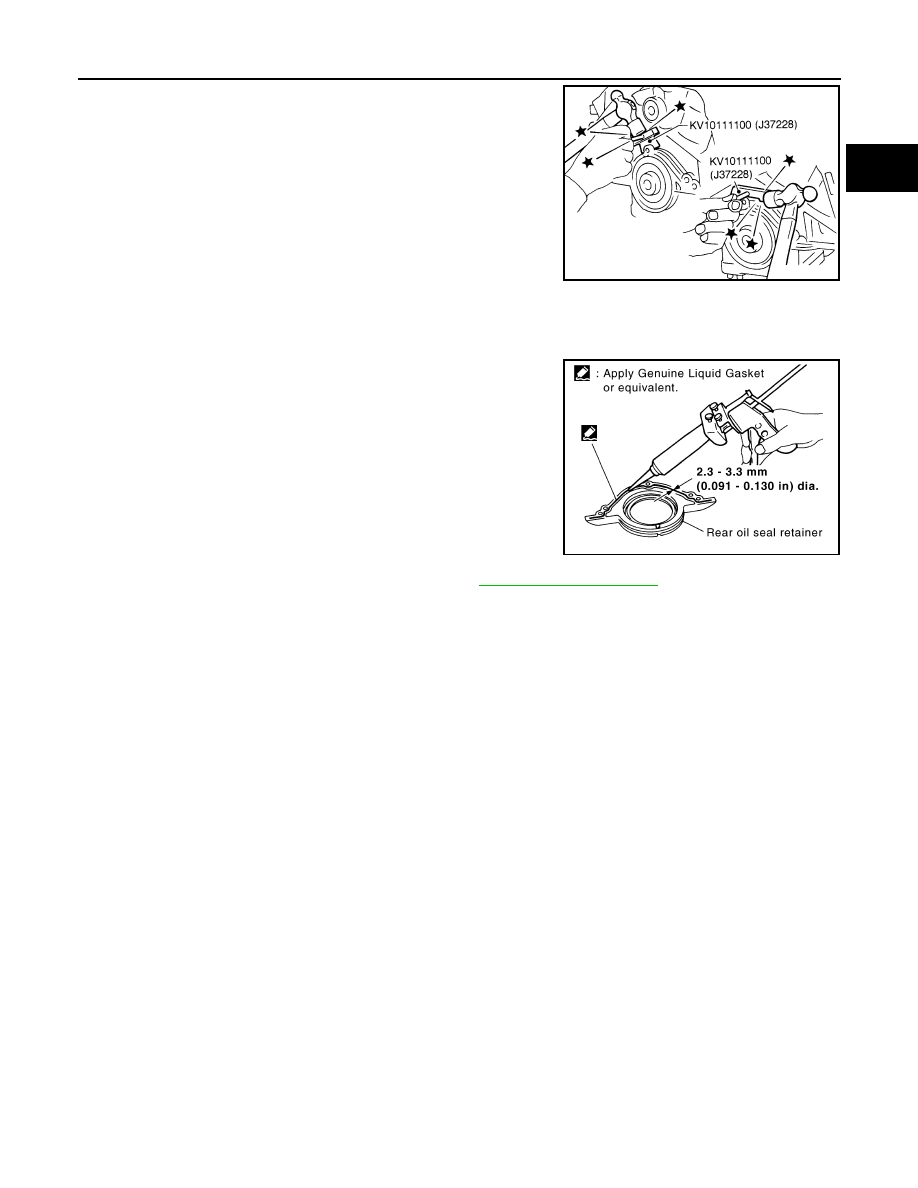

Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) to rear oil seal retainer as shown in the
figure.
Use Genuine Liquid Gasket or equivalent.

CAUTION:

Attaching should be done within 5 minutes after coating.

4.

Install rear oil seal retainer to cylinder block. Refer to

EM-107, "Exploded View"

.

• Check the garter spring is in position and seal lips not inverted.

5.

Install in the reverse order of removal after this step.

SEM830E

PBIC2649E
