EM-68

< REMOVAL AND INSTALLATION >

ENGINE ASSEMBLY

• Place chocks at front and back of rear wheels.
• For engines not equipped with engine slingers, attach proper slingers and bolts described in PARTS

CATALOG.

CAUTION:

• Always be careful to work safely, avoid forceful or uninstructed operations.
• Never start working until exhaust system and engine coolant are cool enough.
• If items or work required are not covered by the engine section, refer to the applicable sections.
• Always use the support point specified for lifting.
• Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for unavoid-

able reasons, support at the rear axle jacking point with transmission jack or similar tool before
starting work, in preparation for the backward shift of center of gravity.

• For supporting points for lifting and jacking point at rear axle, refer to

GI-30, "Garage Jack and

Safety Stand and 2-Pole Lift"

.

REMOVAL

Outline

At first, remove the engine and the transaxle assembly with front suspension member downward. Then sepa-
rate the engine and the transaxle.

Preparation

1.

Release fuel pressure. Refer to

EC-411, "Inspection"

.

2.

Drain engine coolant. Refer to

CO-8, "Draining"

.

CAUTION:

• Perform this step when the engine is cold.
• Never spill engine coolant on drive belt.

3.

Remove the following parts:
• Engine cover: Refer to

EM-24, "Exploded View"

.

• Front road wheel and tires
• Splash guards (RH and LH): Refer to

EXT-22, "FENDER PROTECTOR : Exploded View"

.

• Air duct (inlet), air cleaner cases (upper and lower) with mass air flow sensor and air duct assembly:

Refer to

EM-26, "Exploded View"

.

• Battery and battery tray: Refer to

PG-109, "Removal and Installation"

.

• Drive belt: Refer to

EM-12, "Removal and Installation"

.

• Reservoir tank of radiator. Refer to

CO-13, "Exploded View"

.

• Front wiper arm: Refer to

WW-105, "Exploded View"

.

4.

Disconnect engine room harness at the TCM, ECM and other sides.

CAUTION:

To keep clean harness connector and avoid damage and foreign materials, cover them completely
with plastic bags or something similar.

5.

Remove battery bracket with ECM and TCM.

6.

Remove extension cowl top. Refer to

EXT-20, "Exploded View"

.

Engine Room

1.

Disconnect heater hoses. Refer to

CO-25, "Exploded View"

.

• Install plug to avoid leakage of engine coolant.

2.

Remove EVAP hose. Refer to

EM-28, "Exploded View"

.

3.

Disconnect fuel feed hose quick connector at fuel tube side. Refer to

EM-44, "Exploded View"

.

• Install plug to avoid leakage of fuel.

4.

Disconnect transaxle shift control cable at transaxle side. Refer to

TM-319, "Exploded View"

 (VQ25DE) or

TM-157, "Exploded View"

 (VQ35DE).

5.

Disconnect brake booster vacuum hose at engine side. Refer to

EM-28, "Exploded View"

.

6.

Disconnect ground cable.

7.

Disconnect A/C compressor piping at A/C compressor side. Refer to

HA-36, "Exploded View"

.

8.

Disconnect suction hoses of power steering oil pump at reservoir tank side. Refer to

ST-34, "Exploded

View"

.

• Install plug to avoid leakage of power steering fluid.

9.

Disconnect CVT fluid cooler hoses from radiator. Refer to

CO-13, "Exploded View"

.

ENGINE ASSEMBLY

EM-69

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

10. Remove starter motor. Refer to

STR-15, "VQ25DE : Exploded View"

 (VQ25DE) or

STR-20, "VQ35DE :

Exploded View"

 (VQ35DE).

Vehicle Underbody

1.

Remove front drive shafts (RH and LH). Refer to

FAX-16, "Exploded View"

.

2.

Remove exhaust front tube. Refer to

EX-5, "Exploded View"

.

3.

Remove heat insulator.

4.

Disconnect steering lower joint at power steering gear assembly side, and release steering lower shaft.
Refer to

ST-16, "Exploded View"

.

5.

Disconnect front stabilizer connecting rod. Refer to

FSU-14, "Exploded View"

.

6.

Remove strut assembly and steering knuckle fixing nuts and bolts. Refer to

FSU-9, "Exploded View"

 and

FAX-8, "Exploded View"

.

7.

Remove front wheel sensor (RH and LH) for ABS from steering knuckle. Refer to

BRC-57, "FRONT

WHEEL SENSOR : Exploded View"

.

8.

Remove front brake caliper assembly with piping connected, and temporarily secure it to aside for vehicle
side. Refer to

BR-34, "BRAKE CALIPER ASSEMBLY : Exploded View"

.

9.

Disconnect power steering piping at a point between vehicle and engine. Refer to

ST-34, "Exploded

View"

.

• Install plug to avoid leakage of power steering fluid.

10. Remove rear plate cover from oil pan (upper). Then remove bolts fixing drive plate to torque converter.

Refer to

EM-38, "Exploded View"

 and

TM-332, "Removal and Installation"

 (VQ25DE) or

TM-168,

"Removal and Installation"

 (VQ35DE).

11. Remove transaxle joint bolts which pierce at oil pan (upper) lower rear side. Refer to

EM-38, "Exploded

View"

.

12. Remove crankshaft position sensor (POS). Refer to

EM-38, "Exploded View"

.

CAUTION:

• Handle carefully to avoid dropping and shocks.
• Never disassemble.
• Never allow metal powder to adhere to magnetic part at sensor tip.
• Never place sensors in a location where they are exposed to magnetism.

Removal

1.

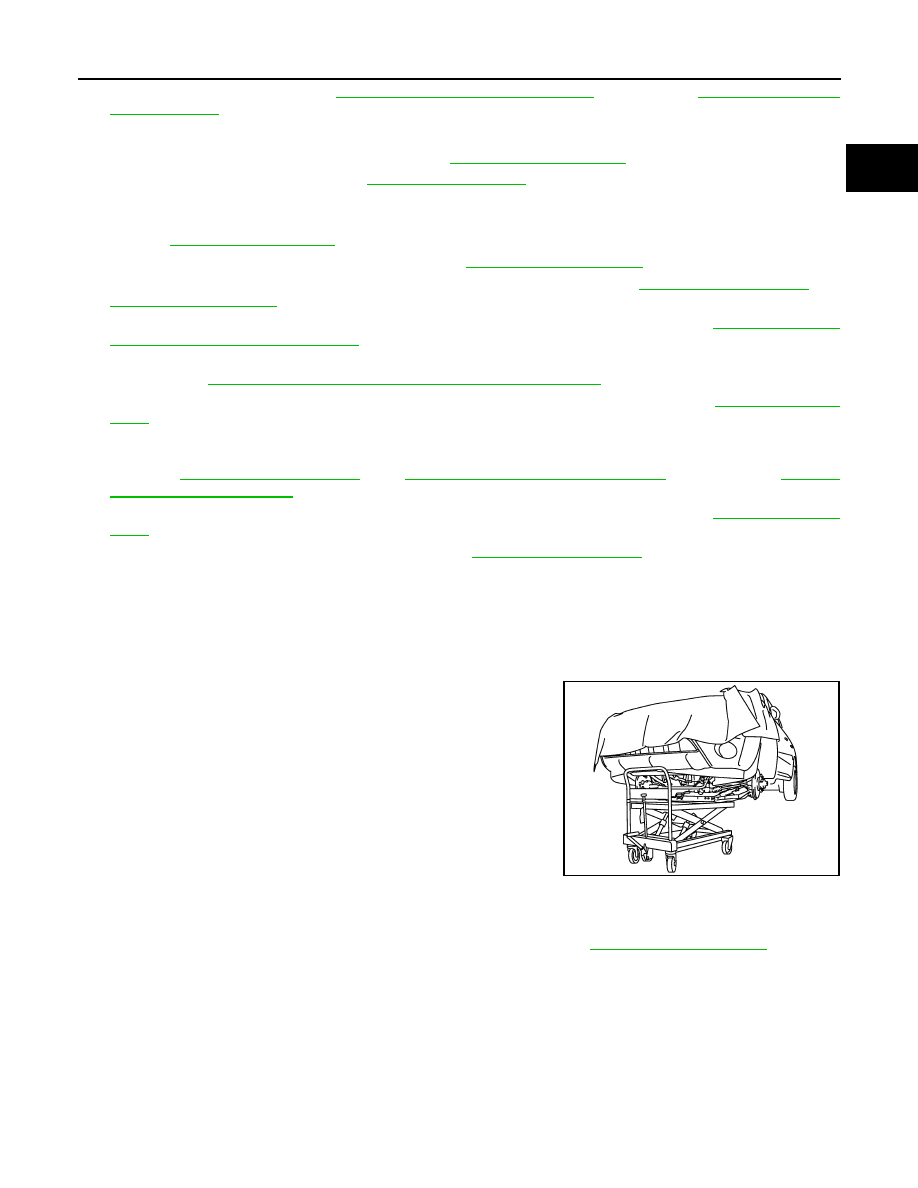

Use a manual lift table caddy (commercial service tool) or equiv-
alently rigid tool such as a transmission jack. Securely support
bottom of front suspension member.

CAUTION:

Put a piece of wood or something similar as the supporting
surface, secure a completely stable condition.

2.

Remove engine mounting insulator (RH) and engine mounting bracket (RH).

3.

Remove mounting bolt between transverse link and front suspension member with power tool.

4.

Remove front suspension member mounting nuts and bolts. Refer to

FSU-16, "Exploded View"

.

5.

Carefully lower jack, or raise lift to remove the engine and the transaxle assembly and front suspension
member. When performing work, observe the following caution:

CAUTION:

• Confirm there is no interference with the vehicle.
• Check all connection points have been disconnected.
• Keep in mind the center of vehicle gravity changes. If necessary, use jack(s) to support the vehi-

cle at rear jacking point(s) to prevent it from falling it off the lift.

Separation

PBIC1190E

EM-70

< REMOVAL AND INSTALLATION >

ENGINE ASSEMBLY

1.

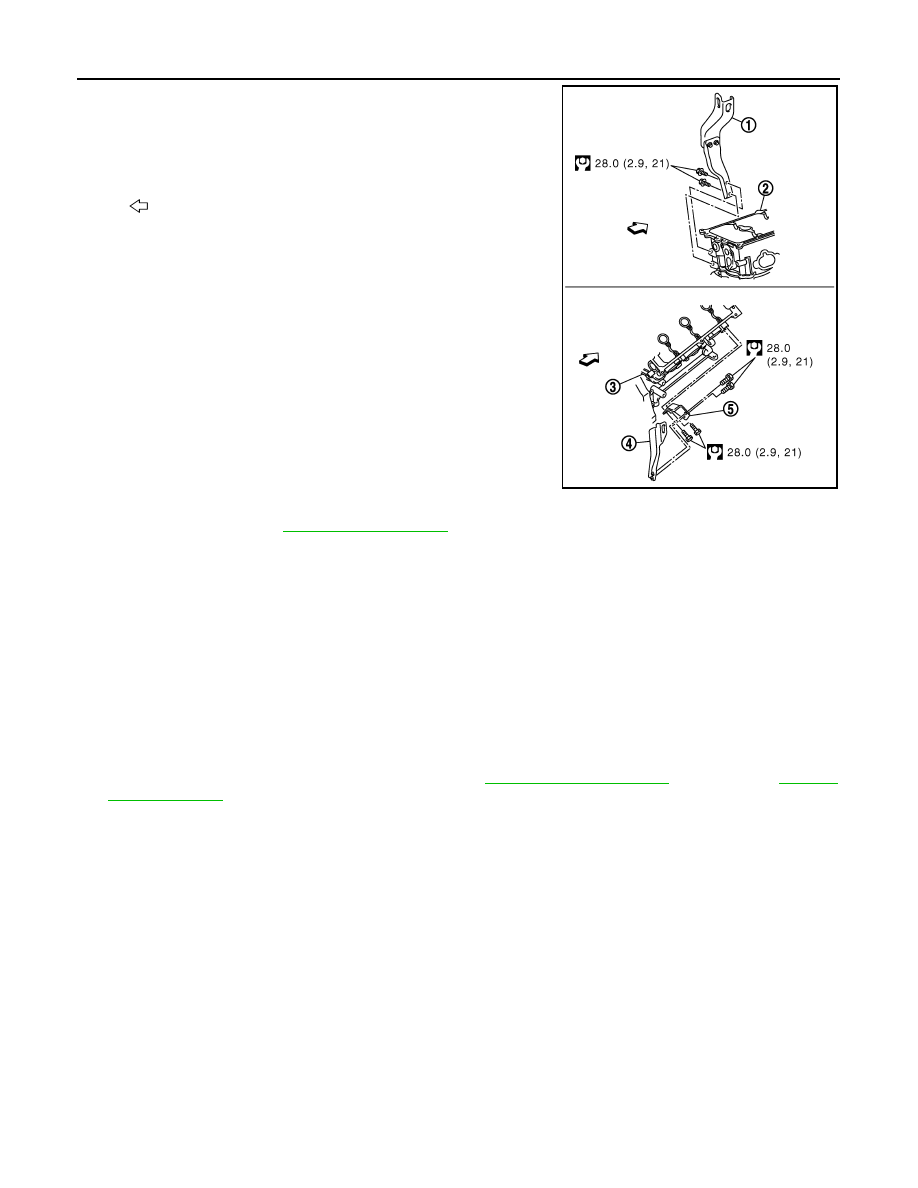

Install engine slingers into front of cylinder head (bank 1) (3) and
rear of cylinder head (bank 2) (2).

2.

Remove power steering oil pump, power steering piping and power steering bracket from engine and tran-
saxle assembly. Refer to

ST-34, "Exploded View"

.

3.

Disconnect vacuum hoses of front engine mounting insulator and rear engine mounting insulator.

4.

Lift with hoist the engine and the transaxle assembly and front suspension member.

CAUTION:

• Before and during this lifting, always check if any harnesses are left connected.
• Avoid damage to and oil/grease smearing or spills onto engine mounting insulator.

5.

Remove rear torque rod and rear torque rod bracket.

6.

Remove each engine mounting insulator and each engine mounting bracket from engine, transaxle and
front suspension member.

7.

Separate engine and transaxle assembly from front suspension member.

CAUTION:

• Before and during this lifting, always check if any harnesses are left connected.
• Avoid damage to and oil/grease smearing or spills onto engine mounting insulator.

8.

Separate engine and transaxle assembly. Refer to

TM-332, "Exploded View"

 (VQ25DE) or

TM-168,

"Exploded View"

 (VQ35DE).

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Never allow engine mounting insulator to be damage and careful no oil gets on it.
• Check all mounting insulators are seated properly, then tighten mounting nuts and bolts.

Preparation

1.

Install the engine mounting bracket (RH) to the engine as follows:

1

: Engine rear slinger

4

: Engine front slinger (upper)

5

: Engine front slinger (lower)

: Engine front

JPBIA1729ZZ

ENGINE ASSEMBLY

EM-71

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

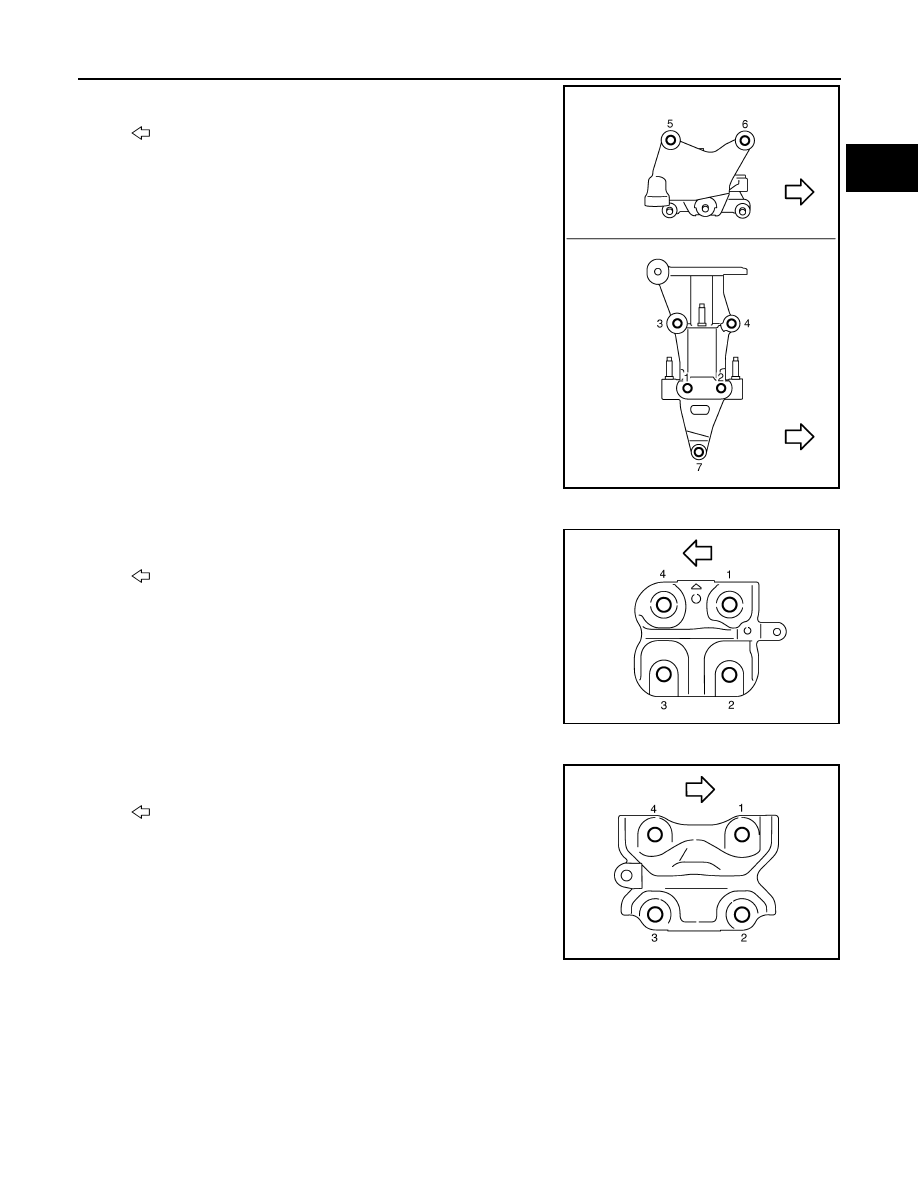

a.

Tighten the bolt No. 7 as shown in the figure. (temporarily)

b.

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

2.

Install the engine mounting bracket (front) to the engine as follows:

a.

Tighten the bolt No. 4 as shown in the figure. (temporarily)

b.

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

3.

Install the engine mounting bracket (rear) and gusset to the engine as follows:

a.

Tighten the bolt No. 4 as shown in the figure. (temporarily)

b.

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

4.

Install the rear torque rod bracket to the engine as follows:

a.

Tighten the bolt No. 3 as shown in the figure. (temporarily)

b.

Tighten the bolts in numerical order as shown in the figure. (specified torque)

: Vehicle front

JPBIA1730ZZ

: Engine front

JPBIA1731ZZ

: Engine front

JPBIA1732ZZ
