EM-8

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

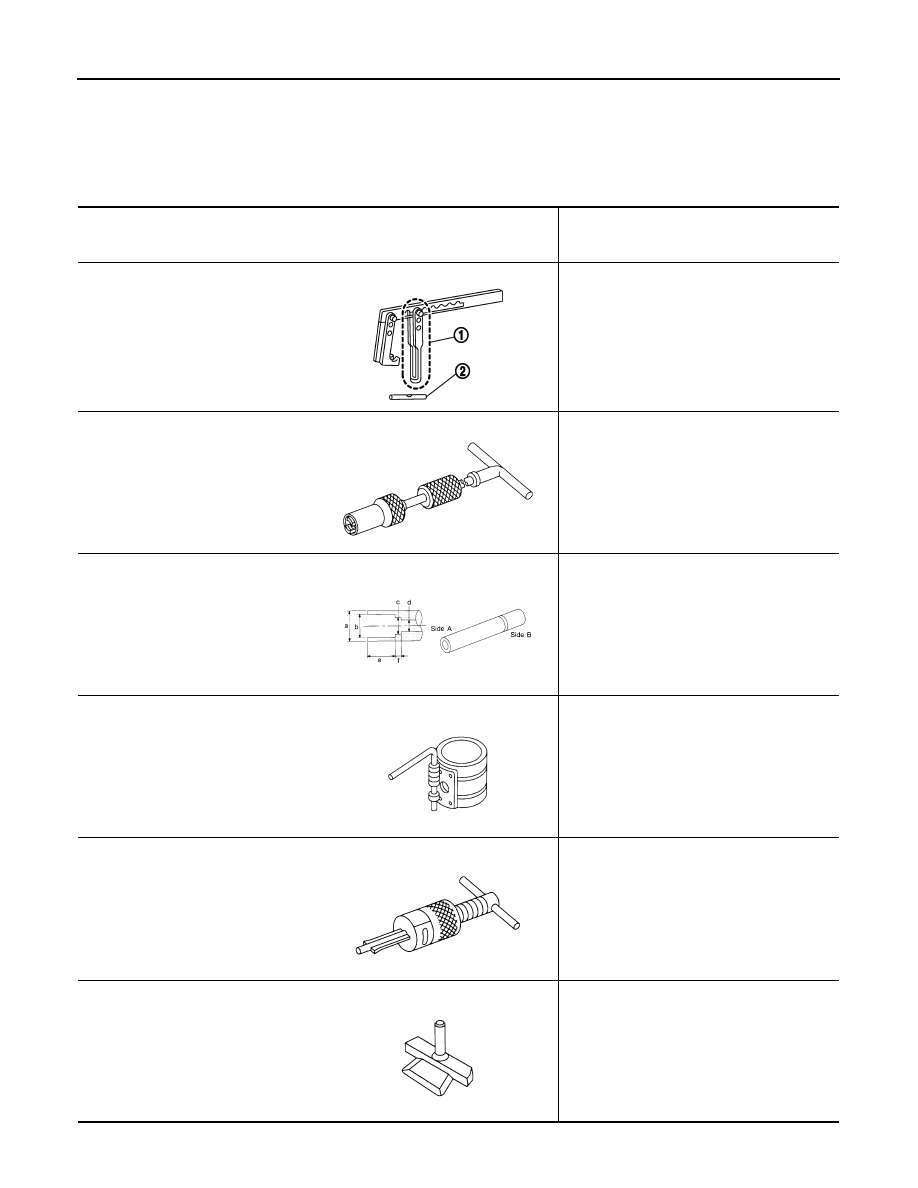

Special Service Tool

INFOID:0000000003802234

Tool number
(SPX North America No.)
Tool name

Description

KV10116200
(J26336-A)
Valve spring compressor
1. KV10115900
(J26336-20)
Attachment
2.KV10109220
(

—

)

Adapter

Disassembling valve mechanism
Part (1) is a component of KV10116200
(J26336-A), but Part (2) is not so.

KV10107902
(J38959)
Valve oil seal puller

Replacing valve oil seal

KV10115600
(J-38958)
Valve oil seal drift

Installing valve oil seal
Use side A.
a: 20 mm (0.79 in) dia.
b: 13 mm (0.51 in) dia.
c: 10 mm (0.406 in)
d: 8 mm (0.31 in) dia.
e: 10.7 mm (0.421 in)
f: 5 mm (0.20 in) dia.

EM03470000
(J8037)
Piston ring compressor

Installing piston assembly into cylinder bore

ST16610001
(J23907)
Pilot bushing puller

Removing pilot converter

KV10111100
(J37228)
Seal cutter

Removing oil pan (lower and upper), front and
rear timing chain case, etc.

PBIC1650E

NT011

S-NT603

NT044

NT045

NT046

PREPARATION

EM-9

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Commercial Service Tool

INFOID:0000000003802235

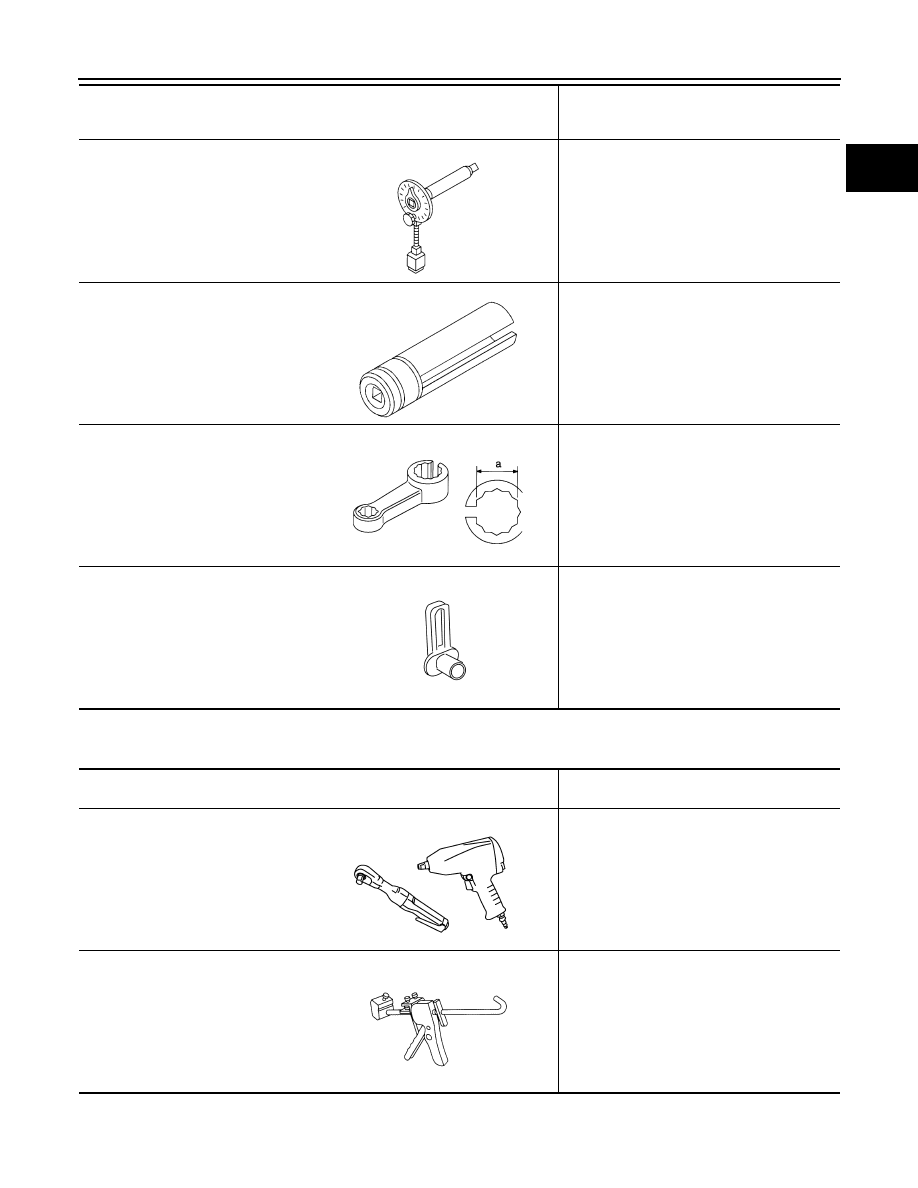

KV10112100
(BT8653-A)
Angle wrench

Tightening bolts for connecting rod bearing
cap, cylinder head, etc. in angle

KV10117100
(J3647-A)
Heated oxygen sensor wrench

Loosening or tightening air fuel ratio sensor 1
For 22 mm (0.87 in) width hexagon nut

KV10114400
(J38365)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor 2
a: 22 mm (0.87 in)

—

(J-45488)
Quick connector release

Removing fuel tube quick connectors in en-
gine room
(Available in SEC. 164 of PARTS CATALOG:
Part No. 16441 6N210)

Tool number
(SPX North America No.)
Tool name

Description

NT014

NT379

NT636

PBIC0198E

(SPX North America No.)
Tool name

Description

(

—

)

Power tool

Loosening bolts and nuts

(

—

)

Tube presser

Pressing the tube of liquid gasket

PBIC0190E

NT052

EM-10

< PREPARATION >

PREPARATION

(

—

)

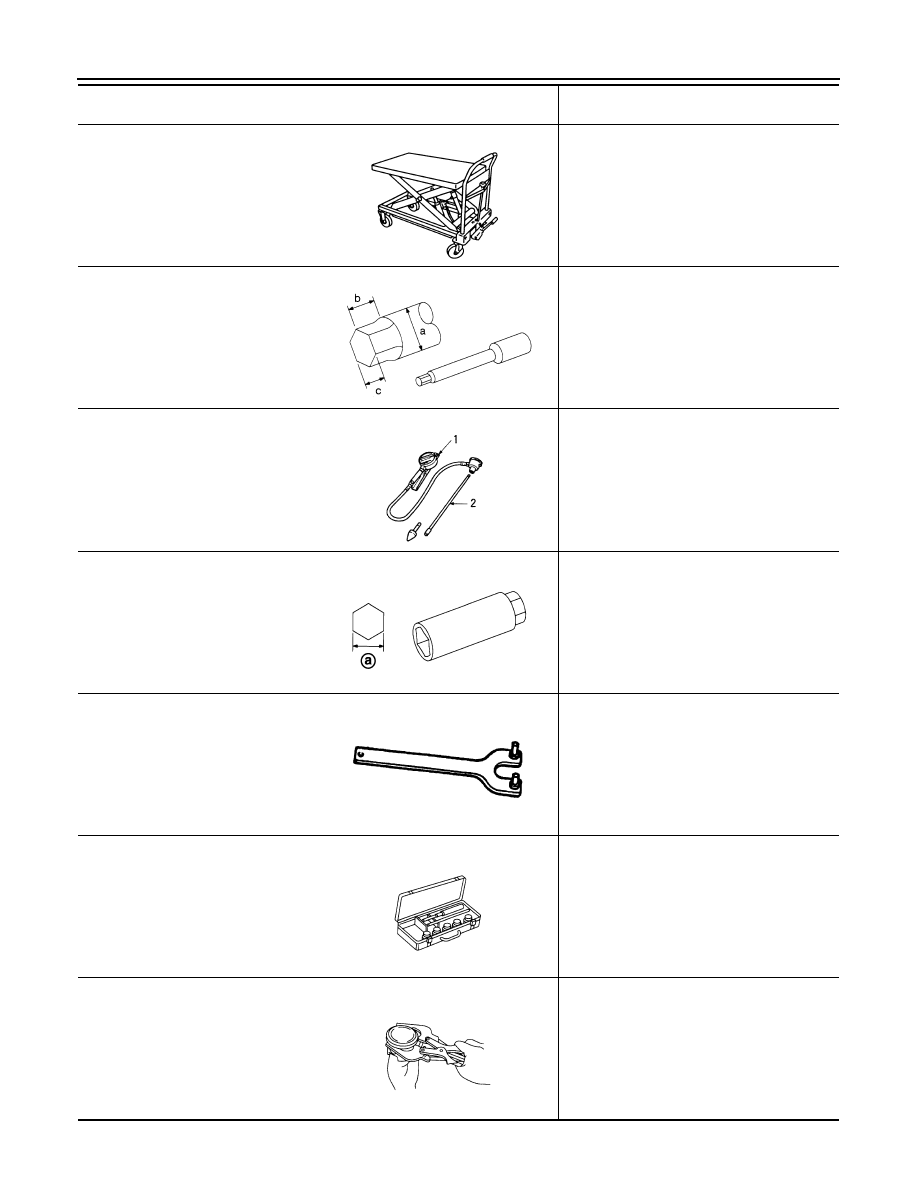

Manual lift table caddy

Removing and installing engine

(J24239-01)
Cylinder head bolt wrench

Loosening and tightening cylinder head bolt,
and used with the angle wrench [SST:
KV10112100 (BT8653-A)]
a: 13 mm (0.51 in) dia.
b: 12 mm (0.47 in)
c: 10 mm (0.39 in)

(

—

)

1.Compression tester
2.Adapter

Checking compression pressure

(

—

)

Spark plug wrench

Removing and installing spark plug
a: 14 mm (0.55 in)

(

—

)

Pulley holder

Removing and installing crankshaft pulley

(

—

)

Valve seat cutter set

Finishing valve seat dimensions

(

—

)

Piston ring expander

Removing and installing piston ring

(SPX North America No.)
Tool name

Description

ZZA1210D

NT583

ZZA0008D

JPBIA0399ZZ

ZZA1010D

NT048

NT030

PREPARATION

EM-11

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

(

—

)

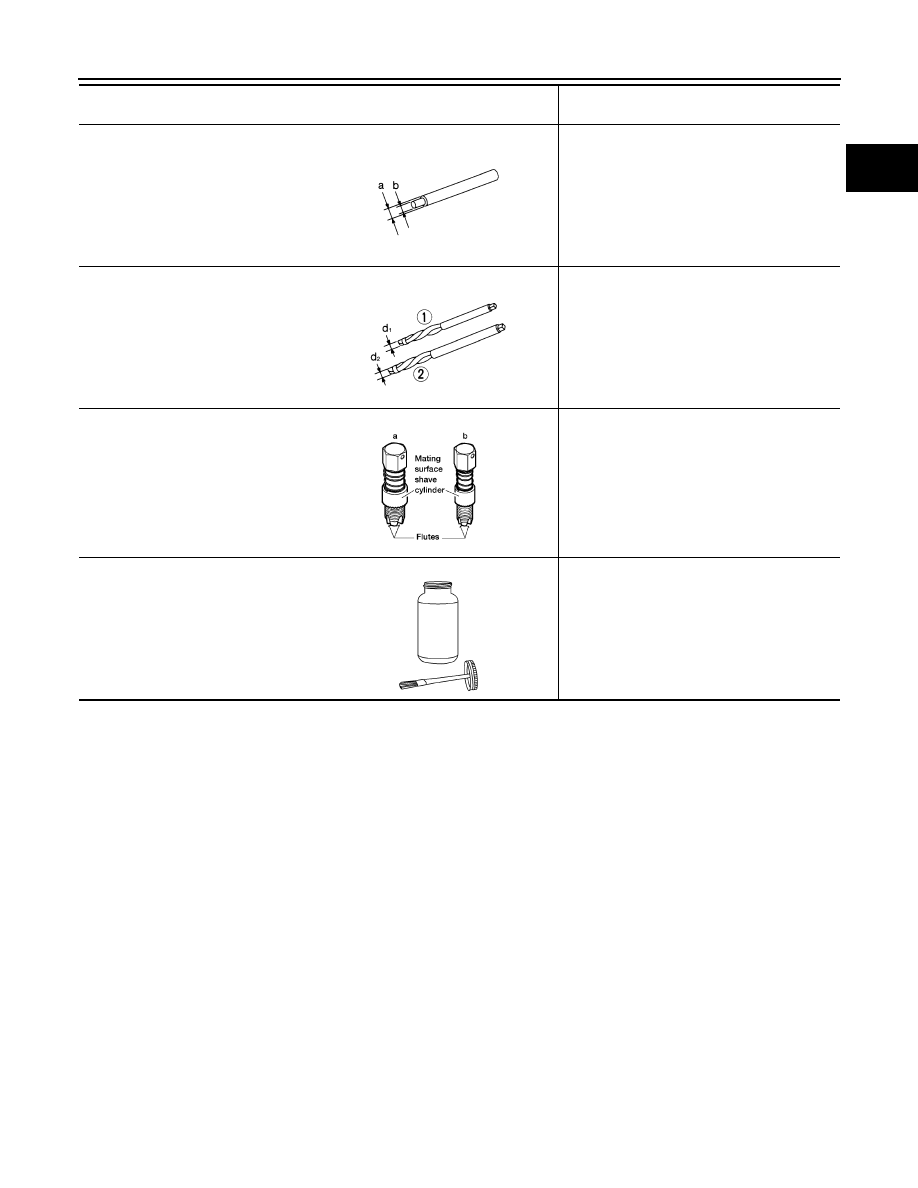

Valve guide drift

Removing and installing valve guide
Intake and Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.

(

—

)

Valve guide reamer

(1): Reaming valve guide inner hole
(2): Reaming hole for oversize valve guide
Intake and Exhaust:
d

1

: 6.0 mm (0.236 in) dia.

d

2

: 10.2 mm (0.402 in) dia.

a: (J-43897-18)
b: (J-43897-12)
Oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new air fuel ratio sensor and
heated oxygen sensor (Use with anti-seize lu-
bricant shown below.)
a: J-43897-18 [18 mm (0.71 in) dia.] for zir-
conia heated oxygen sensor and air fuel
ratio sensor
b: J-43897-12 [12 mm (0.47 in) dia.] for tita-
nia heated oxygen sensor

(

—

)

Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)

Lubricating air fuel ratio sensor and oxygen
sensor threads cleaning tool when recondi-
tioning exhaust system threads

(SPX North America No.)
Tool name

Description

NT015

NT016

AEM488

AEM489
