CONTENTS

DEFOGGER

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORKFLOW  ..........

3

Work Flow  .................................................................

3

FUNCTION DIAGNOSIS ...............................

4

REAR WINDOW DEFOGGER SYSTEM .............

4

WITH AV CONTROL UNIT  ..........................................

4

WITH AV CONTROL UNIT : System Diagram ..........

4

WITH AV CONTROL UNIT : System Description ......

4

WITH AV CONTROL UNIT : Component Parts Lo-
cation .......................................................................
..

5

WITH AV CONTROL UNIT : Component Descrip-
tion ..........................................................................
..

5

WITHOUT AV CONTROL UNIT  ..................................

6

WITHOUT AV CONTROL UNIT : System Diagram

......

6

WITHOUT AV CONTROL UNIT : System Descrip-
tion ..........................................................................
..

6

WITHOUT AV CONTROL UNIT : Component
Parts Location  .........................................................
..

7

WITHOUT AV CONTROL UNIT : Component De-
scription ...................................................................
..

7

DIAGNOSIS SYSTEM (BCM)  .............................

8

COMMON ITEM  ...........................................................

8

COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .....................................................
..

8

REAR WINDOW DEFOGGER .....................................

9

REAR WINDOW DEFOGGER : CONSULT-III
Function (BCM - REAR DEFOGGER)  ....................
..

9

COMPONENT DIAGNOSIS  .........................

11

POWER SUPPLY AND GROUND CIRCUIT ......

11

Diagnosis Procedure ...............................................

11

REAR WINDOW DEFOGGER SWITCH  ............

12

WITH AV CONTROL UNIT  ........................................

12

WITH AV CONTROL UNIT : Description .................

12

WITH AV CONTROL UNIT : Component Function
Check ......................................................................

12

WITH AV CONTROL UNIT : Diagnosis Procedure ....

12

WITHOUT AV CONTROL UNIT .................................

12

WITHOUT AV CONTROL UNIT : Description  .........

12

WITHOUT AV CONTROL UNIT : Component
Function Check ........................................................

12

WITHOUT AV CONTROL UNIT : Diagnosis Pro-
cedure ......................................................................

12

REAR WINDOW DEFOGGER RELAY  .............

14

Description ...............................................................

14

Component Function Check  ....................................

14

Diagnosis Procedure  ...............................................

14

Component Inspection .............................................

15

REAR WINDOW DEFOGGER  ..........................

16

Description ...............................................................

16

Component Function Check  ....................................

16

Diagnosis Procedure  ...............................................

16

Component Inspection .............................................

18

DOOR MIRROR DEFOGGER ...........................

19

Description ...............................................................

19

Component Function Check  ....................................

19

Diagnosis Procedure  ...............................................

19

DRIVER SIDE DOOR MIRROR DEFOGGER ...

21

Description ...............................................................

21

Component Function Check  ....................................

21

Diagnosis Procedure  ...............................................

21

PASSENGER SIDE DOOR MIRROR DEFOG-
GER ...................................................................

23

Description ...............................................................

23

Component Function Check  ....................................

23

Diagnosis Procedure  ...............................................

23

REAR WINDOW DEFOGGER ON SIGNAL  .....

25

DEF-2

Description ..............................................................

25

Component Function Check  ...................................

25

Diagnosis Procedure  ..............................................

25

ECU DIAGNOSIS  ........................................

26

BCM (BODY CONTROL MODULE)  ..................

26

Reference Value  .....................................................

26

Wiring Diagram - DEFOGGER SYSTEM -  .............

49

Fail-safe ..................................................................

53

DTC Inspection Priority Chart ..............................

55

DTC Index ..............................................................

56

SYMPTOM DIAGNOSIS  .............................

58

REAR WINDOW DEFOGGER AND DOOR
MIRROR DEFOGGER DO NOT OPERATE.  .....

58

Diagnosis Procedure  ..............................................

58

REAR WINDOW DEFOGGER DOES NOT
OPERATE BUT BOTH DOOR MIRROR DE-
FOGGERS OPERATE.  ......................................

59

Diagnosis Procedure  ..............................................

59

DOOR MIRROR DEFOGGER DOES NOT OP-
ERATE ...............................................................

60

BOTH SIDES .............................................................

60

BOTH SIDES : Diagnosis Procedure  .....................

60

DRIVER SIDE ............................................................

60

DRIVER SIDE : Diagnosis Procedure  ....................

60

PASSENGER SIDE ...................................................

60

PASSENGER SIDE : Diagnosis Procedure  ...........

60

ON IS NOT DISPLAYED WHEN PRESSING
REAR WINDOW DEFOGGER SWITCH BUT
IT OPERATES  ...................................................

61

WITH AV CONTROL UNIT ........................................

61

WITH AV CONTROL UNIT : Diagnosis Procedure ...

61

WITHOUT AV CONTROL UNIT  ................................

61

WITHOUT AV CONTROL UNIT : Diagnosis Pro-
cedure .....................................................................

61

REAR WINDOW DEFOGGER INDICATOR
DOES NOT ILLUMINATE ..................................

62

WITH AV CONTROL UNIT ........................................

62

WITH AV CONTROL UNIT : Diagnosis Procedure ...

62

WITHOUT AV CONTROL UNIT  ................................

62

WITHOUT AV CONTROL UNIT : Diagnosis Pro-
cedure .....................................................................

62

PRECAUTION ............................................

63

PRECAUTIONS  .................................................

63

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

63

ON-VEHICLE REPAIR  ...............................

64

FILAMENT .........................................................

64

Inspection and Repair  .............................................

64

CONDENSER ....................................................

66

Exploded View  ........................................................

66

Removal and Installation .........................................

66

DIAGNOSIS AND REPAIR WORKFLOW

DEF-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000003806024

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much malfunction information (conditions and environment when the mal-
function occurred) as possible when the customer brings the vehicle in.

>> GO TO 2.

2.

CHECK DTC

Perform self diagnosis with CONSULT-III
Is any DTC detected?

YES

>> Refer to

BCS-74, "DTC Index"

NO

>> GO TO 3.

3.

REPRODUCE THE MALFUNCTION INFORMATION

Check the malfunction on the vehicle that the customer describes.
Inspect the relation of the symptoms and the condition when the symptoms occur.

>> GO TO 4.

4.

IDENTIFY THE MALFUNCTIONING SYSTEM WITH “SYMPTOM DIAGNOSIS”

Use “Symptom diagnosis” from the symptom inspection result in step 3. Then identify where to start perform-
ing the diagnosis based on possible causes and symptoms.

>> GO TO 5.

5.

IDENTIFY MALFUNCTIONING PARTS WITH “COMPONENT DIAGNOSIS”

Perform the diagnosis with “Component diagnosis” of the applicable system.

>> GO TO 6.

6.

REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the specified malfunctioning parts.

>> GO TO 7.

7.

FINAL CHECK

Check that malfunctions are not reproduced when obtaining the malfunction information from the customer,
referring to the symptom inspection result in step 3.
Are all malfunctions corrected?

YES

>> INSPECTION END

NO

>> GO TO 4.

DEF-4

< FUNCTION DIAGNOSIS >

REAR WINDOW DEFOGGER SYSTEM

FUNCTION DIAGNOSIS

REAR WINDOW DEFOGGER SYSTEM

WITH AV CONTROL UNIT

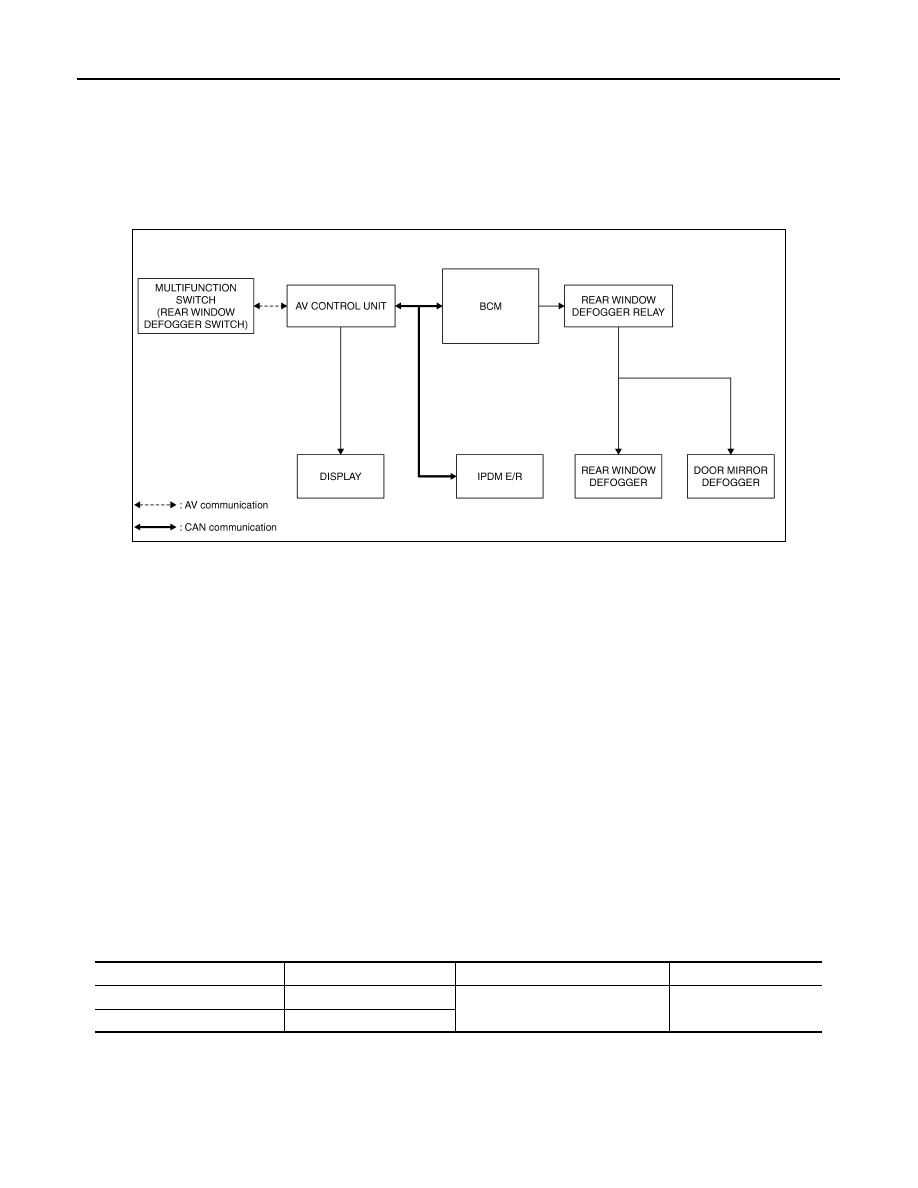

WITH AV CONTROL UNIT : System Diagram

INFOID:0000000003806025

WITH AV CONTROL UNIT : System Description

INFOID:0000000003806026

Operation Description

• Turn rear window defogger switch ON when the ignition switch is turned ON. Then multifunction switch (rear

window defogger switch) transmits rear window defogger switch signal to AV control unit via AV communica-
tion. AV control unit transmits rear window defogger switch signal to BCM via CAN communication.

• BCM turns rear window defogger relay ON and transmits rear window defogger control signal to IPDM E/R

via CAN communication when rear window defogger switch signal is received.

• Rear window defogger and door mirror defogger are supplied with power and operate when rear window

defogger relay turns ON.

• IPDM E/R transmits rear window defogger control signal to AV control unit via CAN communication.
• When receiving the signal, AV control unit indicates rear defogger ON on the display. At the same time, AV

control unit transmits rear defogger control signal to multifunction switch (rear window defogger switch) via
AV communication and illuminates rear defogger switch indicator.

Timer function

• BCM turns rear window defogger relay ON for approximately 15 minutes when rear window defogger switch

is turned ON. It makes rear window defogger and door mirror defogger (with door mirror defogger) operate.

• Timer is canceled after pressing rear window defogger switch again during timer operation. Then BCM turns

rear window defogger relay OFF. The same reaction also occurs during timer operation, if the ignition switch
is turned OFF.

INPUT/OUTPUT SIGNAL CHART

JMLIA0005GB

Switch

Input signal to BCM

BCM function

Actuator

Rear window defogger switch

Defogger switch signal

Rear window defogger & Door mir-

ror defogger control

Rear window defogger

Door mirror defogger

Push button ignition switch

Ignition signal
