CO-20

< ON-VEHICLE REPAIR >

WATER PUMP

b.

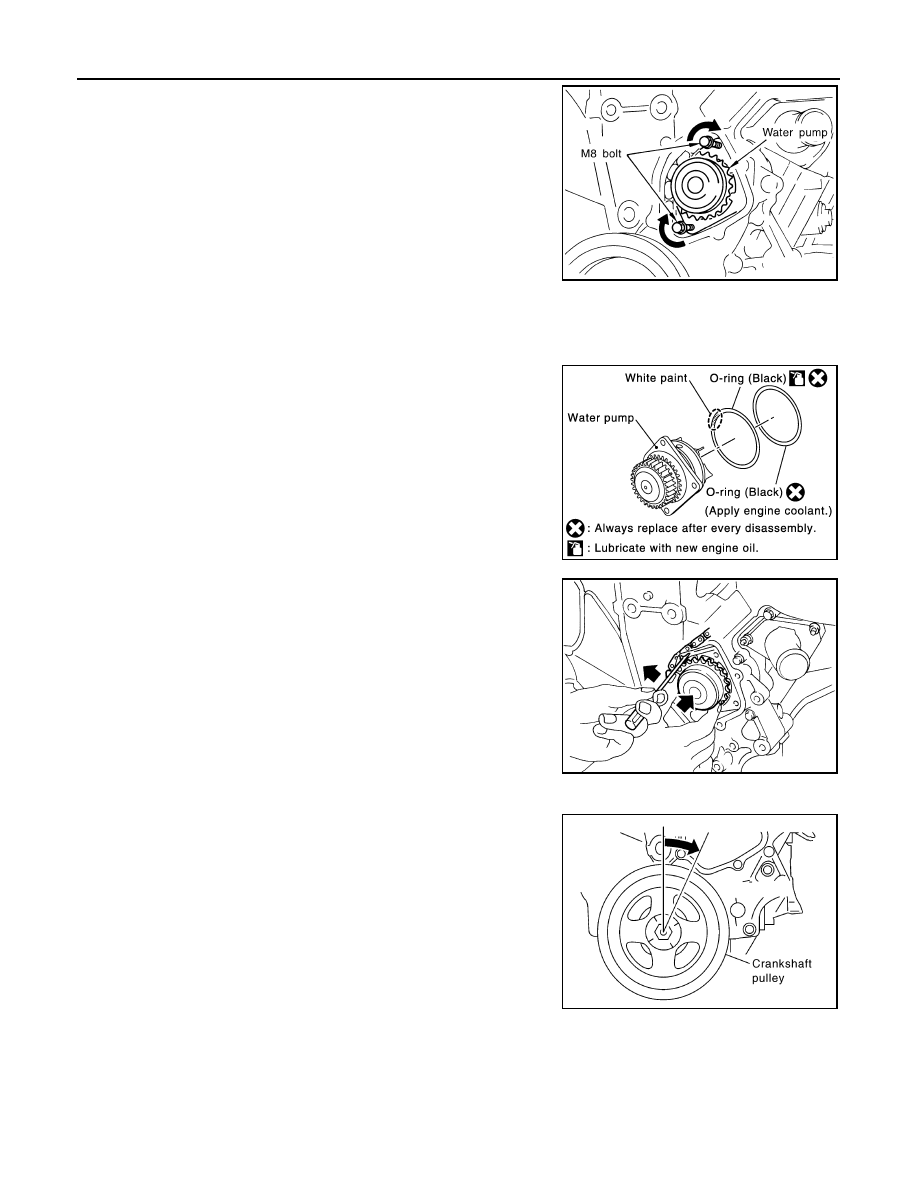

Screw M8 bolts [pitch: 1.25 mm (0.0492 in) length: approxi-
mately 50 mm (1.97 in)] into water pumps upper and lower
mounting bolt holes until they reach timing chain case. Then,
alternately tighten each bolt for a half turn, and pull out water
pump.

CAUTION:

• Pull straight out while preventing vane from contacting

socket in installation area.

• Remove water pump without causing sprocket to contact

timing chain.

c.

Remove M8 bolts and O-rings from water pump.

CAUTION:

Never disassemble water pump.

INSTALLATION

1.

Install new O-rings to water pump.
• Apply engine oil and engine coolant to O-rings as shown in the

figure.

• Locate O-ring with white paint mark to engine front side.

2.

Install water pump.

CAUTION:

Never allow cylinder block to nip O-rings when installing
water pump.
• Check that timing chain and water pump sprocket are

engaged.

• Insert water pump by tightening mounting bolts alternately and

evenly.

3.

Install timing chain tensioner (primary) as follows:

a.

Turn crankshaft pulley clockwise so that timing chain on the tim-
ing chain tensioner (primary) side is loose.

JLC357B

PBIC1397E

SLC031B

PBIC4820E

WATER PUMP

CO-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

b.

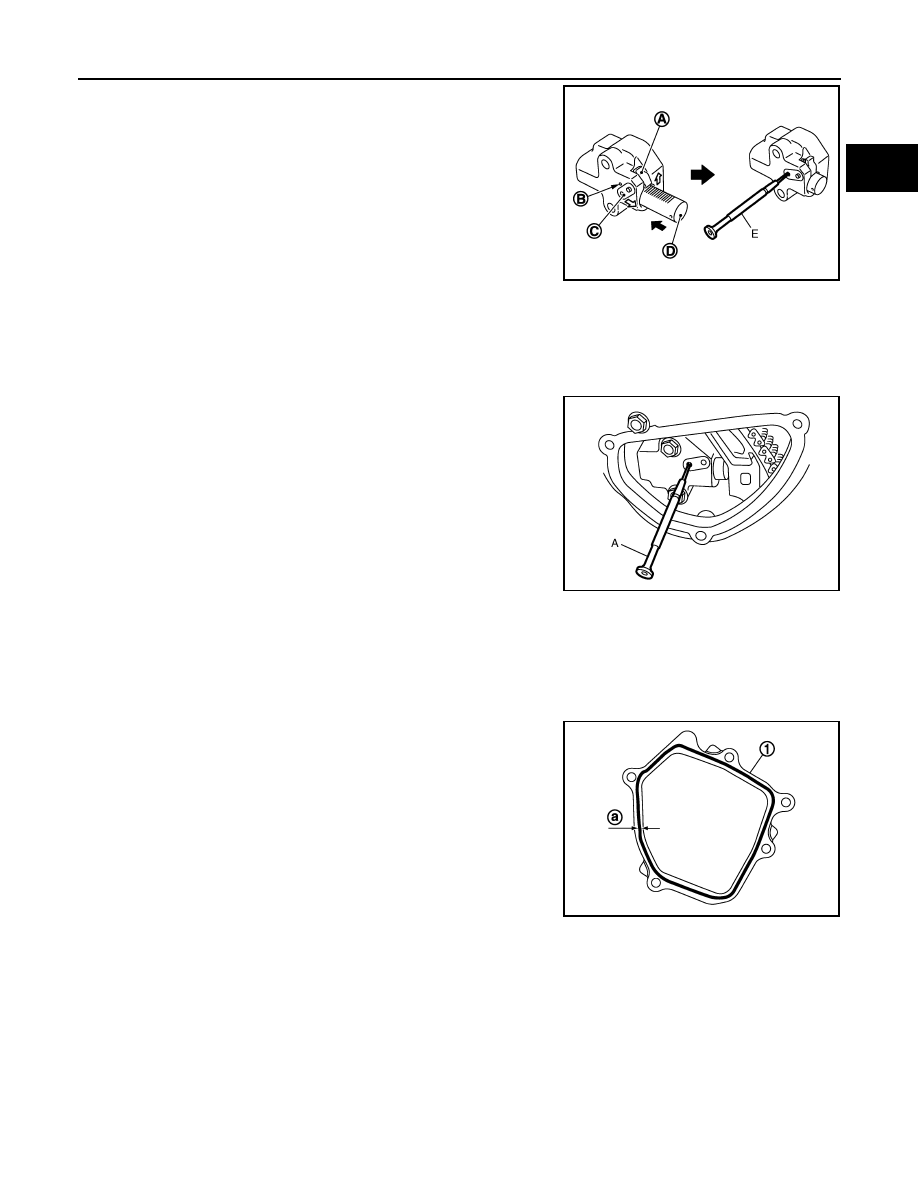

Pull plunger stopper tab (A) up (or turn lever downward) so as to
remove plunger stopper tab from the ratchet of plunger (D).
NOTE:
Plunger stopper tab and lever (C) are synchronized.

c.

Push plunger into the inside of tensioner body.

d.

Hold plunger in the fully compressed position by engaging
plunger stopper tab with the tip of ratchet.

e.

To secure lever, insert stopper pin (E) through hole of lever into
tensioner body hole (B).
• The lever parts and the tab are synchronized. Therefore, the

plunger will be secured under this condition.

NOTE:
Figure shows the example of 1.2 mm (0.047 in) diameter thin screwdriver being used as the stopper pin.

f.

Install timing chain tensioner (primary).
• Remove dust and foreign material completely from backside of timing chain tensioner (primary) and

from installation area of rear timing chain case.

g.

Remove stopper pin (A).

h.

Check again that timing chain and water pump sprocket are engaged.

4.

Install valve timing control cover (bank 1) and water pump cover as follows:

a.

Before installing, remove all traces of old liquid gasket from mating surface of water pump cover using
scraper. Also remove traces of old liquid gasket from the mating surface of front timing chain case.

b.

Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) to mating surface of water pump cover
(1).

Use Genuine Liquid Gasket or equivalent.

CAUTION:

Attaching should be done within 5 minutes after coating.

c.

Tighten mounting bolts.

5.

Install water drain plug (front) on water pump side of cylinder block.
• Apply liquid gasket to the thread of water drain plug (front).

Use Genuine Liquid Gasket or equivalent.

6.

Install in the reverse order of removal after this step.
• After starting engine, let idle for three minutes, then rev engine up to 3,000 rpm under no load to

purge air from the high-pressure chamber of chain tensioner. Engine may produce a rattling
noise. This indicates that air still remains in the chamber and is not a matter of concern.

Inspection

INFOID:0000000003793181

INSPECTION AFTER REMOVAL

• Check for badly rusted or corroded water pump body assembly.

JPBIA0118ZZ

JPBIA1774ZZ

a

φ

2.3 - 3.3 mm (0.091 - 0.130 in)

JPBIA1722ZZ

CO-22

< ON-VEHICLE REPAIR >

WATER PUMP

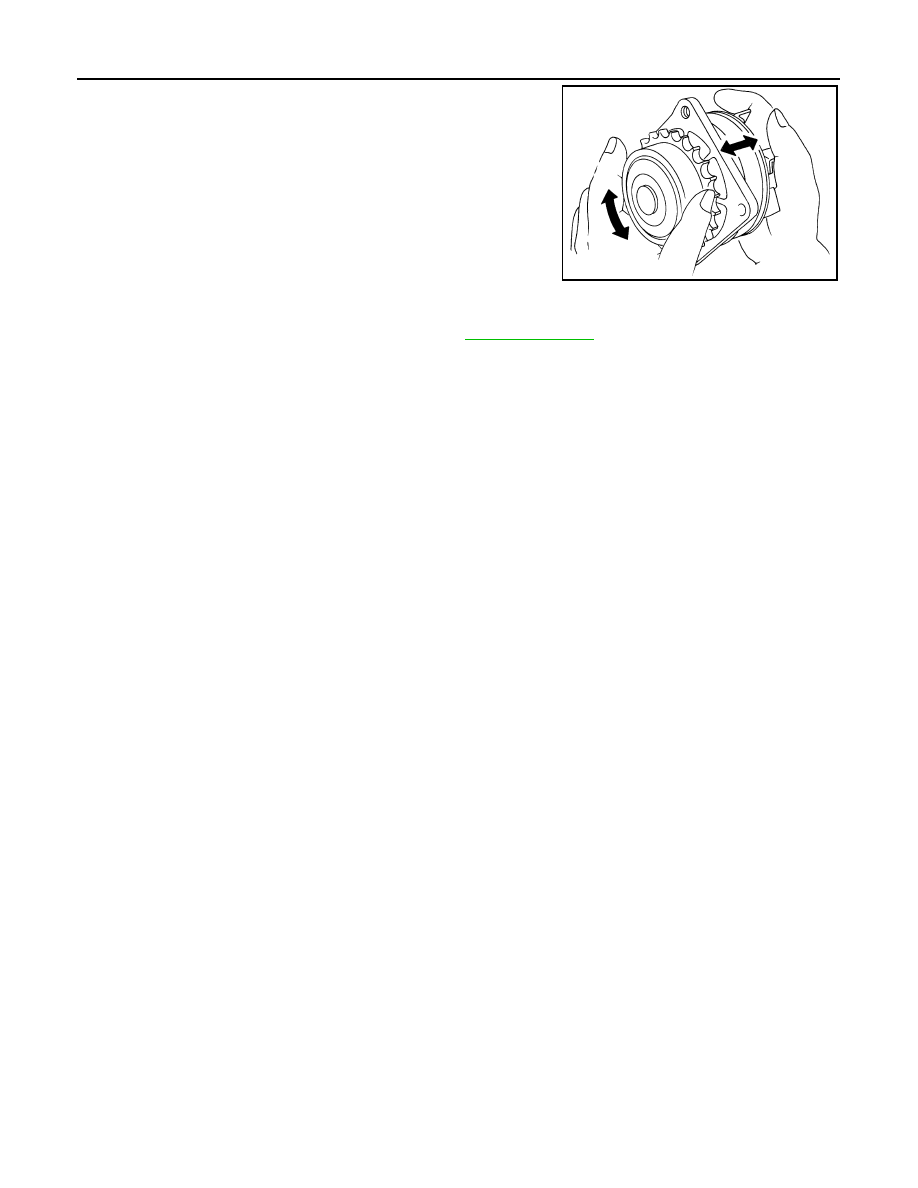

• Check for rough operation due to excessive end play.
• If anything is found, replace water pump.

INSPECTION AFTER INSTALLATION

• Check for leakage of engine coolant using the radiator cap tester adapter (commercial service tool) and the

radiator cap tester (commercial service tool). Refer to

CO-8, "Inspection"

.

• Start and warm up the engine. Visually check that there is no leakage of engine coolant.

SLC943A

WATER INLET AND THERMOSTAT ASSEMBLY

CO-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

WATER INLET AND THERMOSTAT ASSEMBLY

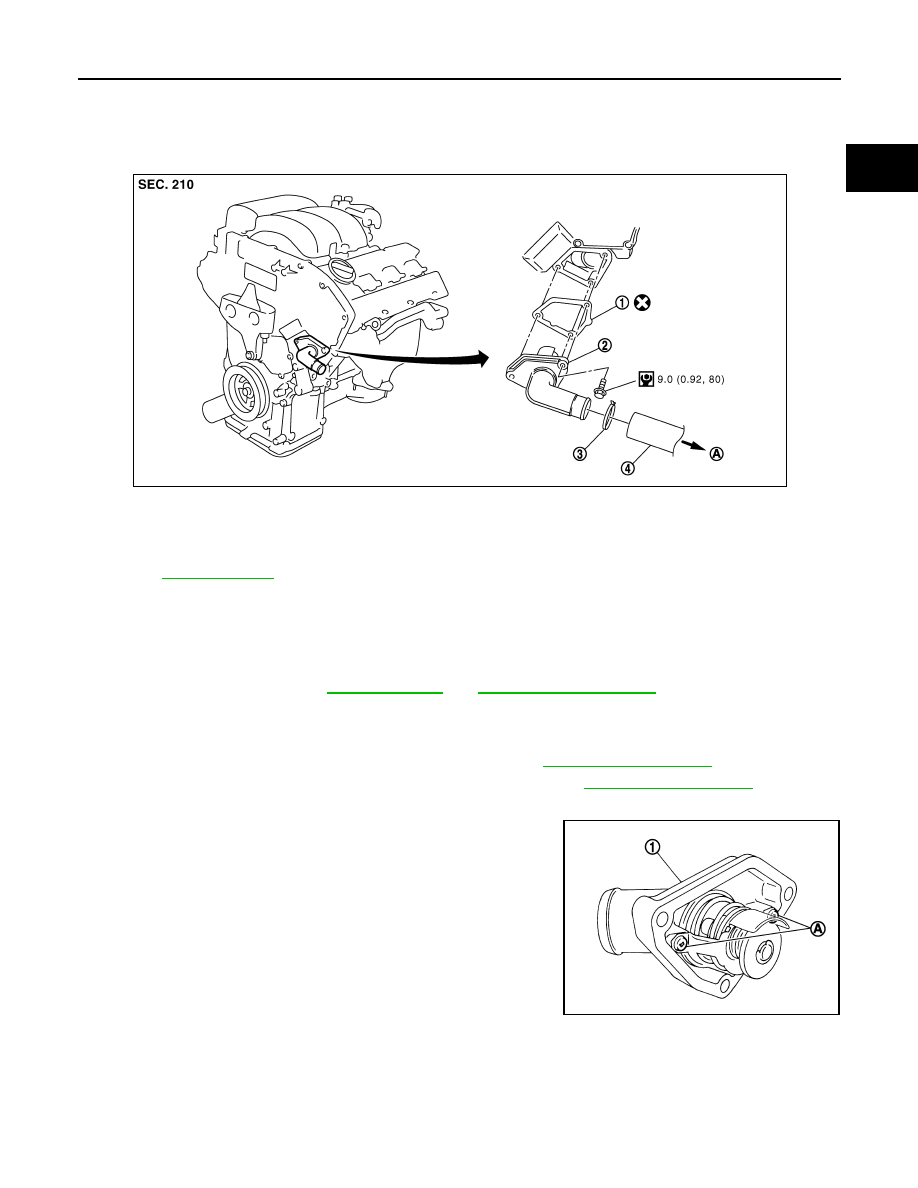

Exploded View

INFOID:0000000003793182

Removal and Installation

INFOID:0000000003793183

REMOVAL

1.

Drain engine coolant from radiator drain plug at the bottom of radiator, and from water drain plug at the
front of cylinder block. Refer to

CO-8, "Draining"

 and

EM-107, "Exploded View"

.

CAUTION:

• Perform this step when the engine is cold.
• Never spill engine coolant on drive belt.

2.

Remove reservoir tank of radiator, and move it aside. Refer to

CO-13, "Exploded View"

.

3.

Remove intake valve timing control solenoid valve (bank 2). Refer to

EM-52, "Exploded View"

.

4.

Disconnect radiator hose (lower) from water inlet and thermostat assembly.

5.

Remove water inlet and thermostat assembly (1).

CAUTION:

Never disassemble water inlet and thermostat assembly.
Replace them as a unit, if necessary.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Be careful not to spill engine coolant over engine room. Use rag to absorb engine coolant.

1.

Gasket

2.

Water inlet and thermostat assembly

3.

Clamp

4.

Radiator hose (lower)

A.

To radiator

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA1688GB

A

: Never loosen these screw

JPBIA0261ZZ
