Nissan Teana J32. Manual - part 237

BRC-6

< BASIC INSPECTION >

[ABS]

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000003766708

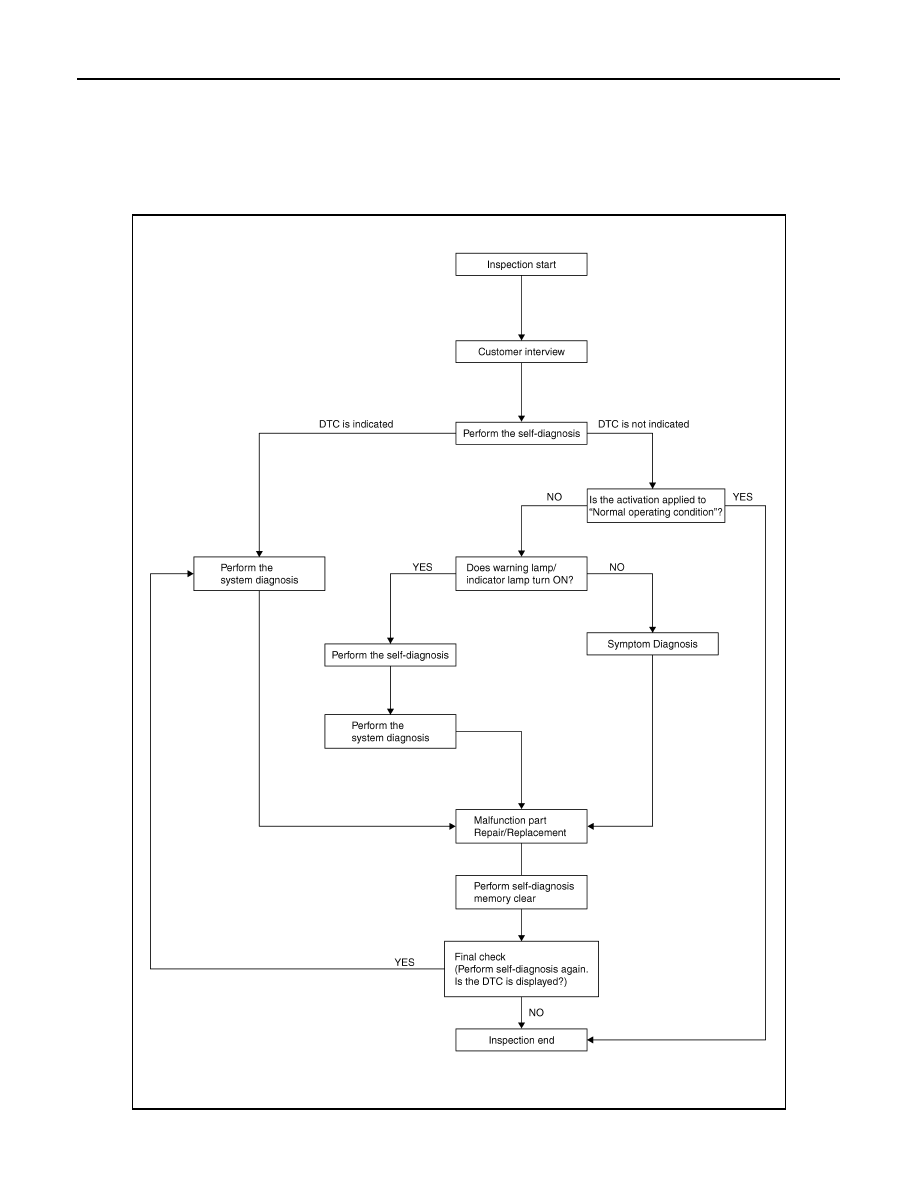

OVERALL SEQUENCE

DETAILED FLOW

JSFIA0239GB

DIAGNOSIS AND REPAIR WORK FLOW

BRC-7

< BASIC INSPECTION >

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

1.

COLLECT THE INFORMATION FROM THE CUSTOMER

Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred) using the diagnosis work sheet. Refer to

BRC-8, "Diagnostic Work Sheet"

.

>> GO TO 2.

2.

PERFORM THE SELF-DIAGNOSIS

Check the DTC display with the self-diagnosis function.

Is there any DTC displayed?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

PERFORM THE SYSTEM DIAGNOSIS

Perform the diagnosis applicable to the displayed DTC. Refer to

BRC-48, "DTC No. Index"

.

>> GO TO 7.

4.

CHECK THE SYMPTOM THAT IS NOT CONSIDERED A SYSTEM MALFUNCTION

Check that the symptom is a normal operation that is not considered a system malfunction. Refer to

BRC-54,

"Description"

.

Is the symptom a normal operation?

YES

>> INSPECTION END

NO

>> GO TO 5.

5.

CHECK THE WARNING LAMP FOR ILLUMINATION

Check that the warning lamp illuminate.
• ABS warning lamp: Refer to

BRC-40, "Description"

.

• Brake warning lamp: Refer to

BRC-41, "Description"

.

Is ON/OFF timing normal?

YES

>> GO TO 6.

NO

>> GO TO 2.

6.

PERFORM THE DIAGNOSIS BY SYMPTOM

Perform the diagnosis applicable to the symptom.

>> GO TO 7.

7.

REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the specified malfunctioning parts.

>> GO TO 8.

8.

MEMORY CLEAR

Perform self-diagnosis memory clear.

>> GO TO 9.

9.

FINAL CHECK

Perform the self-diagnosis again, and check that the malfunction is repaired completely.

Is no other DTC present and the repair completed?

YES

>> INSPECTION END

NO

>> GO TO 3.

BRC-8

< BASIC INSPECTION >

[ABS]

DIAGNOSIS AND REPAIR WORK FLOW

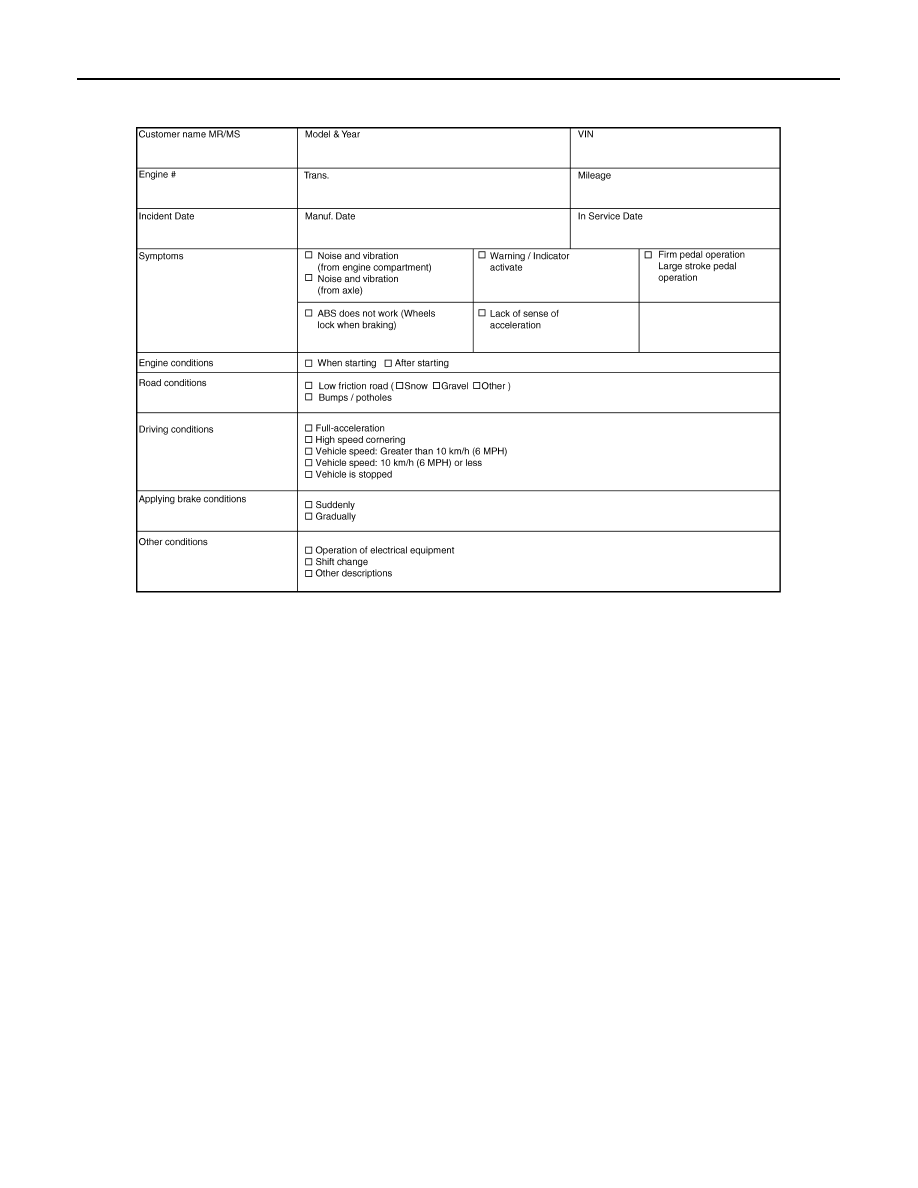

Diagnostic Work Sheet

INFOID:0000000003766709

SFIA3264E

ABS

BRC-9

< FUNCTION DIAGNOSIS >

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

FUNCTION DIAGNOSIS

ABS

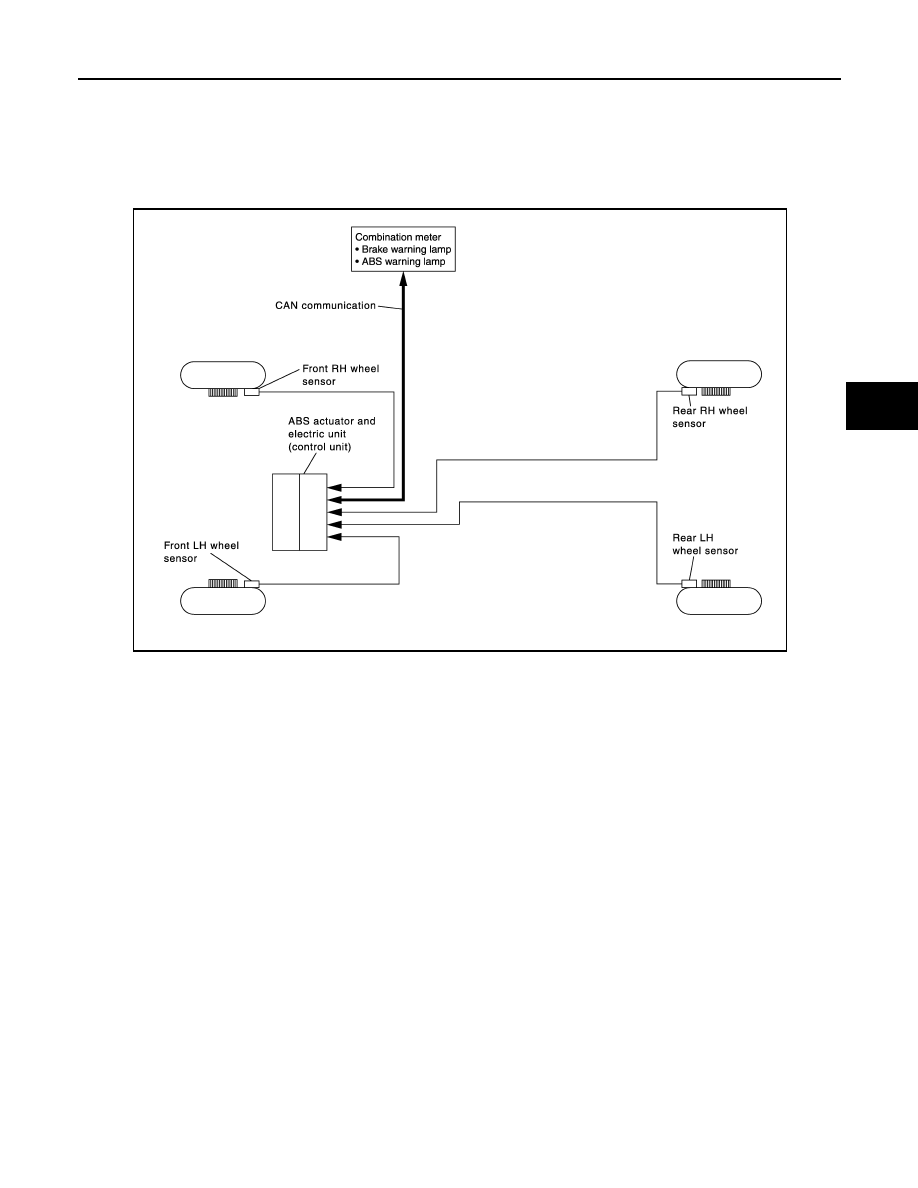

System Diagram

INFOID:0000000003766722

System Description

INFOID:0000000003766723

• Anti-Lock Braking System detects wheel revolution while braking, electronically controls braking force, and

prevents wheel locking during sudden braking. It improves handling stability and maneuverability for avoid-
ing obstacles.

• Electrical system diagnosis by CONSULT-III is available.

JSFIA0257GB
