Nissan Teana J32. Manual - part 185





AV

DVD PLAYER

AV-595

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

13

(B)

11

(G)

AUX sound signal LH

Input

Ignition

switch

ON

AUX sound output.

14

(W)

12

(R)

AUX sound signal RH

Input

Ignition

switch

ON

AUX sound output.

15

AUX sound signal shield

21

(B)

22

(G)

Stereo (DVD and AUX
sound) sound signal LH

Output

Ignition

switch

ON

DVD

*1

 or AUX sound out-

put.

23

(R)

24

(W)

Stereo (DVD and AUX
sound) sound signal RH

Output

Ignition

switch

ON

DVD

*1

 or AUX sound out-

put.

25

Stereo sound signal shield

29

(R)

AV communication signal
(L)

Input/

Output

30

(L)

AV communication signal
(H)

Input/

Output

31

(P)

AV communication signal
(L)

Input/

Output

32

(L)

AV communication signal
(H)

Input/

Output

34

Shield

36

(W)

35

(B)

Surround sound signal front
RH

Output

Ignition

switch

ON

DVD sound output.

*2

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

AV-596

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DVD PLAYER

• *1: Stereo sounds are input only when the 2 channel stereo sound is played.

• *2: All surround sounds are input only when the 5.1 channel surround sound is played.

38

(W)

37

(B)

Surround sound signal front
LH

Output

Ignition

switch

ON

DVD sound output.

*2

40

(W)

39

(B)

Surround sound signal cen-
ter

Output

Ignition

switch

ON

DVD sound output.

*2

42

(L)

41

(R)

Surround sound signal
woofer

Output

Ignition

switch

ON

DVD sound output.

*2

43

Shield

44

Shield

46

(W)

45

(B)

Surround sound signal rear
RH

Output

Ignition

switch

ON

DVD sound output.

*2

48

(W)

47

(B)

Surround sound signal rear
LH

Output

Ignition

switch

ON

DVD sound output.

*2

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

AV

DVD PLAYER

AV-597

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

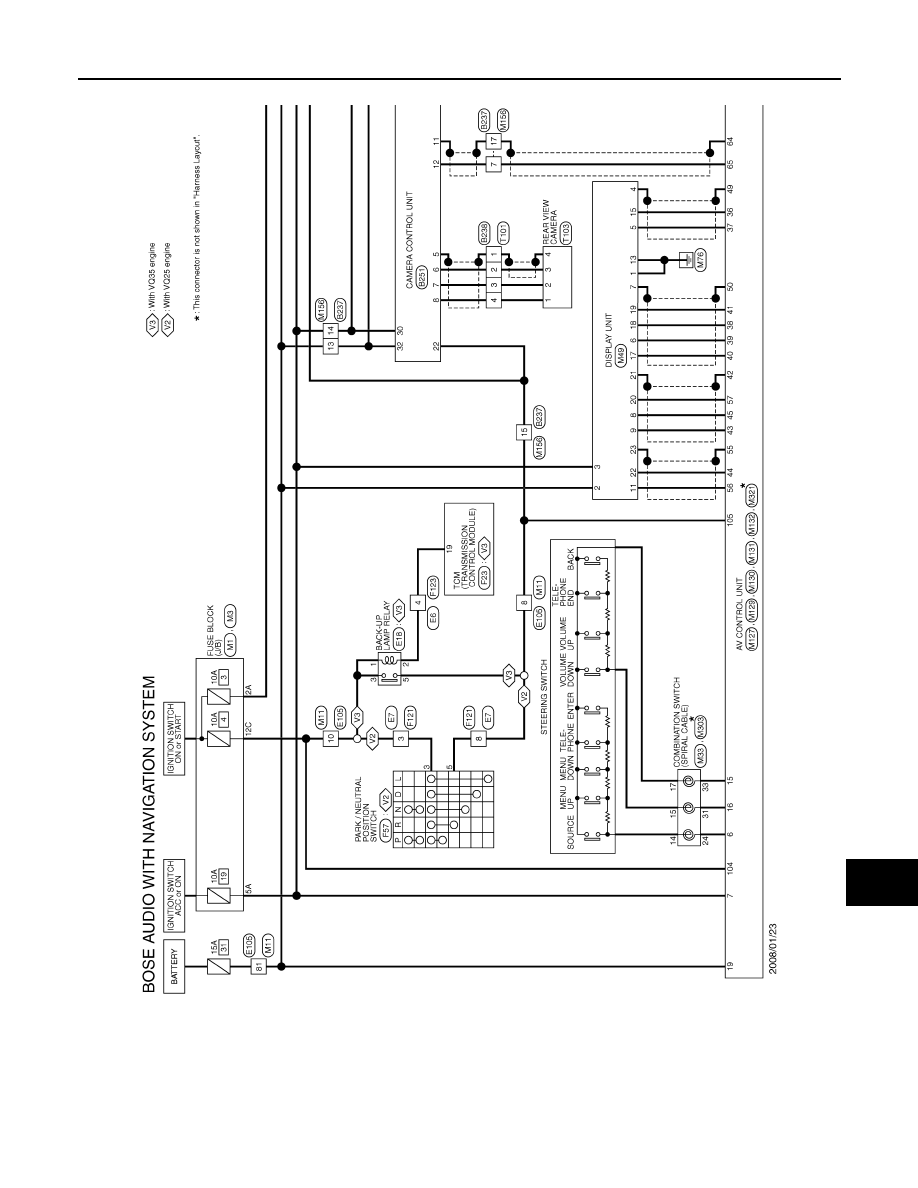

Wiring Diagram — BOSE AUDIO WITH NAVIGATION SYSTEM —

INFOID:0000000003971966

JCNWM0897GB

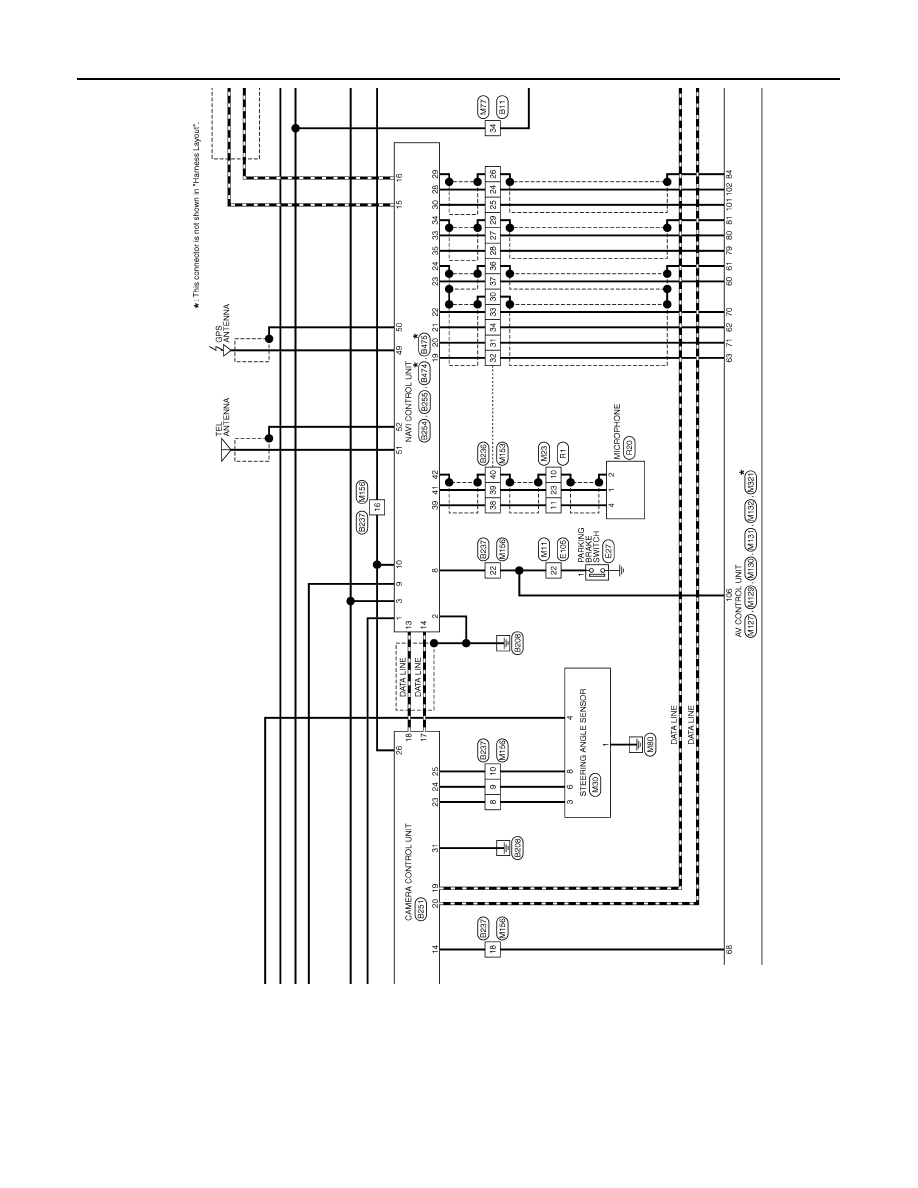

AV-598

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DVD PLAYER

JCNWM0898GB
