Nissan Teana J32. Manual - part 184





AV

BOSE AMP.

AV-591

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JCNWM0914GB

AV-592

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

BOSE AMP.

JCNWM0915GB

AV

BOSE AMP.

AV-593

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.

JCNWM0916GB

AV-594

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

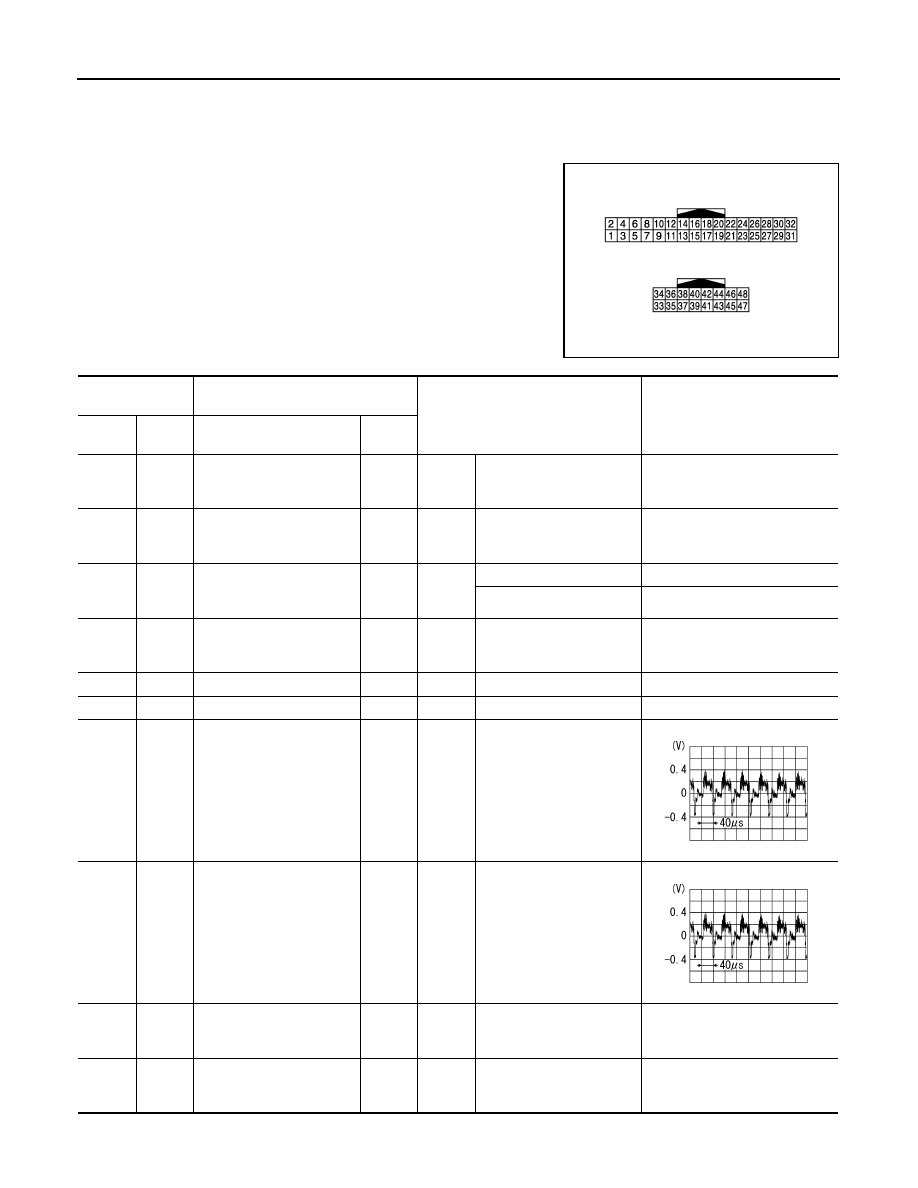

DVD PLAYER

DVD PLAYER

Reference Values

INFOID:0000000003793609

TERMINAL LAYOUT

PHYSICAL VALUES

JPNIA1095ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

1

(B/W)

Ground

Ground

Ignition

switch

ON

0  V

2

(Y)

Ground

Battery power supply

Input

Ignition

switch

OFF

Battery voltage

3

(R/L)

Ground

Illumination signal

Input

Ignition

switch

OFF

Lighting switch is OFF.

0 V

Lighting switch is ON.

12.0 V

4

(V/W)

Ground

ACC power supply

Input

Ignition

switch

ACC

Battery voltage

5

Shield

6

Shield

7

(V)

Ground

Composite (DVD and AUX)
image signal

Output

Ignition

switch

ON

When DVD image or AUX
image is displayed.

8

(G)

Ground

Composite (AUX) image
signal

Output

Ignition

switch

ON

When AUX image is dis-
played.

9

(G)

Ground

Composite (DVD and AUX)
image signal ground

Ignition

switch

ON

0  V

10

(V)

Ground

Composite image (AUX)
signal ground

Ignition

switch

ON

0  V

SKIB2251J

SKIB2251J
