NAVI CONTROL UNIT

AV-527

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

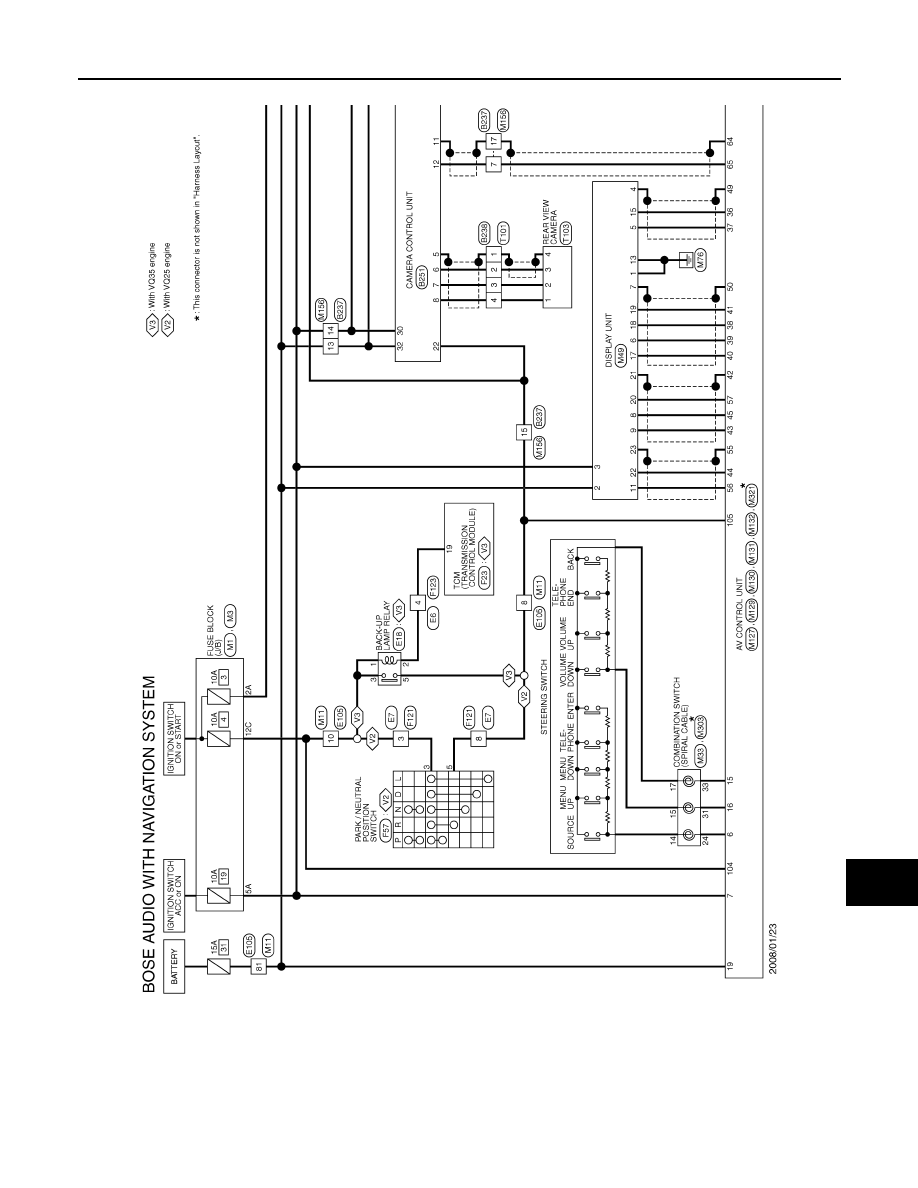

Wiring Diagram — BOSE AUDIO WITH NAVIGATION SYSTEM —

INFOID:0000000003971963

JCNWM0897GB

AV-528

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

NAVI CONTROL UNIT

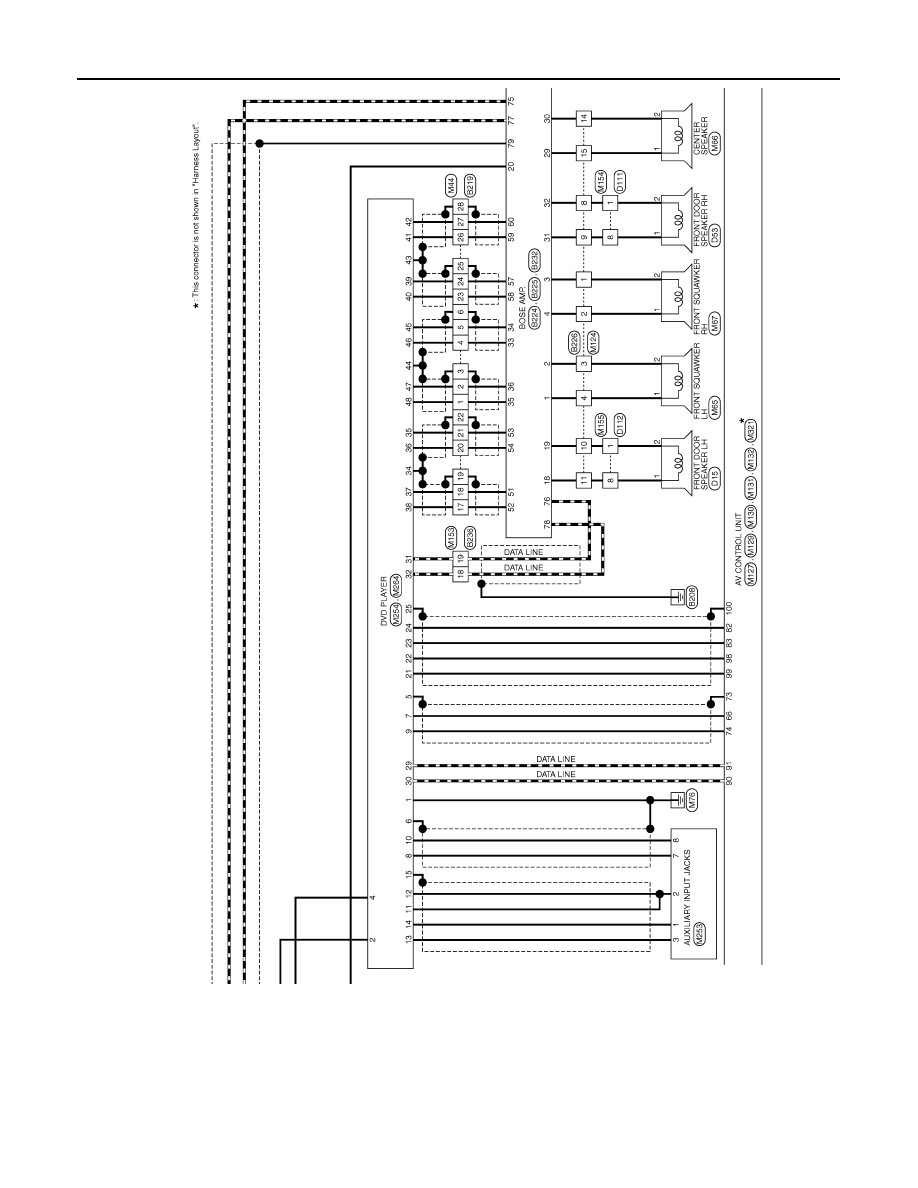

JCNWM0898GB

AV

NAVI CONTROL UNIT

AV-529

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

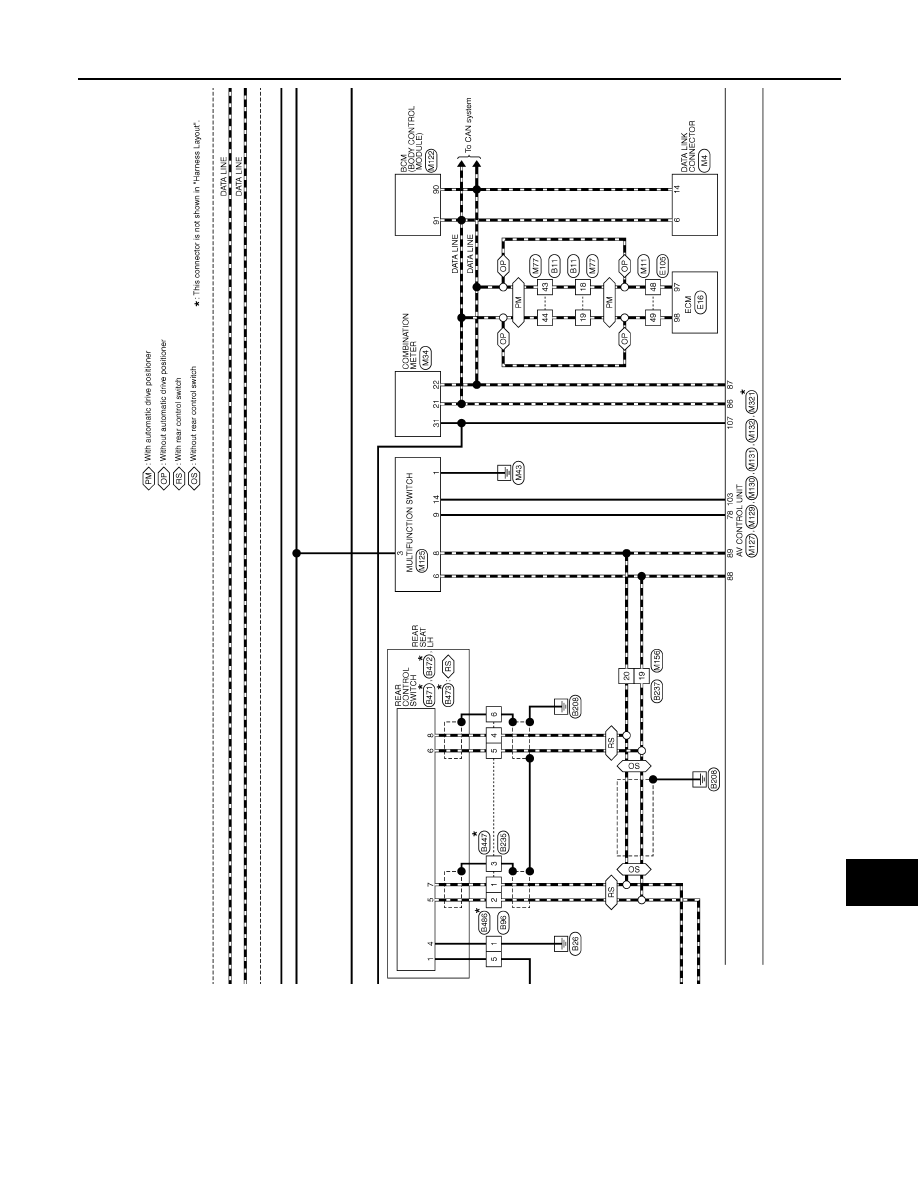

JCNWM0899GB

AV-530

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

NAVI CONTROL UNIT

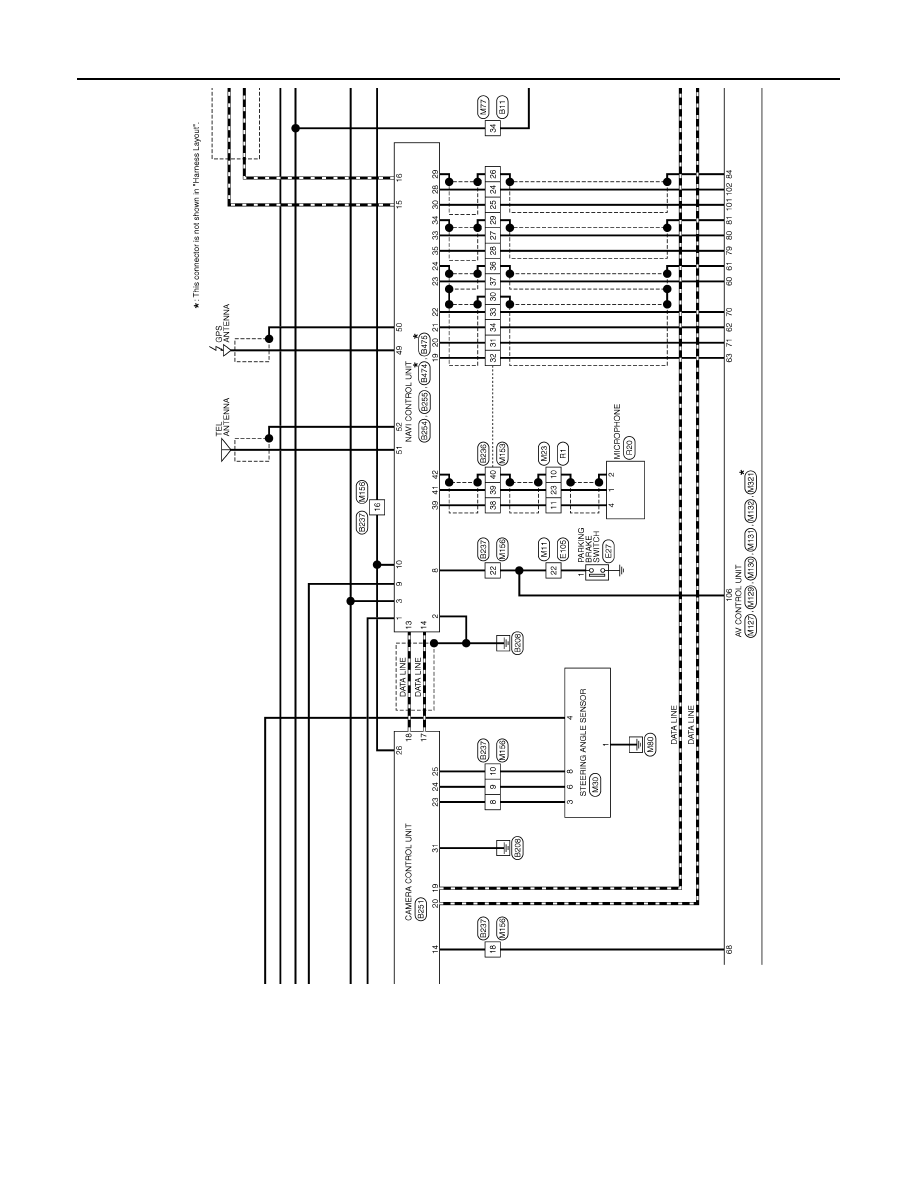

JCNWM0900GB
