AV

AV CONTROL UNIT

AV-519

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JCNWM0914GB

AV-520

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

AV CONTROL UNIT

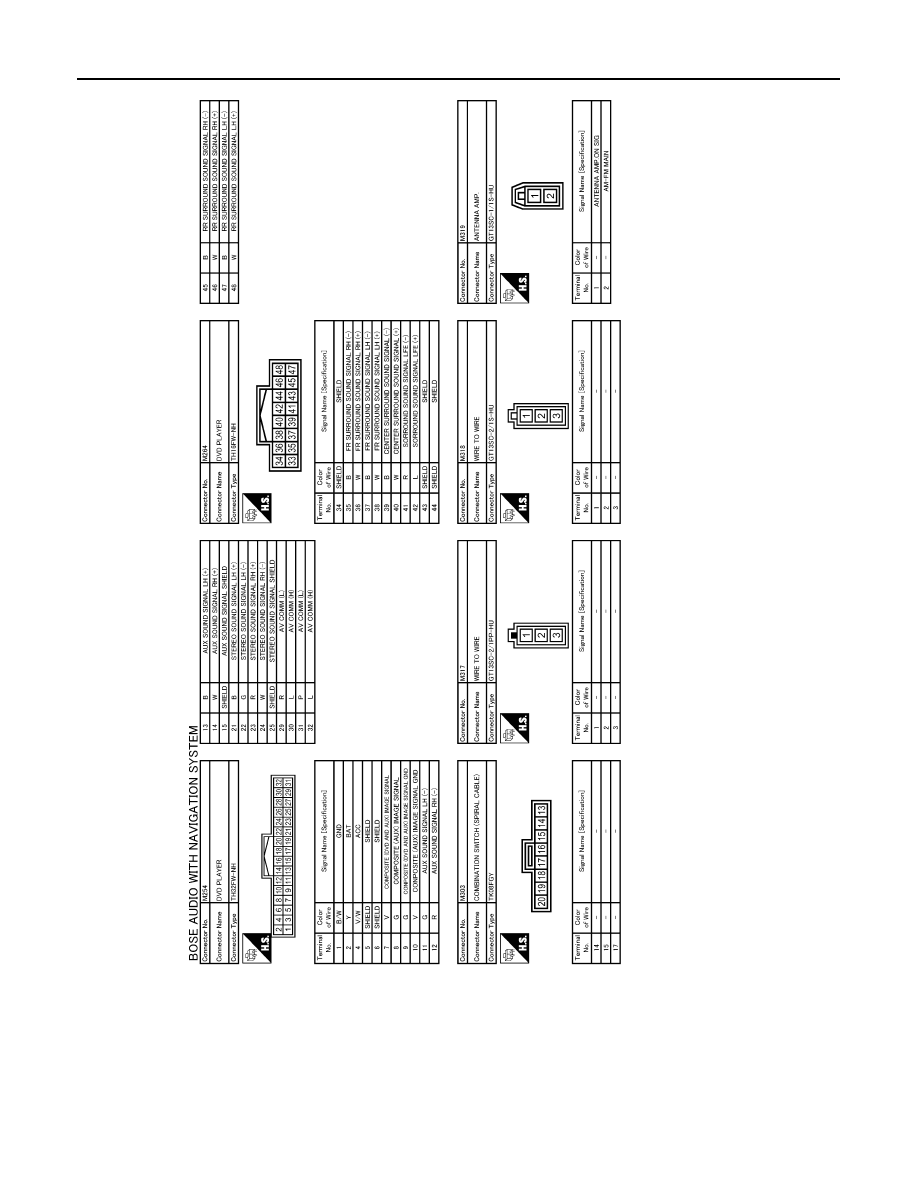

JCNWM0915GB

AV

AV CONTROL UNIT

AV-521

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.

DTC Index

INFOID:0000000003765968

SELF-DIAGNOSIS RESULTS DISPLAY ITEM

JCNWM0916GB

AV-522

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

AV CONTROL UNIT

DTC

Display item

Refer to

U1000

CAN COMM CIRCUIT [U1000]

AV-440, "Diagnosis Procedure"

U1010

CONTROL UNIT (CAN) [U1010]

AV-441, "Diagnosis Procedure"

U1310

CONTROL UNIT (AV) [U1310]

AV-442, "DTC Logic"

U1200

Control Unit FLASH-ROM [U1200]

AV-443, "DTC Logic"

U1216

CAN CONT [U1216]

AV-444, "DTC Logic"

U1231

AMP TEMP [U1231]

AV-445, "DTC Logic"

U1243

FRONT DISP CONN [U1243]

AV-446, "Diagnosis Procedure"

U1250

CAMERA CONT. CONN [U1250]

AV-448, "Diagnosis Procedure"

U1260

CENTER SP OPEN [U1260]

AV-450, "Diagnosis Procedure"

U1261

CENTER SP SHORT [U1261]

AV-450, "Diagnosis Procedure"

U1262

CENTER SP GND-SHORT [U1262]

AV-450, "Diagnosis Procedure"

U1263

CENTER SP VB-SHORT [U1263]

AV-450, "Diagnosis Procedure"

U1264

FR-DOOR SP OPEN [U1264]

AV-451, "Diagnosis Procedure"

U1265

FR-DOOR SP SHORT [U1265]

AV-451, "Diagnosis Procedure"

U1266

FR-DOOR SP GND-SHORT [U1266]

AV-451, "Diagnosis Procedure"

U1267

FR-DOOR SP VB-SHORT [U1267]

AV-451, "Diagnosis Procedure"

U1268

RR-SP/FR-WOOFER OPEN [U1268]

AV-452, "Diagnosis Procedure"

U1269

RR-SP/FR-WOOFER SHORT [U1269]

AV-452, "Diagnosis Procedure"

U126A

RR-SP/FR-WOOFER GND-SHORT
[U126A]

AV-452, "Diagnosis Procedure"

U126B

RR-SP/FR-WOOFER VB-SHORT [U126B]

AV-452, "Diagnosis Procedure"

U126C

RR-SURROUND SP OPEN [U126C]

AV-453, "Diagnosis Procedure"

U126D

RR-SURROUND SP SHORT [U126D]

AV-453, "Diagnosis Procedure"

U126E

RR-SURROUND SP GND-SHORT
[U126E]

AV-453, "Diagnosis Procedure"

U126F

RR-SURROUND SP VB-SHORT [U126F]

AV-453, "Diagnosis Procedure"

U1274

RL-SURROUND SP OPEN [U1274]

AV-454, "Diagnosis Procedure"

U1275

RL-SURROUND SP SHORT [U1275]

AV-454, "Diagnosis Procedure"

U1276

RL-SURROUND SP GND-SHORT
[U1276]

AV-454, "Diagnosis Procedure"

U1277

RL-SURROUND SP VB-SHORT [U1277]

AV-454, "Diagnosis Procedure"

U1278

RL-SP/FL-WOOFER OPEN [U1278]

AV-455, "Diagnosis Procedure"

U1279

RL-SP/FL-WOOFER SHORT [U1279]

AV-455, "Diagnosis Procedure"

U127A

RL-SP/FL-WOOFER GND-SHORT
[U127A]

AV-455, "Diagnosis Procedure"

U127B

RL-SP/FL-WOOFER VB-SHORT [U127B]

AV-455, "Diagnosis Procedure"

U127C

FL-DOOR SP OPEN [U127C]

AV-456, "Diagnosis Procedure"

U127D

FL-DOOR SP SHORT [U127D]

AV-456, "Diagnosis Procedure"

U127E]

FL-DOOR SP GND-SHORT [U127E]

AV-456, "Diagnosis Procedure"

U127F

FL-DOOR SP VB-SHORT [U127F]

AV-456, "Diagnosis Procedure"

U1294

FR-TWEETER OPEN [U1294]

AV-457, "Diagnosis Procedure"

U1295

FR-TWEETER SHORT [U1295]

AV-457, "Diagnosis Procedure"

U1296

FR-TWEETER GND-SHORT [U1296]

AV-457, "Diagnosis Procedure"

U1297

FR-TWEETER VB-SHORT [U1297]

AV-457, "Diagnosis Procedure"

U1298

FL-TWEETER OPEN [U1298]

AV-458, "Diagnosis Procedure"
