RGB SYNCHRONIZING SIGNAL CIRCUIT (NAVI CONTROL UNIT TO AV CON-

TROL UNIT)

AV-479

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

RGB SYNCHRONIZING SIGNAL CIRCUIT (NAVI CONTROL UNIT TO AV
CONTROL UNIT)

Description

INFOID:0000000003765922

Transmit the RGB synchronizing signal to the AV control unit so as to synchronize the RGB image displayed
with NAVI control unit.

Diagnosis Procedure

INFOID:0000000003765923

1.

CHECK CONTINUITY RGB SYNCHRONIZING SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect NAVI control unit connector and AV control unit connector.

3.

Check continuity between NAVI control unit harness connector and AV control unit harness connector.

4.

Check continuity between NAVI control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK RGB SYNCHRONIZING SIGNAL

1.

Connect NAVI control unit connector and AV control unit connector.

2.

Turn ignition switch ON.

3.

Check signal between NAVI control unit harness connector terminal and ground using an oscilloscope.

Is inspection result normal?

YES

>> Replace AV control unit.

NO

>> Replace NAVI control unit.

NAVI control unit

AV control unit

Continuity

Connector

Terminal

Connector

Terminal

B255

23

M130

60

Existed

NAVI control unit

Ground

Continuity

Connector

Terminal

B255

23

Not existed

(+)

(

−

)

Condition

Reference value

NAVI control unit

Connector

Terminal

B255

23

Ground

—

SKIB3603E

AV-480

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

AUX IMAGE SIGNAL CIRCUIT

AUX IMAGE SIGNAL CIRCUIT

Description

INFOID:0000000003765924

Transmits the image signal of external device from auxiliary input jacks to AV control unit.

Diagnosis Procedure

INFOID:0000000003765925

1.

CHECK CONTINUITY AUX IMAGE SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect auxiliary input jacks connector and DVD player connector.

3.

Check continuity between auxiliary input jacks harness connector and DVD player harness connector.

4.

Check continuity between auxiliary input jacks harness connector and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK AUX IMAGE SIGNAL

1.

Connect auxiliary input jacks connector and DVD player connector.

2.

Turn ignition switch ON.

3.

Make AUX image signal being input.

4.

Check signal between auxiliary input jacks harness connector using an oscilloscope.

Is inspection result normal?

YES

>> Replace DVD player.

NO

>> Check that there is no malfunction in the external device.

Auxiliary input jacks

DVD player

Continuity

Connector

Terminals

Connector

Terminals

M253

7

M254

8

Existed

8

10

Auxiliary input jacks

Ground

Continuity

Connector

Terminal

M253

7

Not existed

(+)

(

−

)

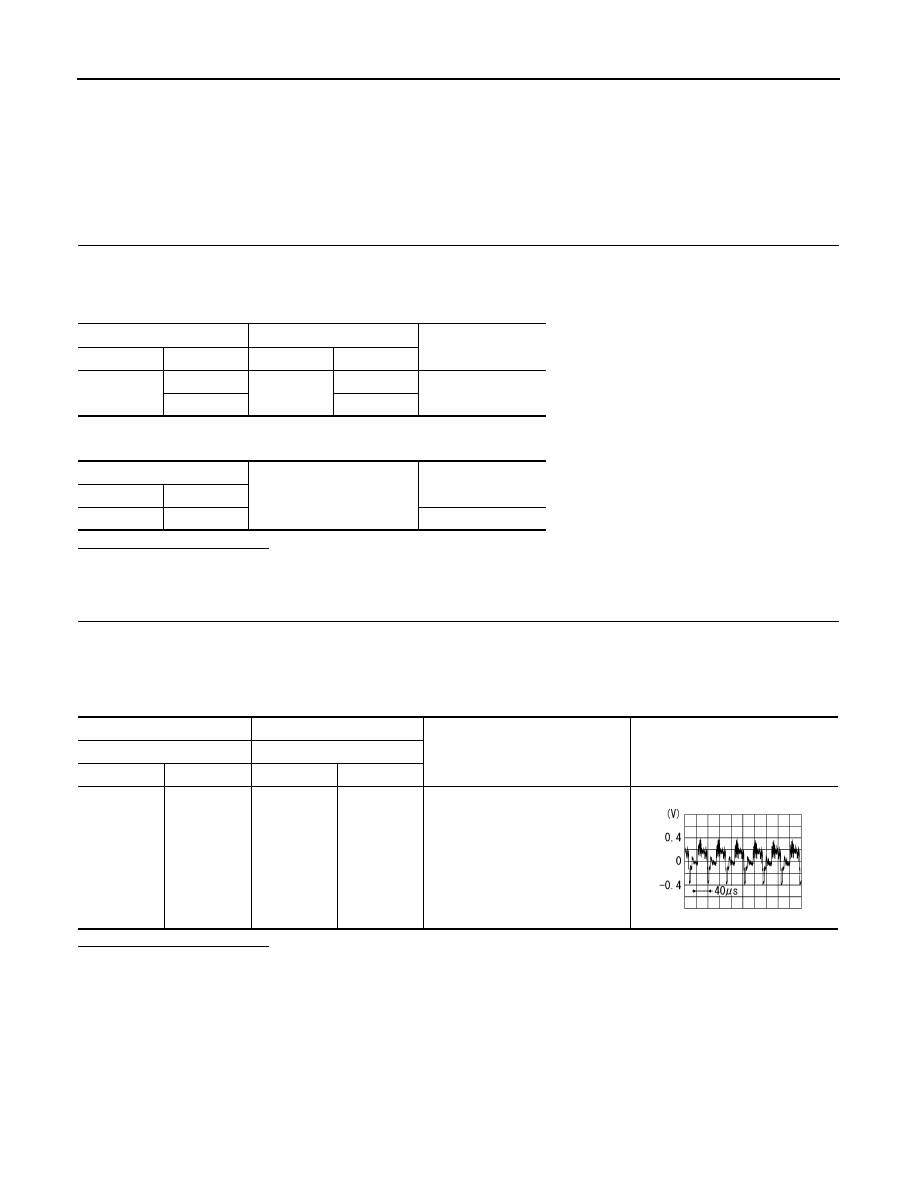

Condition

Reference value

Auxiliary input jacks

Auxiliary input jacks

Connector

Terminal

Connector

Terminal

M253

7

M253

8

When AUX image is displayed.

SKIB2251J

AV

DISK EJECT SIGNAL CIRCUIT

AV-481

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DISK EJECT SIGNAL CIRCUIT

Description

INFOID:0000000003765926

The eject signal is output to AV control unit when the eject switch of multifunction switch is pressed.

Diagnosis Procedure

INFOID:0000000003765927

1.

CHECK CONTINUITY DISK EJECT SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect multifunction switch connector and AV control unit connector.

3.

Check continuity between multifunction switch harness connector and AV control unit harness connector.

4.

Check continuity between multifunction switch harness connector and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK AV CONTROL UNIT VOLTAGE

1.

Connect multifunction switch connector and AV control unit connector.

2.

Turn ignition switch ON.

3.

Check voltage between AV control unit harness connector and ground.

Is inspection result normal?

YES

>> Replace preset switch.

NO

>> Replace AV control unit.

Multifunction switch

AV control unit

Continuity

Connector

Terminal

Connector

Terminal

M125

14

M131

103

Existed

Multifunction switch

Ground

Continuity

Connector

Terminal

M125

14

Not existed

(+)

(

−

)

Condition

Reference value

AV control unit

Connector

Terminal

M131

103

Ground

Pressing the eject switch.

0 V

Except for above.

3.3 V

AV-482

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

MICROPHONE SIGNAL CIRCUIT

MICROPHONE SIGNAL CIRCUIT

Description

INFOID:0000000003765928

Supply power from NAVI control unit to microphone. The microphone transmits the sound voice to the NAVI
control unit.

Diagnosis Procedure

INFOID:0000000003765929

1.

CHECK CONTINUITY BETWEEN NAVI CONTROL UNIT AND MICROPHONE CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect NAVI control unit connector and microphone connector.

3.

Check continuity between NAVI control unit harness connector and microphone harness connector.

4.

Check continuity between NAVI control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK VOLTAGE MICROPHONE VCC

1.

Connect NAVI control unit connector.

2.

Turn ignition switch ON.

3.

Check voltage between NAVI control unit harness connector.

Is inspection result normal?

YES

>> GO TO 3.

NO

>> Replace NAVI control unit.

3.

CHECK MICROPHONE SIGNAL

1.

Turn ignition switch OFF.

2.

Connect microphone connector.

3.

Turn ignition switch ON.

4.

Check signal between NAVI control unit harness connector using an oscilloscope.

NAVI control unit

Microphone

Continuity

Connector

Terminals

Connector

Terminals

B255

39

R20

4

Existed

41

1

42

2

NAVI control unit

Ground

Continuity

Connector

Terminals

B255

39

Not existed

41

(+)

(

−

)

Voltage

(Approx.)

NAVI control unit

NAVI control unit

Connector

Terminals

Connector

Terminals

B255

39

B255

42

5 V
