Nissan Teana J32. Manual - part 155





AV

VERTICAL SYNCHRONIZING (VP) SIGNAL CIRCUIT

AV-475

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

VERTICAL SYNCHRONIZING (VP) SIGNAL CIRCUIT

Description

INFOID:0000000003765914

In composite image (AUX image, camera image), transmit the vertical synchronizing (VP) signal and horizon-
tal synchronizing (HP) signal from display unit to AV control unit so as to synchronize the RGB images dis-
played with AV control unit such as the image quality adjusting menu, etc.

Diagnosis Procedure

INFOID:0000000003765915

1.

CHECK CONTINUITY VERTICAL SYNCHRONIZING (VP) SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect display unit connector and AV control unit connector.

3.

Check continuity between display unit harness connector and AV control unit harness connector.

4.

Check continuity between display unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK VERTICAL SYNCHRONIZING (VP) SIGNAL

1.

Connect display unit connector and AV control unit connector.

2.

Turn ignition switch ON.

3.

Check signal between display unit harness connector terminal and ground using an oscilloscope.

Is inspection result normal?

YES

>> Replace AV control unit.

NO

>> Replace display unit.

Display unit

AV control unit

Continuity

Connector

Terminal

Connector

Terminal

M49

20

M129

57

Existed

Display unit

Ground

Continuity

Connector

Terminal

M49

20

Not existed

(+)

(

)

Condition

Reference value

Display unit

Connector

Terminal

M49

20

Ground

SKIB3598E

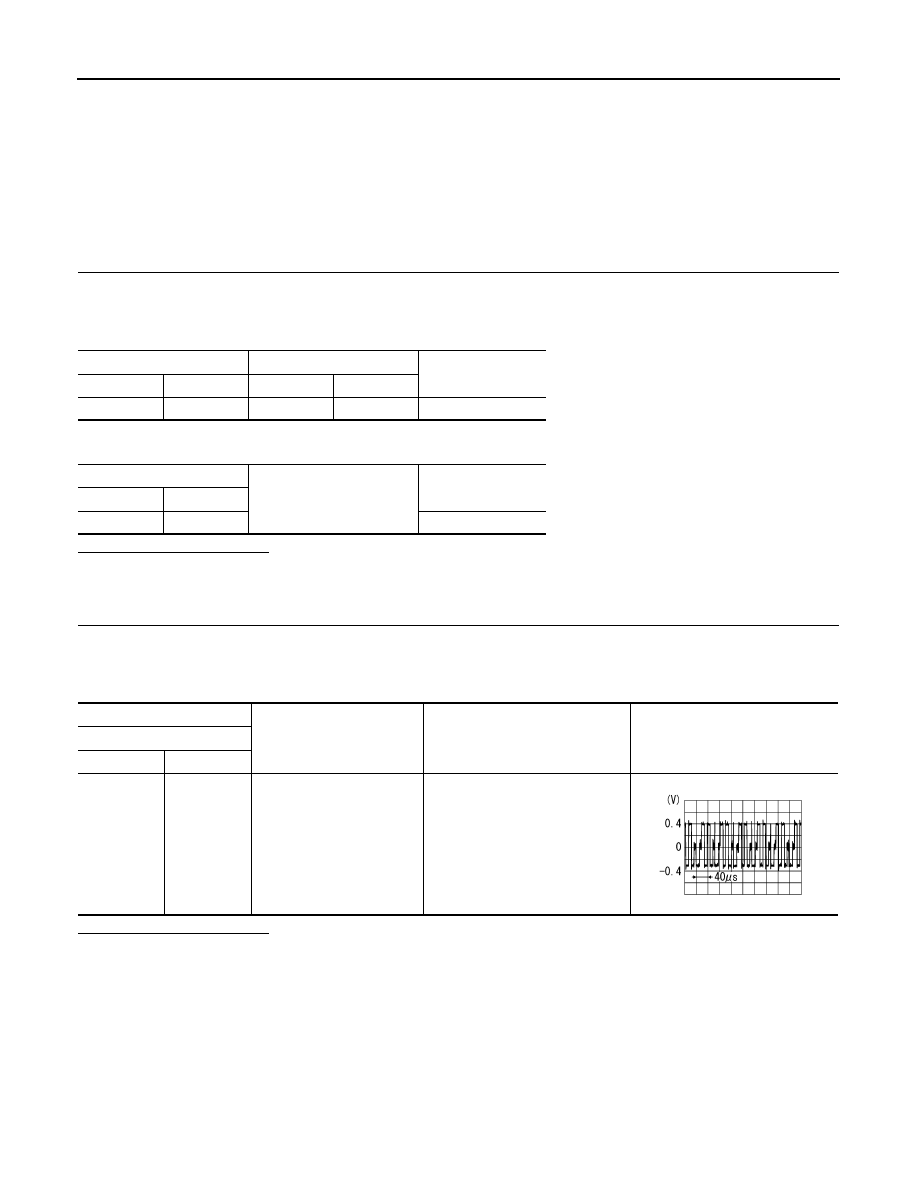

AV-476

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

RGB (R: RED) SIGNAL CIRCUIT (NAVI CONTROL UNIT TO AV CONTROL UNIT)

RGB (R: RED) SIGNAL CIRCUIT (NAVI CONTROL UNIT TO AV CONTROL
UNIT)

Description

INFOID:0000000003765916

Transmit the image displayed with NAVI control unit with RGB signal to the AV control unit.

Diagnosis Procedure

INFOID:0000000003765917

1.

CHECK CONTINUITY RGB (R: RED) SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect NAVI control unit connector and AV control unit connector.

3.

Check continuity between NAVI control unit harness connector and AV control unit harness connector.

4.

Check continuity between NAVI control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK RGB (R: RED) SIGNAL

1.

Connect NAVI control unit connector and AV control unit connector.

2.

Turn ignition switch ON.

3.

Check signal between NAVI control unit harness connector terminal and ground using an oscilloscope.

Is inspection result normal?

YES

>> Replace AV control unit.

NO

>> Replace NAVI control unit.

NAVI control unit

AV control unit

Continuity

Connector

Terminal

Connector

Terminal

B255

19

M130

63

Existed

NAVI control unit

Ground

Continuity

Connector

Terminal

B255

19

Not existed

(+)

(

)

Condition

Reference value

NAVI control unit

Connector

Terminal

B255

19

Ground

Start Confirmation / Adjustment
mode, and then display color bar
by selecting “Color Spectrum Bar”
on Navigation/Phone screen.

SKIB2238J

AV

RGB (G: GREEN) SIGNAL CIRCUIT (NAVI CONTROL UNIT TO AV CONTROL

UNIT)

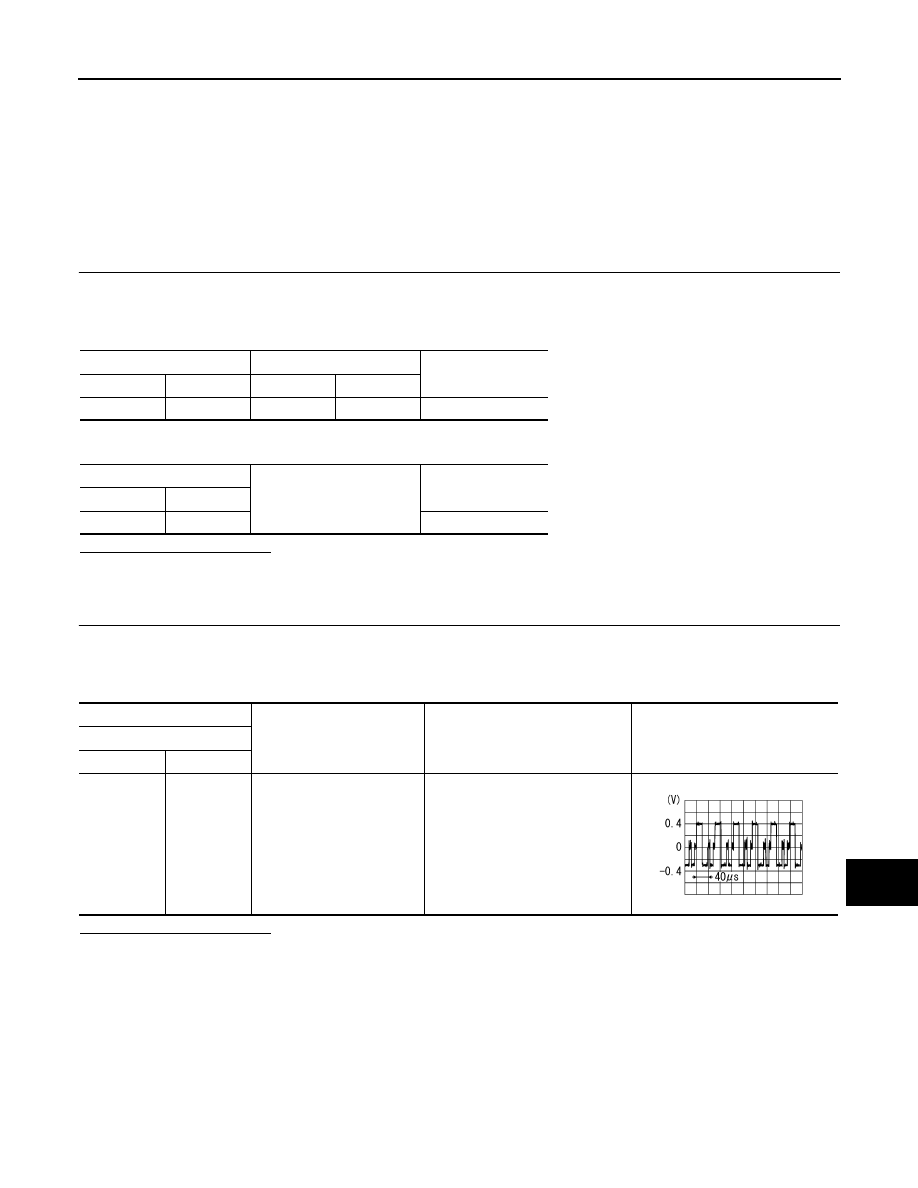

AV-477

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

RGB (G: GREEN) SIGNAL CIRCUIT (NAVI CONTROL UNIT TO AV CON-
TROL UNIT)

Description

INFOID:0000000003765918

Transmit the image displayed with NAVI control unit with RGB signal to the AV control unit.

Diagnosis Procedure

INFOID:0000000003765919

1.

CHECK CONTINUITY RGB (G: GREEN) SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect NAVI control unit connector and AV control unit connector.

3.

Check continuity between NAVI control unit harness connector and AV control unit harness connector.

4.

Check continuity between NAVI control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK RGB (G: GREEN) SIGNAL

1.

Connect NAVI control unit connector and AV control unit connector.

2.

Turn ignition switch ON.

3.

Check signal between NAVI control unit harness connector terminal and ground using an oscilloscope.

Is inspection result normal?

YES

>> Replace AV control unit.

NO

>> Replace NAVI control unit.

NAVI control unit

AV control unit

Continuity

Connector

Terminal

Connector

Terminal

B255

20

M130

71

Existed

NAVI control unit

Ground

Continuity

Connector

Terminal

B255

20

Not existed

(+)

(

)

Condition

Reference value

NAVI control unit

Connector

Terminal

B255

20

Ground

Start Confirmation / Adjustment
mode, and then display color bar
by selecting “Color Spectrum Bar”
on Navigation/Phone screen.

SKIB2236J

AV-478

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

RGB (B: BLUE) SIGNAL CIRCUIT (NAVI CONTROL UNIT TO AV CONTROL

UNIT)

RGB (B: BLUE) SIGNAL CIRCUIT (NAVI CONTROL UNIT TO AV CONTROL
UNIT)

Description

INFOID:0000000003765920

Transmit the image displayed with NAVI control unit with RGB signal to the AV control unit.

Diagnosis Procedure

INFOID:0000000003765921

1.

CHECK CONTINUITY RGB (B: BLUE) SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect NAVI control unit connector and AV control unit connector.

3.

Check continuity between NAVI control unit harness connector and AV control unit harness connector.

4.

Check continuity between NAVI control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK RGB (B: BLUE) SIGNAL

1.

Connect NAVI control unit connector and AV control unit connector.

2.

Turn ignition switch ON.

3.

Check signal between NAVI control unit harness connector terminal and ground using an oscilloscope.

Is inspection result normal?

YES

>> Replace AV control unit.

NO

>> Replace NAVI control unit.

NAVI control unit

AV control unit

Continuity

Connector

Terminal

Connector

Terminal

B255

21

M130

62

Existed

NAVI control unit

Ground

Continuity

Connector

Terminal

B255

21

Not existed

(+)

(

)

Condition

Reference value

NAVI control unit

Connector

Terminal

B255

21

Ground

Start Confirmation / Adjustment
mode, and then display color bar
by selecting “Color Spectrum Bar”
on Navigation/Phone screen.

SKIB2237J
