Nissan Teana J32. Manual - part 1280





FRONT WIPER ARM

WW-105

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WIPER ARM

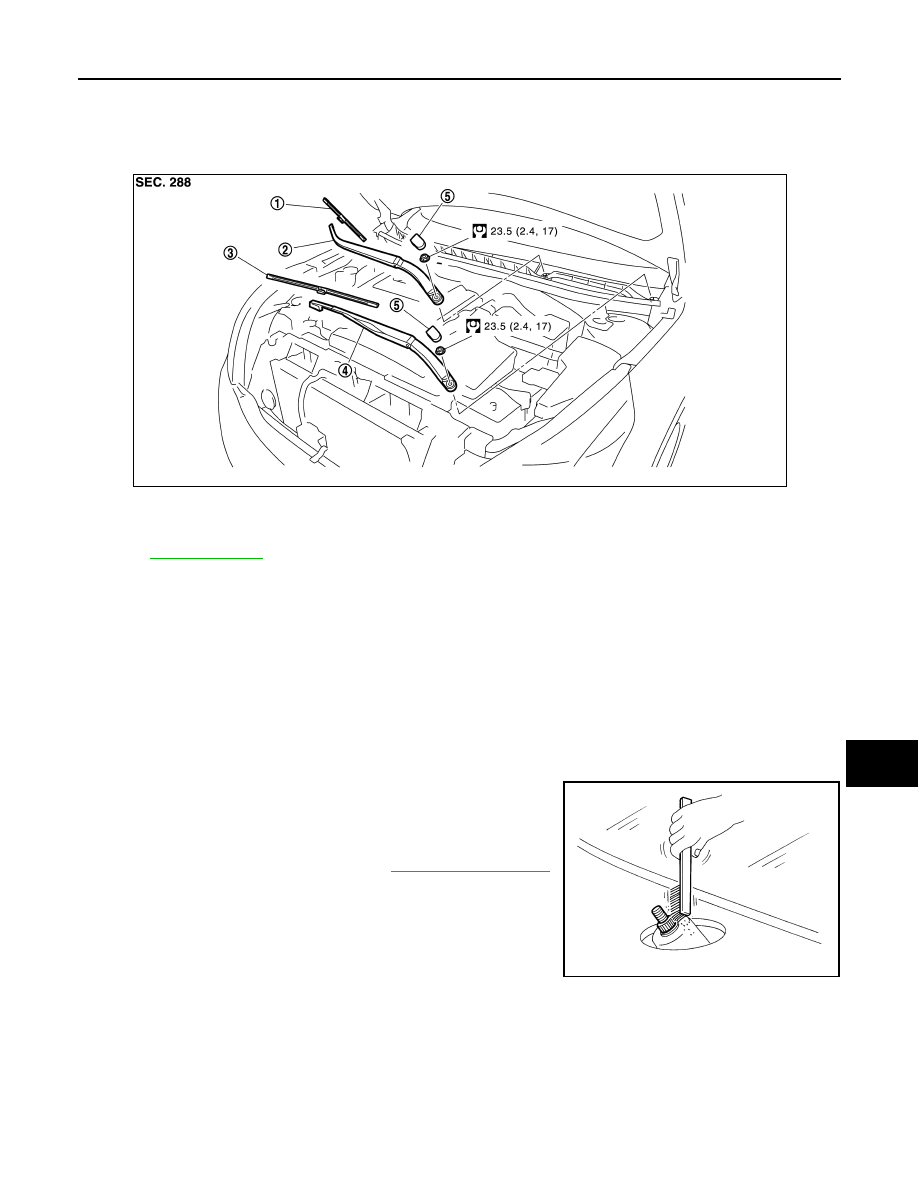

Exploded View

INFOID:0000000003761635

Removal and Installation

INFOID:0000000003761636

REMOVAL

1.

Operate the front wiper to move it to the auto stop position.

2.

Open the hood.

3.

Remove the wiper arm cap.

4.

Remove the wiper arm mounting nut.

5.

Raise wiper arm, and remove the wiper arm from the vehicle.

INSTALLATION

1.

Clean wiper arm mount as shown in the figure to prevent nuts
from being loosened.

2.

Operate the front wiper motor to move the wiper to the auto stop
position.

3.

Adjust the wiper blade position. Refer to

WW-105, "Adjustment"

.

4.

Install the wiper arm by tightening the mounting nut.

5.

Inject the washer fluid.

6.

Operate the front wiper to move it to the auto stop position.

7.

Check that the wiper blades stop at the specified position.

8.

Install the wiper arm cap.

Adjustment

INFOID:0000000003761637

WIPER BLADE POSITION ADJUSTMENT

Clearance between the end of cowl top cover and the top of wiper blade center

1.

Wiper blade (RH)

2.

Wiper arm (RH)

3.

Wiper blade (LH)

4.

Wiper arm (LH)

5.

Wiper arm cap

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA1142GB

ELH0717D

WW-106

< ON-VEHICLE REPAIR >

FRONT WIPER ARM

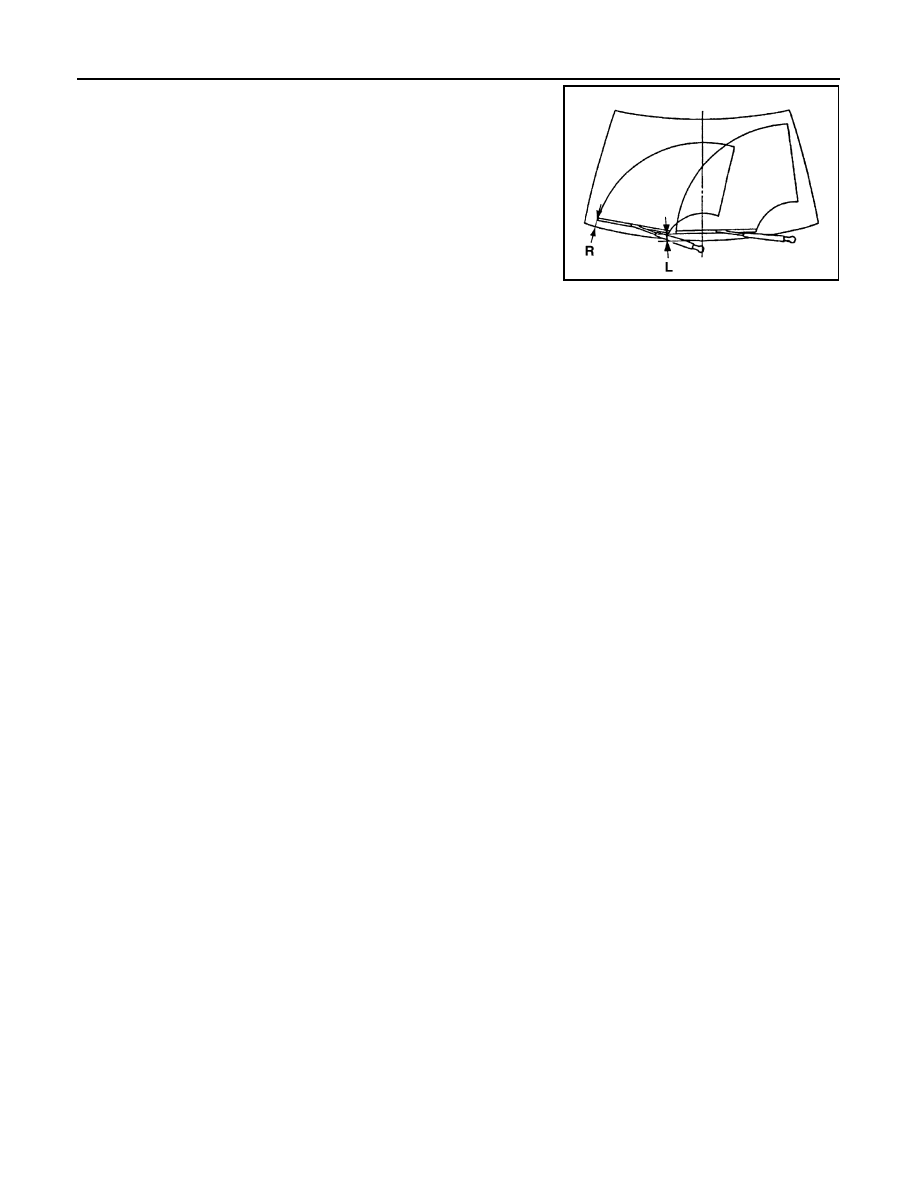

Standard clearance

R

: 47.6

±

7.5 mm (1.874

±

 0.295 in)

L

: 60.5

±

7.5 mm (2.382

±

 0.295 in)

JPLIA0082ZZ

FRONT WIPER DRIVE ASSEMBLY

WW-107

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WIPER DRIVE ASSEMBLY

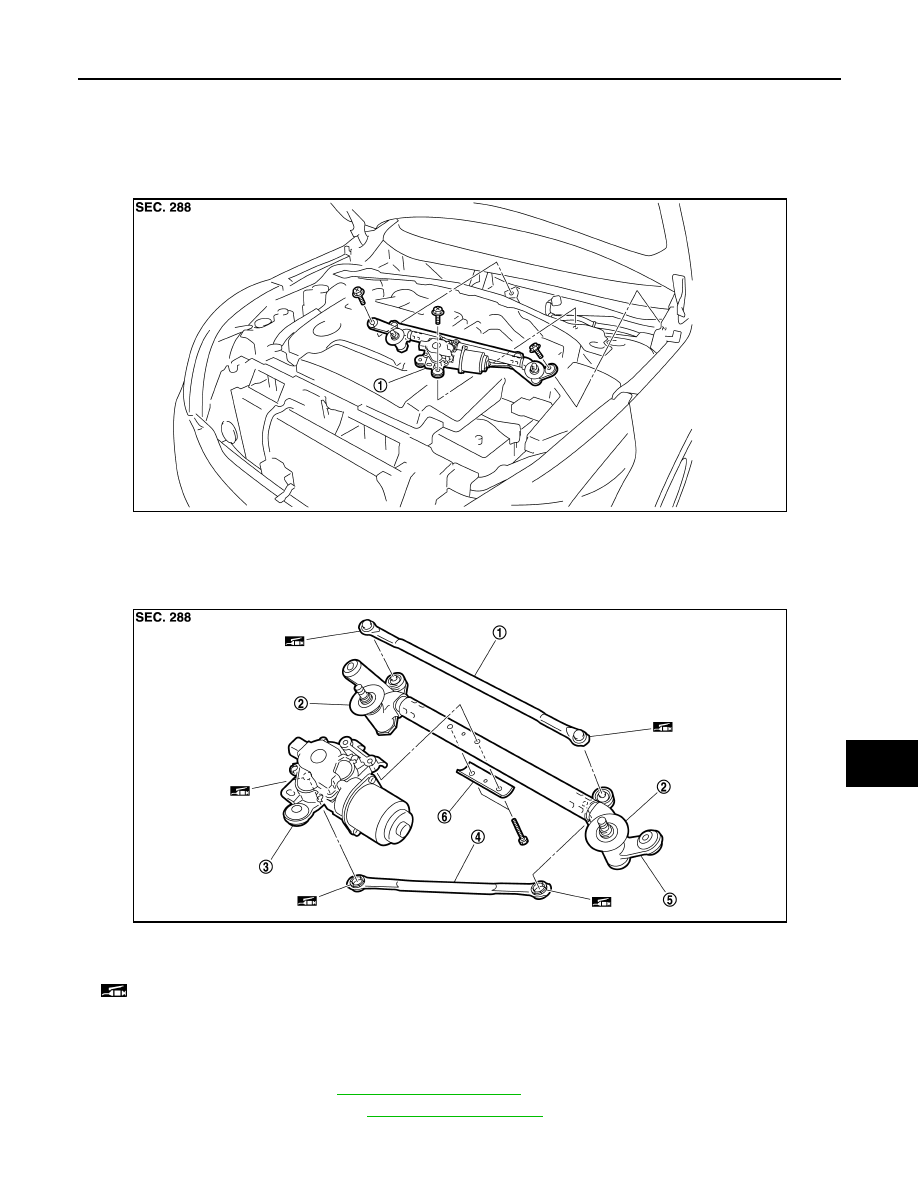

Exploded View

INFOID:0000000003761638

REMOVAL VIEW

DISASSEMBLY VIEW

Removal and Installation

INFOID:0000000003761639

REMOVAL

1.

Remove the wiper arm. Refer to

WW-105, "Exploded View"

.

2.

Remove the cowl top cover. Refer to

EXT-20, "Exploded View"

.

3.

Remove bolts from the front wiper drive assembly.

1.

Front wiper drive assembly

JPLIA1143ZZ

1.

Wiper linkage 1

2.

Shaft seal

3.

Front wiper motor

4.

Wiper linkage 2

5.

Wiper frame

6.

Bracket

: Multi

purpose grease or an equivalent.

JPLIA1144ZZ

WW-108

< ON-VEHICLE REPAIR >

FRONT WIPER DRIVE ASSEMBLY

4.

Disconnect the front wiper motor connector.

5.

Remove the front wiper drive assembly from the vehicle.

INSTALLATION

1.

Install the front wiper drive assembly to the vehicle.

2.

Connect the front wiper motor connector.

3.

Operate the front wiper to move it to the auto stop position.

4.

Install the cowl top cover. Refer to

EXT-20, "Exploded View"

.

5.

Install the wiper arms. Refer to

WW-105, "Exploded View"

.

Disassembly and Assembly

INFOID:0000000003761640

DISASSEMBLY

1.

Remove the wiper linkage 1 and 2 from the front wiper drive assembly.

CAUTION:

Do not bend the linkage or damage the plastic part of the ball joint when removing the wiper link-
age.

2.

Remove the front wiper motor mounting bolts, and then remove the front wiper motor from the wiper
frame.

ASSEMBLY

1.

Connect the front wiper motor connector.

2.

Operate the front wiper to move it to the auto stop position.

3.

Disconnect the front wiper motor connector.

4.

Install the front wiper motor to wiper frame.

5.

Install the wiper linkage 2 to the wiper motor and the wiper frame.

6.

Install the wiper linkage 1 to the wiper frame.

CAUTION:

• Do not drop front wiper motor or cause it to come into contact with other parts.
• Be careful for the grease condition at the wiper motor and wiper linkage joint (retainer). Apply

Multi

purpose grease or an equivalent if necessary.
