ON-VEHICLE REPAIR

HEADLAMP WASHER NOZZLE AND TUBE

Exploded View

INFOID:0000000003761621

Hydraulic Layout

INFOID:0000000003761622

Removal and Installation

INFOID:0000000003761623

REMOVAL

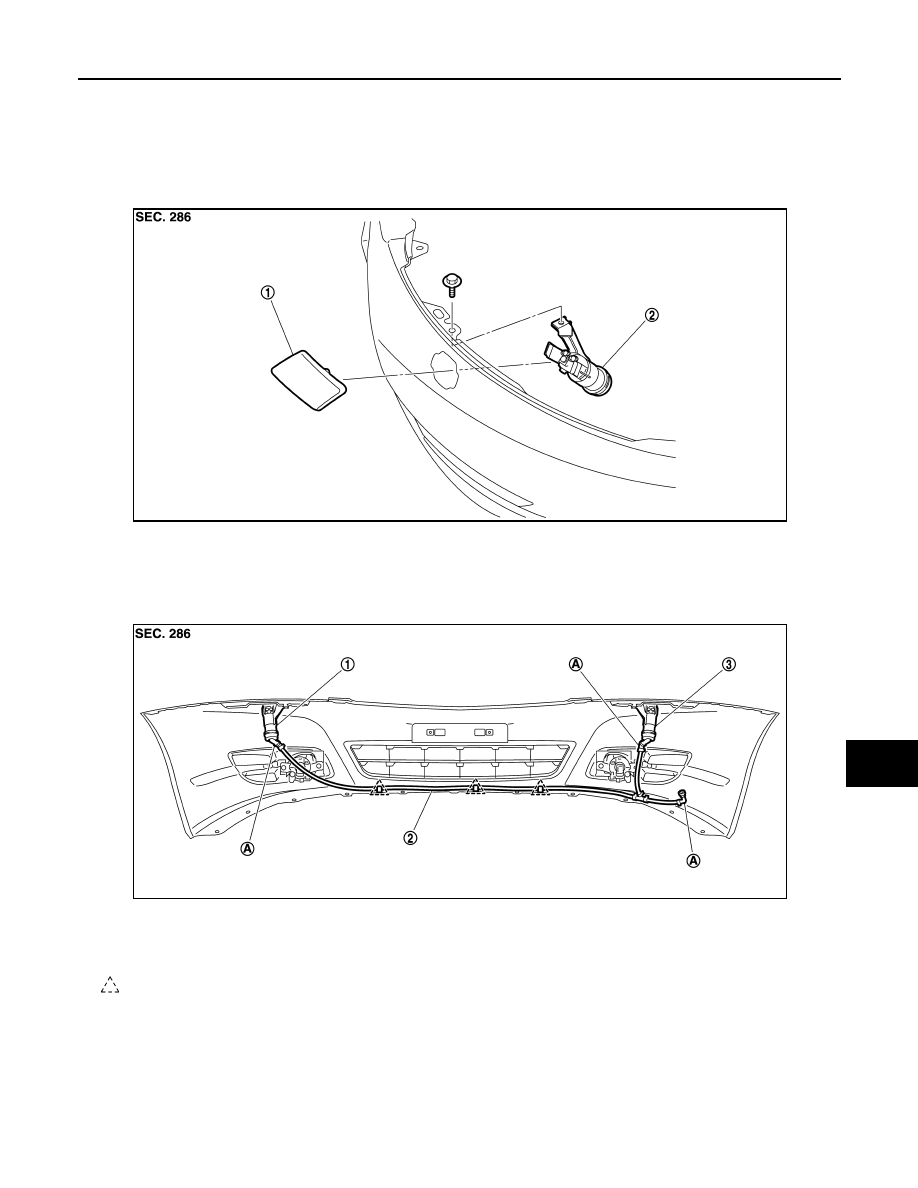

1.

Headlamp washer nozzle cover

2.

Headlamp washer nozzle assembly

JPLIA1130ZZ

1.

 Headlamp washer nozzle assembly
(LH)

2.

Headlamp washer tube

3.

Headlamp washer nozzle assembly
(RH)

A.

Headlamp washer tube joint

: Clip

JPLIA1131ZZ

WW-98

< ON-VEHICLE REPAIR >

HEADLAMP WASHER NOZZLE AND TUBE

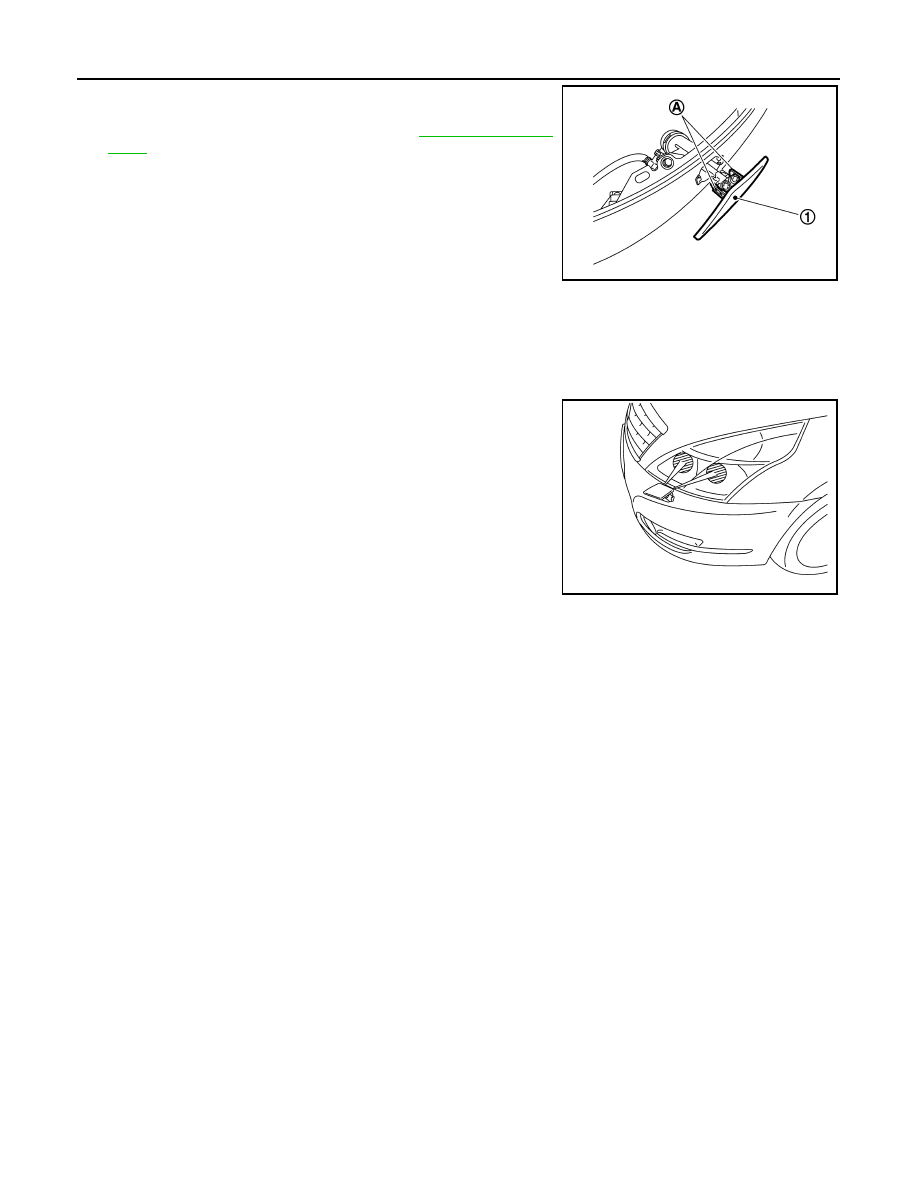

1.

Push pawl (A), and remove the headlamp washer nozzle cover
(1).

2.

Remove the front bumper fascia. Refer to

EXT-11, "Exploded

View"

.

3.

Disconnect the headlamp washer tube from the headlamp
washer nozzle assembly.

4.

Remove the headlamp washer nozzle mounting bolt.

5.

Remove the headlamp washer nozzle assembly from the front
bumper fascia.

INSTALLATION

Install in the reverse order of removal.

Inspection

INFOID:0000000003761624

HEADLAMP WASHER NOZZLE SPRAY POSITION INSPECTION

Check that the headlamp washer injection is certainly on the head-
lamp illuminating area. If the injection is out of the area, check the
headlamp washer tube and headlamp washer nozzle leakages.

JPLIA1132ZZ

JPLIA1133ZZ

WASHER TANK

WW-99

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WASHER TANK

Exploded View

INFOID:0000000003761625

Removal and Installation

INFOID:0000000003761626

REMOVAL

1.

Pull out the washer tank inlet from the washer tank.

2.

Remove the front bumper fascia. Refer to

EXT-11, "Exploded View"

.

3.

Disconnect the washer pump connector.

4.

Disconnect the headlamp washer pump connector.

5.

Disconnect the washer tube.

6.

Disconnect the headlamp washer tube.

7.

Remove the washer tank mounting bolts.

8.

Remove the washer tank from the vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Add water up to the top of the washer tank inlet after installing. Check that there is no leakage.

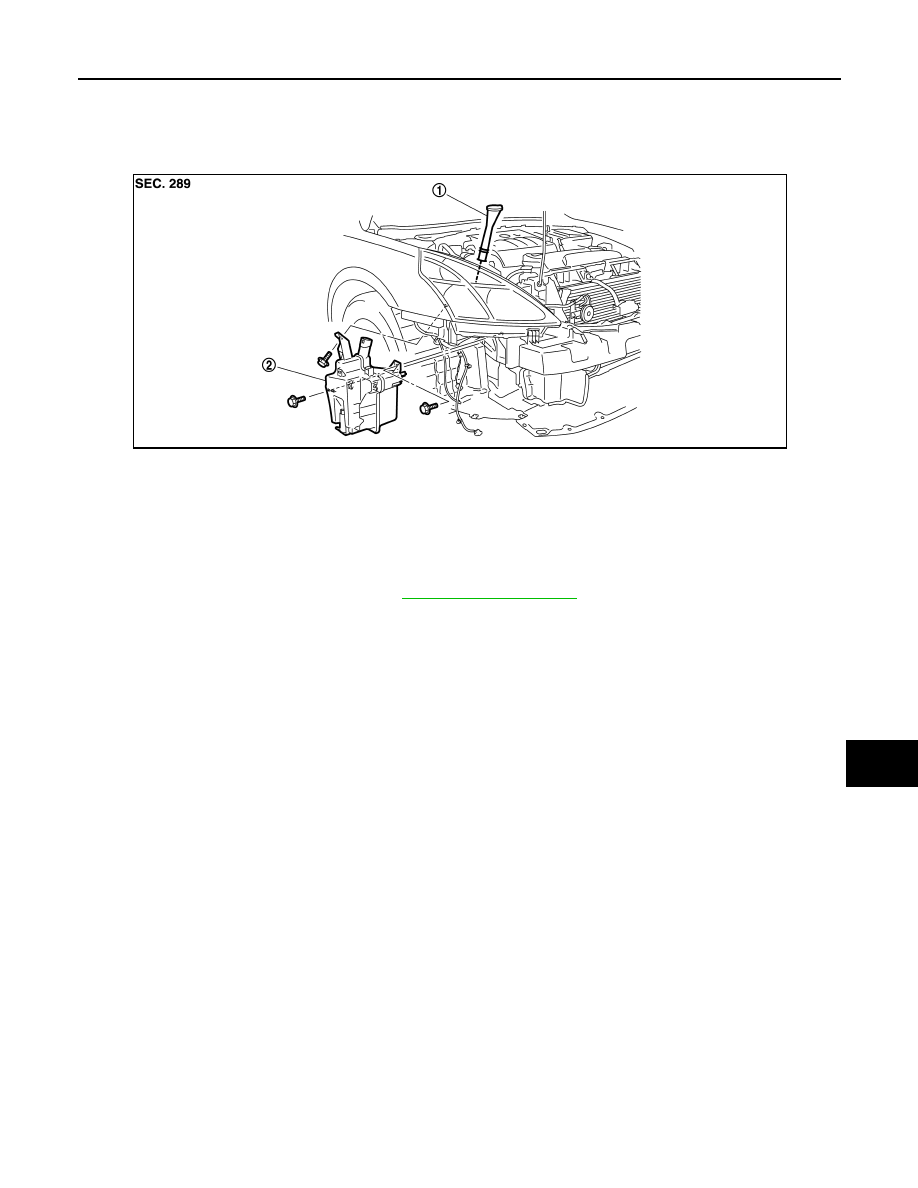

1.

Washer tank inlet

2.

Washer tank

JPLIA1134ZZ

WW-100

< ON-VEHICLE REPAIR >

WASHER PUMP

WASHER PUMP

Exploded View

INFOID:0000000003761627

Removal and Installation

INFOID:0000000003761628

REMOVAL

1.

Remove the fender protector RH (front). Refer to

EXT-22, "FENDER PROTECTOR : Exploded View"

.

2.

Disconnect the washer pump connector.

3.

Disconnect the washer tube.

4.

Remove the washer pump from the washer tank.

5.

Remove the packing from the washer tank.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Never twist the packing when installing the washer pump.

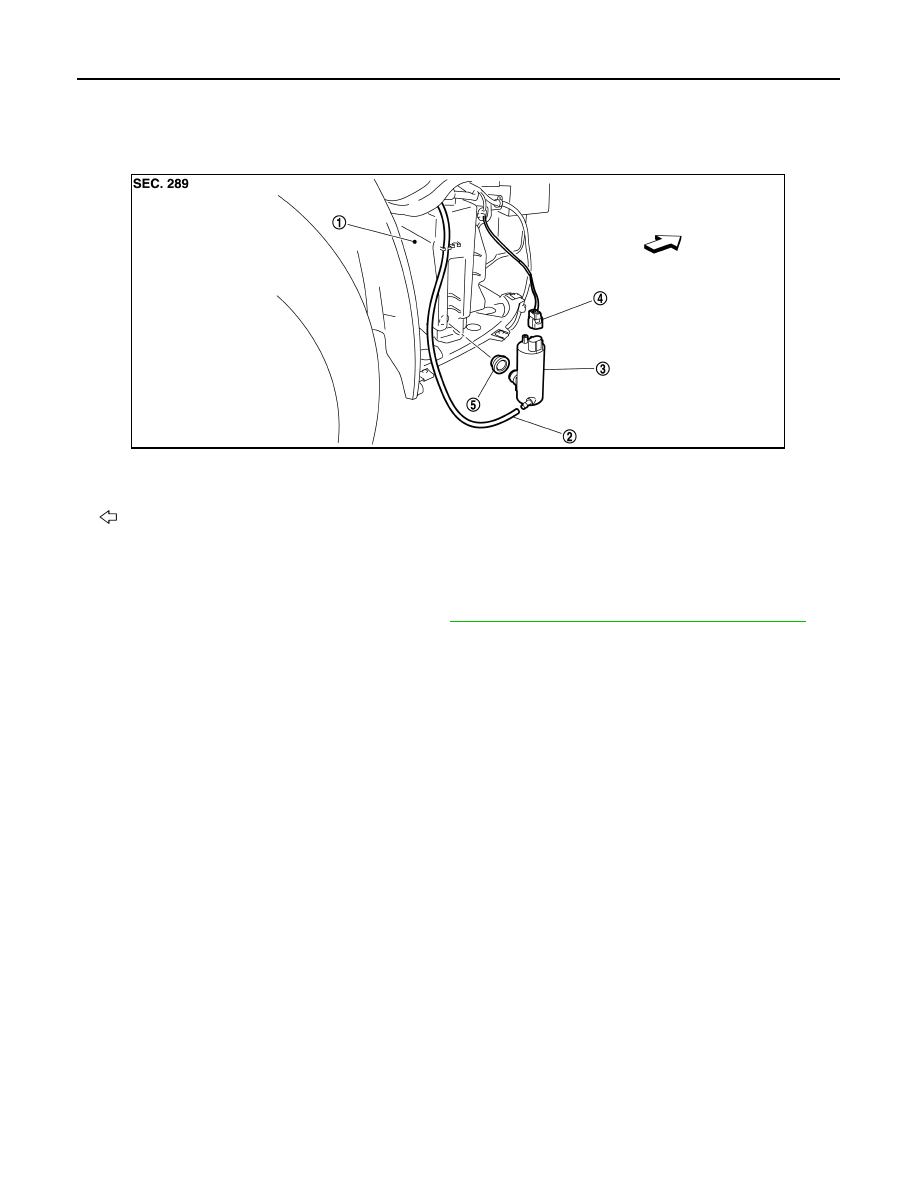

1.

Washer tank

2.

Washer tube

3.

Washer pump

4.

Washer pump connector

5.

Packing

: Vehicle front

JPLIA1135ZZ
