ROAD WHEEL

ON-VEHICLE MAINTENANCE

ROAD WHEEL

Inspection

INFOID:0000000003812916

ALUMINUM WHEEL

1.

Check tires for wear and improper inflation.

2.

Check wheels for deformation, cracks and other damage. If deformed, remove wheel and check wheel
runout.

a.

Remove tire from aluminum wheel and mount on a tire balance machine.

b.

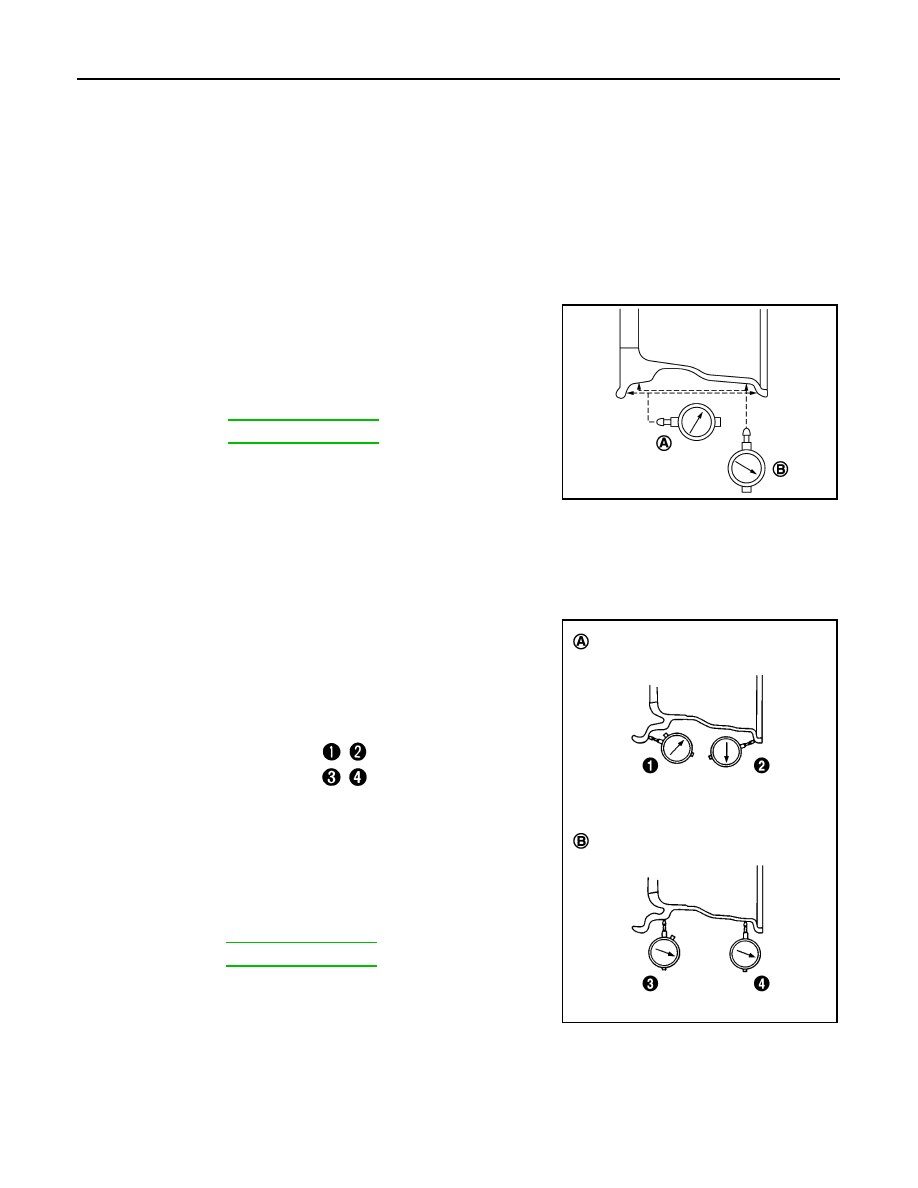

Set dial indicator as shown in the figure.

c.

If the lateral deflection (A) or vertical deflection (B) for radial
runout value exceeds the limit, replace aluminum wheel.

STEEL WHEEL

1.

Check tires for were and improper inflation.

2.

Check wheels for deformation, clacks and other damage. If deformed, remove wheel and check wheel
runout.

a.

Remove tire from steel wheel and mount wheel on a tire balance machine.

b.

Set two dial indicators as shown in the illustration.

c.

Set each dial indicator to “0”.

d.

Rotate wheel and check dial indicators at several points around
the circumference of the wheel.

e.

Calculate runout at each point as shown below.

f.

Select maximum positive runout value and the maximum nega-
tive value. Add the two values to determine total runout.

CAUTION:

In case a positive or negative value is not available, use the
maximum value (negative or positive) for total runout.

g.

If the total runout value exceeds limit, replace steel wheel.

Limit

A:

Refer to

WT-5, "Road Wheel"

.

B:

Refer to

WT-5, "Road Wheel"

.

SEIA0737E

Lateral runout limit (A):

(

+

)/2

Radial runout limit (B):

(

+

)/2

Limit

A:

Refer to

WT-5, "Road Wheel"

.

B:

Refer to

WT-5, "Road Wheel"

.

SEIA0738E

ROAD WHEEL TIRE ASSEMBLY

WT-3

< ON-VEHICLE REPAIR >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

ON-VEHICLE REPAIR

ROAD WHEEL TIRE ASSEMBLY

Adjustment

INFOID:0000000003812917

BALANCING WHEELS (BONDING WEIGHT TYPE)

Preparation Before Adjustment

Using releasing agent, remove double-faced adhesive tape from the road wheel.

CAUTION:

• Be careful not to scratch the road wheel during removal.
• After removing double-faced adhesive tape, wipe clean traces of releasing agent from the road

wheel.

Wheel Balance Adjustment

If a tire balance machine has adhesion balance weight mode settings and drive-in weight mode setting, select
and adjust a drive-in weight mode suitable for road wheels.

1.

Set road wheel on tire balance machine using the center hole as a guide. Start the tire balance machine.

2.

When inner and outer unbalance values are shown on the tire balance machine indicator, multiply outer
unbalance value by 5/3 to determine balance weight that should be used. Select the outer balance weight
with a value closest to the calculated value above and install to the designated outer position of, or at the
designated angle in relation to the road wheel.

CAUTION:

• Do not install the inner balance weight before installing the outer balance weight.
• Before installing the balance weight, be sure to clean the mating surface of the road wheel.

a.

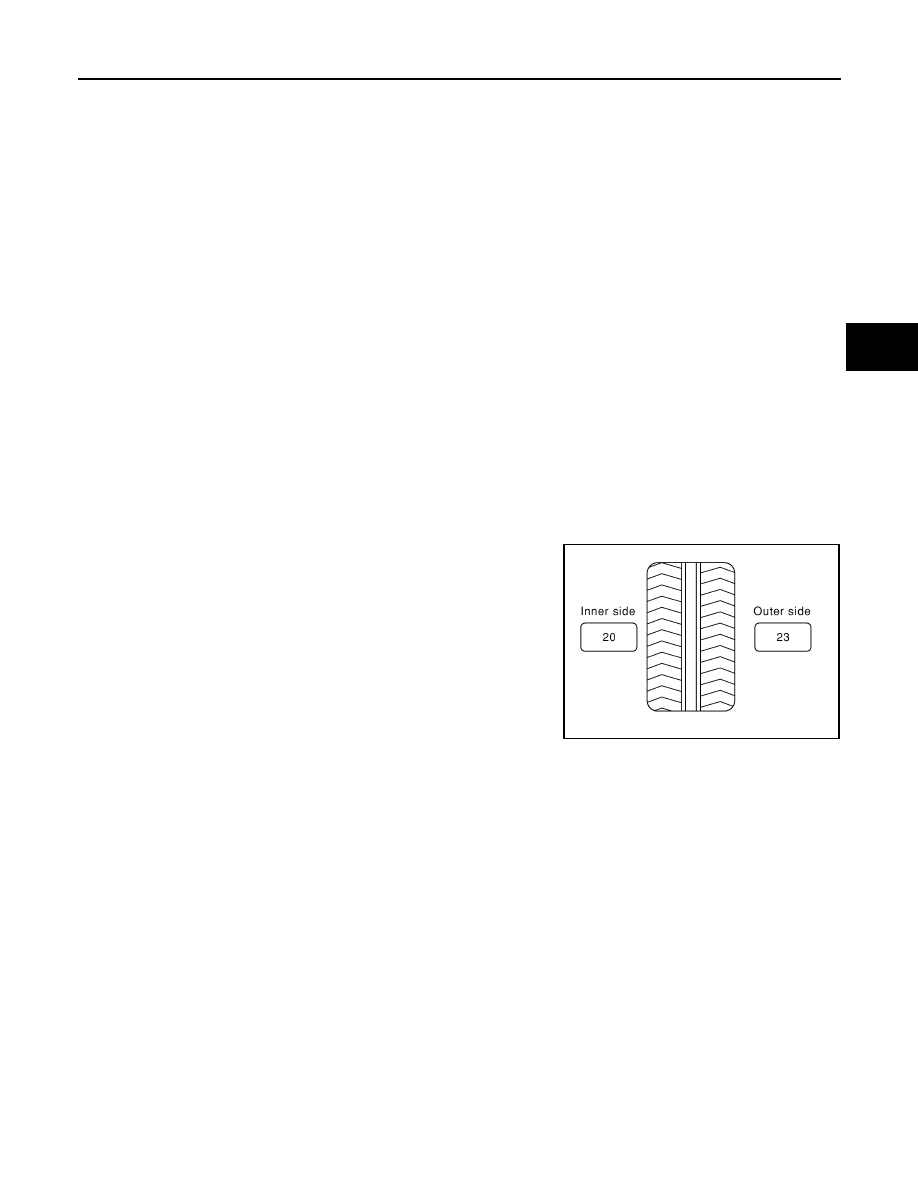

Indicated unbalance value

×

 5/3 = balance weight to be installed

Calculation example:
23 g (0.81 oz)

×

 5/3 = 38.33 g (1.35 oz)

⇒

 37.5 g (1.32 oz) bal-

ance weight (closer to calculated balance weight value)
NOTE:
Note that balance weight value must be closer to the calculated
balance weight value.
Example:
36.2

⇒

 35 g (1.23 oz)

36.3

⇒

 37.5 g (1.32 oz)

b.

Installed balance weight in the position.

SMA054D

WT-4

< ON-VEHICLE REPAIR >

ROAD WHEEL TIRE ASSEMBLY

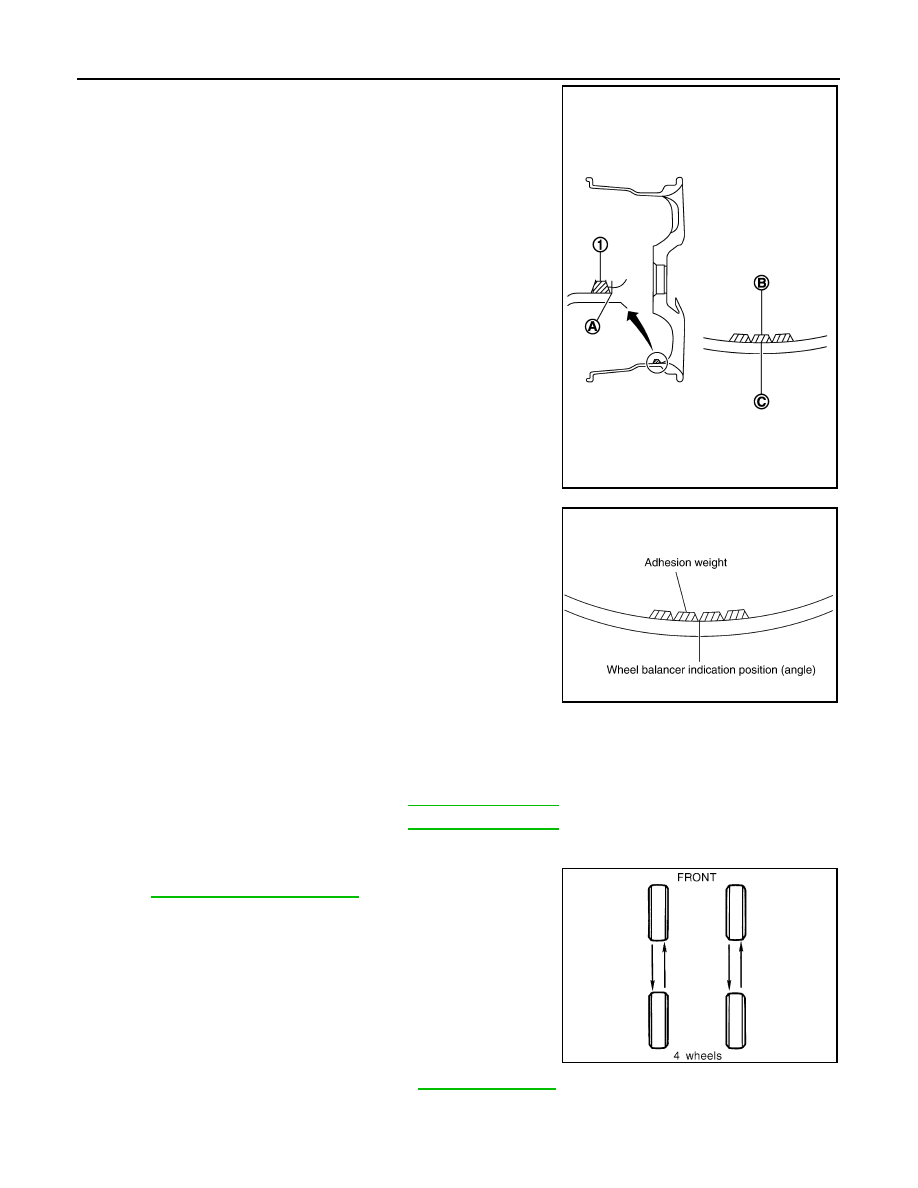

• When installing balance weight (1) to road wheels, set it into

the grooved area (A) on the inner wall of the road wheel as
shown in the figure so that the balance weight center (B) is
aligned with the tire balance machine indication position
(angle) (C).

CAUTION:

• Always use genuine NISSAN adhesion balance weights.
• Balance weights are non-reusable; always replace with

new ones.

• Do not install more than three sheets of balance weight.

c.

If calculated balance weight value exceeds 50 g (1.76 oz), install
two balance weight sheets in line with each other as shown in
the figure.

CAUTION:

Do not install one balance weight sheet on top of another.

3.

Start the tire balance machine again.

4.

Install drive-in balance weight on inner side of road wheel in the
tire balance machine indication position (angle).

CAUTION:

Do not install more than two balance weight.

5.

Start the tire balance machine. Make sure that inner and outer
residual unbalance values are 5 g (0.17 oz) each or below.

6.

If either residual unbalance value exceeds 5 g (0.17 oz), repeat installation procedures.

TIRE ROTATION

• Follow the maintenance schedule for tire rotation service intervals.

Refer to

MA-5, "General Maintenance"

.

• When installing the wheel, tighten wheel nuts to the specified

torque.

CAUTION:

• When installing wheels, tighten them diagonally by dividing

the work two to three times in order to prevent the wheels
from developing any distortion.

• Be careful not to tighten wheel nut at torque exceeding the

criteria for preventing strain of disc rotor.

• Use NISSAN genuine wheel nuts for aluminum wheels.

JPEIC0040ZZ

Limit

Dynamic (At rim flange):

Refer to

WT-5, "Road Wheel"

.

Static (At rim flange):

Refer to

WT-5, "Road Wheel"

.

PEIA0033E

Wheel nuts tighting torque

: Refer to

WT-5, "Wheel Nut"

.

SMA829C

SERVICE DATA AND SPECIFICATIONS (SDS)

WT-5

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Road Wheel

INFOID:0000000003812918

ALUMINUM WHEEL (CONVENTIONAL)

STEEL WHEEL

Wheel Nut

INFOID:0000000003812919

Tire Air Pressure

INFOID:0000000003812920

Unit: kPa (bar, kg/cm

2

, psi)

Item

Limit

Radial runout

Lateral deflection

Less than 0.3 mm (0.012 in)

Radial deflection

Allowable unbalance

Dynamic (At flange)

Less than 5 g (0.17 oz) (one side)

Static (At flange)

Less than 10 g (0.35 oz)

Item

Limit

Radial runout

Lateral deflection

Less than 0.8 mm (0.031 in)

Radial deflection

Less than 0.5 mm (0.020 in)

Allowable unbalance

Dynamic (At flange)

Less than 5 g (0.17 oz) (one side)

Static (At flange)

Less than 10 g (0.35 oz)

Item

Standard

Wheel nut tighting torque

108 N·m (11 kg-m, 80 ft-lb)

Item

Standard

Front

Rear

205/65R16 95H

220 (2.2, 2.2, 32)

200 (2.0, 2.0, 29)

215/55R17 94V

240 (2.4, 2.4, 35)

220 (2.2, 2.2, 32)
