Nissan Teana J32. Manual - part 1239





WCS

WARNING CHIME SYSTEM

WCS-23

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

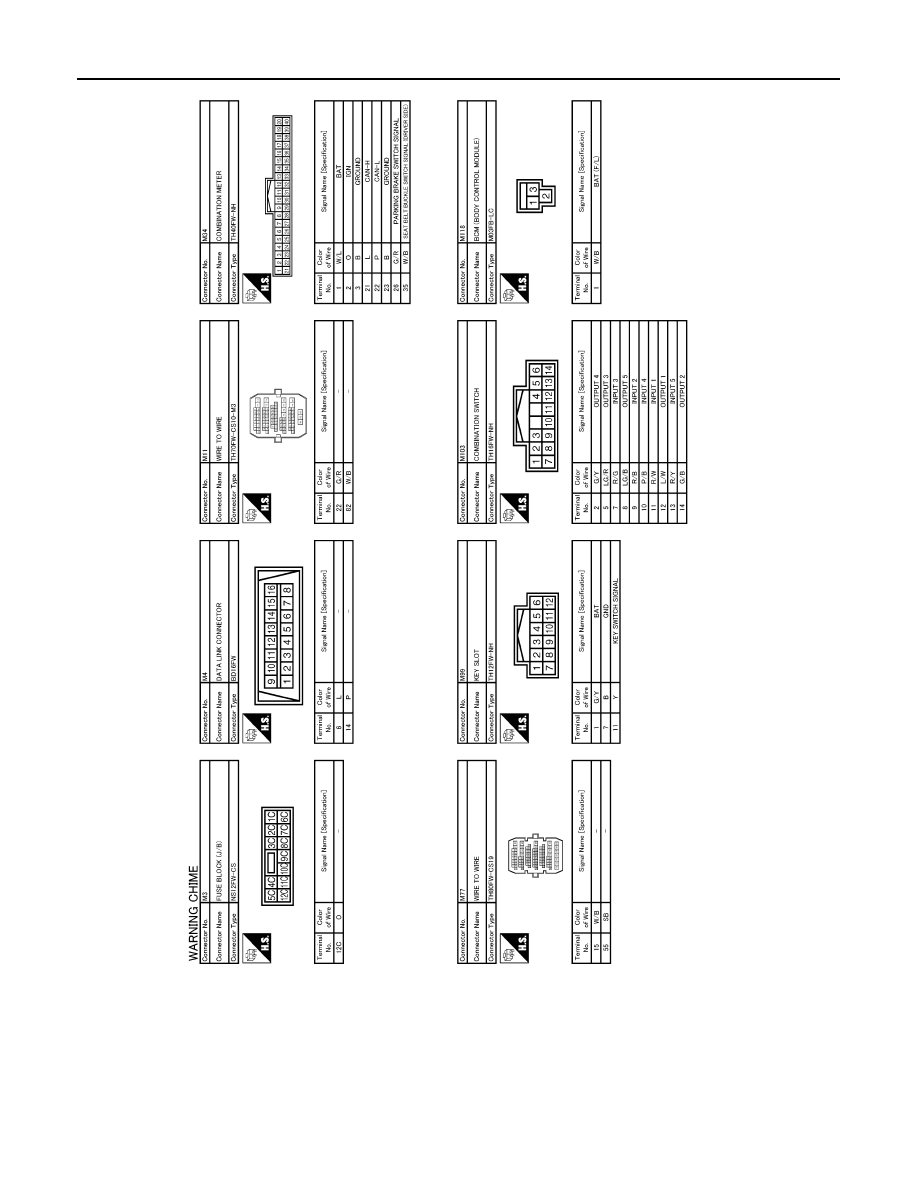

JCNWM0873GB

WCS-24

< COMPONENT DIAGNOSIS >

WARNING CHIME SYSTEM

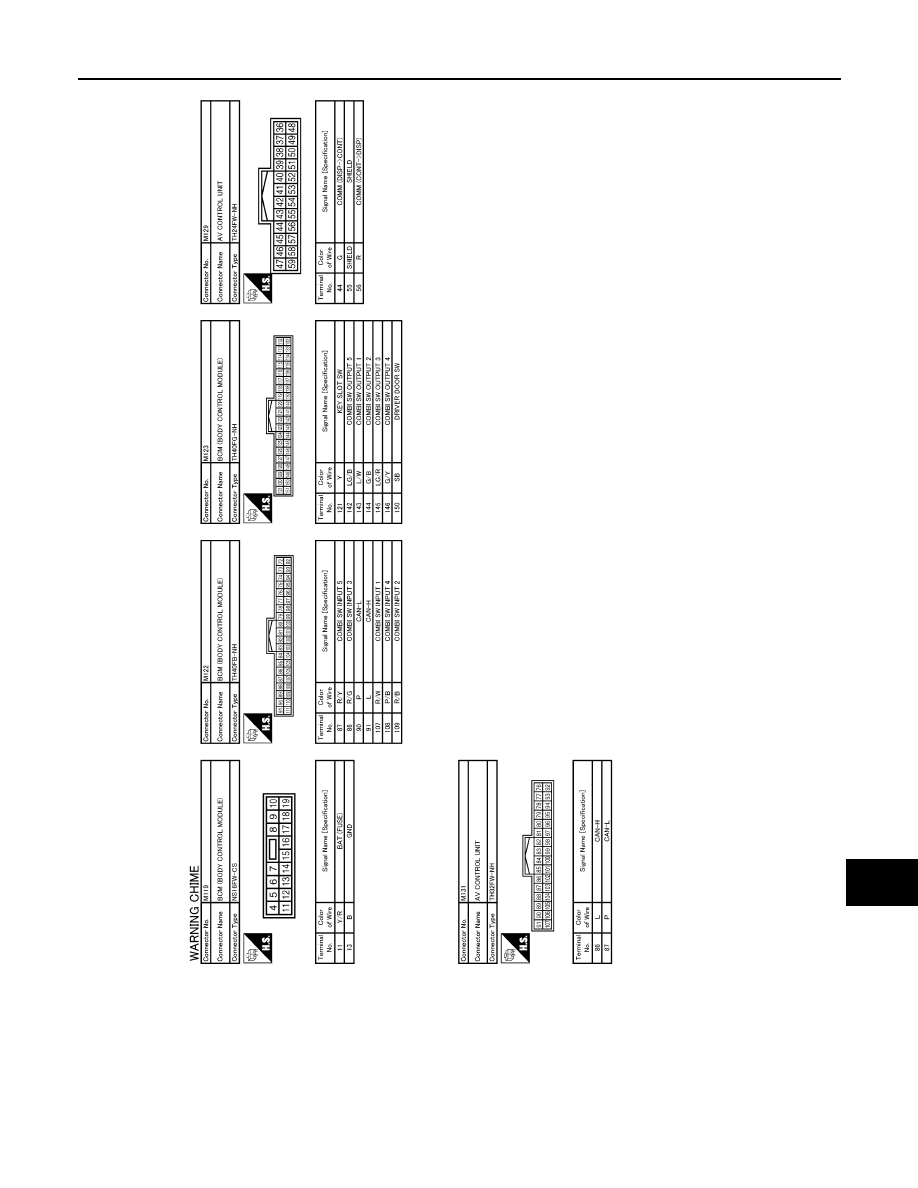

JCNWM0874GB

WCS

WARNING CHIME SYSTEM

WCS-25

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

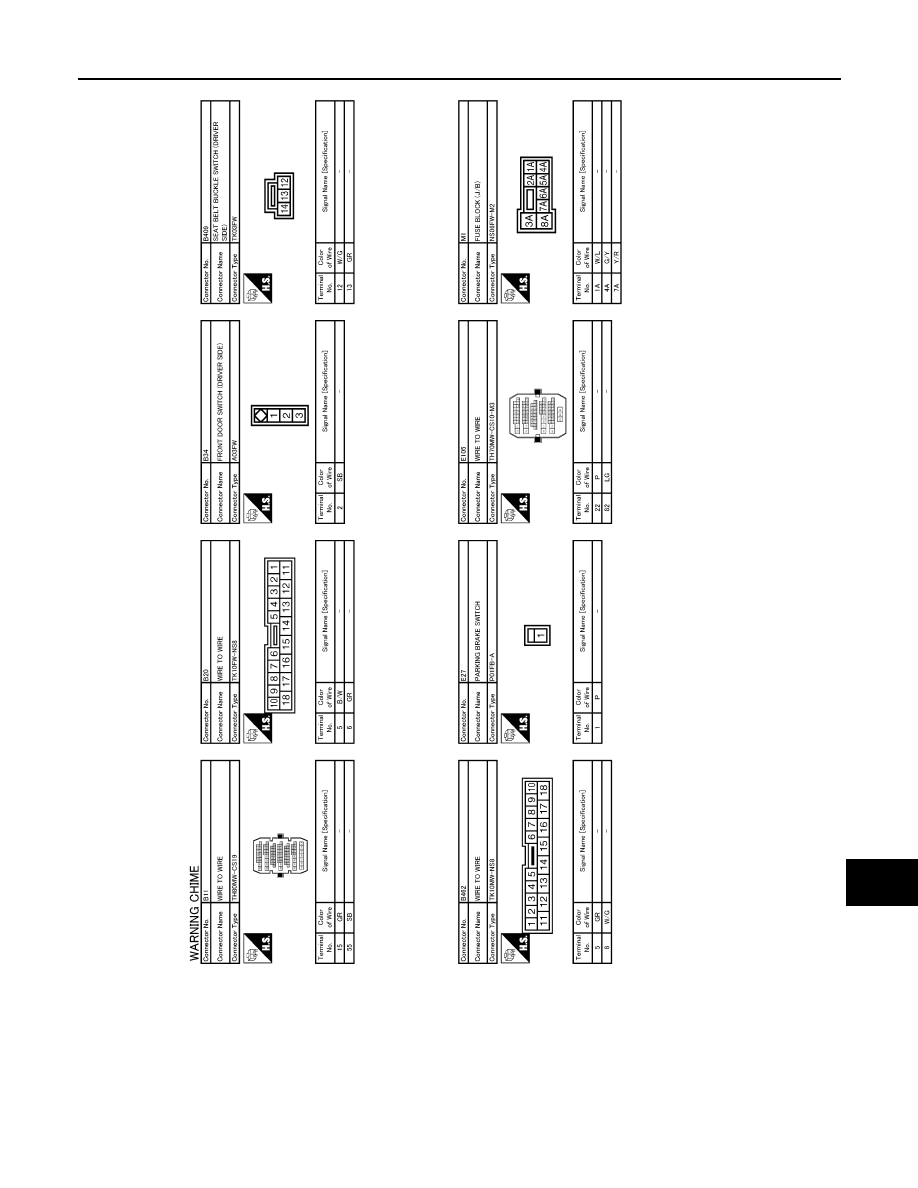

JCNWM0875GB

WCS-26

< ECU DIAGNOSIS >

COMBINATION METER

ECU DIAGNOSIS

COMBINATION METER

Reference Value

INFOID:0000000003838730

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

SPEED METER
[km/h]

Ignition switch
ON

While driving

Equivalent to speedometer reading
NOTE:
655.35 is displayed when the malfunc-
tion signal is received

SPEED OUTPUT
[km/h]

Ignition switch
ON

While driving

Equivalent to speedometer reading
NOTE:
655.35 is displayed when the malfunc-
tion signal is received

ODO OUTPUT
[km/h or mph]

Ignition switch
ON

Equivalent to odometer reading in
combination meter

TACHO METER
[rpm]

Ignition switch
ON

While driving

Equivalent to tachometer reading
NOTE:
8191.875 is displayed when the mal-
function signal is received

FUEL METER
[lit]

Ignition switch
ON

Values according to fuel level

W TEMP METER
[

°

C]

Ignition switch
ON

Values according to engine coolant
temperature
NOTE:
215 is displayed when the malfunction
signal is input

ABS W/L

Ignition switch
ON

ABS warning lamp ON

On

ABS warning lamp OFF

Off

VDC/TCS IND

Ignition switch
ON

VDC OFF indicator lamp ON

On

VDC OFF indicator lamp OFF

Off

SLIP IND

Ignition switch
ON

SLIP Indicator lamp ON

On

SLIP indicator lamp OFF

Off

BRAKE W/L

Ignition switch
ON

Brake warning lamp ON

On

Brake warning lamp OFF

Off

DOOR W/L

Ignition switch
ON

Door warning ON

On

Door warning OFF

Off

TRUNK/GLAS-H

Ignition switch
ON

Trunk warning ON

On

Trunk warning OFF

Off

HI-BEAM IND

Ignition switch
ON

High-beam indicator lamp ON

On

High-beam indicator lamp OFF

Off

TURN IND

Ignition switch
ON

Turn signal indicator lamp ON

On

Turn signal indicator lamp OFF

Off

FR FOG IND

Ignition switch
ON

Front fog light indicator lamp ON

On

Front fog light indicator lamp OFF

Off

RR FOG IND

Ignition switch
ON

Rear fog light indicator lamp ON

On

Rear fog light indicator lamp OFF

Off

LIGHT IND

Ignition switch
ON

Tail lamp indicator lamp ON

On

Tail lamp indicator lamp OFF

Off
