LOCK-UP AND SELECT CONTROL SYSTEM

Component Description

INFOID:0000000003806365

TRANSAXLE ASSEMBLY

EXCEPT TRANSAXLE ASSEMBLY

Name

Function

Torque converter regulator valve

TM-189

TCC control valve

Select control valve

Select switch valve

Manual valve

TCC solenoid valve

TM-230

Lock-up select solenoid valve

TM-258

Primary speed sensor

TM-218

Secondary speed sensor

TM-222

CVT fluid temperature sensor

TM-216

PNP switch

TM-213

Forward clutch

TM-186

Reverse brake

Torque converter

Name

Function

TCM

TM-193

Accelerator pedal position sensor

TM-252

SHIFT CONTROL SYSTEM

TM-197

< FUNCTION DIAGNOSIS >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SHIFT CONTROL SYSTEM

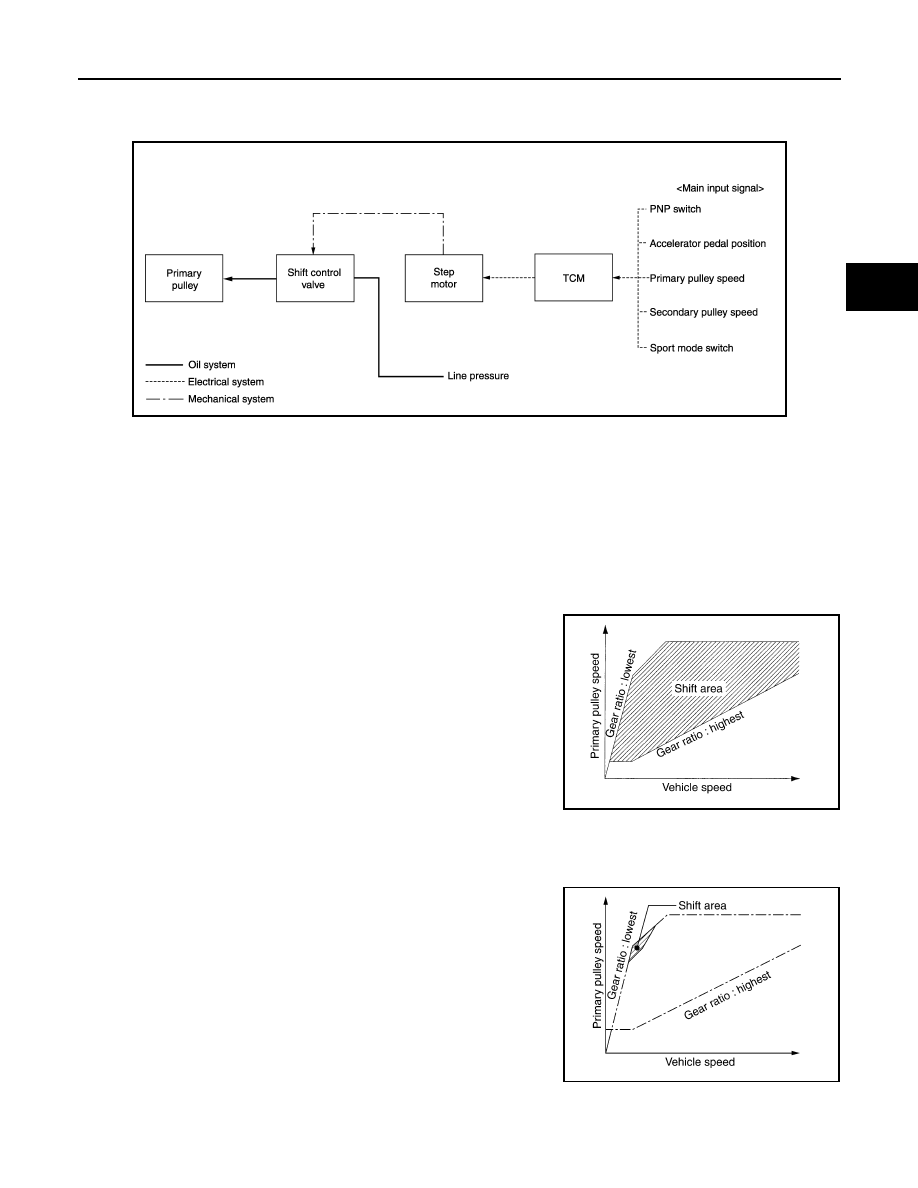

System Diagram

INFOID:0000000003806366

NOTE:
The gear ratio is set for each position separately.

System Description

INFOID:0000000003806367

In order to select the gear ratio that can obtain the driving force in accordance with driver's intention and the
vehicle condition, TCM monitors the driving conditions, such as the vehicle speed and the throttle position and
selects the optimum gear ratio, and determines the gear change steps to the gear ratio. Then TCM sends the
command to the step motor, controls the inflow/outflow of line pressure from the primary pulley to determine
the position of the moving-pulley and controls the gear ratio.

“D” POSITION

Shifting over all the ranges of gear ratios from the lowest to the high-
est.

SPORT MODE

Use this position for the improved engine braking.

“L” POSITION

By limiting gear range to the lowest position, the strong driving force
and the engine brake can be secured.

DOWNHILL ENGINE BRAKE CONTROL (AUTO ENGINE BRAKE CONTROL)

When a downhill slope is detected with the accelerator pedal released, the engine brake will be strengthened
up by downshifting so as not to accelerate the vehicle more than necessary.

JPDIA0745GB

SCIA1953E

SCIA1955E

TM-198

< FUNCTION DIAGNOSIS >

[CVT: RE0F10A]

SHIFT CONTROL SYSTEM

ACCELERATION CONTROL

According to vehicle speed and a change of accelerator pedal angle, driver's request for acceleration and driv-
ing scene are judged.   This function assists improvement in the acceleration feeling by making the engine
speed proportionate to the vehicle speed. And a shift map that can gain a larger driving force is available for
compatibility of mileage with driveability.

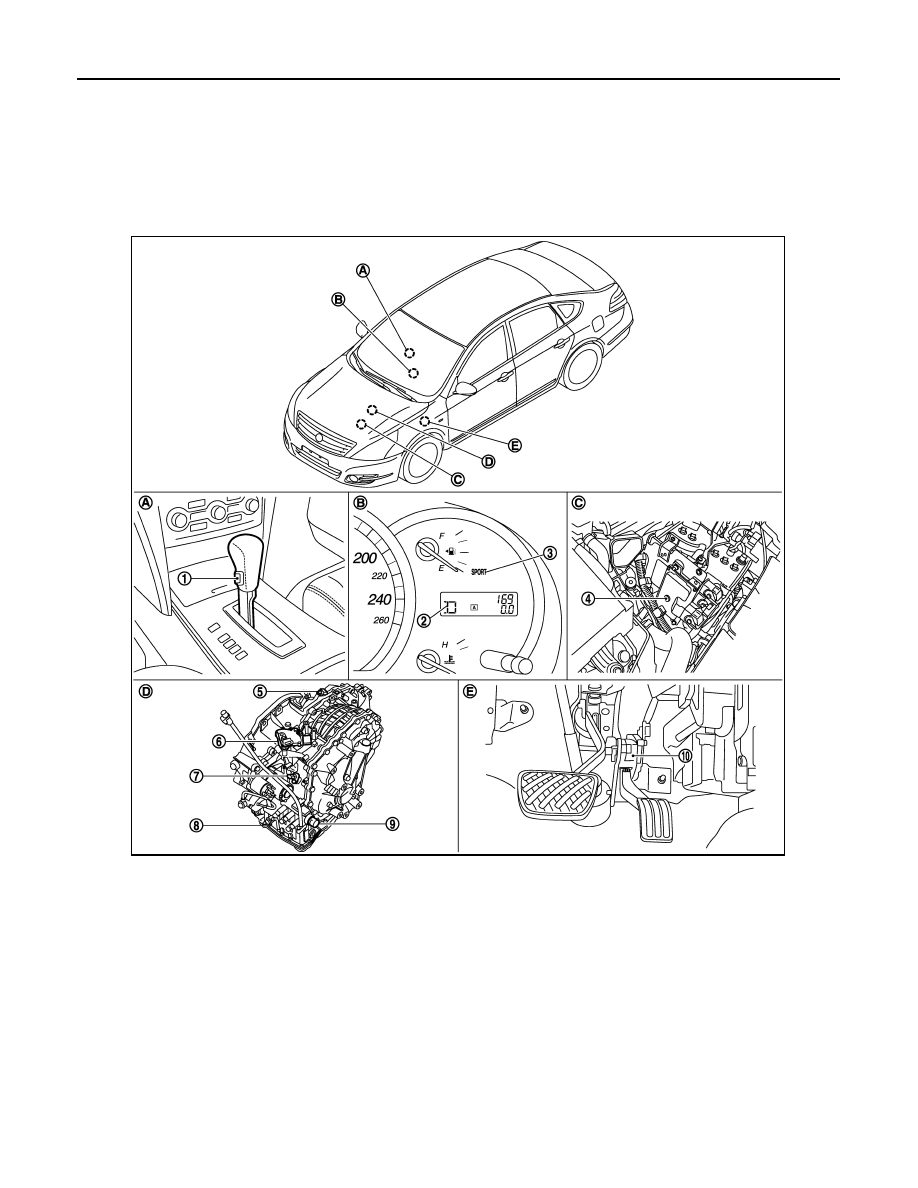

Component Parts Location

INFOID:0000000003809655

*: Control valve assembly is included in CVT assembly.

NOTE:
The following components are included in control valve assembly (8).
• CVT fluid temperature sensor
• Torque converter clutch solenoid valve
• Line pressure solenoid valve
• Step motor
• ROM  assembly

1.

Sport mode switch

2.

Shift position indicator

3.

SPORT indicator lamp

4.

TCM

5.

Secondary speed sensor

6.

PNP switch

7.

Primary speed sensor

8.

Control valve assembly

*

9.

CVT unit connector

10. Accelerator pedal position sensor

A.

Center console

B.

Combination meter

C.

Engine room LH

D.

CVT assembly

E.

Accelerator pedal, upper

JPDIA0746ZZ

SHIFT CONTROL SYSTEM

TM-199

< FUNCTION DIAGNOSIS >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• Secondary pressure sensor
• Secondary pressure solenoid valve
• Lock-up select solenoid valve

Component Description

INFOID:0000000003806369

TRANSAXLE ASSEMBLY

EXCEPT TRANSAXLE ASSEMBLY

Item

Function

PNP switch

TM-213

Primary speed sensor

TM-218

Secondary speed sensor

TM-222

Step motor

TM-261

Shift control valve

TM-189

Primary pulley

TM-186

Secondary pulley

TM-186

Item

Function

TCM

TM-193
