TM-180

< BASIC INSPECTION >

[CVT: RE0F10A]

INSPECTION AND ADJUSTMENT

• Restart the procedure from step 3 if the values are not the same.

15. Shift the selector lever to “P” position.
16. Check that the shift position indicator in the combination meter turns ON. (It indicates approximately 1 or 2

seconds after shifting the selector lever to “P” position.)
• Check the following items if the shift position indicator does not turn ON. Repair or replace the shift posi-

tion indicator if necessary.

- The harness between TCM and ROM ASSY in the transaxle assembly is open or shorted.
- Cable disconnected, loosen, or bent from the connector housing.
- Power supply and ground of TCM. Refer to

TM-249, "Description"

.

Calibration Data

Data after deletion

PATTERN C

1.

Replace the transaxle assembly first, and then replace TCM.

2.

Perform the service of “PATTERN A”.
(Perform the service of “PATTERN B” if TCM is replaced first.)

Item name

Display value

Item name

Display value

UNIT CLB ID 1

00

GAIN PL

256

UNIT CLB ID 2

00

OFFSET PL

40

UNIT CLB ID 3

00

OFFSET2 PL

0

UNIT CLB ID 4

00

MAP NO SEC

32

UNIT CLB ID 5

00

GAIN SEC

256

UNIT CLB ID 6

00

OFFSET SEC

40

MAP NO LU

33

OFFSET2 SEC

0

GAIN LU

256

MAP NO SL

32

OFFSET LU

40

GAIN SL

256

OFFSET2 LU

0

OFFSET SL

40

MAP NO PL

32

OFFSET2 SL

0

CVT SYSTEM

TM-181

< FUNCTION DIAGNOSIS >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

FUNCTION DIAGNOSIS

CVT SYSTEM

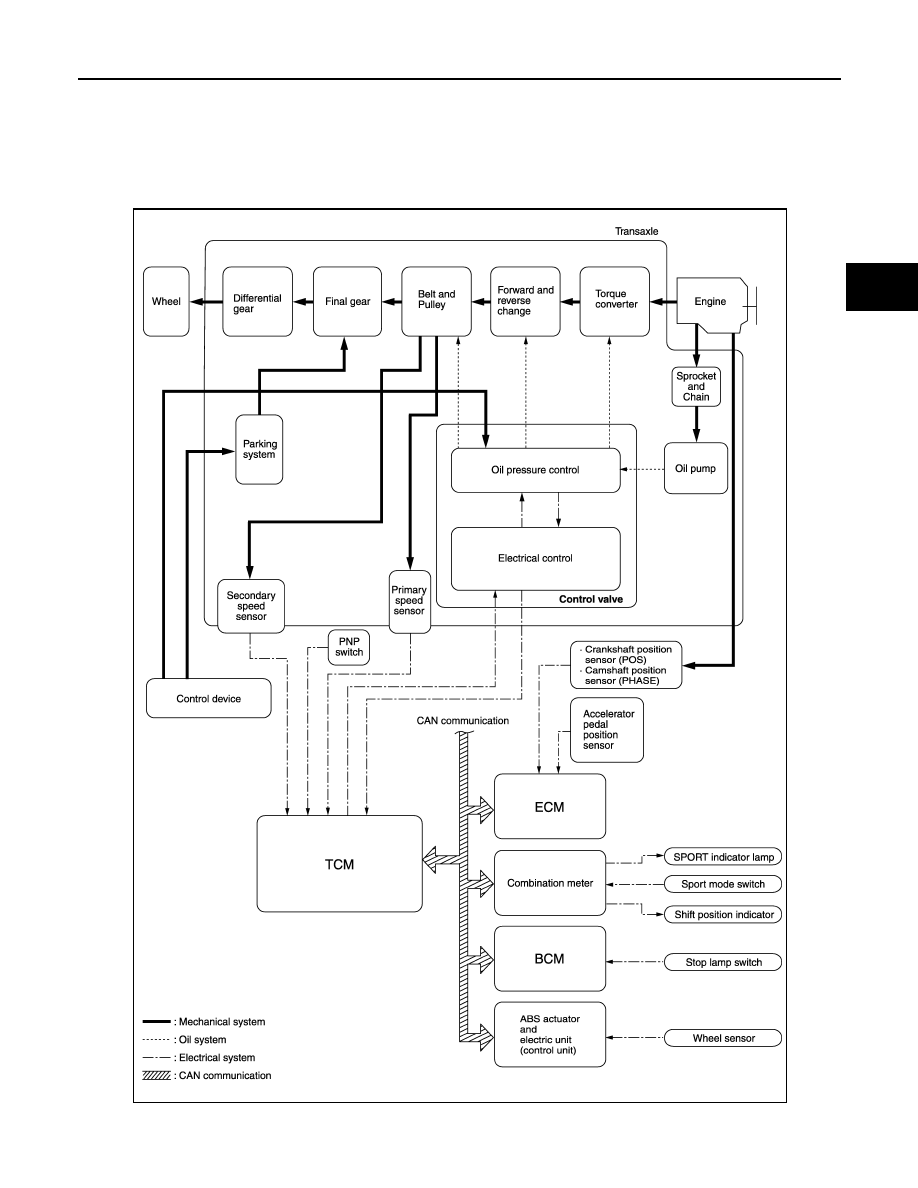

System Diagram

INFOID:0000000003806347

JPDIA0743GB

TM-182

< FUNCTION DIAGNOSIS >

[CVT: RE0F10A]

CVT SYSTEM

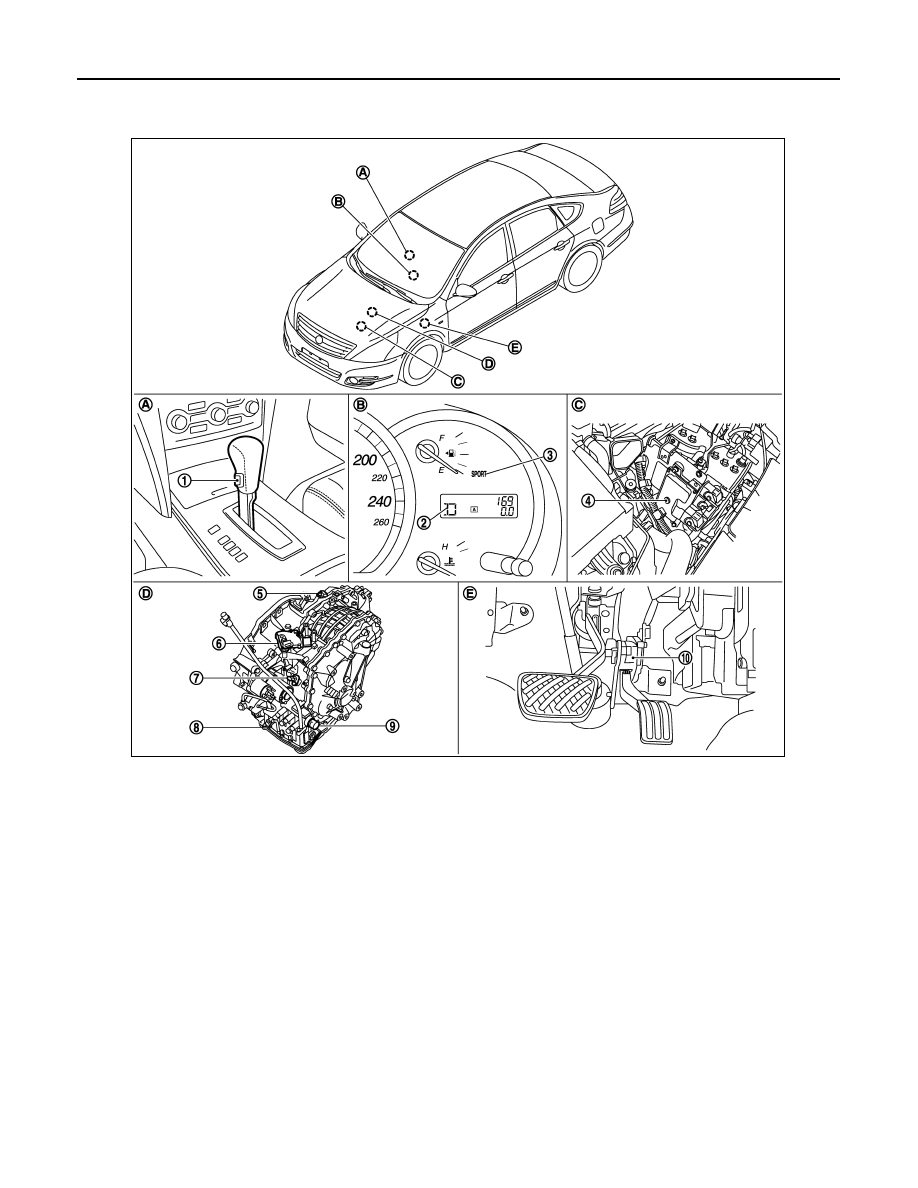

Component Parts Location

INFOID:0000000003806348

*: Control valve assembly is included in CVT assembly.

NOTE:
The following components are included in control valve assembly (8).
• CVT fluid temperature sensor
• Torque converter clutch solenoid valve
• Line pressure solenoid valve
• Step motor
• ROM  assembly
• Secondary pressure sensor
• Secondary pressure solenoid valve
• Lock-up select solenoid valve

1.

Sport mode switch

2.

Shift position indicator

3.

SPORT indicator lamp

4.

TCM

5.

Secondary speed sensor

6.

PNP switch

7.

Primary speed sensor

8.

Control valve assembly

*

9.

CVT unit connector

10. Accelerator pedal position sensor

A.

Center console

B.

Combination meter

C.

Engine room LH

D.

CVT assembly

E.

Accelerator pedal, upper

JPDIA0746ZZ

MECHANICAL SYSTEM

TM-183

< FUNCTION DIAGNOSIS >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

MECHANICAL SYSTEM

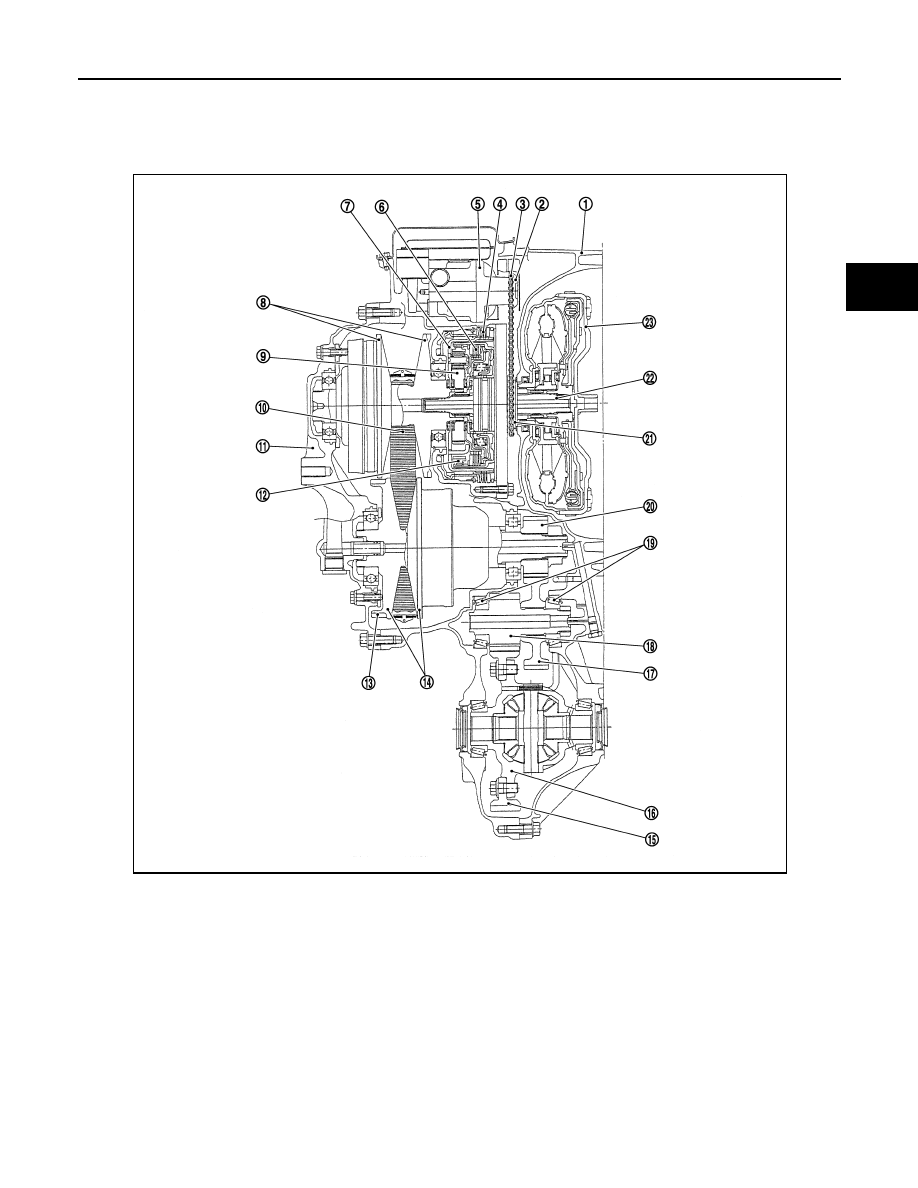

Cross-Sectional View

INFOID:0000000003806349

1.

Converter housing

2.

Driven sprocket

3.

Chain

4.

Reverse brake

5.

Oil pump

6.

Forward clutch

7.

Planetary carrier

8.

Primary pulley

9.

Sun gear

10. Steel belt

11.

Side cover

12. Internal gear

13. Parking gear

14. Secondary pulley

15. Final gear

16. Differential case

17. Idler gear

18. Reduction gear

19. Taper roller bearing

20. Output gear

21. Drive sprocket

22. Input shaft

23. Torque converter

JSDIA0802ZZ
