Nissan Teana J32. Manual - part 1160

TM-164

< ON-VEHICLE REPAIR >

[CVT: RE0F09B]

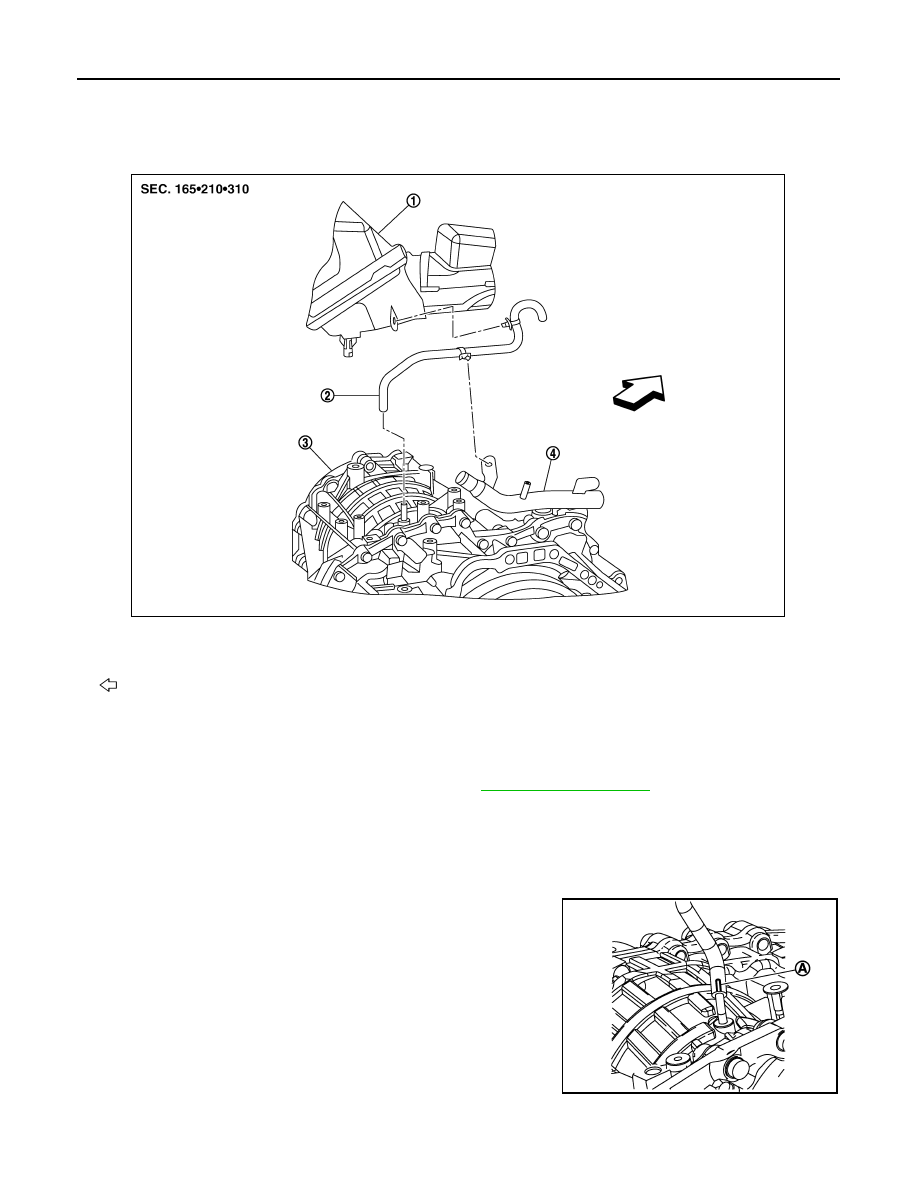

AIR BREATHER HOSE

AIR BREATHER HOSE

Exploded View

INFOID:0000000003849103

Removal and Installation

INFOID:0000000003849104

REMOVAL

1.

Remove air duct (inlet) and air cleaner case. Refer to

EM-26, "Exploded View"

.

2.

Remove air breather hose from transaxle assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Check that air breather hose is not collapsed or blocked due to folding or bending when installed.
• Install air breather hose to air breather tube so that the paint mark

(A) faces upward. Also insert hose to the bend of air breather tube.

1.

Air cleaner case

2.

Air breather hose

3.

Transaxle assembly

4.

Heater pipe

: Vehicle front

JPDIA0592ZZ

SCIA7584J

FLUID COOLER SYSTEM

TM-165

< ON-VEHICLE REPAIR >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

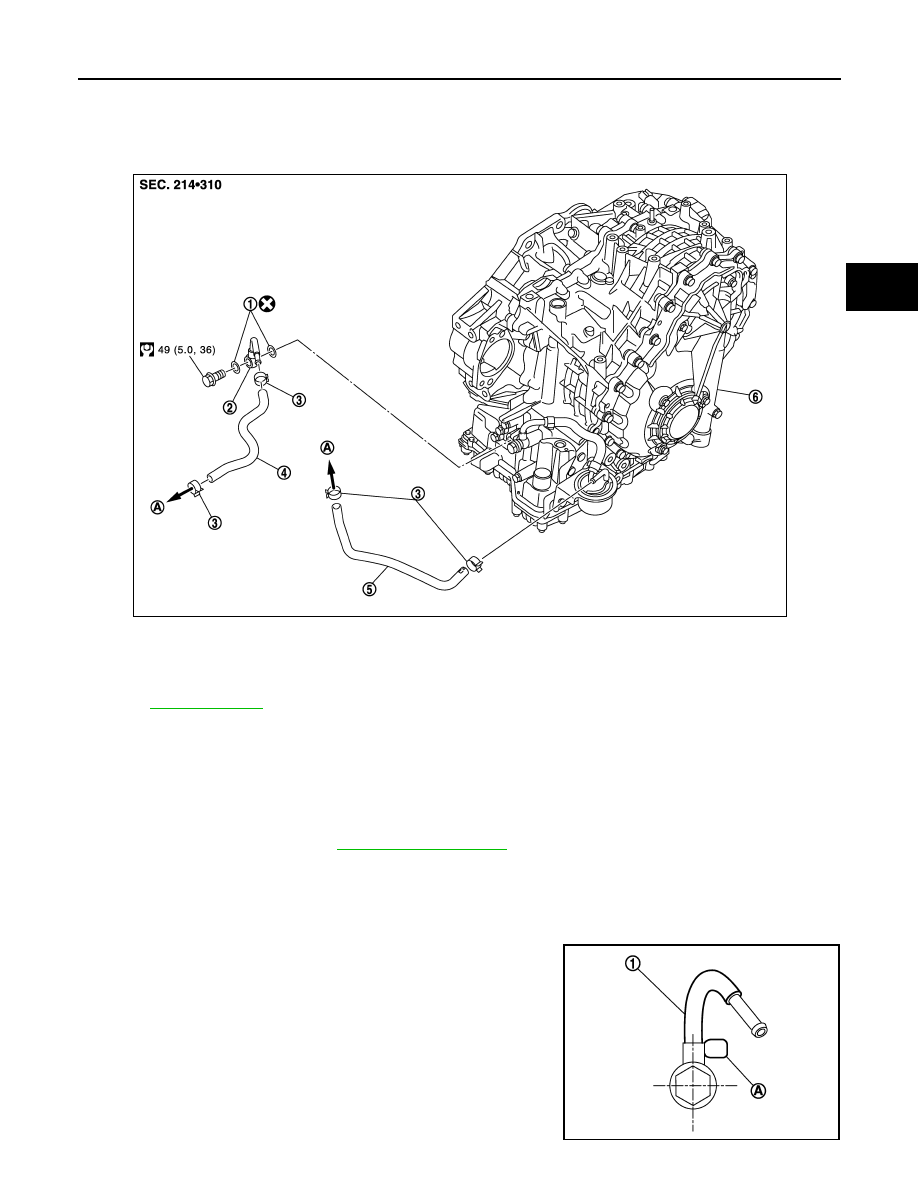

FLUID COOLER SYSTEM

Exploded View

INFOID:0000000003849105

Removal and Installation

INFOID:0000000003849106

REMOVAL

1.

Remove front under cover.

2.

Remove fender protector (left side).

3.

Remove air duct (inlet). Refer to

EM-26, "Exploded View"

.

4.

Remove fluid cooler hose A and fluid cooler hose B.

5.

Remove fluid cooler tube.

INSTALLATION

Note the following, and install in the reverse order of removal.
When installing CVT fluid cooler tube (1) to transaxle assembly:
• Contact CVT fluid cooler tube to a boss portion (A) of the transaxle

case.

• Tighten the bolt of CVT fluid cooler tube without moving the CVT

fluid cooler tube.

1.

Copper washer

2.

Fluid cooler tube

3.

Hose clamp

4.

Fluid cooler hose A

5.

Fluid cooler hose B

6.

Transaxle assembly

A.

To radiator assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIA0792GB

JPDIA0628ZZ

TM-166

< ON-VEHICLE REPAIR >

[CVT: RE0F09B]

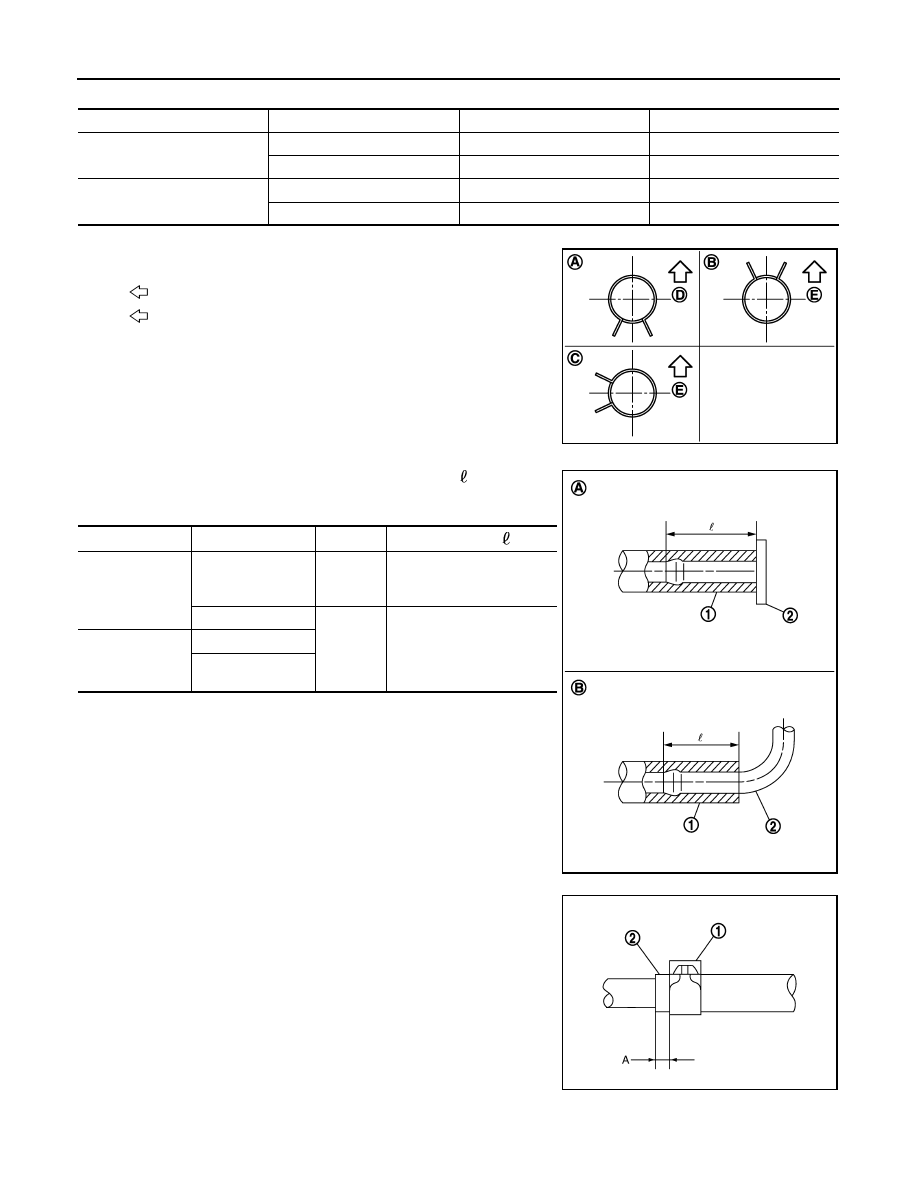

FLUID COOLER SYSTEM

*: Refer to the illustrations for the specific position of each hose clamp tab.

• The illustrations indicate the view from the hose ends.

• When installing hose clamps the center line of each clamp tab

should be positioned as shown in the figure.

• Insert CVT water hose according to dimension ( ) described

below.

• Set hose clamps (1) at the both ends of fluid cooler hose (2) with

dimension (A) from the hose edge.

• Hose clamp should not interfere with the bulge.

CVT water hose

Hose end

Paint mark

Position of hose clamp*

Fluid cooler hose A

Radiator assembly

Facing upward

A

Fluid cooler tube

Facing upward

C

Fluid cooler hose B

Radiator assembly

Facing backward

B

Transaxle assembly

Facing upward

C

D: Vehicle front

E: Vehicle upper

JPDIA0869ZZ

(1)

(2)

Tube type

Dimension

Fluid cooler hose
A

Radiator assembly

A

30 mm (1.18 in) (Insert the

hose until the hose touches

the radiator)

Fluid cooler tube

B

End reaches the tube bend

R position.

Fluid cooler hose
B

Radiator assembly

Transaxle assem-
bly

JPDIA0863ZZ

Dimension (A)

: 5 – 9 mm (0.20 – 0.35 in)

SCIA8123E

FLUID COOLER SYSTEM

TM-167

< ON-VEHICLE REPAIR >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Inspection

INFOID:0000000003849107

After completing installation, check for engine coolant leakage and check engine coolant level. Refer to

CO-8,

"Inspection"

.
