AV

BOSE AMP.

AV-311

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

*: All surround sounds are input only when the 5.1 channel surround sound is played.

56

(W/L)

55

(W/R)

Voice guidance signal

Input

Ignition

switch

ON

When inputting voice guid-
ance.

58

(W/R)

57

(B/R)

Surround sound signal cen-
ter

Input

Ignition

switch

ON

When DVD is playing.

*

59

(GR/V)

60

(W/L)

Surround sound signal cen-
ter

Input

Ignition

switch

ON

When DVD is playing.

*

75

(P)

—

AV communication signal
(L)

—

—

—

—

76

(P)

—

AV communication signal
(L)

—

—

—

—

77

(L)

—

AV communication signal
(H)

—

—

—

—

78

(L)

—

AV communication signal
(H)

—

—

—

—

79

—

Shield

—

—

—

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIB3609E

AV-312

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

BOSE AMP.

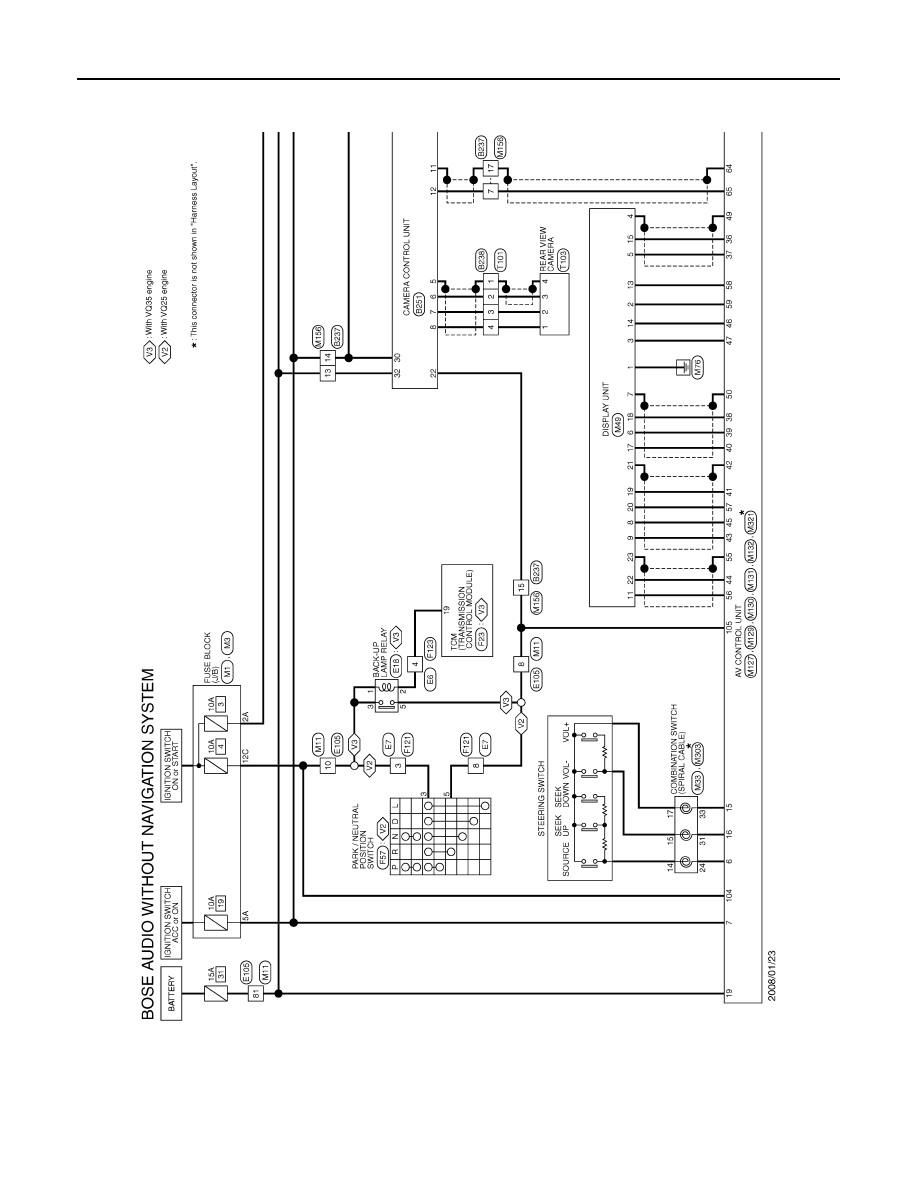

Wiring Diagram — BOSE AUDIO WITHOUT NAVIGATION SYSTEM —

INFOID:0000000003971970

JCNWM0917GB

AV

BOSE AMP.

AV-313

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

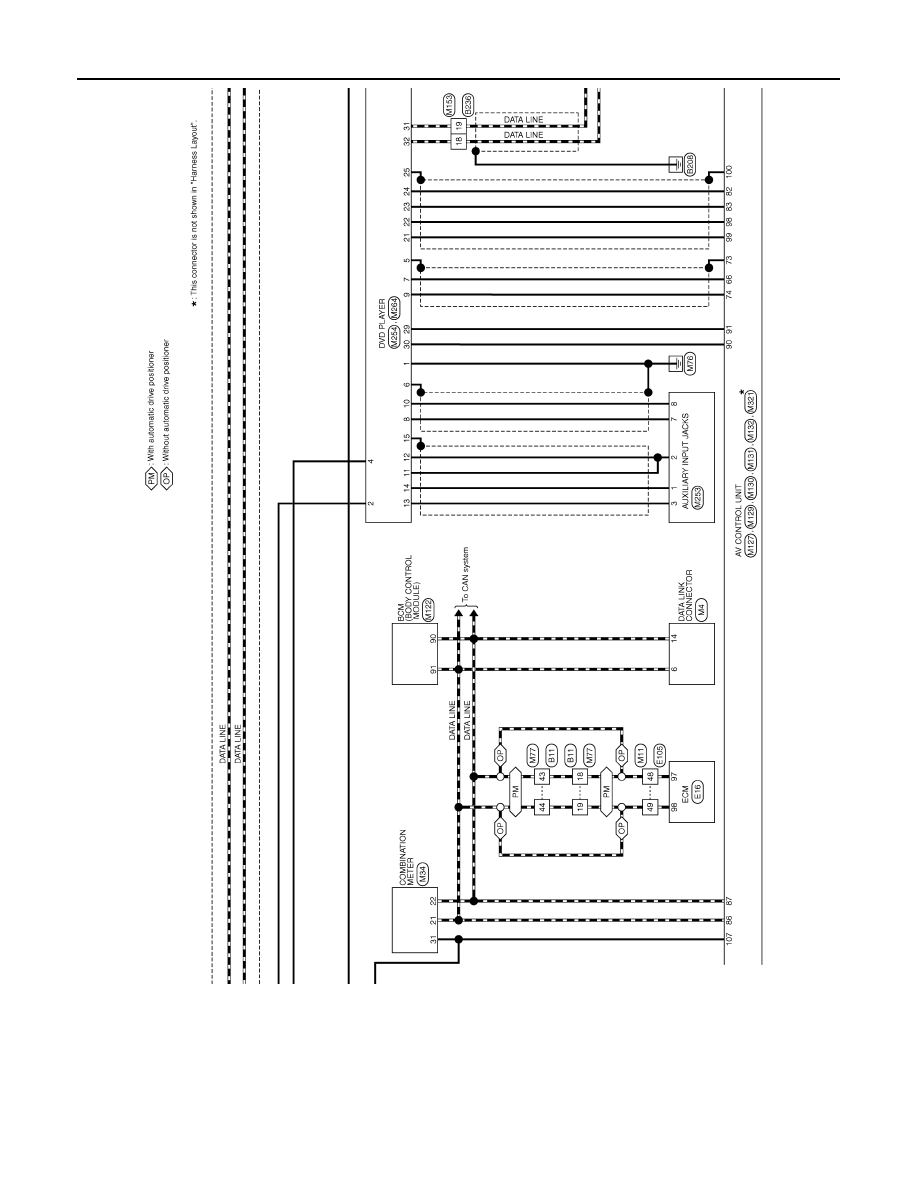

JCNWM0918GB

AV-314

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

BOSE AMP.

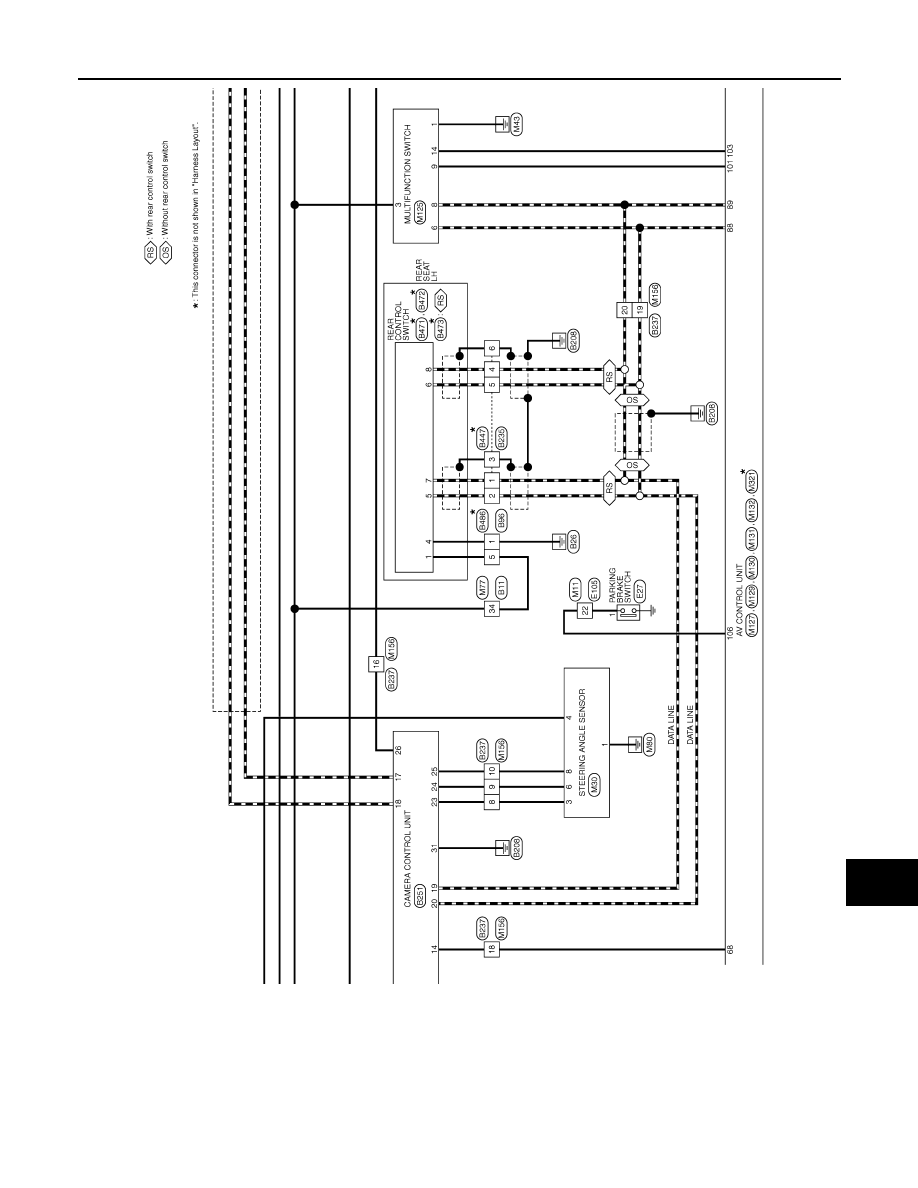

JCNWM0919GB
