Nissan Teana J32. Manual - part 1126





TM-28

< FUNCTION DIAGNOSIS >

[CVT: RE0F09B]

LOCK-UP AND SELECT CONTROL SYSTEM

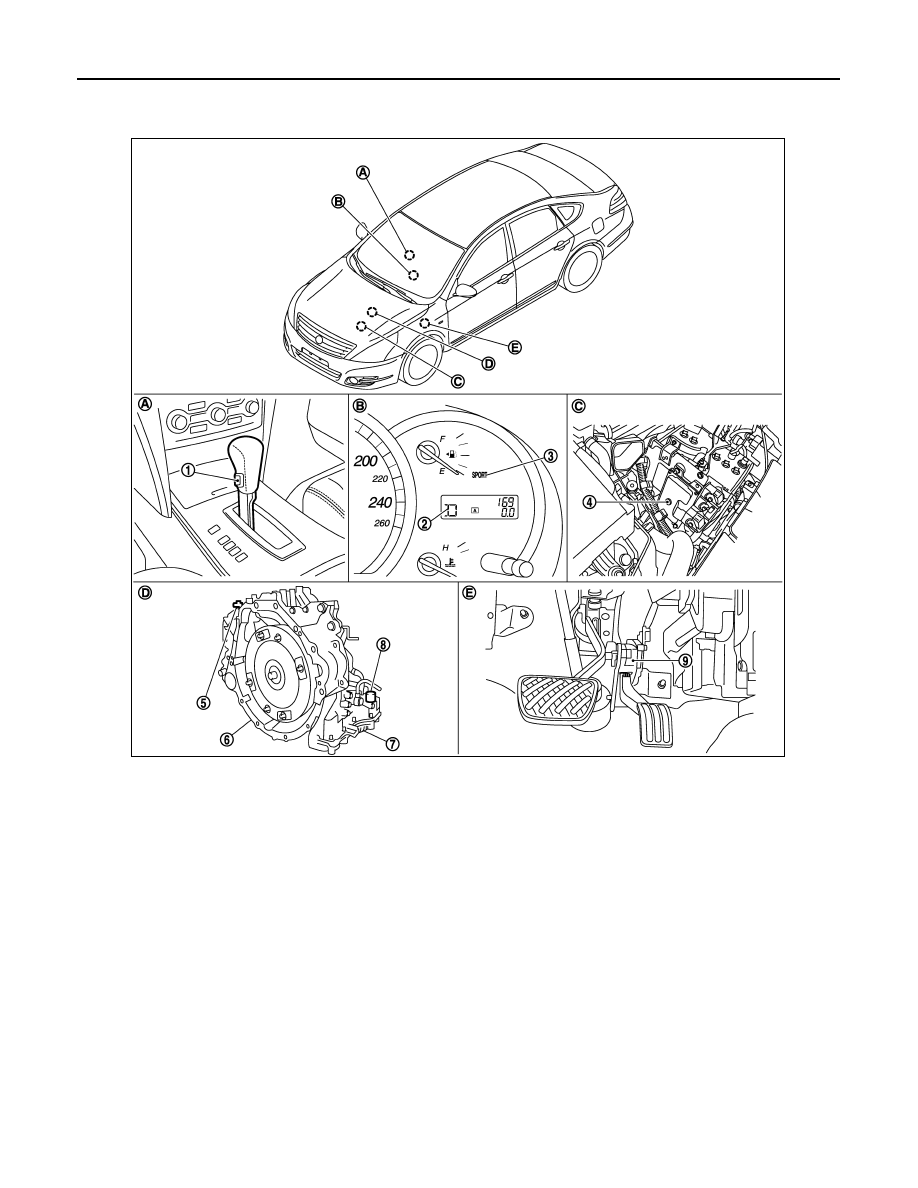

Component Parts Location

INFOID:0000000003848934

*1: Primary pressure sensor is included in CVT assembly.

*2: Control valve assembly is included in CVT assembly.

NOTE:
The following components are included in control valve assembly (7).
• PNP switch
• Primary speed sensor
• Step motor
• Secondary pressure solenoid valve
• Line pressure solenoid valve
• Torque converter clutch solenoid valve
• Shift control valve
• Secondary valve
• Manual valve
• Lock-up select solenoid valve

1.

Sport mode switch

2.

Shift position indicator

3.

SPORT indicator lamp

4.

TCM

5.

Secondary speed sensor

6.

Primary pressure sensor

*1

7.

Control valve assembly

*2

8.

CVT unit connector

9.

Accelerator pedal position sensor

A.

Control device

B.

Combination meter

C.

Engine room LH

D.

CVT assembly

E.

Accelerator pedal, upper

JPDIA0747ZZ

LOCK-UP AND SELECT CONTROL SYSTEM

TM-29

< FUNCTION DIAGNOSIS >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• CVT fluid temperature sensor
• Secondary pressure sensor
• ROM assembly

Component Description

INFOID:0000000003848935

TRANSAXLE ASSEMBLY

EXCEPT TRANSAXLE ASSEMBLY

Name

Function

Torque converter regulator valve

TM-22

TCC control valve

Select control valve

Select switch valve

Manual valve

TCC solenoid valve

TM-62

Lock-up select solenoid valve

TM-94

Primary speed sensor

TM-52

Secondary speed sensor

TM-55

CVT fluid temperature sensor

TM-50

PNP switch

TM-47

Forward clutch

TM-19

Reverse brake

Torque converter

Name

Function

TCM

TM-22

Accelerator pedal position sensor

TM-88

TM-30

< FUNCTION DIAGNOSIS >

[CVT: RE0F09B]

SHIFT CONTROL SYSTEM

SHIFT CONTROL SYSTEM

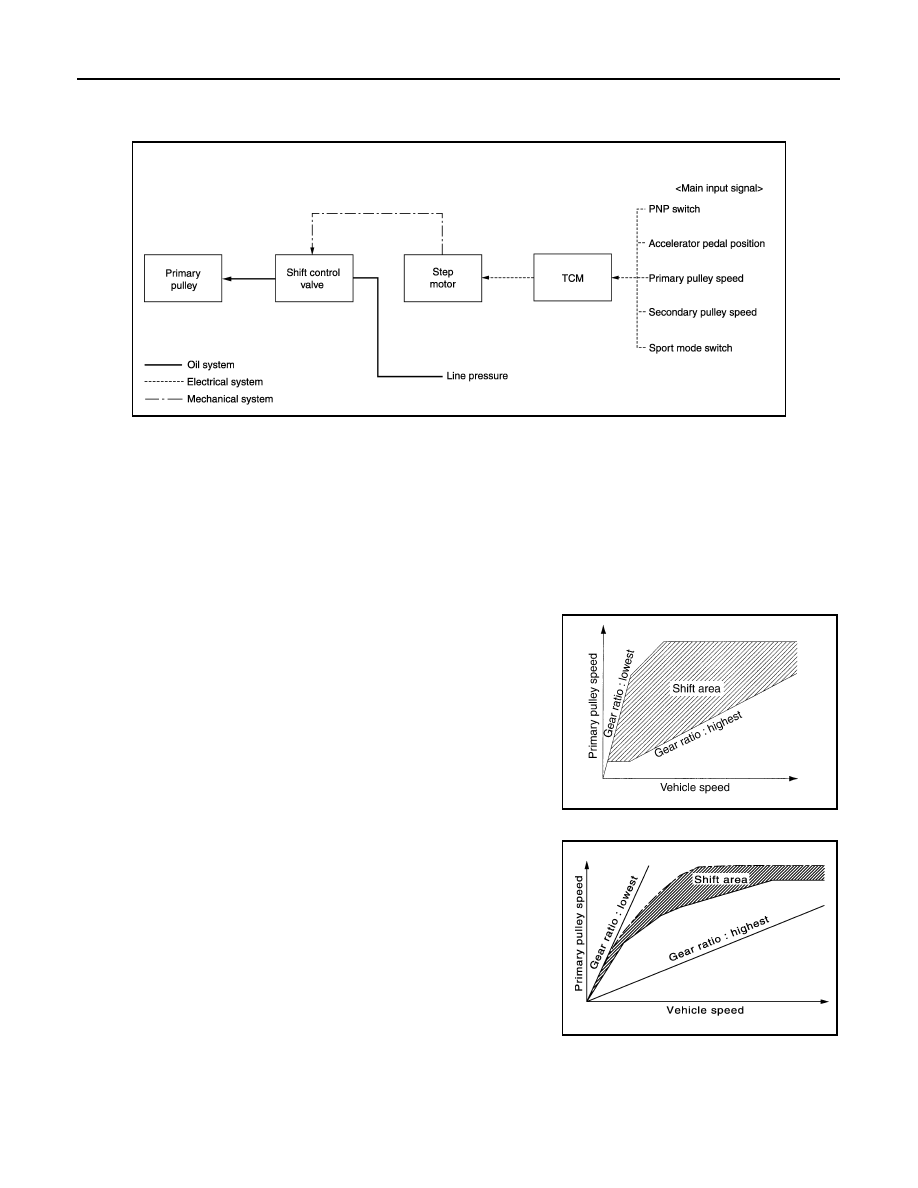

System Diagram

INFOID:0000000003848936

NOTE:
The gear ratio is set for each position separately.

System Description

INFOID:0000000003848937

In order to select the gear ratio that can obtain the driving force in accordance with driver's intention and the
vehicle condition, TCM monitors the driving conditions, such as the vehicle speed and the throttle position,
selects the optimum gear ratio, and determines the gear change steps to the gear ratio. Then TCM sends the
command to the step motor, controls the inflow/outflow of line pressure from the primary pulley to determine
the position of the moving-pulley and controls the gear ratio.

“D” POSITION

Shifting over all the ranges of gear ratios from the lowest to the high-
est.

SPORT MODE

Use this position for improved engine braking.

“L” POSITION

JPDIA0745GB

SCIA1953E

JPDIA0685GB

SHIFT CONTROL SYSTEM

TM-31

< FUNCTION DIAGNOSIS >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

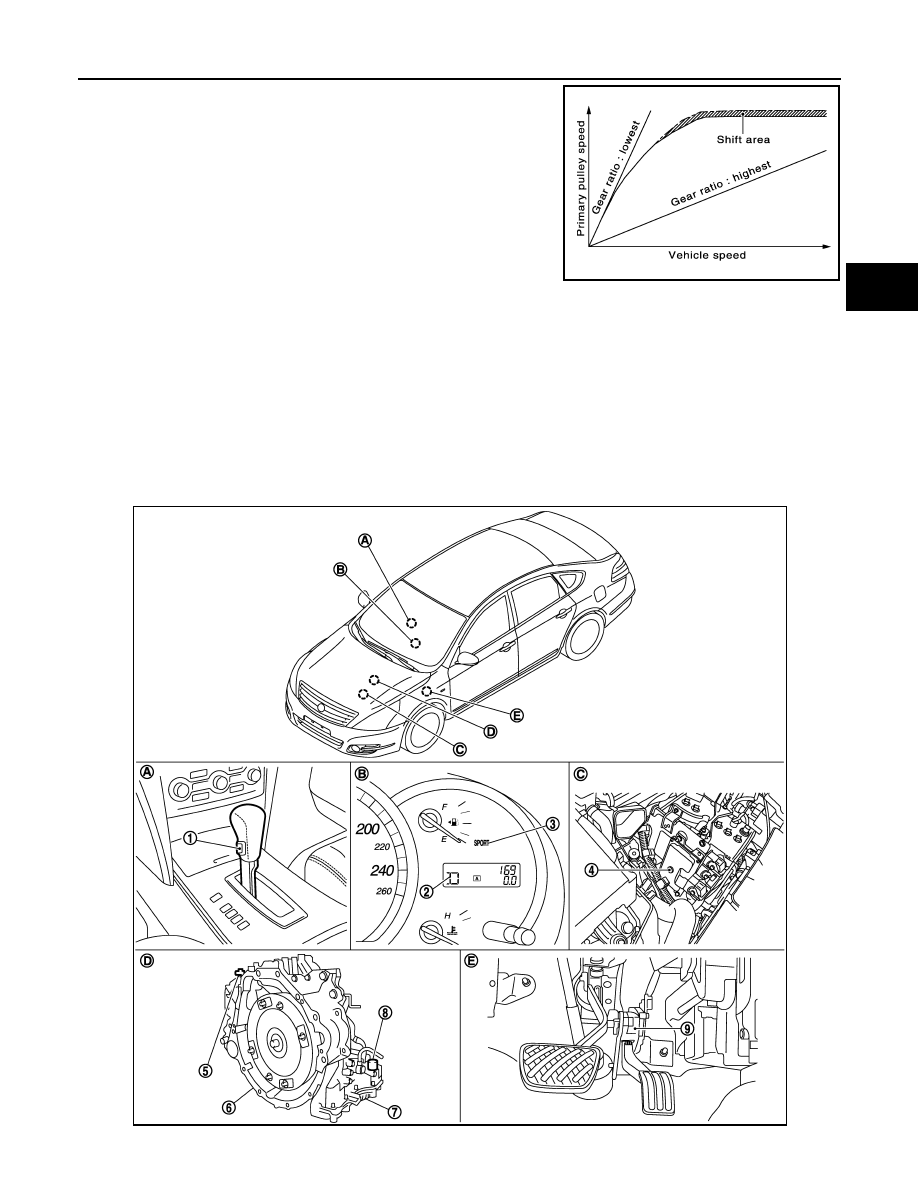

By limiting the gear range to the lowest position, the strong driving
force and the engine brake can be secured.

DOWNHILL ENGINE BRAKE CONTROL (AUTO ENGINE BRAKE CONTROL)

When a downhill slope is detected with the accelerator pedal released, the engine brake will be strengthened
up by downshifting so as not to accelerate the vehicle more than necessary.

ACCELERATION CONTROL

According to vehicle speed and a change of accelerator pedal angle, driver's request for acceleration and driv-
ing scene are judged.   This function assists improvement in the acceleration feeling by making the engine
speed proportionate to the vehicle speed. And a shift map that can gain a larger driving force is available for
compatibility of mileage with driveability.

Component Parts Location

INFOID:0000000003848938

JPDIA0686GB

JPDIA0747ZZ
