VQ35DE Models

Removal and Installation

INFOID:0000000003806331

CAUTION:

• Never apply fluid to the hose (1) and tube (2).
• Insert hose securely until it contacts spool (A) of tube.
• Leave clearance (L) when installing clamp (3).

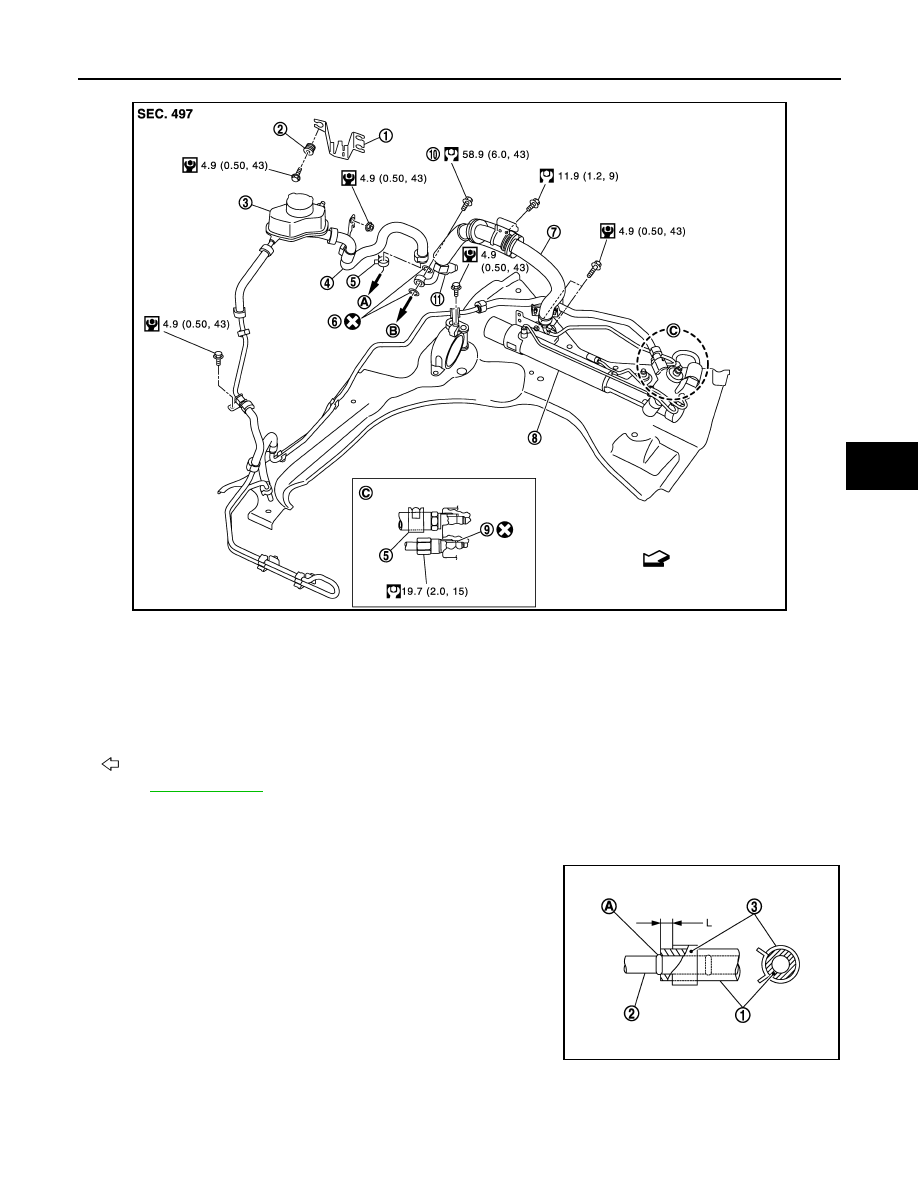

JSGIA0402GB

1.

Reservoir tank bracket

2.

Bushing

3.

Reservoir tank

4.

Suction hose

5.

Clamp

6.

Copper washer

7.

High pressure piping

8.

Steering gear assembly

9.

O-ring

10. Eye bolt

11.

Pressure sensor

A.

To power steering oil pump suction
hose.

B.

To power steering oil pump.

: Vehicle front

Refer to

GI-4, "Components"

 for symbols not described on the above.

Standard

L

: 3 – 8 mm (0.12 – 0.31 in)

JSGIA0118ZZ

ST-36

< ON-VEHICLE REPAIR >

HYDRAULIC LINE

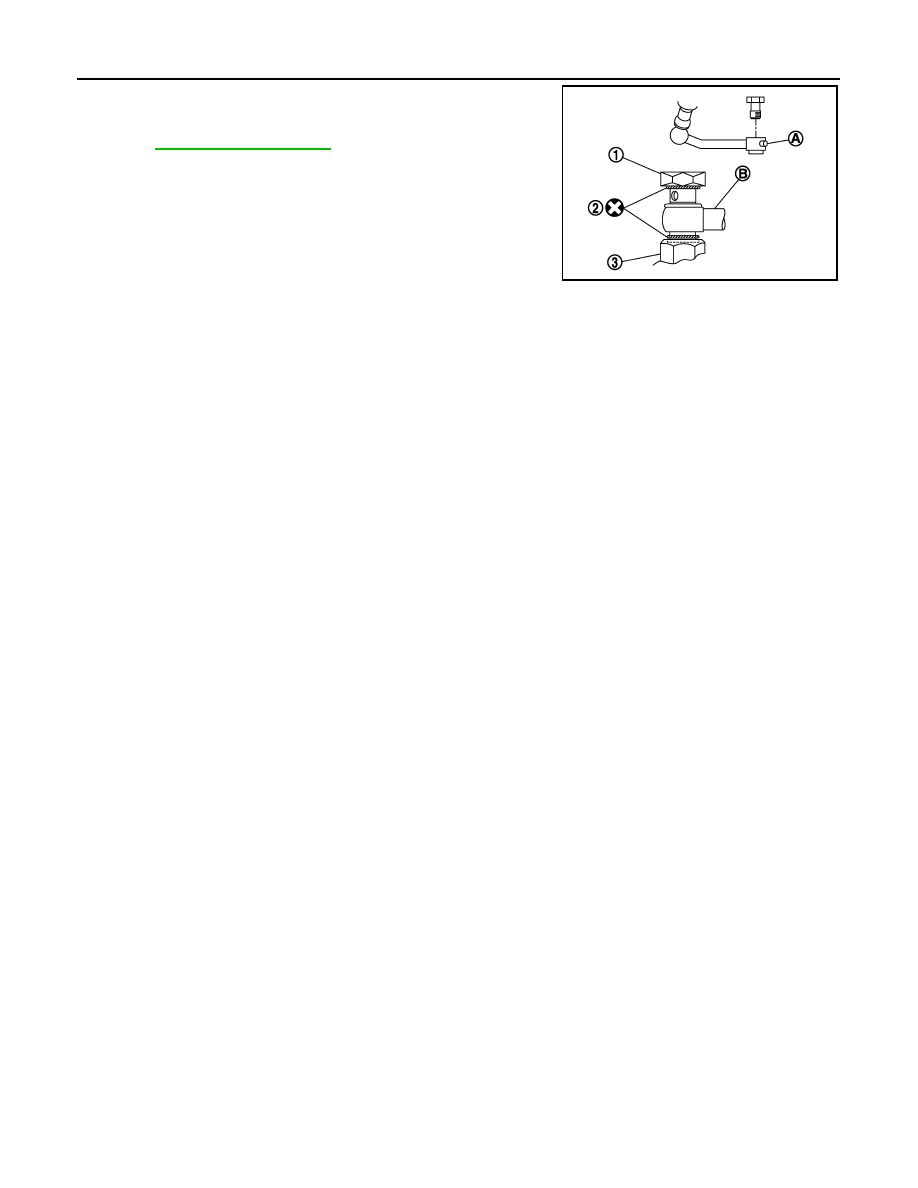

• Install eye bolt with eye joint (assembled to high pressure

hose) (B) protrusion (A) facing with pump side cutout, and
then tighten it to the specified torque after tightening by hand.
Refer to

ST-34, "Exploded View"

.

• Securely insert harness connector to pressure sensor.
• Never reuse copper washer.

SGIA1379E

SERVICE DATA AND SPECIFICATIONS (SDS)

ST-37

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000003806332

Steering Wheel Axial End Play and Play

INFOID:0000000003806333

Unit: mm (in)

Steering Wheel Turning Force

INFOID:0000000003806334

Unit: N·m (kg-m, in-lb)

Steering Angle

INFOID:0000000003806335

Unit: Degree minute (Decimal degree)

Steering Column Length

INFOID:0000000003826226

Unit: mm (in)

Steering Column Mounting Dimensions

INFOID:0000000003826227

Unit: mm (in)

Steering Column Operating Range

INFOID:0000000003806336

Steering gear model

PR26AF

Fluid capacity (Approx.)

 (lmp qt)

1.0 (7/8)

Item

Standard

Steering wheel axial end play

0 (0)

Steering wheel play on the outer circumference

0 – 35 (0 – 1.38)

Item

Standard

Steering wheel turning force

7.45 (0.76, 66)

Item

Standard

Tire size: 205/65R16

Tire size: 215/55R17

Inner wheel

Minimum

38

°

00

′

 (38.0

°

)

34

°

00

′

 (34.0

°

)

Nominal

41

°

00

′

 (41.0

°

)

37

°

00

′

 (37.0

°

)

Maximum

42

°

30

′

 (42.5

°

)

38

°

30

′

 (38.5

°

)

Outer wheel

Nominal

33

°

00

′

 (31.0

°

)

31

°

00

′

 (31.0

°

)

Item

Standard

Column length

484 – 486 (19.06 – 19.13)

Item

Standard

Mounting dimension

19.5 (0.768) or less

Item

Standard

Tilt operating range

37 mm (1.46 in)

Rotating torque

0.49 N·m (0.05 kg-m, 4 in-lb)

ST-38

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Lower Shaft Sliding Range

INFOID:0000000003806337

Unit: mm (in)

Rack Sliding Force

INFOID:0000000003806338

Unit: N (kg, lb)

Rack Stroke

INFOID:0000000003806339

Unit: mm (in)

Socket Swing Force and Rotating Torque

INFOID:0000000003806340

SWING FORCE

Unit: N (kg, lb)

ROTATING TORQUE

Unit: N·m (kg-m, in-lb)

Socket Axial End Play

INFOID:0000000003806341

Unit: mm (in)

Inner Socket Length

INFOID:0000000003806342

Unit: mm (in)

Relief Oil Pressure

INFOID:0000000003806343

Unit: kPa (bar, kg/cm

2

, psi)

Item

Standard

Sliding range

422.2 – 423.2 (16.62 – 16.66)

Item

Standard

Rack sliding force

225.6 – 284.4 (23 – 29, 50.7 – 63.9)

Item

Standard

Tire size: 205/65R16

Tire size: 215/55R17

Rack stroke

74.5 (2.933)

69.0 (2.720)

Item

Standard

Outer socket

4.81 – 45.7 (0.5 – 4.6, 1.1 – 10.2)

Inner socket

8.9 – 64 (0.91 – 6.5, 2.01 – 14.3)

Item

Standard

Outer socket

0.3 – 2.9 (0.03 – 0.29, 3 – 25)

Item

Standard

Outer socket

0.5 (0.02) or less

Inner socket

0.2 (0.008) or less

Item

Standard

Rack neutral position

84.3 (3.32)

Item

Standard

Relief oil pressure

9,300 – 10,300 (93 – 103, 94.9 – 105.1, 1,349 – 1,494)
