POWER STEERING OIL PUMP

ST-31

< ON-VEHICLE REPAIR >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

5.

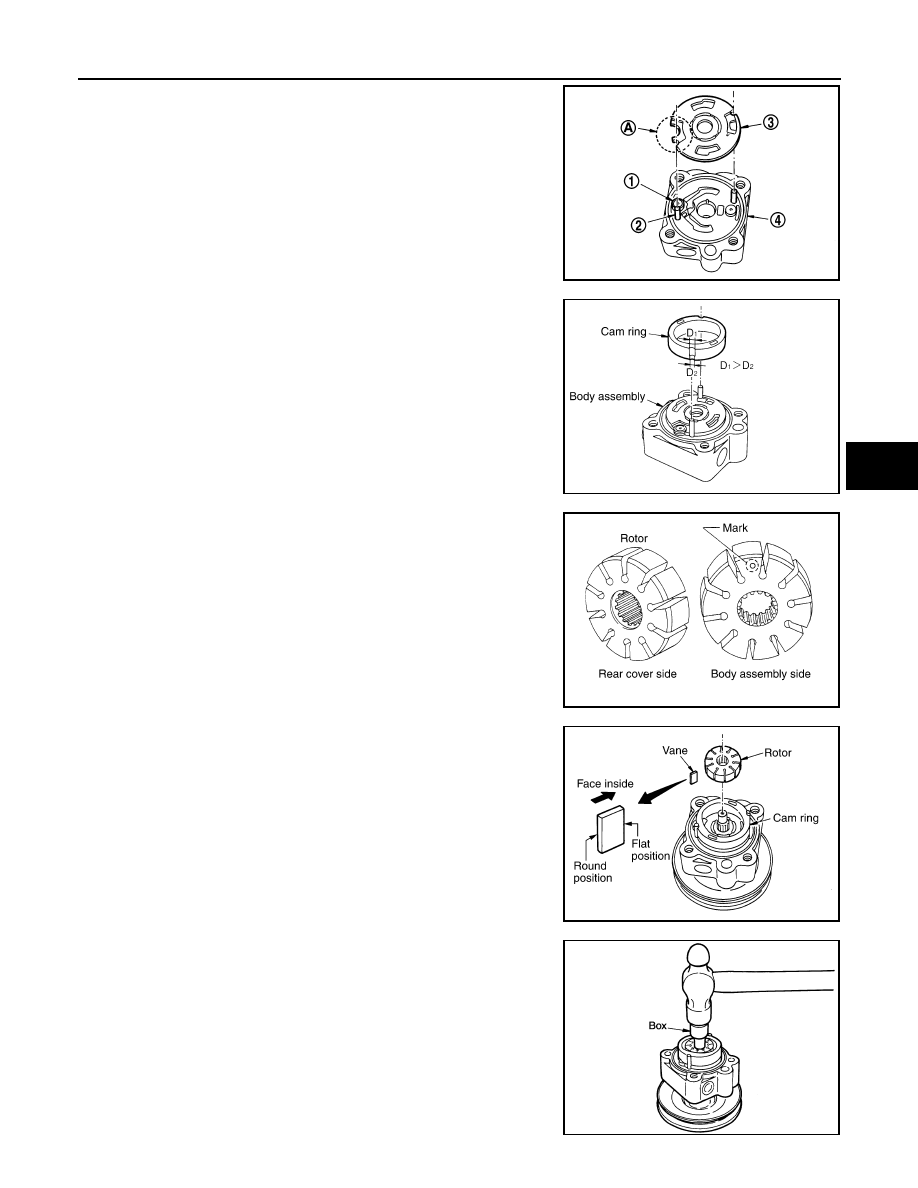

Install front side plate (3) with dowel pin (2) on flow control valve
(1) side as shown in the figure aligning with front side plate cut-
out (A) to body assembly (4).

6.

Install cam ring as shown in the figure.

7.

Install pulley to body assembly.

CAUTION:

Never damage oil seal when installing pulley.

8.

Install rotor so that mark faces body assembly, and then install it
to pulley shaft.

9.

Install vane to rotor so that arc of vane faces cam ring side.

10. Install rotor snap ring to slit of pulley shaft using a hammer and a

10 mm (0.39 in) box.

CAUTION:

• Never damage rotor and pulley shaft.
• Oil pump assembly must be replaced if rotor is damaged.

SGIA1189E

SGIA0612E

SGIA0989E

SGIA0613E

SGIA0063E

ST-32

< ON-VEHICLE REPAIR >

POWER STEERING OIL PUMP

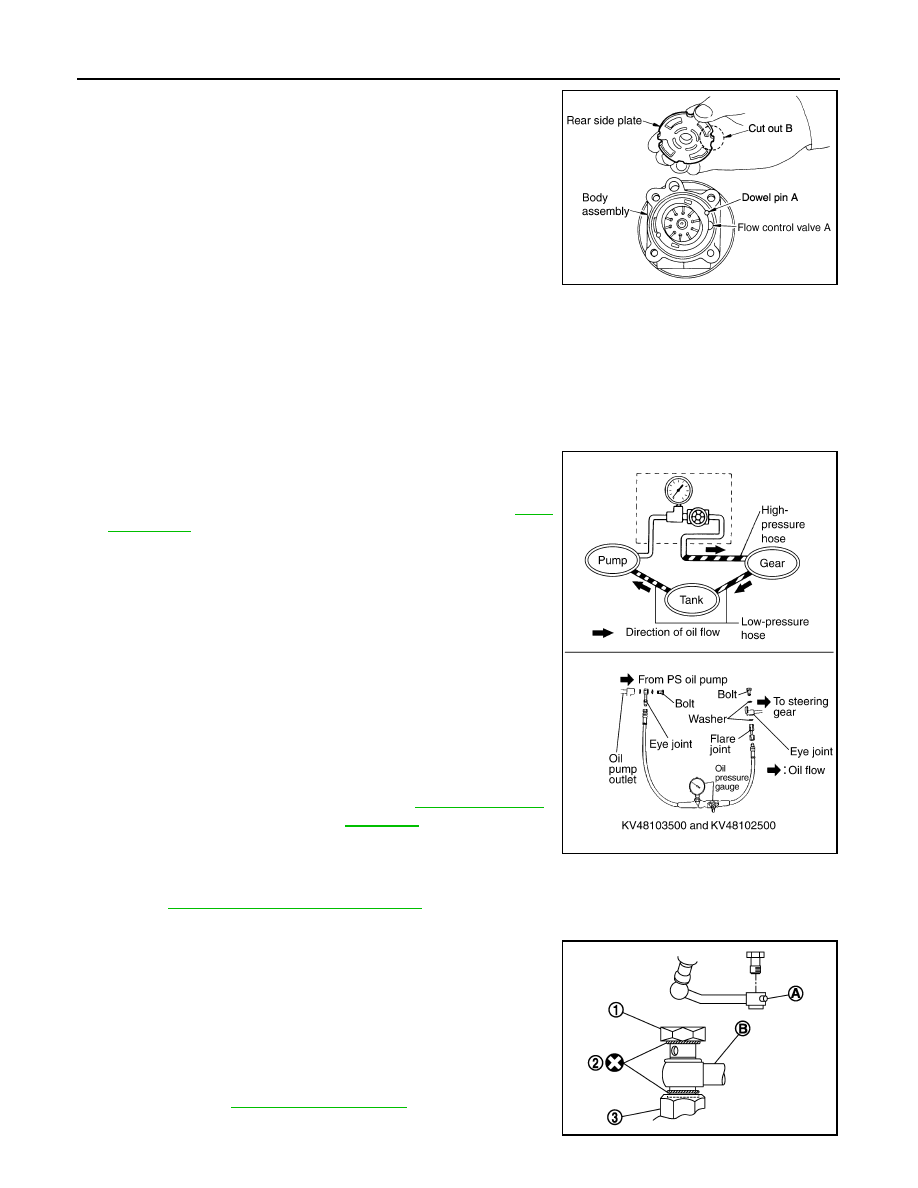

11. Install rear side plate with dowel pin A on flow control valve side

as shown in the figure aligning with rear side plate cutout B to
cartridge.

12. Apply recommended fluid to O-ring, and then install O-ring to

body assembly.

13. Apply recommended fluid to O-ring, and then install O-ring to

rear side plate.

14. Apply recommended fluid to Teflon ring, and then install Teflon

ring to rear side plate.

15. Install rear cover to body assembly.

16. Apply recommended fluid to O-ring, and then install O-ring to

body assembly.

17. Install suction pipe to body assembly.

Inspection

INFOID:0000000003806329

RELIEF OIL PRESSURE

CAUTION:

Make sure that belt tension is normal before starting the following procedure.

1.

Connect the oil pressure gauge (SST: KV48103500) and the oil
pressure gauge adapter (SST: KV48102500) between oil pump
discharge connector and high-pressure hose. Bleed air from the
hydraulic circuit while opening valve fully. Refer to

ST-7,

"Inspection"

.

2.

Start the engine. Run the engine until oil temperature reaches
50 to 80

°

C (122 to 176

°

F).

CAUTION:

• Leave the valve of the oil pressure gauge fully open while

starting and running the engine. If engine is started with
the valve closed, the hydraulic pressure in oil pump goes
up to the relief pressure along with unusual increase of oil
temperature.

• Be sure to keep hose clear of belts and other parts when

engine is started.

3.

Fully close the oil pressure gauge valve with engine at idle and
measure the relief oil pressure.

CAUTION:

Never keep valve closed for 10 seconds or longer.

4.

Open the valve slowly after measuring. Repair oil pump if the relief oil pressure is outside the standard.
Refer to

ST-29, "Disassembly and Assembly"

.

5.

Disconnect the oil pressure gauge from hydraulic circuit.

6.

When installing eye bolt (1) and copper washers (2) to oil pump
(3), refer to the figure.

CAUTION:

• Never reuse copper washer.
• Apply power steering fluid or equivalent to around copper

washer, then install eye bolt.

• Install eye bolt with eye joint (assembled to high pressure

hose) (B) protrusion (A) facing with pump side cutout, and
then tighten it to the specified torque after tightening by
hand. Refer to

ST-34, "Exploded View"

.

• Securely insert harness connector to pressure sensor.

PGIA0035E

Standard

Relief oil pressure

: Refer to

ST-38, "Relief Oil

Pressure"

.

SGIA1225E

SGIA1379E

POWER STEERING OIL PUMP

ST-33

< ON-VEHICLE REPAIR >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

7.

Check fluid level, fluid leakage and air bleeding hydraulic system after the installation. Refer to

ST-7,

"Inspection"

.

BEFORE DISASSEMBLY

Disassemble oil pump only when the following malfunctions occur.
• If oil leakage is found on oil pump.
• Oil pump pulley is damaged or deformed.
• Performance of oil pump is low.

AFTER DISASSEMBLY

Body Assembly and Rear Cover Inspection

• Check body assembly and rear cover for internal damage. Replace rear cover if it is damaged. Replace oil

pump assembly if body assembly is damaged.

Cartridge Assembly Inspection

• Check cam ring, rotor and vane for damage. Replace cartridge assembly if necessary.

Side Plate Inspection

• Check side plate for damage. Replace side plate if necessary.

Flow Control Valve Inspection

• Check flow control valve and spring for damage. Replace if necessary.

ST-34

< ON-VEHICLE REPAIR >

HYDRAULIC LINE

HYDRAULIC LINE

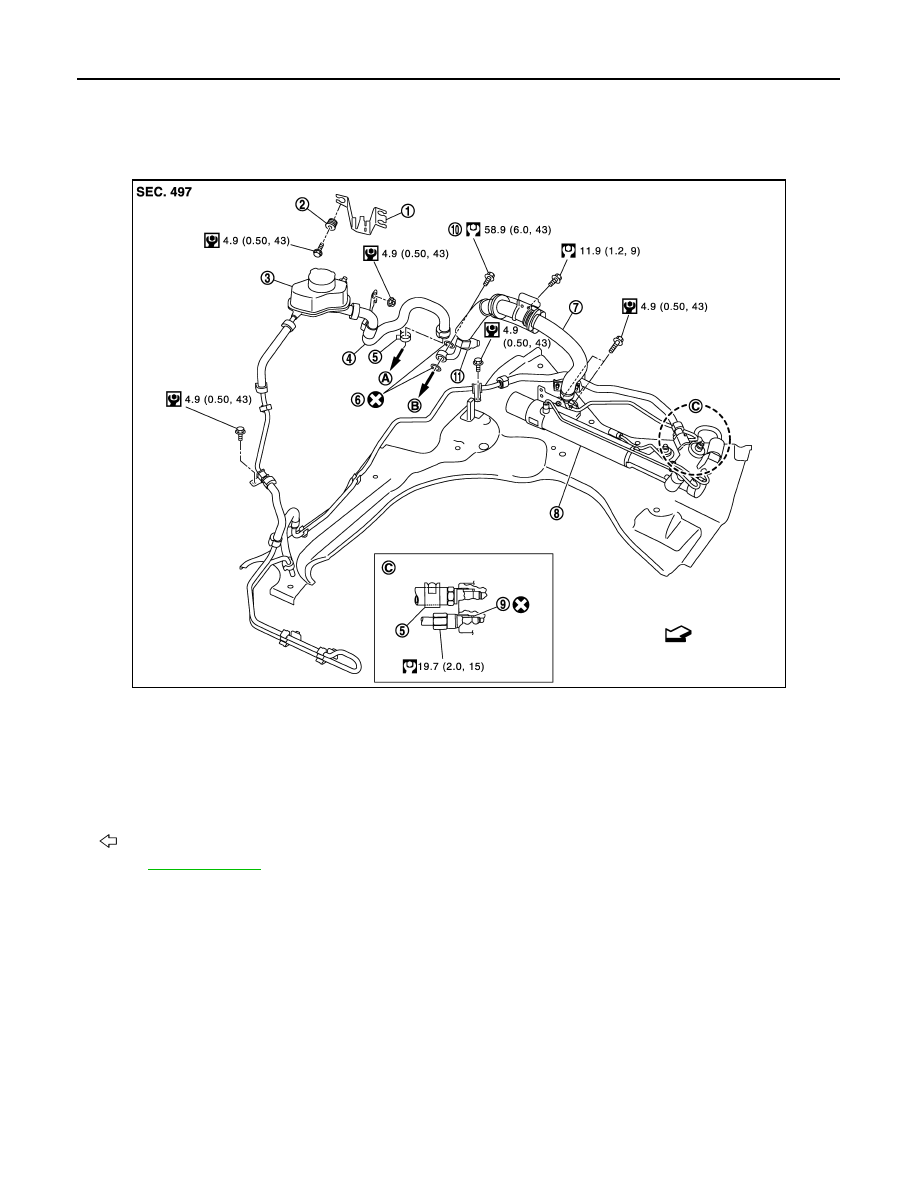

Exploded View

INFOID:0000000003806330

VQ25DE Models

JSGIA0401GB

1.

Reservoir tank bracket

2.

Bushing

3.

Reservoir tank

4.

Suction hose

5.

Clamp

6.

Copper washer

7.

High pressure piping

8.

Steering gear assembly

9.

O-ring

10. Eye bolt

11.

Pressure sensor

A.

To power steering oil pump suction
hose.

B.

To power steering oil pump.

: Vehicle front

Refer to

GI-4, "Components"

 for symbols not described on the above.
