SRC-142

< ECU DIAGNOSIS >

DIAGNOSIS SENSOR UNIT

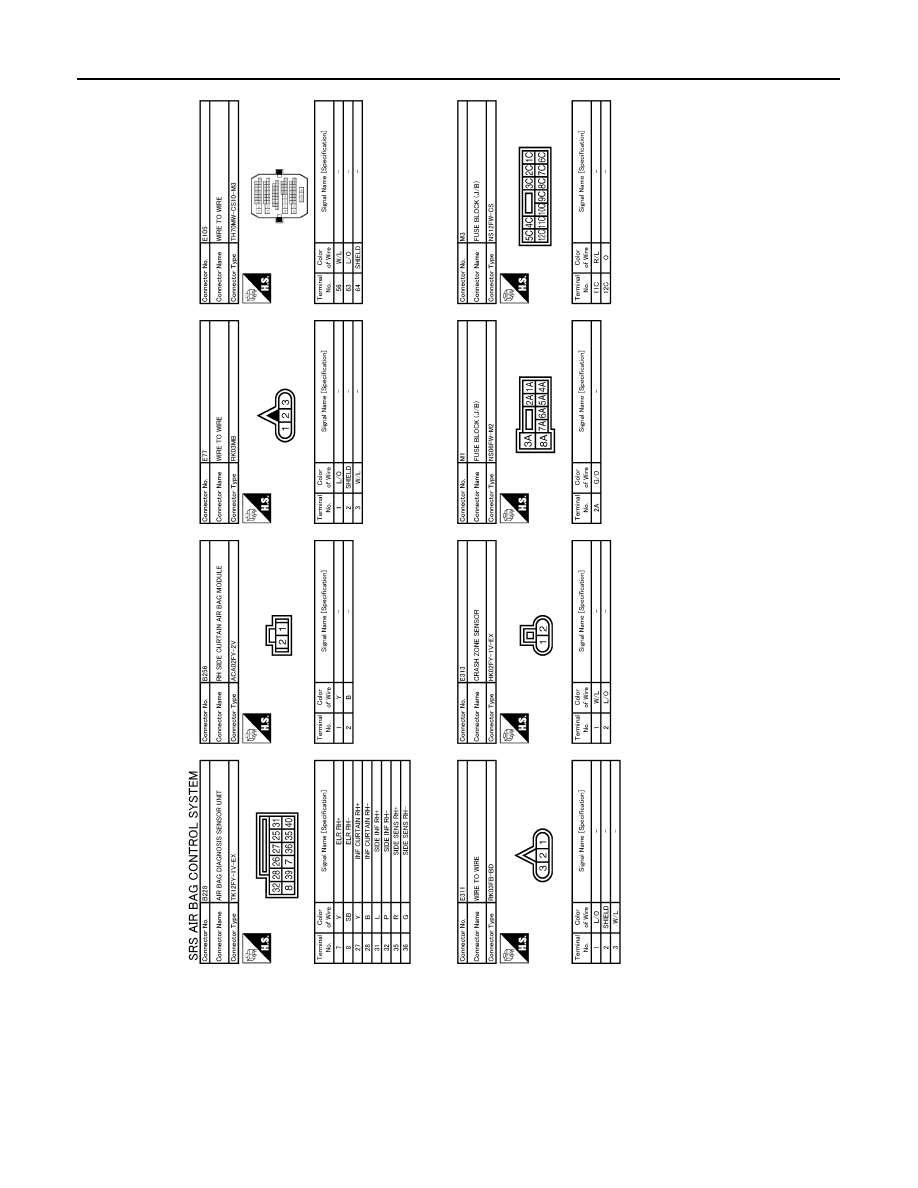

JCHWM0191GB

DIAGNOSIS SENSOR UNIT

SRC-143

< ECU DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

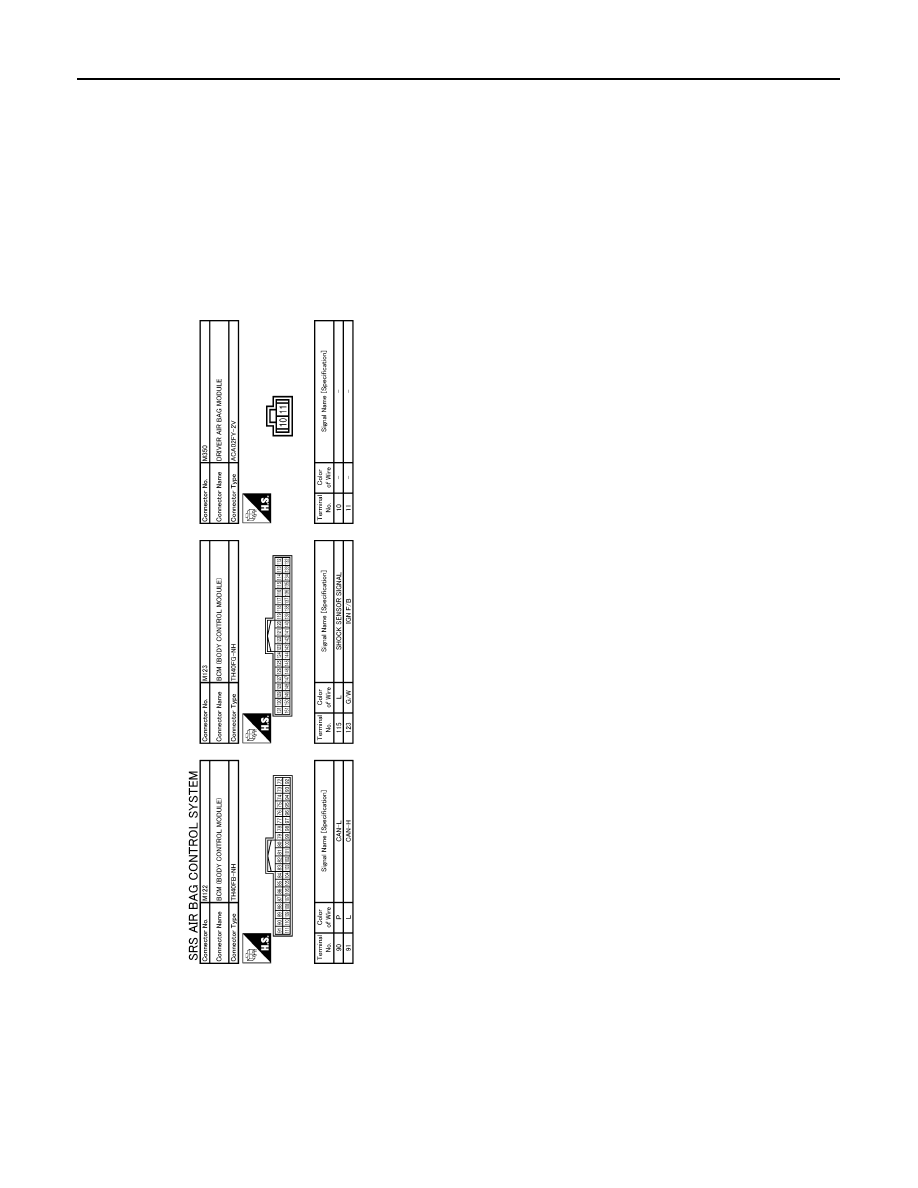

JCHWM0192GB

SRC-144

< ECU DIAGNOSIS >

DIAGNOSIS SENSOR UNIT

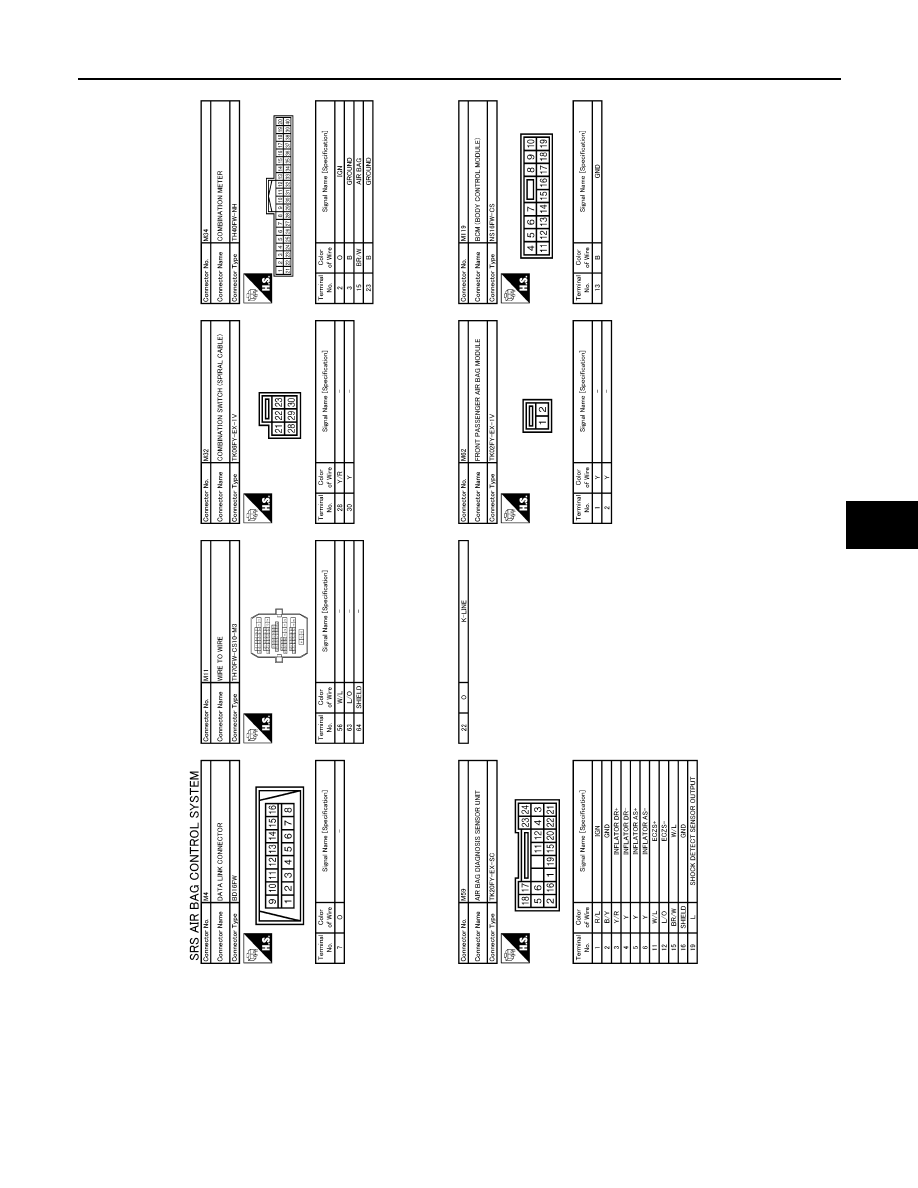

JCHWM0193GB

SRS AIR BAG WARNING LAMP DOES NOT TURN OFF

SRC-145

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

SYMPTOM DIAGNOSIS

SRS AIR BAG WARNING LAMP DOES NOT TURN OFF

Diagnosis Procedure

INFOID:0000000003814106

1.

CHECK FRONT AIR BAG MODULE

Check the deployment of front air bag module.

Is air bag module deployed?

YES

>> Refer to

SR-6, "Exploded View"

 or

SR-12, "Exploded View"

.

NO

>> GO TO 2.

2.

CHECK AIR BAG FUSE

Check the air bag fuse. Refer to

PG-82, "Fuse"

.

Is 10A fuse [No.2, located in fuse block (J/B)] normal?

YES

>> GO TO 4.

NO

>> Replace the air bag fuse and GO TO 3.

3.

CHECK AIR BAG FUSE AGAIN

Turn ignition switch ON.
Check the air bag fuse. Refer to

PG-82, "Fuse"

.

Did the air bag fuse blow again?

YES

>> Repair or replace related harness.

NO

>> GO TO 4.

4.

CHECK SELF DIAGNOSIS RESULT

Perform “AIR BAG” Self Diagnostic result.

Is DTC detected?

YES

>> Repair or replace the malfunctioning parts.

NO

>> Check the intermittent incident. Refer to

GI-35, "Intermittent Incident"

.
