SRC-6

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

3.

PERFORM SELF-DIAGNOSIS USING “CONSULT-III” (WITH CONSULT-III)

Perform “AIR BAG” Self Diagnostic Result.
Is “MALFUNCTIONING PART” displayed on CONSULT-III?

YES

>> GO TO 5.

NO

>> Repeat DTC confirmation with diagnostic procedure.

4.

PERFORM SELF-DIAGNOSIS “AIR BAG” WARNING LAMP (WITHOUT CONSULT-III)

Check the air bag warning lamp status.

Is “MALFUNCTIONING PART” detected?

YES

>> GO TO 5.

NO

>> Repeat DTC confirmation with diagnostic procedure.

5.

REPAIR OR REPLACE

Repair or replace the malfunctioning part.
After the malfunction is repaired, erase the self-diagnostic result. Refer to

SRC-10, "Air Bag Warning Lamp

Diagnosis"

 or

SRC-15, "CONSULT-III Function"

.

>> GO TO 6.

6.

FINAL CHECK

Perform “AIR BAG” Self Diagnostic Result with CONSULT-III and /or, air bag warning lamp status.

Are all malfunctions corrected?

YES

>> INSPECTION END

NO-1

>> GO TO 3. (With CONSULT-III)

NO-2

>> GO TO 4. (Without CONSULT-III)

SRS AIR BAG SYSTEM

SRC-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

FUNCTION DIAGNOSIS

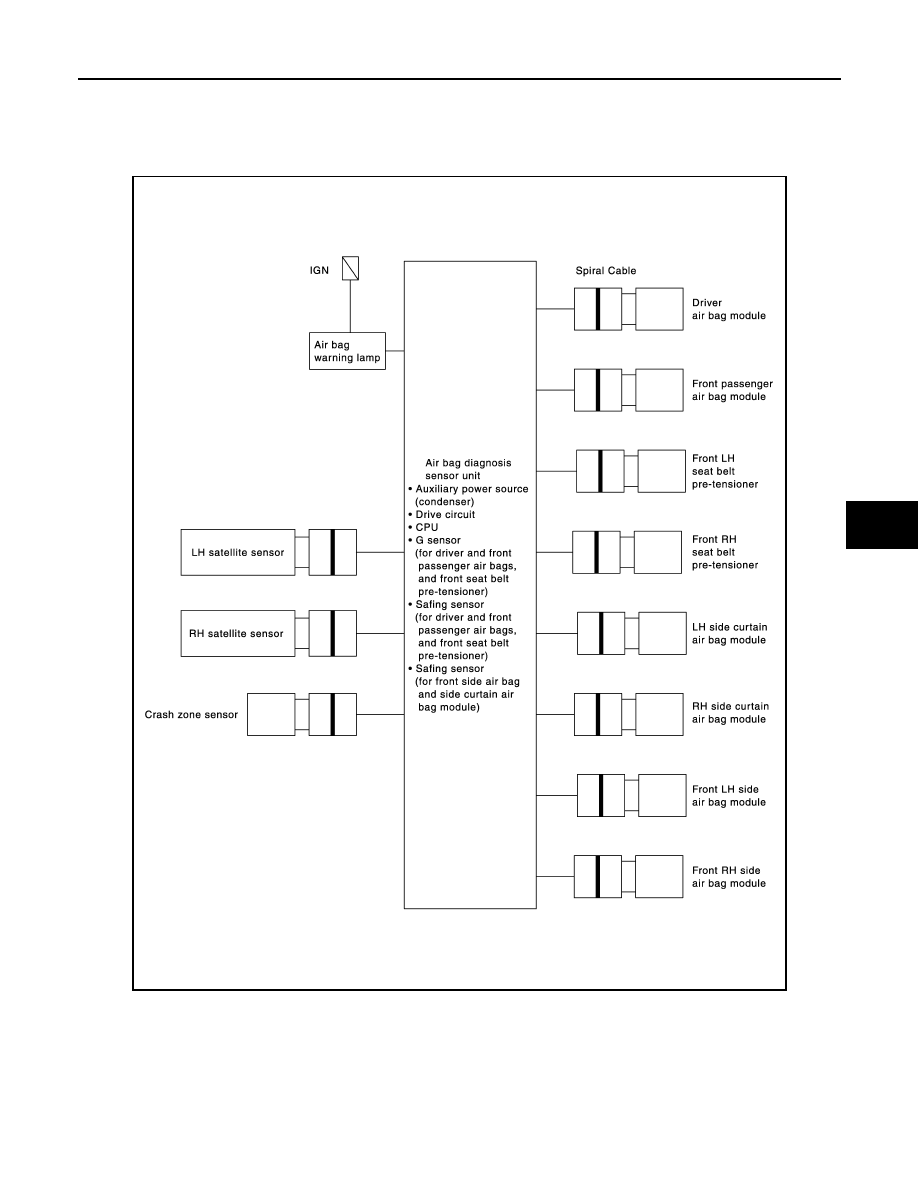

SRS AIR BAG SYSTEM

System Diagram

INFOID:0000000003813930

System Description

INFOID:0000000003813931

THIS SRS AIR BAG SYSTEM HAS THE FOLLOWING FUNCTIONS

1.

Detects crash and supply the energy for deploying air bag and seat belt pre-tensioner.

2.

Detects electrical trouble in air bag system and seat belt pre-tensioner system, records trouble code, and
blinking air bag warning lamp.

JMHIA0600GB

SRC-8

< FUNCTION DIAGNOSIS >

SRS AIR BAG SYSTEM

3.

Detects and records the deployment of air bag and seat belt pre-tensioner, and turns on air bag warning
lamp.

4.

Indicates malfunctioning portion with blinking times of air bag warning lamp in diagnosis mode.

5.

Indicates the malfunctioning record by CONSULT-III.

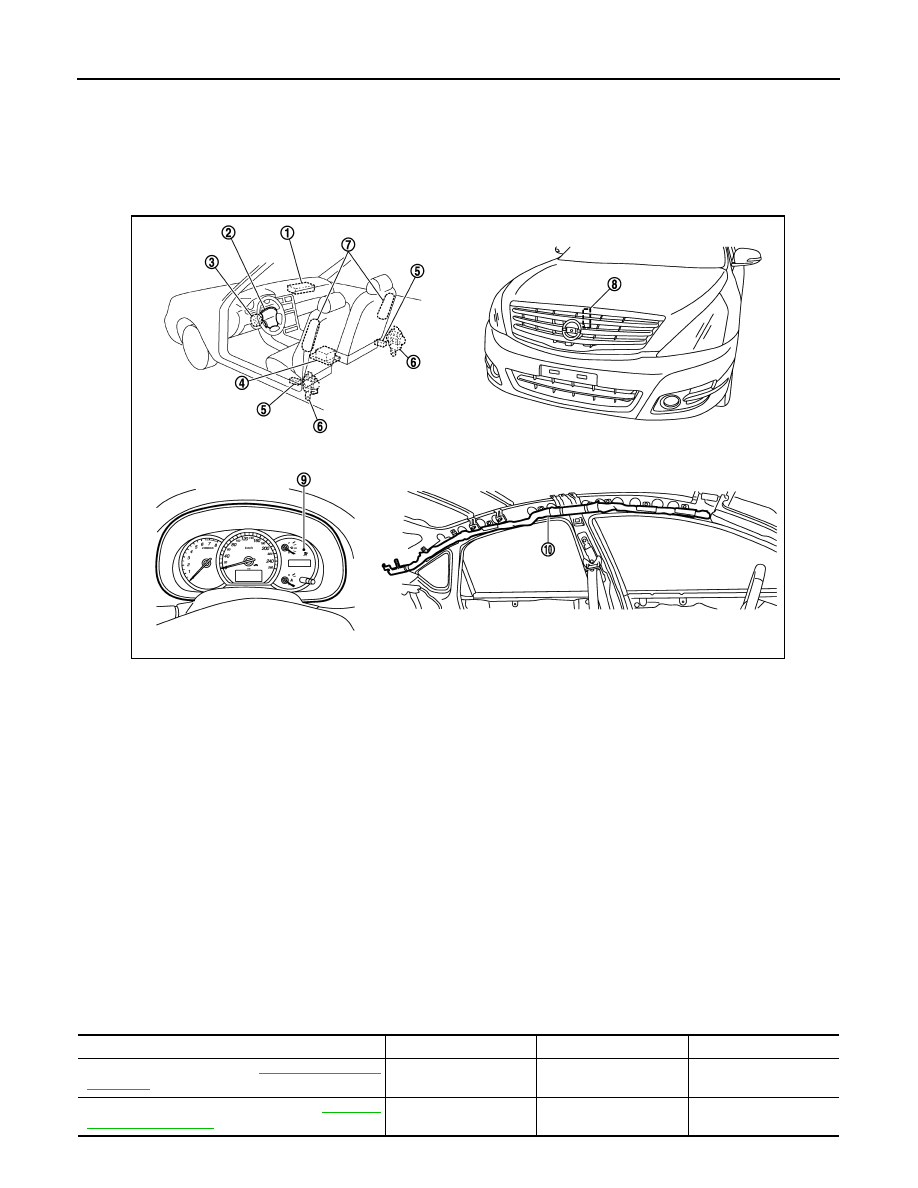

Component Parts Location

INFOID:0000000003813932

Component Description

INFOID:0000000003813933

• Air bag diagnosis sensor units are prepared for operation while the ignition switch is in the ON or START

position.

• The operation of Supplemental Restraint System is different from collision modes application. For example,

the driver air bag module and front passenger air bag module are activated in a frontal collision but not in a
side collision.

• SRS configurations which are activated for some collision modes are as follows.

1.

Front passenger air bag module M62 2.

Driver air bag module M350

3.

Conbination switch (Spiral cable)
M32

4.

Air bag diagnosis sensor unit B14,
B228, M59

5.

LH/RH satellite sensor
• LH  B37
• RH B211

6.

Front LH/RH seat belt pre-tensioner
• LH  B36
• RH  B213

7.

Front LH/RH side air bag module
• LH  B16
• RH B212

8.

Crash zone sensor E313

9.

Combination meter (Air bag warning
lamp) M34

10. LH/RH side curtain air bag module

• LH  B72
• RH B256

JMHIA0599ZZ

SRS configuration

Frontal collision

Left side collision

Right side collision

Driver air bag module. Refer to

SRC-122, "Diagnosis

Procedure"

×

Front passenger air bag module. Refer to

SRC-122,

"Diagnosis Procedure"

×

SRS AIR BAG SYSTEM

SRC-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

×

: Application,  —: No application

Front LH seat belt pre-tensioner. Refer to

SRC-122,

"Diagnosis Procedure"

×

Front RH seat belt pre-tensioner. Refer to

SRC-122,

"Diagnosis Procedure"

×

Front LH side air bag module. Refer to

SRC-124, "Di-

agnosis Procedure"



×

Front RH side air bag module. Refer to

SRC-124, "Di-

agnosis Procedure"

×

LH side curtain air bag module. Refer to

SRC-124,

"Diagnosis Procedure"

×

RH side curtain air bag module. Refer to

SRC-124,

"Diagnosis Procedure"

×

SRS configuration

Frontal collision

Left side collision

Right side collision
