HAZARD FUNCTION

HAZARD FUNCTION

Description

INFOID:0000000003840060

Perform answer-back for each operation with number of blinks.

Component Function Check

INFOID:0000000003840061

1.

CHECK FUNCTION

Check hazard warning lamp (“FLASHER”) in Active Test.

Is the inspection result normal?

YES

>> Hazard warning lamp circuit is OK.

NO

>> Refer to

SEC-120, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000003840062

1.

CHECK HAZARD SWITCH CIRCUIT

Refer to

EXL-72, "Component Function Check"

 (For xenon type) or

EXL-241, "Component Function Check"

(For halogen type)
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace hazard warning switch circuit. Refer to

EXL-328, "Symptom Table"

.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-35, "Intermittent Incident"

.

>> INSPECTION END

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

SEC-121

< COMPONENT DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

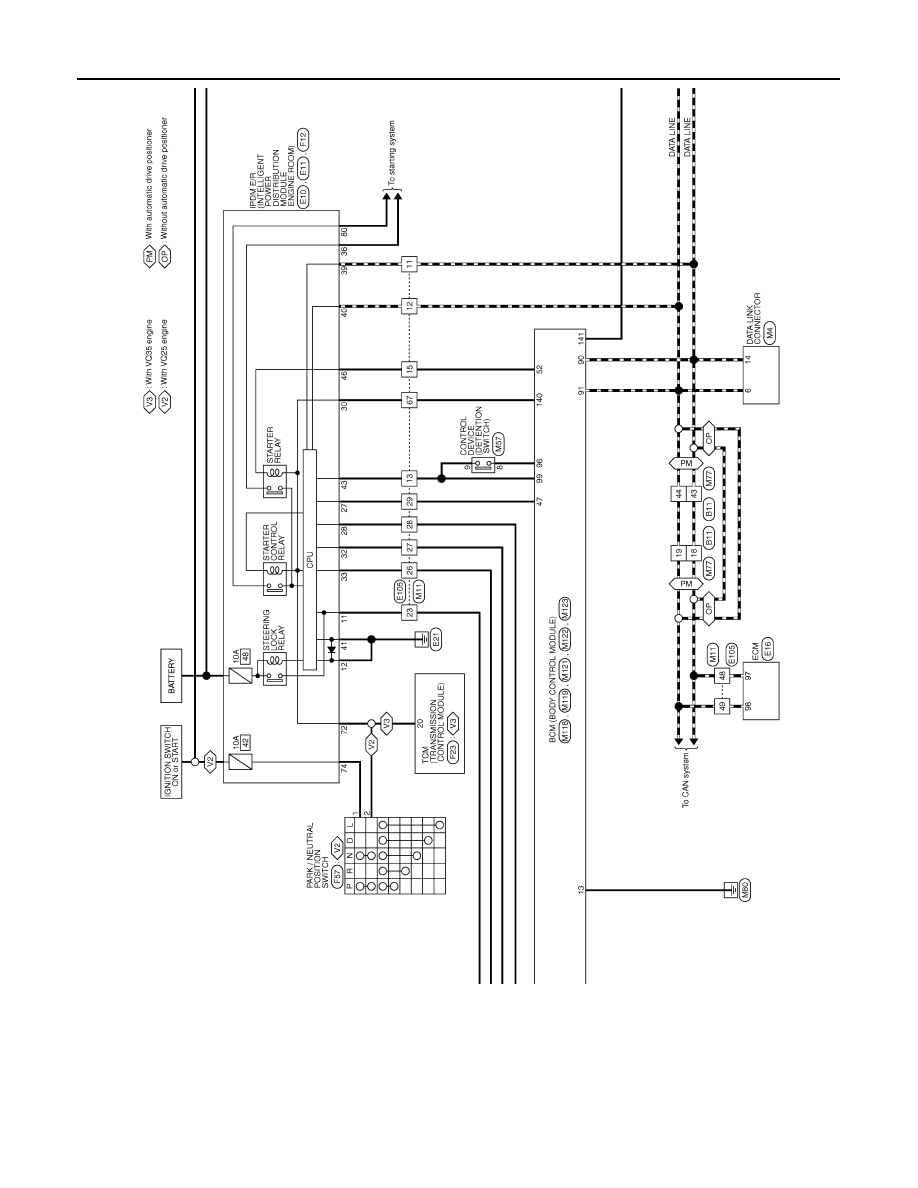

Wiring Diagram - INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION -

INFOID:0000000003845527

JCKWM1204GB

SEC-122

< COMPONENT DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

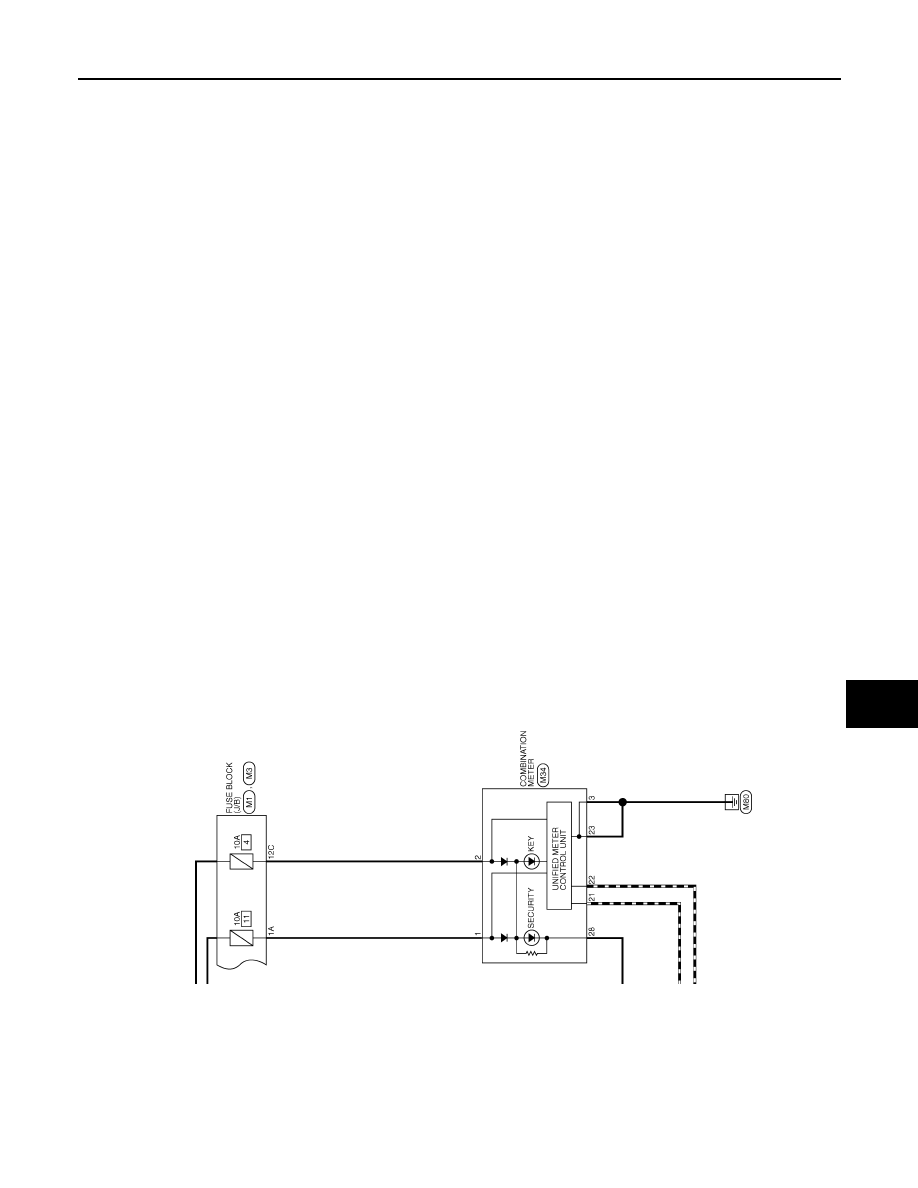

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

JCKWM1205GB

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

SEC-123

< COMPONENT DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

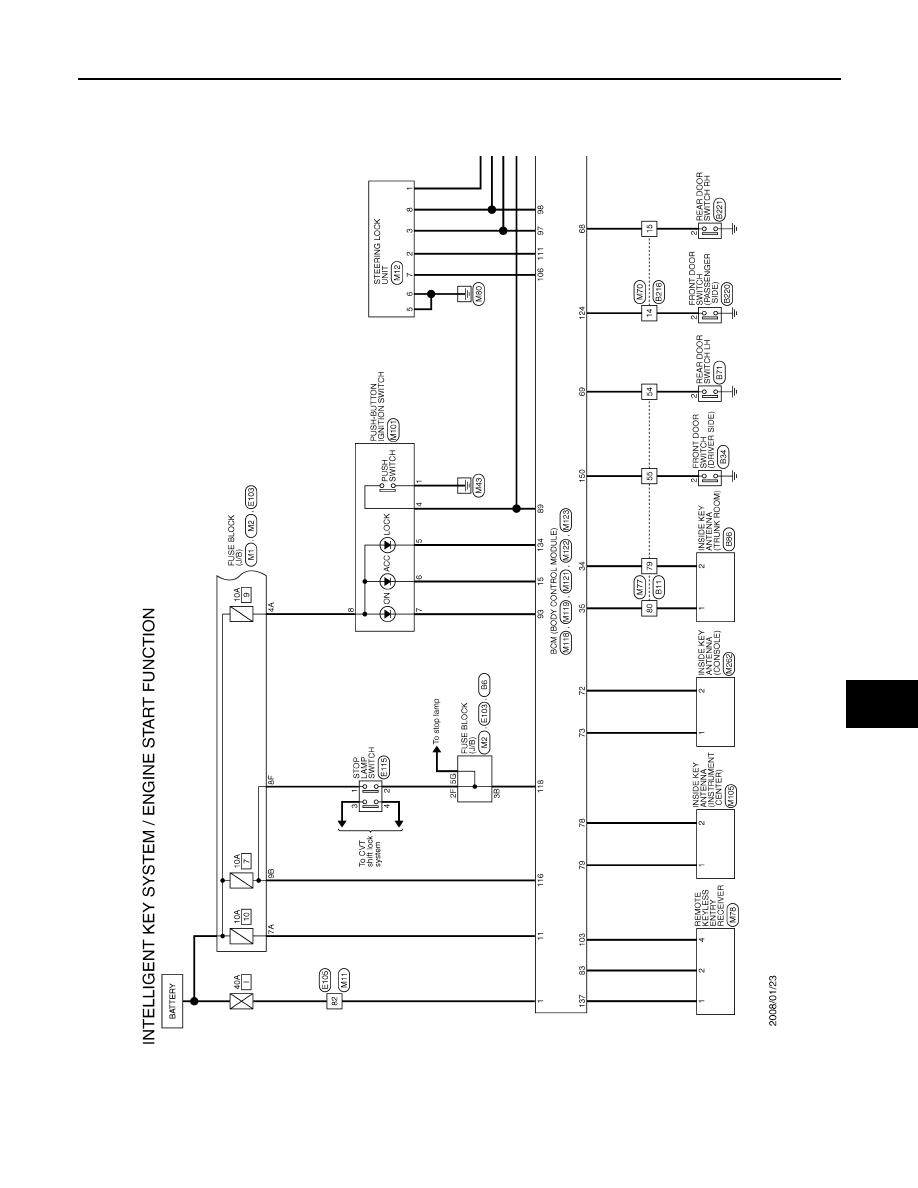

JCKWM1206GB
