INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

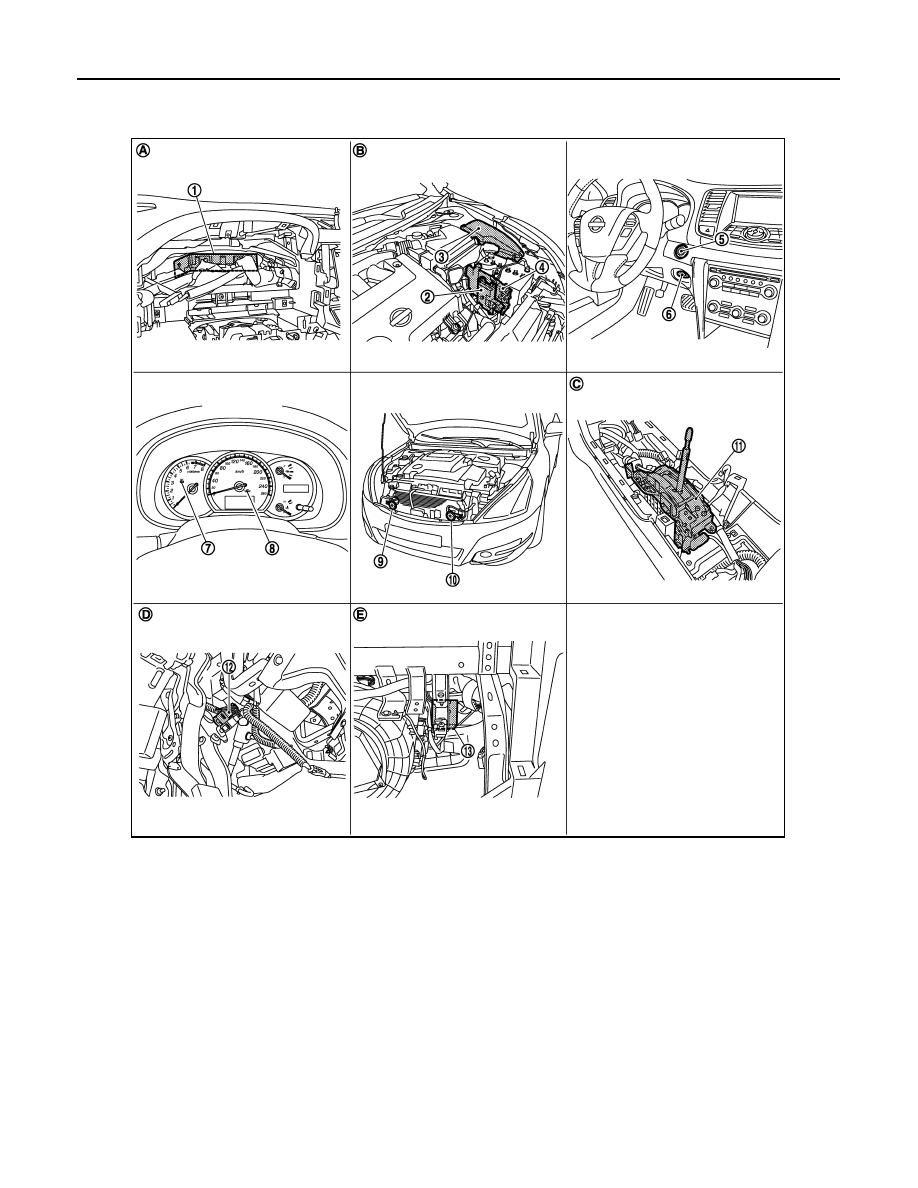

Component Parts Location

INFOID:0000000003814904

1.

BCM M118, M119, M121, M122, M123

2.

TCM F23

3.

IPDM E/R E10, E11, F12

4.

ECM E16

5.

Push-button ignition switch M101

6.

Key slot M99

7.

Combination meter (key warning lamp)
M34

8.

Combination meter (security indicator
lamp) M34

9.

Horn (high) E340, E341

10. Horn (low) E342, E343

11.

Control device (detention switch) M57  12. Stop lamp switch E115

13. Remote keyless entry receiver M78

A.

Behind the combination meter

B.

Engine room (LH)

C.

View with the center console as-
sembly removed

D.

Behind the instrument lower panel LH

E.

Behind the instrument lower panel RH

JMKIA2349ZZ

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

SEC-13

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

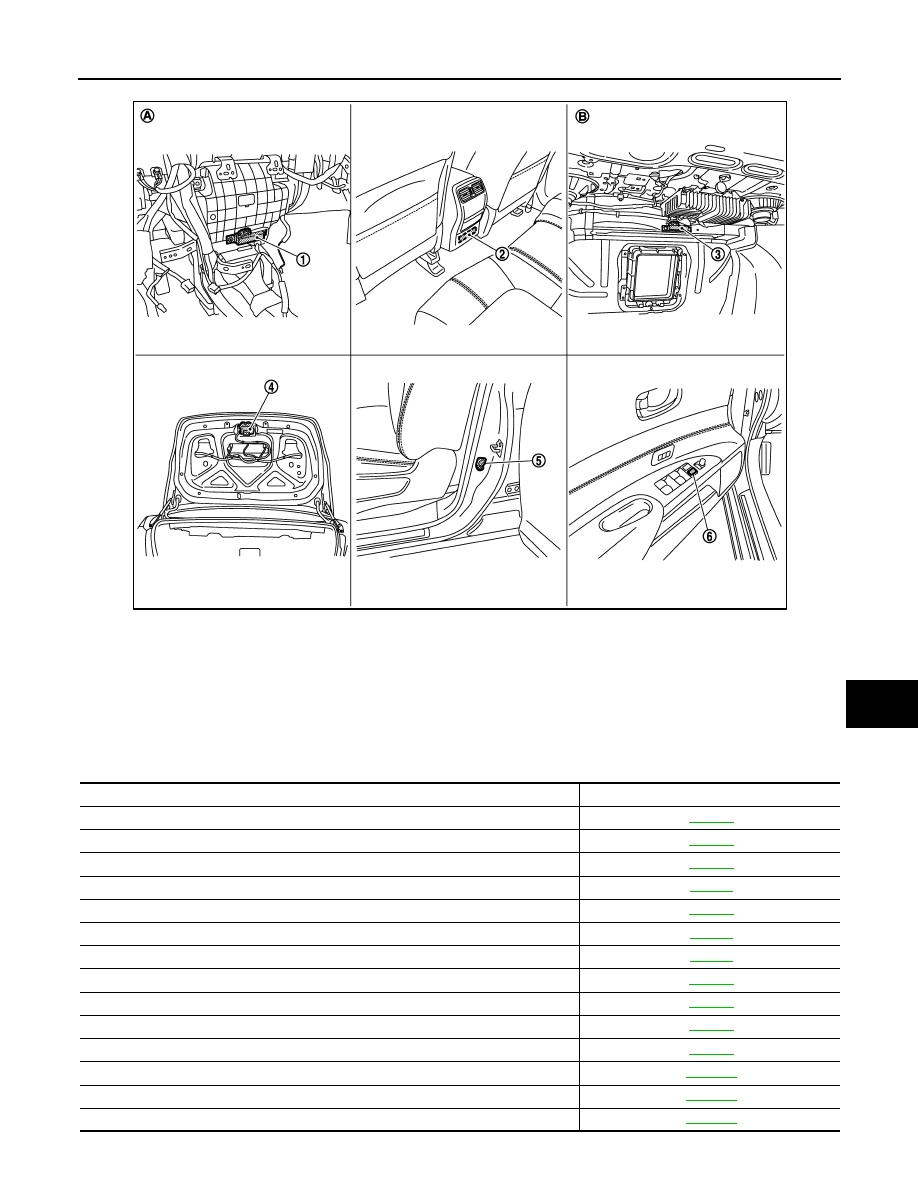

Component Description

INFOID:0000000003814905

1.

Inside key antenna (instrument cen-
ter) M105

2.

Inside key antenna (console) M262

3.

Inside key antenna (trunk room) B86

4.

Trunk lid lock assembly (trunk room
lamp switch) T5

5.

Front door switch (driver side) B34

6.

Power window main switch (door
lock and unlock switch) D5, D6

A.

Behind the cluster lid C assembly

B.

Trunk room

JMKIA2350ZZ

Component Reference

BCM

SEC-91

Steering lock unit

SEC-78

Push-button ignition switch

SEC-92

Door switch

DLK-57

Control device (detention switch)

SEC-56

Inside key antenna

DLK-50

Remote keyless entry receiver

DLK-67

Stop lamp switch

SEC-50

Park/neutral position switch

SEC-64

Steering lock relay

SEC-69

Starter relay

SEC-72

Starter control relay

SEC-102

Security indicator lamp

SEC-115

Key warning lamp

SEC-117

SEC-14

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS

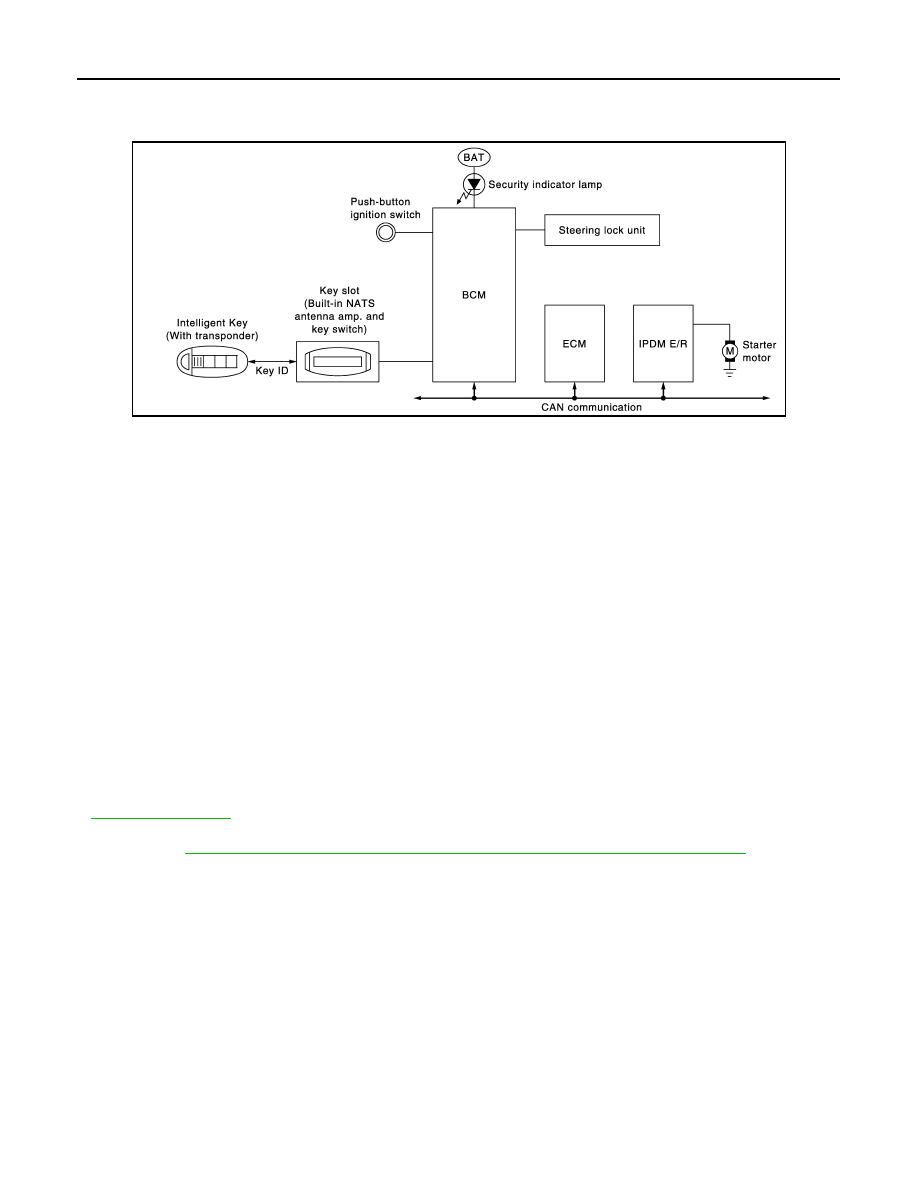

System Diagram

INFOID:0000000003814906

System Description

INFOID:0000000003814907

• The NVIS (NATS) is an anti-theft system by registering an Intelligent Key ID in to the vehicle and prevents

the engine being started by an unregistered Intelligent Key. It has a higher protection against auto thefts that
duplicate mechanical key.

• It performs the ID verification when starting the engine in the same way as the Intelligent Key system. But, it

performs the NVIS (NATS) ID verification when inserting the Intelligent Key and performs the Intelligent Key
ID verification when carrying the Intelligent Key.

• The mechanical key integrated in the Intelligent Key cannot start the engine. When the Intelligent Key bat-

tery is discharged, the NVIS (NATS) ID verification memorized to the transponder integrated with Intelligent
Key is performed by inserting the Intelligent Key into the key slot. If the verification results are OK, the
engine start operation can be performed by the push-button ignition switch operation.

• Locate the security indicator and apply the anti-theft system equipment sticker, forewarn that the NVIS

(NATS) is onboard with the model.

• The security indicator always blinks when the power supply position is in LOCK, OFF and ACC position.
• Up to 4 Intelligent Keys can be registered (Including the standard ignition key) on request from the owner.
• The specified registration is required when replacing ECM, BCM or Intelligent Key. The registrations proce-

dure for NVIS (NATS) and registration procedure for Intelligent Key when installing the BCM, refer to CON-
SULT-III Operation Manual NATS-IVIS/NVIS.

• Possible symptom of NVIS (NATS) malfunction is “Engine can not start”. The engine can be started with the

Intelligent Key system and NVIS (NATS). Identify the possible causes according to “Work Flow”. Refer to

SEC-5, "Work Flow"

.

• If ECM other than Genuine NISSAN is installed, the engine cannot be started. For ECM replacement proce-

dure, refer to

SEC-8, "ECM RE-COMMUNICATING FUNCTION : Special Repair Requirement"

.

PRECAUTIONS FOR KEY REGISTRATION

• The key registration is a procedure that erases the current NVIS (NATS) ID once, and then re-registers a

new ID operation. Therefore the registered Intelligent Key is necessary for this procedure. Before starting
the registration operation collect all registered Intelligent Keys from the customer.

• When registering the Intelligent Key, performs only one procedure to register simultaneously both IDs (NVIS

“NATS” ID registration and Intelligent Key ID registration).
The NVIS (NATS) ID registration is the procedure that registers the IDs stored into the transponder (inte-
grated in Intelligent Key) to BCM.
The Intelligent Key ID registration is the procedure that registers the ID to BCM.

• When performing the Intelligent Key system registration only, the engine cannot be started by inserting the

key into the key slot. When performing the NVIS (NATS) registration only, the engine cannot be started by
pressing the push-button ignition switch when carrying the Intelligent Key. The registrations of both systems
should be performed.

SECURITY INDICATOR LAMP

• Warns that the vehicle is equipped with NVIS (NATS).

JMKIA2503GB

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS

SEC-15

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

• The security indicator lamp always blinks when the ignition switch is in the LOCK and ACC position.
NOTE:
Because security indicator lamp is highly efficient, the battery is barely affected.

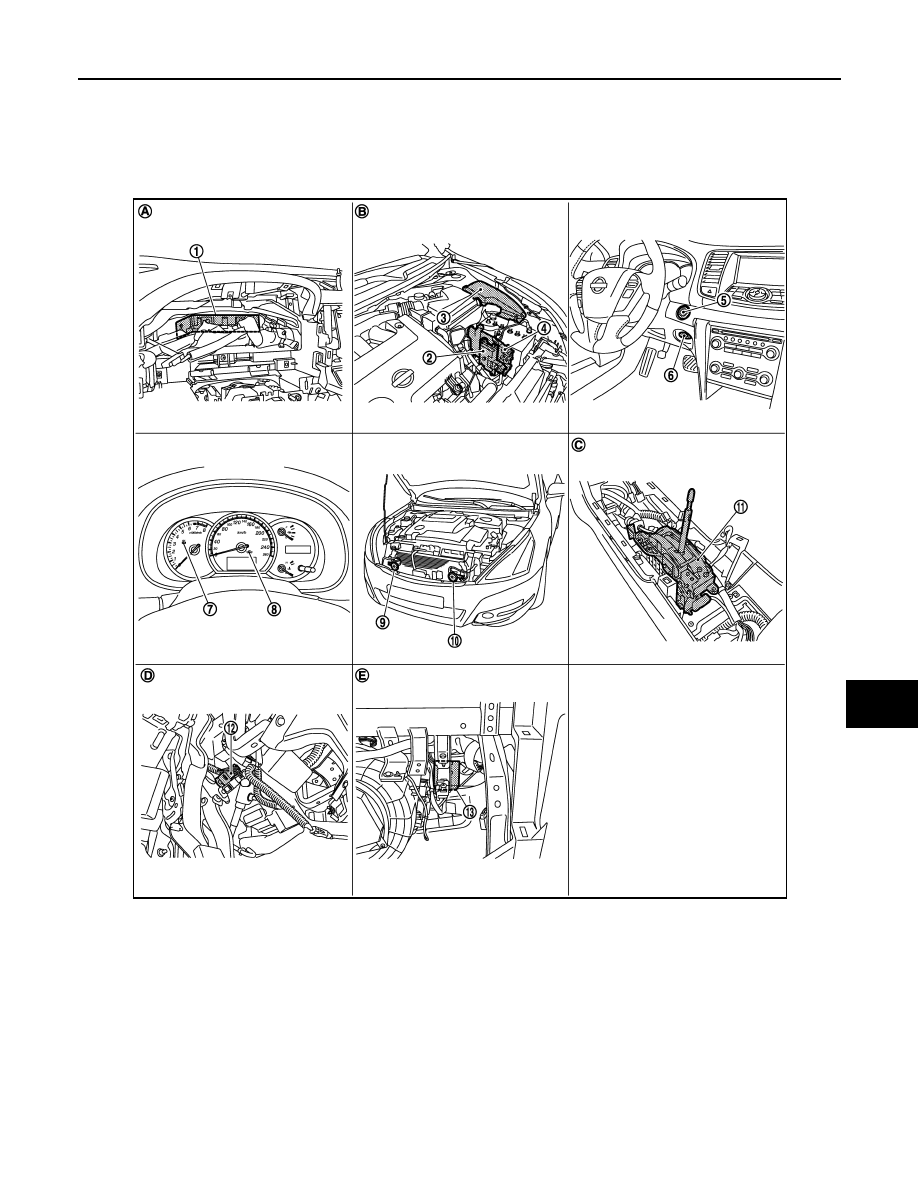

Component Parts Location

INFOID:0000000003814908

1.

BCM M118, M119, M121, M122, M123

2.

TCM F23

3.

IPDM E/R E10, E11, F12

4.

ECM E16

5.

Push-button ignition switch M101

6.

Key slot M99

7.

Combination meter (key warning lamp)
M34

8.

Combination meter (security indicator
lamp) M34

9.

Horn (high) E340, E341

10. Horn (low) E342, E343

11.

Control device (detention switch) M57  12. Stop lamp switch E115

13. Remote keyless entry receiver M78

A.

Behind the combination meter

B.

Engine room (LH)

C.

View with the center console as-
sembly removed

D.

Behind the instrument lower panel LH

E.

Behind the instrument lower panel RH

JMKIA2349ZZ
