Nissan Teana J32. Manual - part 86

REAR VIEW MONITOR SYSTEM

AV-199

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

Component Description

INFOID:0000000003791251

Part name

Description

AV CONTROL UNIT

• Image on display is transmitted to rear view monitor image by serial communi-

cation between AV control unit and display unit.

• AV control unit recognizes the presence of camera system with camera con-

nection recognition signal.

DISPLAY UNIT

• Camera image signal is input from AV control unit.
• Rear view monitor image is changed by serial communication from AV control

unit.

CAMERA CONTROL UNIT

• Camera image signal is input from rear view camera. Camera image signal is

output to AV control unit.

• Power supply is transmitted to rear view camera.
• Superimposes the guiding line and predicted course line to the camera image

that outputs to AV control unit.

• Inputs the sensor signal from steering angle sensor, and then controls the pre-

dicted course line.

• Camera control unit is connected via AV communication.

REAR VIEW CAMERA

• The image of vehicle rear view is transmitted to camera control unit.
• It receives power supply from camera control unit and operates.

STEERING ANGLE SENSOR

Steering signal necessary for predicted course line control is transmitted to cam-
era control unit.

AV-200

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

Diagnosis Description

INFOID:0000000003765657

MULTIFUNCTION SWITCH AND PRESET SWITCH SELF-DIAGNOSIS FUNCTION

The ON/OFF operation (continuity) of each switch in the multifunction switch and preset switch can be
checked.

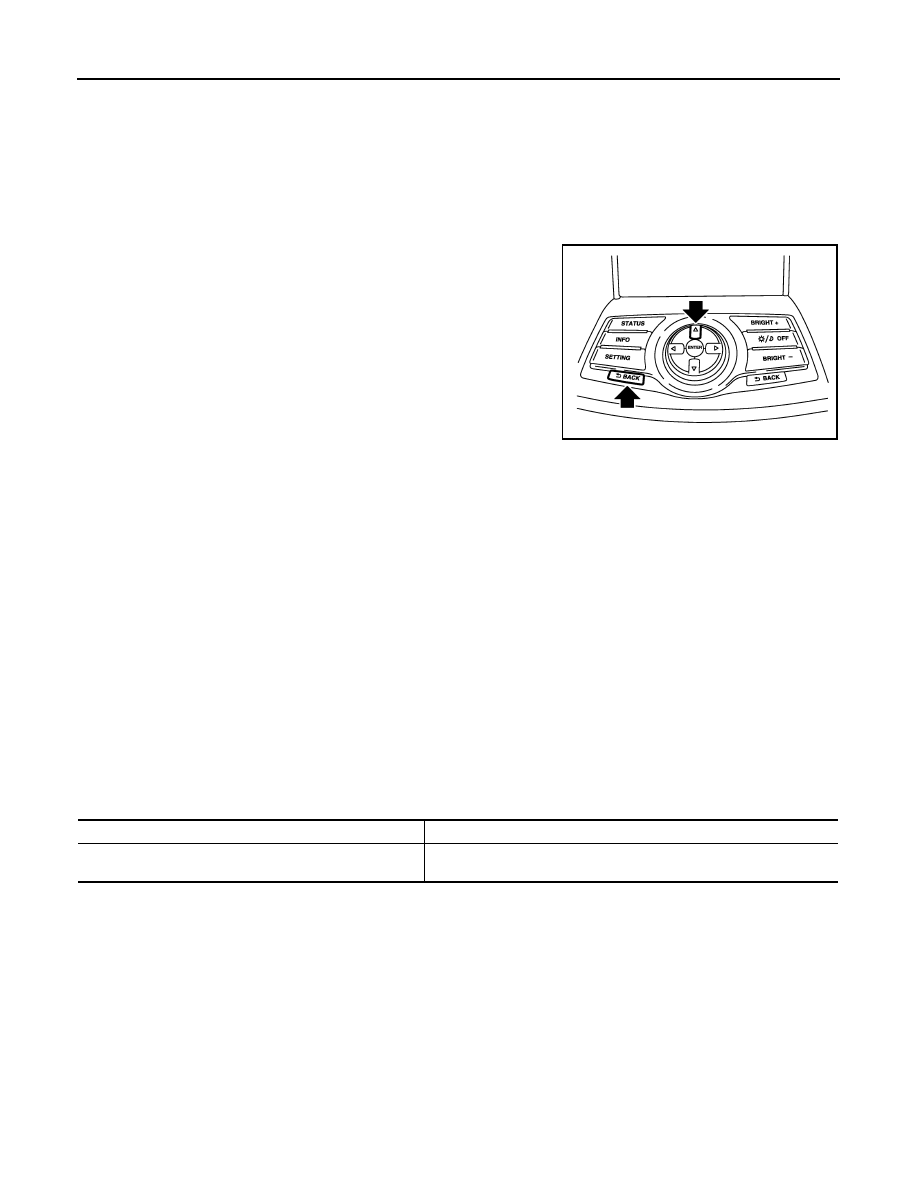

Self-diagnosis Mode

• Press the “BACK” switch and the “UP” switch of the 4-direction

switches within 10 seconds after turning the ignition switch from
OFF to ACC and hold them for 3 seconds or more. Then the
buzzer sounds, all indicators of the preset switch illuminate, and
the self-diagnosis mode starts.

• The continuity of each switch at the ON position can be checked

by pressing the switch. The buzzer sounds if the switch is normal.
NOTE:
The hazard switch and disk eject switch cannot be checked.

Finishing Self-diagnosis Mode

Self-diagnosis mode is canceled when turning the ignition switch OFF.

MULTI AV SYSTEM ON BOARD DIAGNOSIS FUNCTION

• The AV control unit diagnosis function starts up with multifunction switch operation and the AV control unit

performs a diagnosis for each unit in the system during the on board diagnosis.

• Perform a CONSULT-III diagnosis if the on board diagnosis does not start, e.g., the screen does not display

anything, the multifunction switch does not function, etc.

ON BOARD DIAGNOSIS

Description

• The trouble diagnosis function has a self-diagnosis mode for conducting trouble diagnosis automatically and

a confirmation/adjustment mode for operating manually.

• Self-diagnosis mode performs the AV control unit diagnosis and the connection diagnosis between each of

the units that make up the system, and it indicates the results to the display.

• The confirmation/adjustment mode allows the technician to check, modify or adjust the vehicle signals and

set values, as well as to monitor the system error records and system communication status. The check,
modify or adjust actions generally require human intervention and judgment (the system cannot make judg-
ment automatically).

On Board Diagnosis Item

JSNIA1284GB

Mode

Description

Self Diagnosis

• AV control unit diagnosis.
• Diagnoses the connections across system components.

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-201

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

NOTE:
*:On-board self-diagnosis is not supported. Only CONSULT-III is supported.

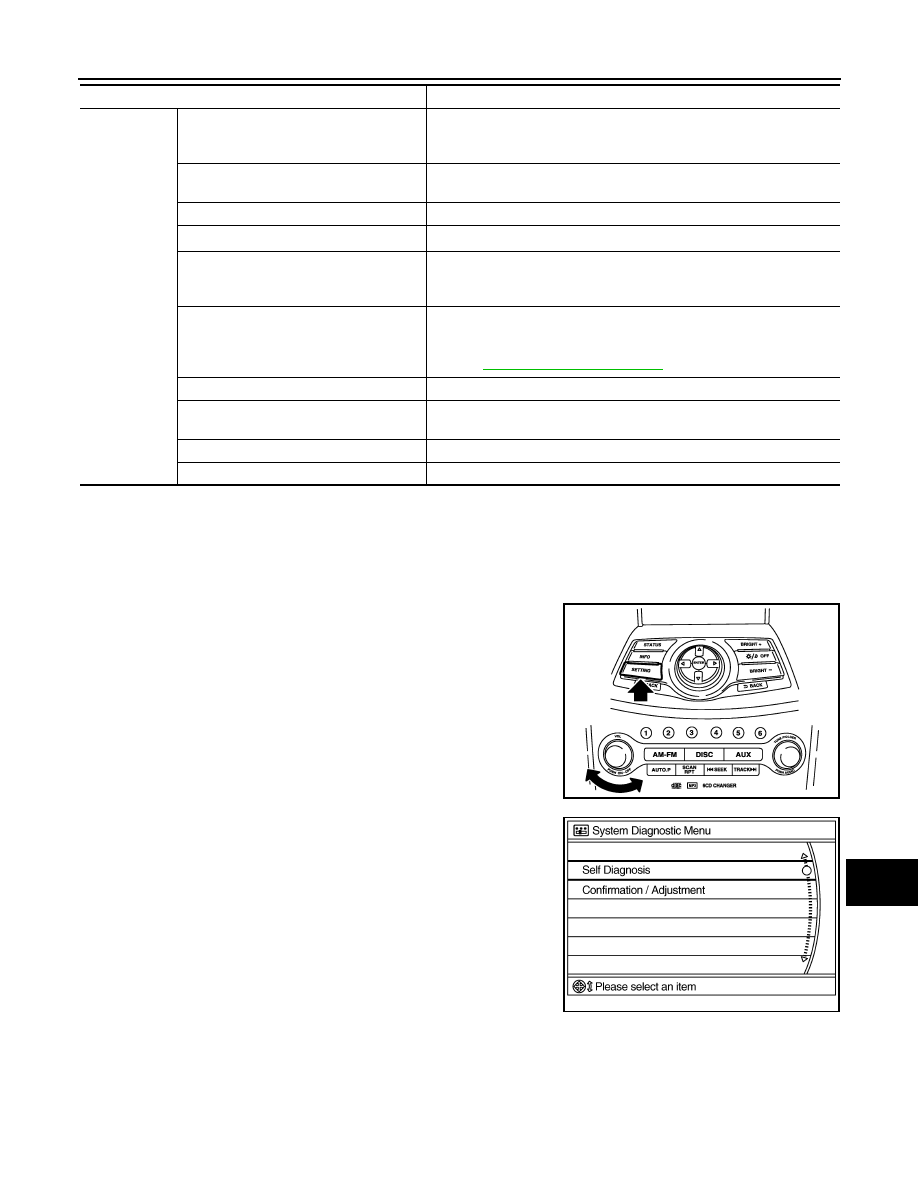

STARTING PROCEDURE

Start the engine.

Turn the audio system OFF.

While pressing the “SETTING” button, turn the volume control
dial clockwise or counterclockwise for 40 clicks or more. (When
the self-diagnosis mode is started, a short beep will be heard.)
• Shifting from current screen to previous screen is performed

by pressing “BACK” button.

The trouble diagnosis initial screen is displayed, and then the
items of “Self Diagnosis” and “Confirmation/Adjustment” can be
selected.

SELF-DIAGNOSIS MODE

Start the self-diagnosis function and select “Self Diagnosis”.

Self-diagnosis subdivision screen is displayed, and the self-diagnosis mode starts.

The bar graph visible on the center of the self-diagnosis subdivision screen indicates progress of the trou-
ble diagnosis.

Confirmation/

Adjustment

Display Diagnosis

The following check functions are available: color tone check by color
bar display, light and shade check by grey scale display and touch panel
calibration response check.

Vehicle Signals

Diagnosis of signals can be performed for vehicle speed, parking brake,
lights, ignition switch, and reverse.

Speaker Test

The connection of a speaker can be confirmed by test tone.

Climate Control

Not used.

Error History

The system malfunction and the frequency when occurred in the past are
displayed. When the malfunctioning item is selected, the time and place
that the selected malfunction last occurred are displayed.

Camera Cont.

It can perform the confirmation of a signal connection to the camera con-
trol unit, the calibration of each camera, Correct Draw Line of Camera
Image, and Fine Tuning of Birds-Eye View.
Refer to

AV-200, "Diagnosis Description"

Vehicle CAN Diagnosis

The transmitting/receiving of CAN communication can be monitored.

AV COMM Diagnosis

The communication condition of each unit of Multi AV system can be
monitored.

Delete Unit Connection Log

Erase the connection history of unit and error history.

Initialize Settings

Initializes the AV control unit memory.

Mode

Description

JSNIA1285GB

JSNIA0138GB

AV-202

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

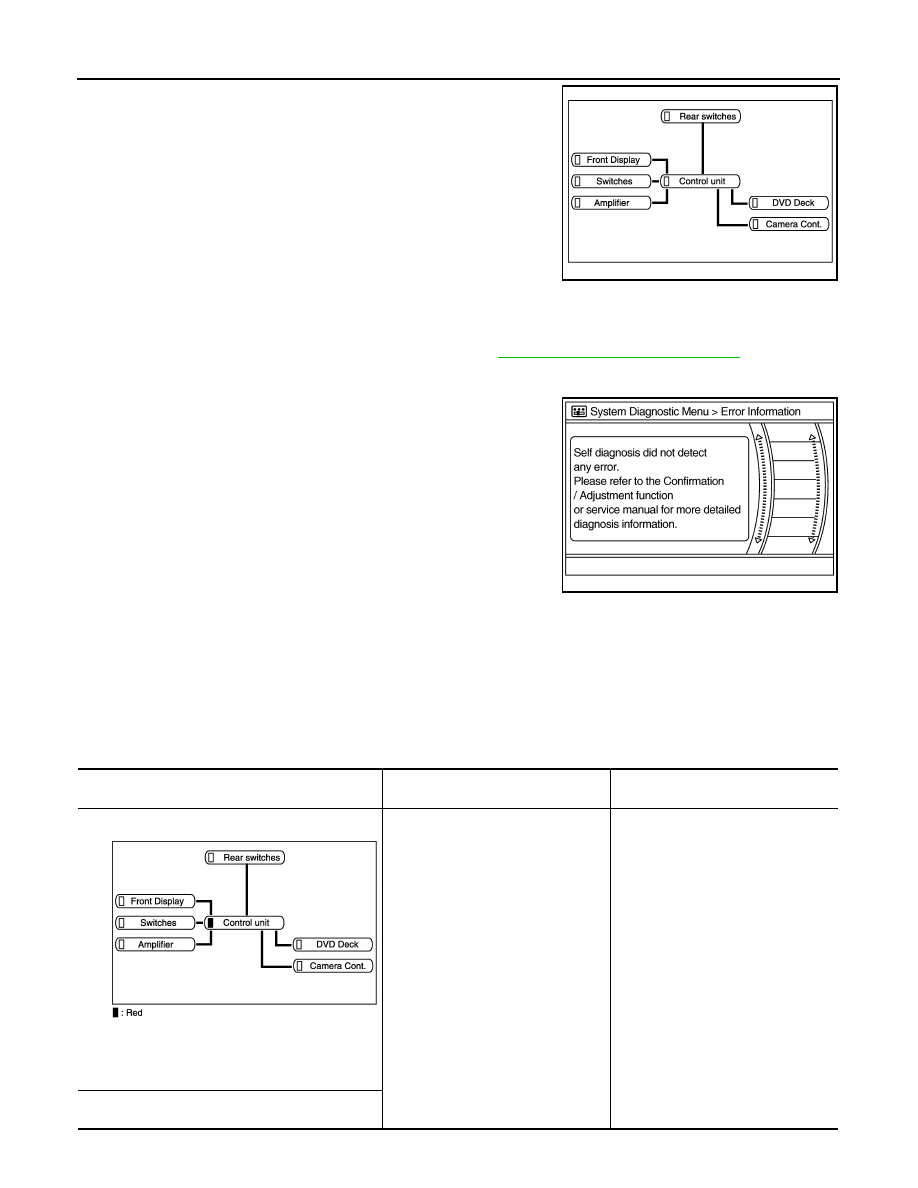

Diagnosis results are displayed after the self-diagnosis is com-
pleted. The unit names and the connection lines are color-coded
according to the diagnostic results.

NOTE:
• Only the control unit (AV control unit) is displayed in red.
• Replace AV control unit if “Self-Diagnosis did not run because of a control unit malfunction” is indicated.

The symptom is AV control unit internal error. Refer to

AV-378, "Removal and Installation"

If multiple errors occur at the same time for a single unit, the screen switch colors are determined accord-
ing to the following order of priority: red > yellow > gray.

The comments of the self-diagnosis results can be viewed with a
component in the diagnosis result screen.

SELF-DIAGNOSIS RESULTS

• The self-diagnosis mode allows the technician to diagnose the connection in the communication line

between AV control unit and each unit and the internal operation of the AV control unit.

• Because the start condition of diagnosis function is a switch operation, the on board diagnosis function can-

not be started up if any malfunction is detected in the communication circuit between AV control unit and
multifunction switch.

• Check the applicable display in the following table, and then repair the malfunctioning parts.

Self-diagnosis Result Chart

Diagnosis results

Unit

Con-

nection

line

Normal

Green

Connection malfunction

Gray

Yellow

Unit malfunction

Note

Red

Green

JSNIA1286GB

JSNIA0141GB

Area with yellow connection lines

Description

Possible malfunction location / Action

to take

NOTE:
When a control unit malfunction is detected (red in
unit display), connection malfunctions with other
connection unit may be displayed.

Malfunction is detected in AV control
unit power supply and ground circuits

Check AV control unit power supply
and ground circuits. When detecting
no malfunction in those components,
replace AV control unit.

“Self-Diagnosis did not run because of a control unit
malfunction”

JSNIA1326GB
