Component Description

INFOID:0000000003885448

Part name

Description

AV CONTROL UNIT

• The AM/FM receiving function and the CD playing function are equipped.
• Sound signal is transmitted to BOSE amp.

DISPLAY UNIT

• Display image is controlled by the serial communication from AV control unit.
• RGB image signal (audio operation condition) is input from AV control unit.

BOSE AMP.

Inputs sound signal from AV control unit, and outputs sound signal to woofer and
each speaker.

WOOFER

• Outputs sound signal from BOSE amp.
• Outputs low frequency sound.

FRONT SPEAKER

• Outputs sound signal from BOSE amp.
• Outputs sound (mid and low range).

REAR SPEAKER

• Outputs sound signal from BOSE amp.
• Outputs sound (mid and low range).

FRONT SQUAWKER

• Outputs sound signal from BOSE amp.
• Outputs sound (high and mid range).

REAR SQUAWKER

• Outputs sound signal from BOSE amp.
• Outputs sound (high and mid range).

CENTER SPEAKER

• Outputs sound signal from BOSE amp.
• Outputs sound (high and mid range).

MULTIFUNCTION SWITCH

• Each audio operation can be operated.
• The multifunction switch is connected to the preset switch by wiring harness,

and it transmits the operation signal to the preset switch.

PRESET SWITCH

• Each audio operation can be operated.
• The preset switch is connected via AV communication, and it transmits the op-

eration signals of the preset switch and multifunction switch.

• The disk ejection operating signal is performed by hard-wire.

STEERING SWITCH

• Each audio operation can be operated.
• Steering switch signal (operation signal) is output to AV control unit.

REAR CONTROL SWITCH

• Each audio operation can be operated.
• The rear control switch is connected via AV communication, and it transmits

the operation signals of the rear control switch.

ANTENNA AMP.

• Radio signal received by glass antenna is amplified and transmitted to AV con-

trol unit.

• Power (antenna amp. ON signal) is supplied from AV control unit.

AV-196

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

REAR VIEW MONITOR SYSTEM

REAR VIEW MONITOR SYSTEM

System Diagram

INFOID:0000000003791249

System Description

INFOID:0000000003791250

CAMERA IMAGE OPERATION PRINCIPLE

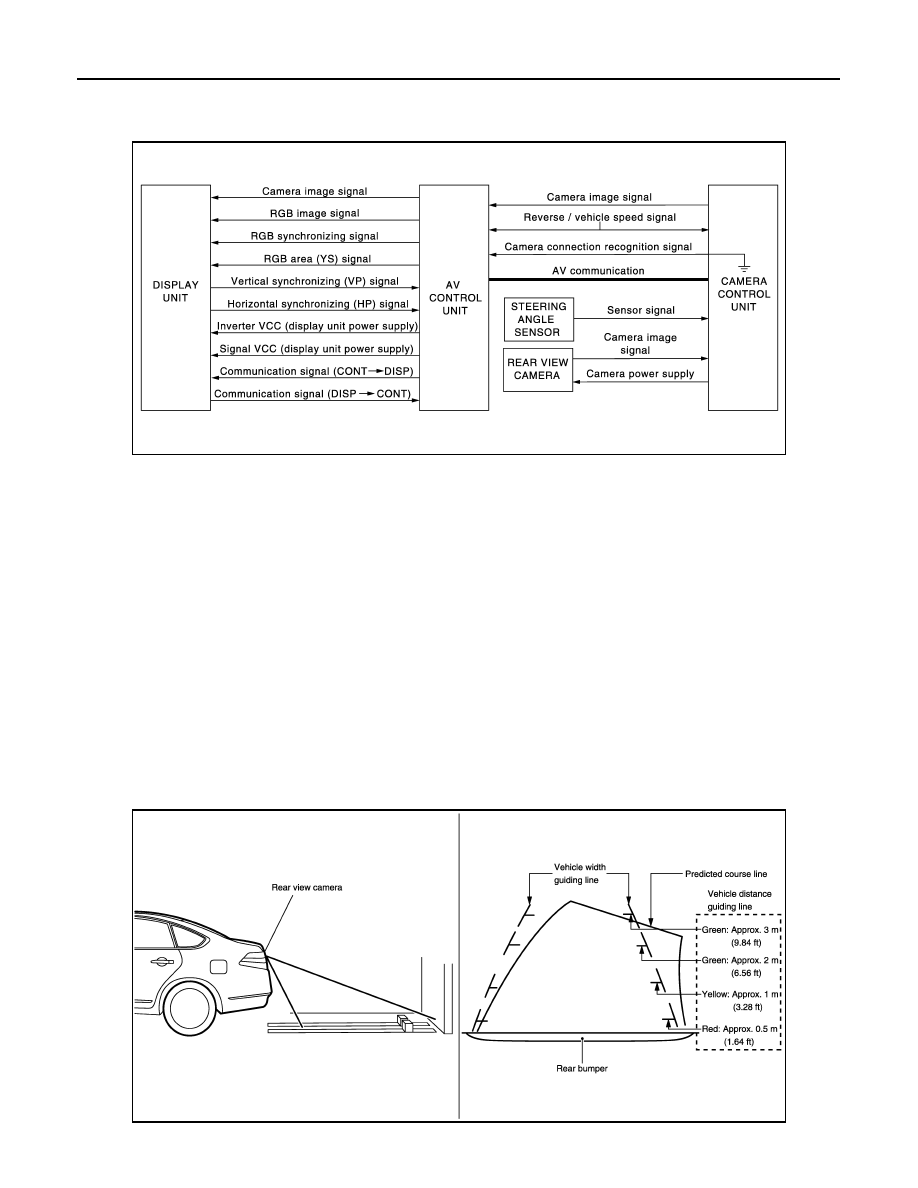

• Power is supplied to rear view camera from camera control unit and the rear view camera outputs the cam-

era image to camera control unit when selector lever is set to reverse position and the reverse signal on
camera control unit is input.

• Camera control unit superimposes the guiding line and predicted course line to the image from rear view

camera and outputs to display unit. In this case, the reverse signal is also input to AV control unit. Therefore,
AV control unit recognizes the selector lever as in the reverse position. And then AV control unit switches the
image displayed by the communication signal between AV control unit and display unit with the camera
image.

• AV control unit outputs camera image signal that is inputted from camera control unit to display unit.
• Camera control unit controls the direction and distance of predicted course line according to the sensor sig-

nal from steering angle sensor.

• AV control unit determines whether rear view camera is equipped or not, based on the presence of camera

connection recognition signal. It switches to rear view monitor image at the time of reverse signal input when
rear view camera is equipped.

Rear view monitor guiding line

JSNIA1379GB

JSNIA1325GB

AV

REAR VIEW MONITOR SYSTEM

AV-197

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PREDICTED COURSE LINE OPERATION PRINCIPLE

Detection Of Steering Rotation Direction

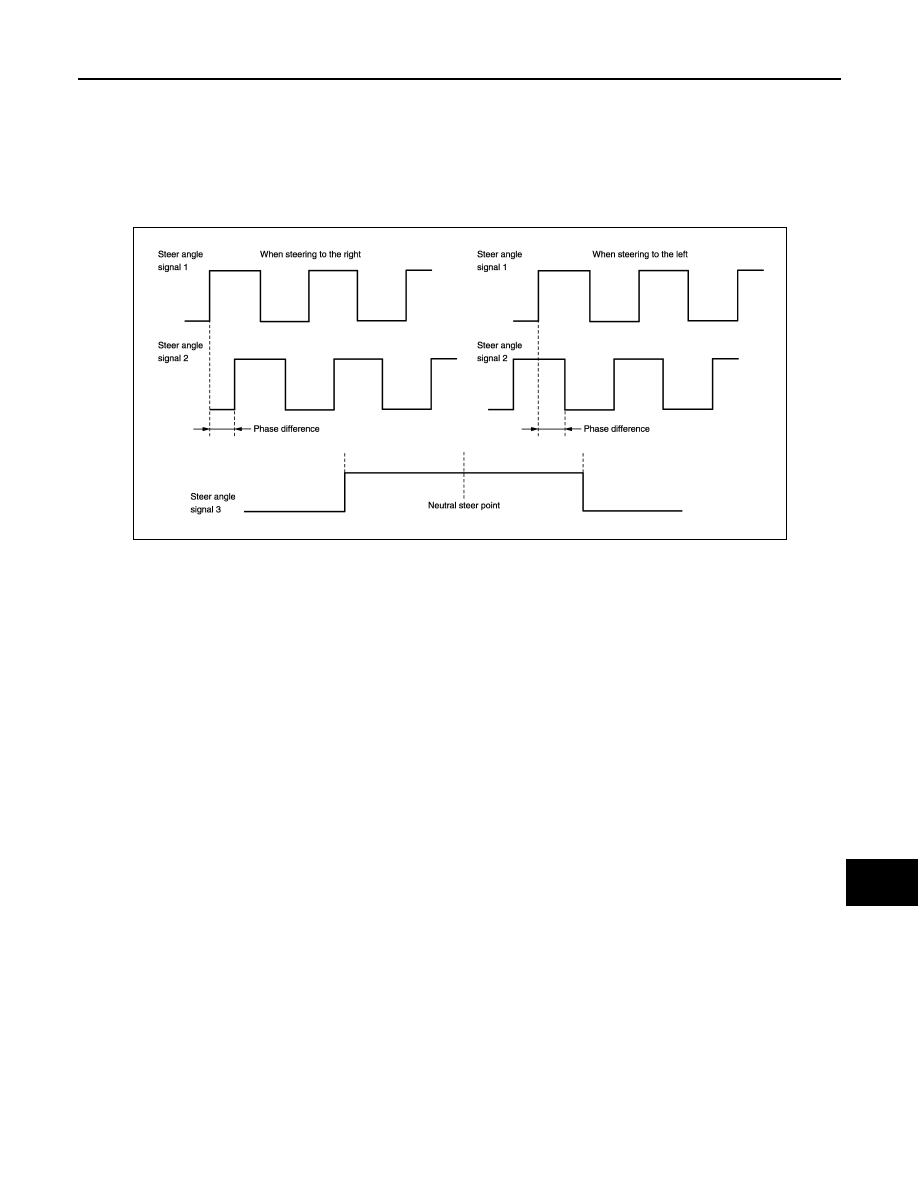

Camera control unit detects the rotation direction of steering according to the phase difference of two pairs of
pulse signals (sensor signal 1 and sensor signal 2) input from steering angle sensor.

Detection Of Steering Neutral Position

The sensor signal 3 input from steering angle sensor is generated at 1 pulse per 1 rotation of the steering
wheel. Camera control unit detects the steering neutral position from this pulse.

Correction Of Steering Neutral Position

Camera control unit corrects the steering neutral position during driving according to the vehicle speed signal
and sensor signal.

JSNIA0708GB

AV-198

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

REAR VIEW MONITOR SYSTEM

Component Parts Location

INFOID:0000000003791258

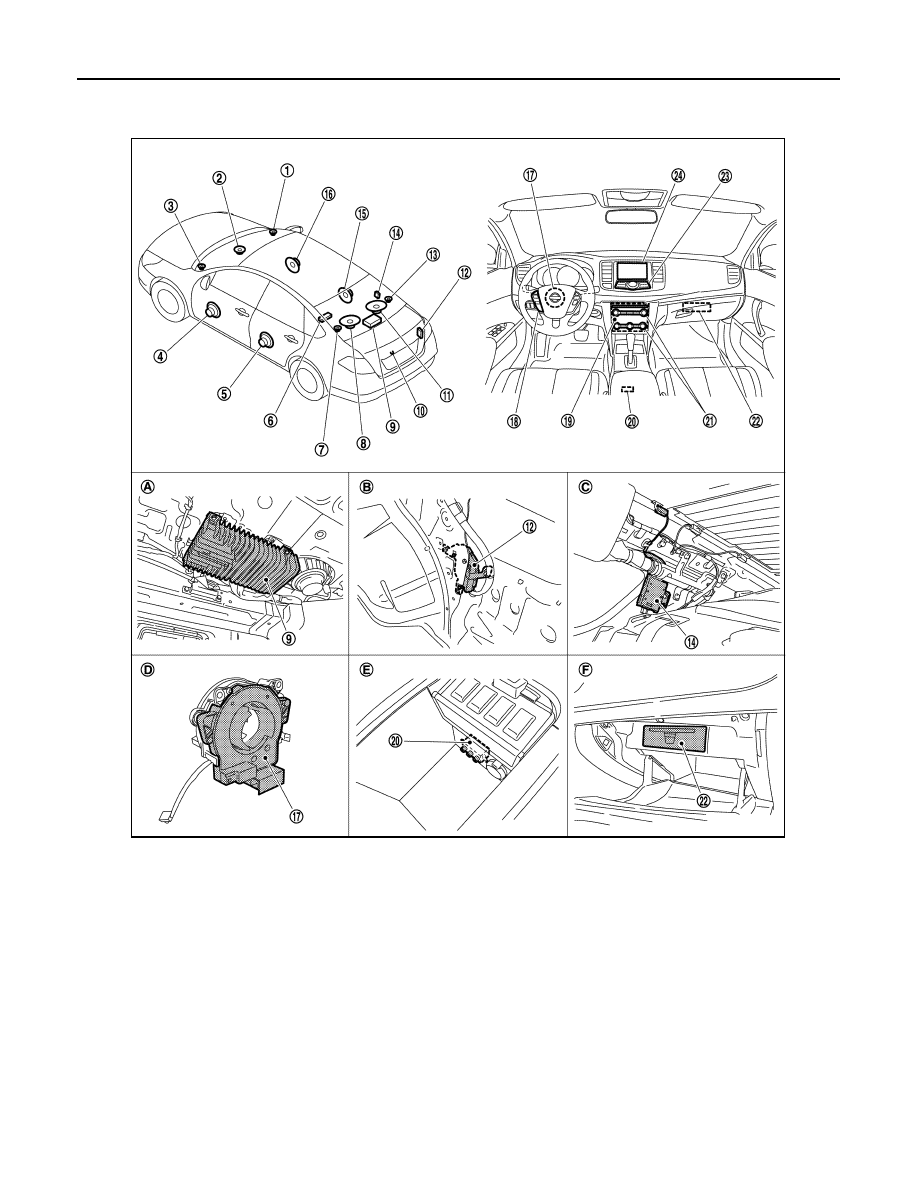

1.

Front squawker RH

2.

Center speaker

3.

Front squawker LH

4.

Front door speaker LH

5.

Rear door speaker LH

6.

Rear control switch

7.

Rear squawker LH

8.

Woofer LH

9.

BOSE amp.

10. Rear view camera

11. Woofer RH

12. Camera control unit

13. Rear squawker RH

14. Antenna amp.

15. Rear door speaker RH

16. Front door speaker RH

17. Steering angle sensor

18. Steering switch

19. AV control unit

20. Auxiliary input jacks

21. Preset switch

22. DVD player

23. Multifunction switch

24. Display unit

 A. Trunk room upper RH

B.

Trunk room side RH

C.

Within rear pillar finisher RH

D.

Spiral cable part

E.

In center console

F.

 In grove box

JPNIA1058ZZ
