CAMERA CONTROL UNIT

AV-147

< ECU DIAGNOSIS >

[BASE AUDIO AND DISPLAY SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

22

(W)

Ground

Reverse signal

Input

Ignition

switch

ON

Selector lever in R position.

12.0 V

Other than selector lever in
R position.

0 V

23

(G)

Ground

Sensor signal 1

Input

Ignition

switch

ON

Turn the steering to the
right.

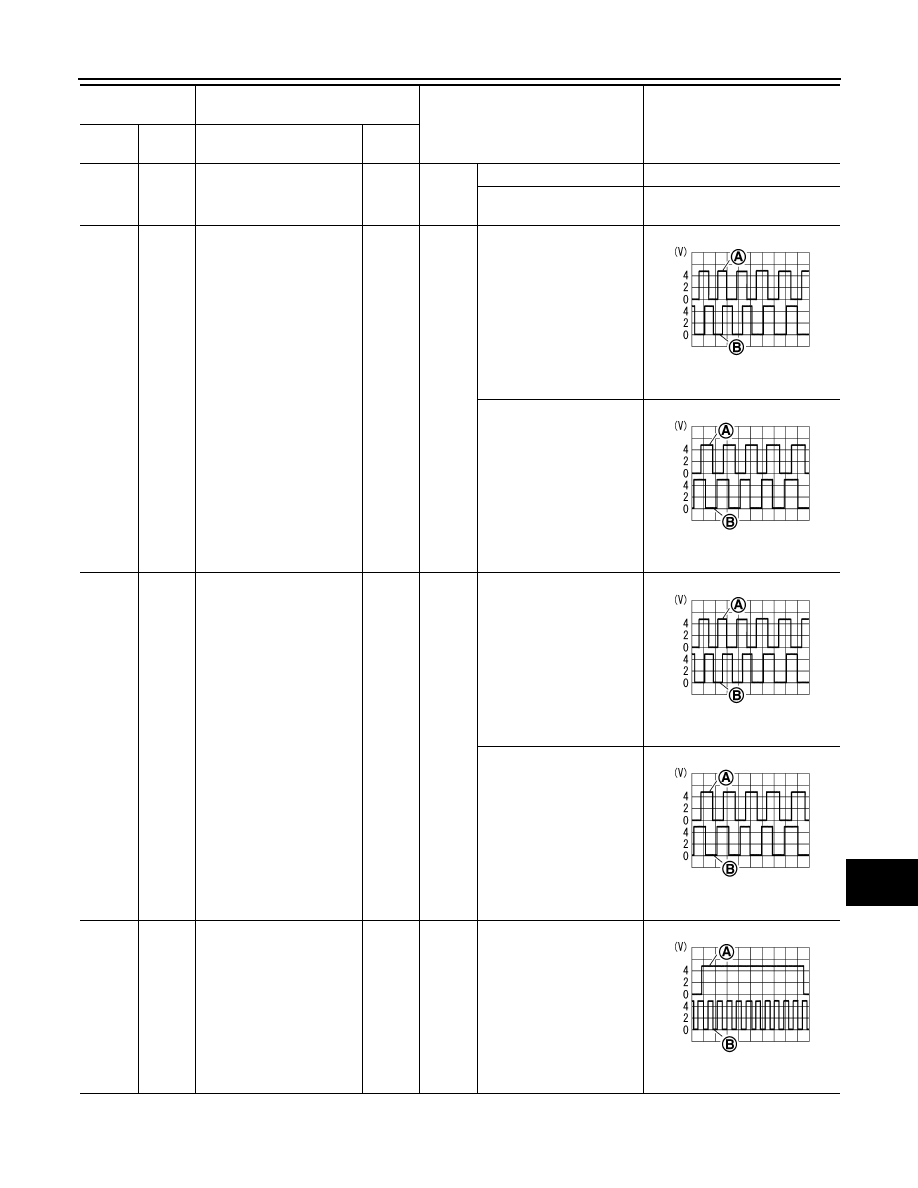

A: Sensor signal 1
B: Sensor signal 2

Turn the steering to the left.

A: Sensor signal 1
B: Sensor signal 2

24

(SB)

Ground

Sensor signal 2

Input

Ignition

switch

ON

Turn the steering to the
right.

A: Sensor signal 1
B: Sensor signal 2

Turn the steering to the left.

A: Sensor signal 1
B: Sensor signal 2

25

(O)

Ground

Sensor signal 3

Input

Ignition

switch

ON

Turn the steering around
the neutral position.

A: Sensor signal 3
B: Sensor signal 1

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

SKIB3827E

SKIB3828E

SKIB3827E

SKIB3828E

SKIB3829E

AV-148

< ECU DIAGNOSIS >

[BASE AUDIO AND DISPLAY SYSTEM]

CAMERA CONTROL UNIT

26

(O)

Ground

Vehicle speed signal
(8-pulse)

Input

Ignition

switch

ON

When vehicle speed is ap-
prox. 40 km/h (25 MPH).

NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).

30

(V)

Ground

ACC power supply

Input

Ignition

switch

ACC

Battery voltage

31

(B/R)

Ground

Ground

Ignition

switch

ON

0  V

32

(Y)

Ground

Battery power supply

Input

Ignition

switch

OFF

Battery voltage

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

JSNIA0012GB

AV

CAMERA CONTROL UNIT

AV-149

< ECU DIAGNOSIS >

[BASE AUDIO AND DISPLAY SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

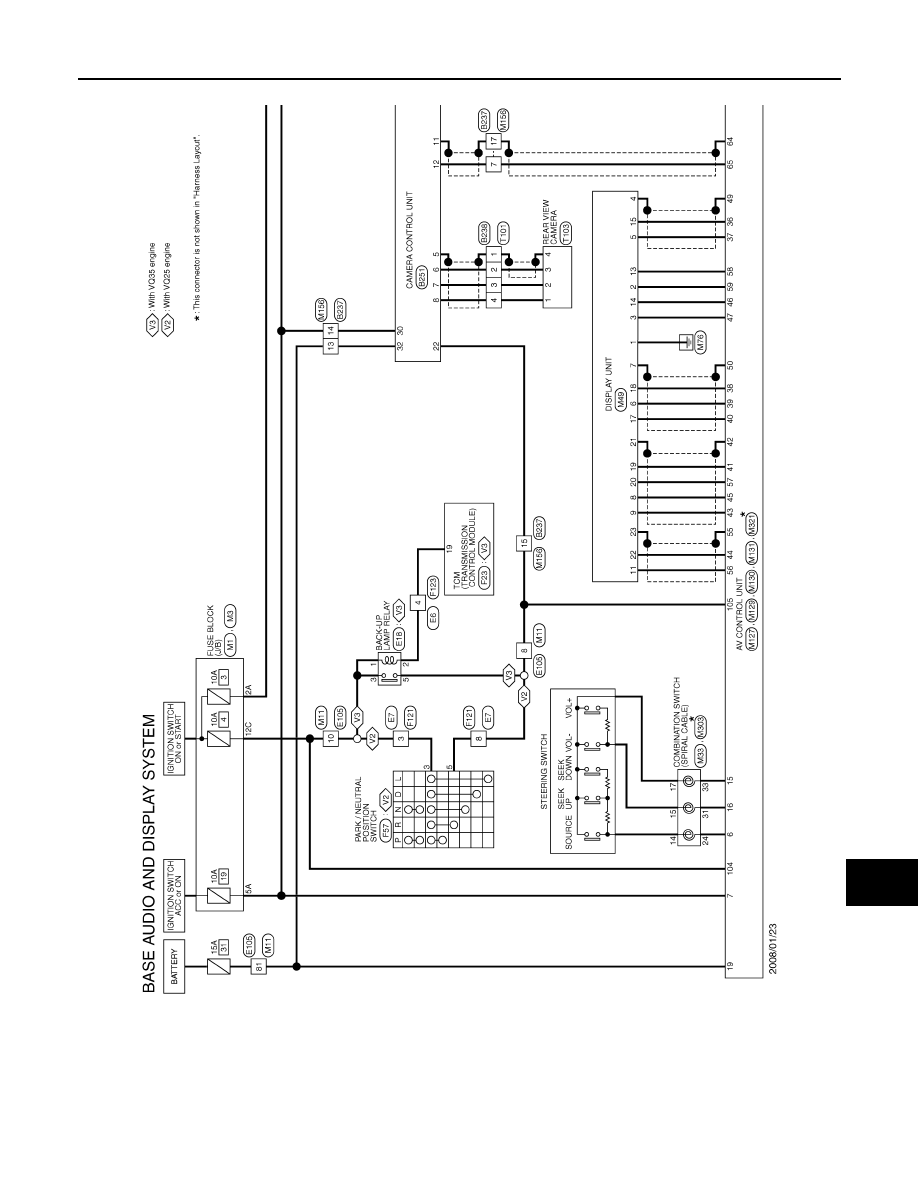

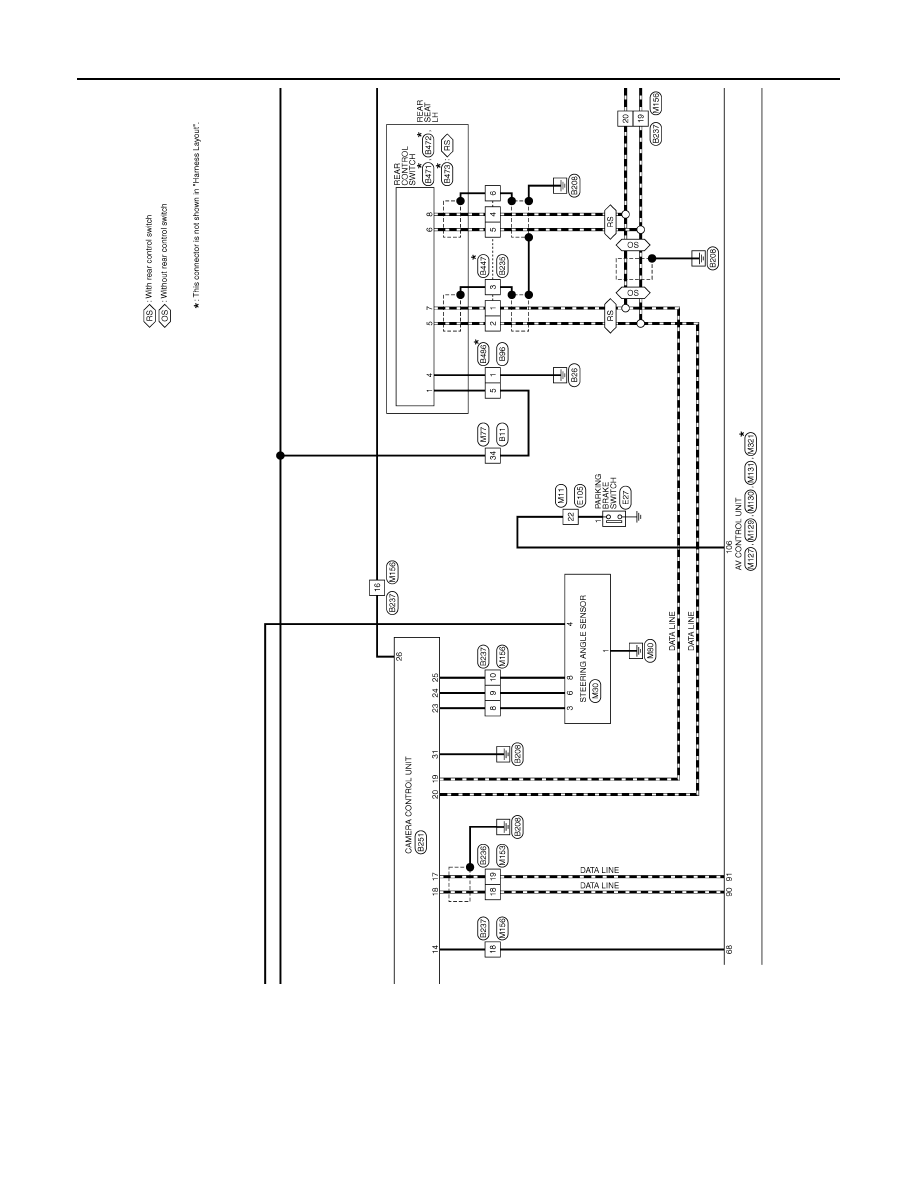

Wiring Diagram — BASE AUDIO AND DISPLAY SYSTEM —

INFOID:0000000003971683

JCNWM0882GB

AV-150

< ECU DIAGNOSIS >

[BASE AUDIO AND DISPLAY SYSTEM]

CAMERA CONTROL UNIT

JCNWM0883GB
