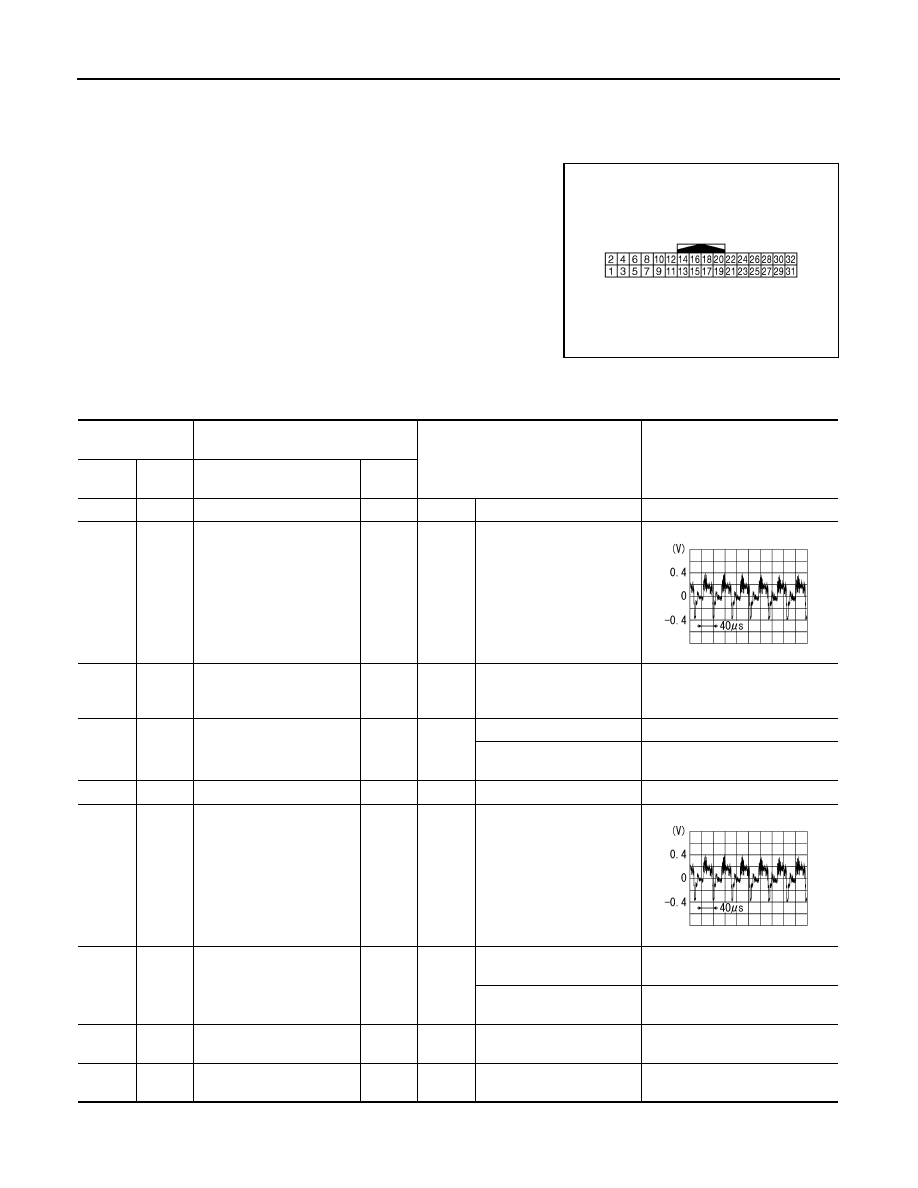

CAMERA CONTROL UNIT

CAMERA CONTROL UNIT

Reference Values

INFOID:0000000003897074

TERMINAL LAYOUT

PHYSICAL VALUES

JPNIA0007ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

5

—

Shield

—

—

—

—

6

(B)

Ground

Camera image signal

Input

Ignition

switch

ON

When rear view camera im-
age is displayed.

7

(W)

Ground

Rear view camera ground

—

Ignition

switch

ON

—

0  V

8

(R)

Ground

Camera power supply

Output

Ignition

switch

ON

Selector lever in R position.

6.0 V

Other than selector lever in
R position.

0 V

11

—

Shield

—

—

—

—

12

(BR)

Ground

Camera image signal

Output

Ignition

switch

ON

When rear view camera im-
age is displayed.

14

(GR)

Ground

Camera connection recog-
nition signal

Output

Ignition

switch

ON

Connected to camera con-
trol unit connector.

0 V

Not connected to camera
control unit connector.

5.0 V

19

(P)

—

AV communication signal
(L)

Input/

Output

—

—

—

20

(L)

—

AV communication signal
(H)

Input/

Output

—

—

—
