AV

INSPECTION AND ADJUSTMENT

AV-47

< BASIC INSPECTION >

[BASE AUDIO AND DISPLAY SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : De-
scription

INFOID:0000000003882693

WITH AROUND VIEW MONITOR

Always correct the center position of the predicted course line after disconnecting the battery negative termi-
nal.

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Spe-
cial Repair Requirement

INFOID:0000000003882694

1.

CORRECTION OF CENTER POSITION OF PREDICTED COURSE LINE

Refer to the following for details.

>> Refer to

AV-47, "PREDICTED COURSE LINE CENTER POSITION ADJUSTMENT : Special

Repair Requirement"

.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000003882695

When camera control unit is replaced, the center position of predicted course line shall be corrected.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000003882696

1.

CORRECTION OF CENTER POSITION OF PREDICTED COURSE LINE

Refer to the following for details.

>> Refer to

AV-47, "PREDICTED COURSE LINE CENTER POSITION ADJUSTMENT : Special

Repair Requirement"

.

PREDICTED COURSE LINE CENTER POSITION ADJUSTMENT

PREDICTED COURSE LINE CENTER POSITION ADJUSTMENT : Description

INFOID:0000000003882697

Adjust the center position of the possible route line of the rear view monitor if it is shifted.

PREDICTED COURSE LINE CENTER POSITION ADJUSTMENT : Special Repair
Requirement

INFOID:0000000003882698

1.

STEERING OPERATION

Steer the steering wheel to the leftmost and rightmost ends.

>> GO TO 2.

2.

DRIVING

Drive the vehicle straight ahead 100 m (328.1 ft) or more at a speed of 30 km/h (18.6 MPH) or more.

>> END

AV-48

< FUNCTION DIAGNOSIS >

[BASE AUDIO AND DISPLAY SYSTEM]

MULTI AV SYSTEM

FUNCTION DIAGNOSIS

MULTI AV SYSTEM

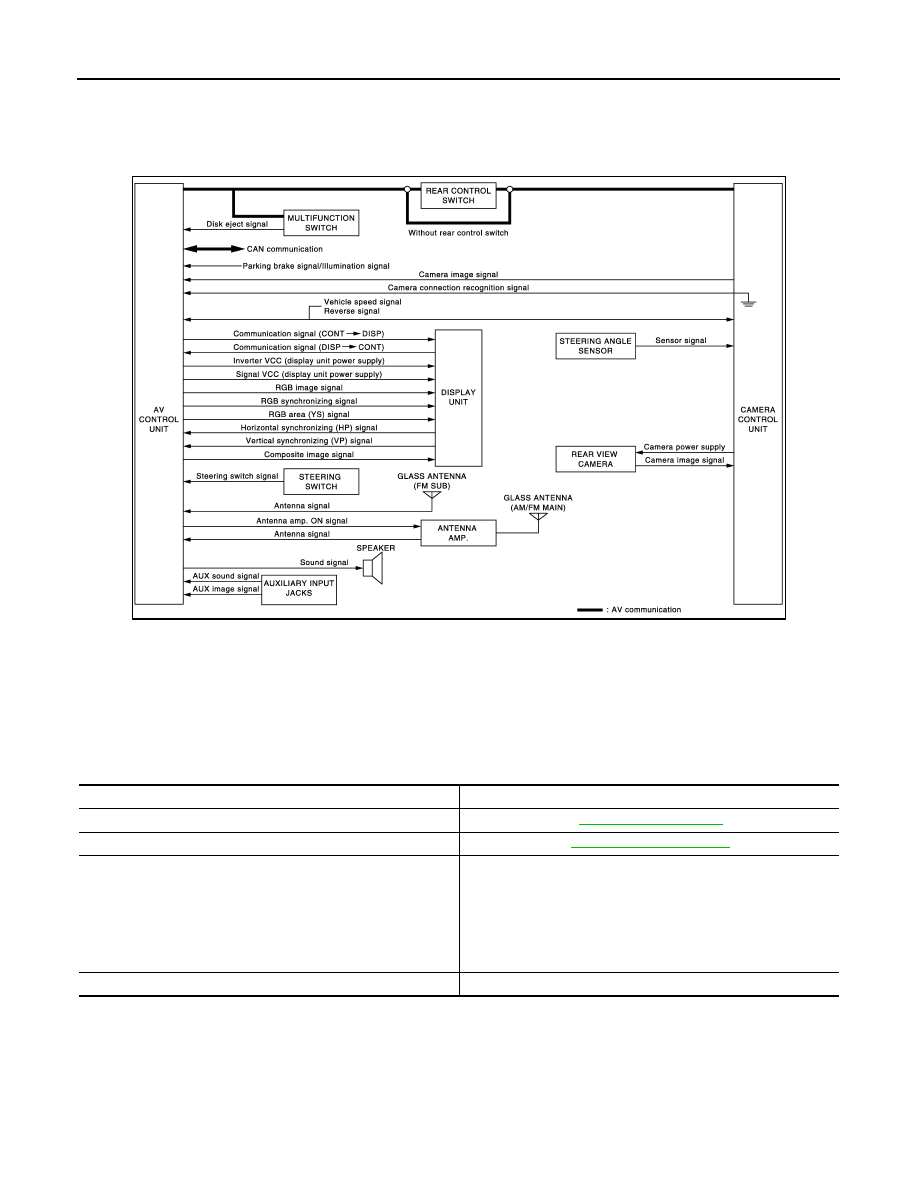

System Diagram

INFOID:0000000003882699

NOTE:
• The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION

SWITCH virtually.

• A radio antenna base integrated with radio antenna amp. is adopted.
• Woofer illustrated in the above figure, integrates two woofers and a woofer amp.

System Description

INFOID:0000000003882700

Multi AV system means that the following systems are integrated.

• AV control unit controls by transmitting/receiving data one by one with each unit (slave unit) that configures

them completely as a master unit by connecting between units that configure MULTI AV system with two AV
communication lines (H, L).

• Two AV communication lines (H, L) adopt a twisted pair line that is resistant to noise.
• AV control unit is connected by CAN communication, and it receives data signal from ECM, combination

meter. It computes and displays fuel economy information value with the obtained information. Transmitting/
receiving of data signal is performed by BCM. Also, it transmits the required signal of vehicle setting and
receives the response signal.

JSNIA1431GB

System name

System explanation

AUDIO SYSTEM

AV-53, "System Diagram"

REAR VIEW MONITOR SYSTEM

AV-56, "System Description"

VEHICLE INFORMATION SYSTEM

• Status of audio, climate control system, fuel economy, mainte-

nance and navigation is displayed.

• AV control unit displays the fuel consumption status while re-

ceiving data signal through CAN communication from ECM and
combination meter.

• AV control unit is connected to BCM via CAN communication

transmitting/receiving for the vehicle settings function.

AUXILIARY INPUT SYSTEM

Refer to “AUXILIARY INPUT SYSTEM” shown below.

AV

MULTI AV SYSTEM

AV-49

< FUNCTION DIAGNOSIS >

[BASE AUDIO AND DISPLAY SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• AV control unit is connected with display unit and serial communication, and it transmits the required signal

of display and display control and receives the response signal from display unit.

NOTE:
AV control unit can perform CONSULT-III self-operating function and on board self-diagnosis.
• CONSULT-III self diagnosis: Refer to

AV-68, "CONSULT-III Function (MULTI AV)"

.

• On board self diagnosis: Refer to

AV-60, "Diagnosis Description"

.

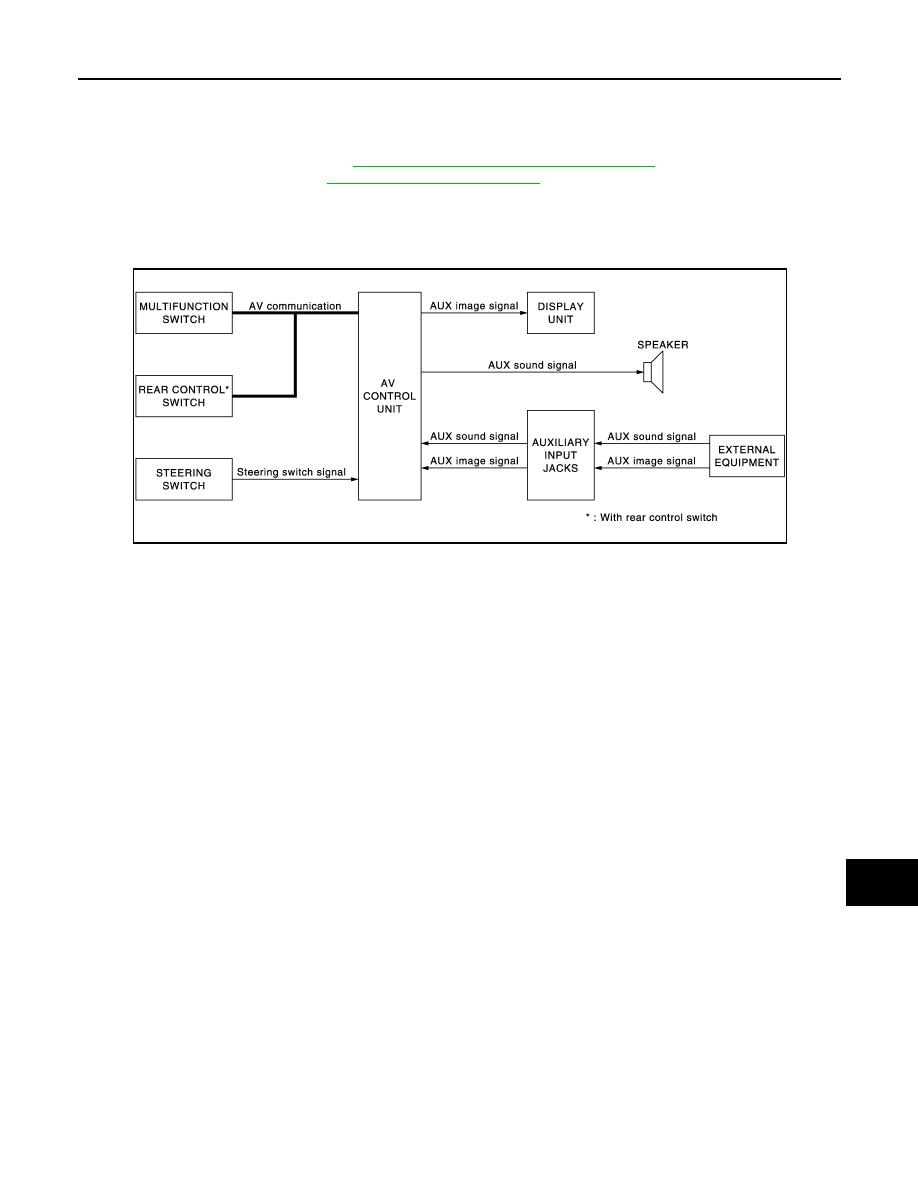

AUXILIARY INPUT SYSTEM

• Image and sound can be output from an external device by connecting a device with auxiliary input jacks.
• Operation can be performed with multifunction switch, steering switch and rear control switch. Multifunction

switch and rear control switch transmits operation signal to AV control unit by AV communication.

JSNIA1432GB

AV-50

< FUNCTION DIAGNOSIS >

[BASE AUDIO AND DISPLAY SYSTEM]

MULTI AV SYSTEM

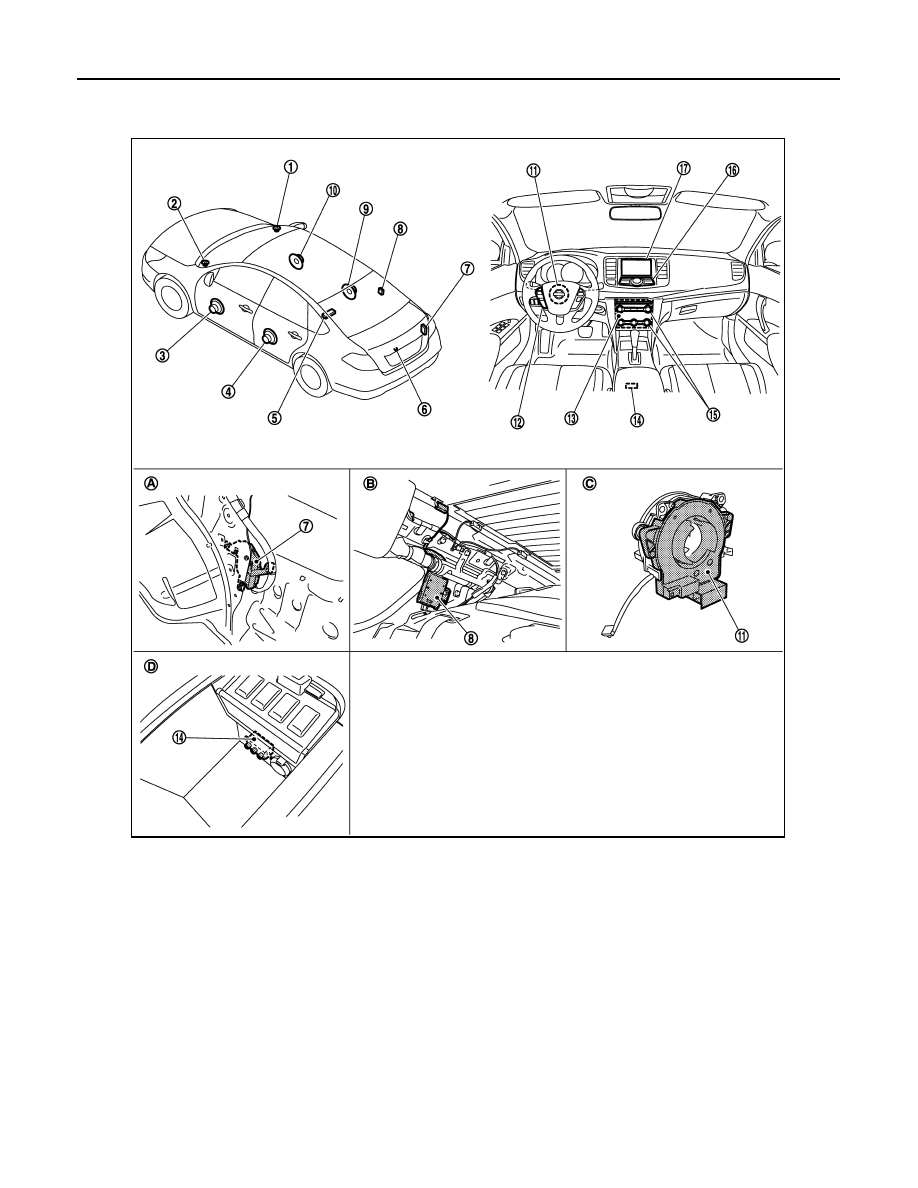

Component Parts Location

INFOID:0000000003882701

1.

Front squawker RH

2.

Front squawker LH

3.

Front door speaker LH

4.

Rear door speaker LH

5.

Rear control switch

6.

Rear view camera

7.

Camera control unit

8.

Antenna amp.

9.

Rear door speaker RH

10. Front door speaker RH

11. Steering angle sensor

12. Steering switch

13. AV control unit

14. Auxiliary input jacks

15. Preset switch

16. Multifunction switch

17. Display unit

 A. Trunk room side RH

B.

Within rear pillar finisher RH

C.

Spiral cable part

D.

In center console



JSNIA1433ZZ
