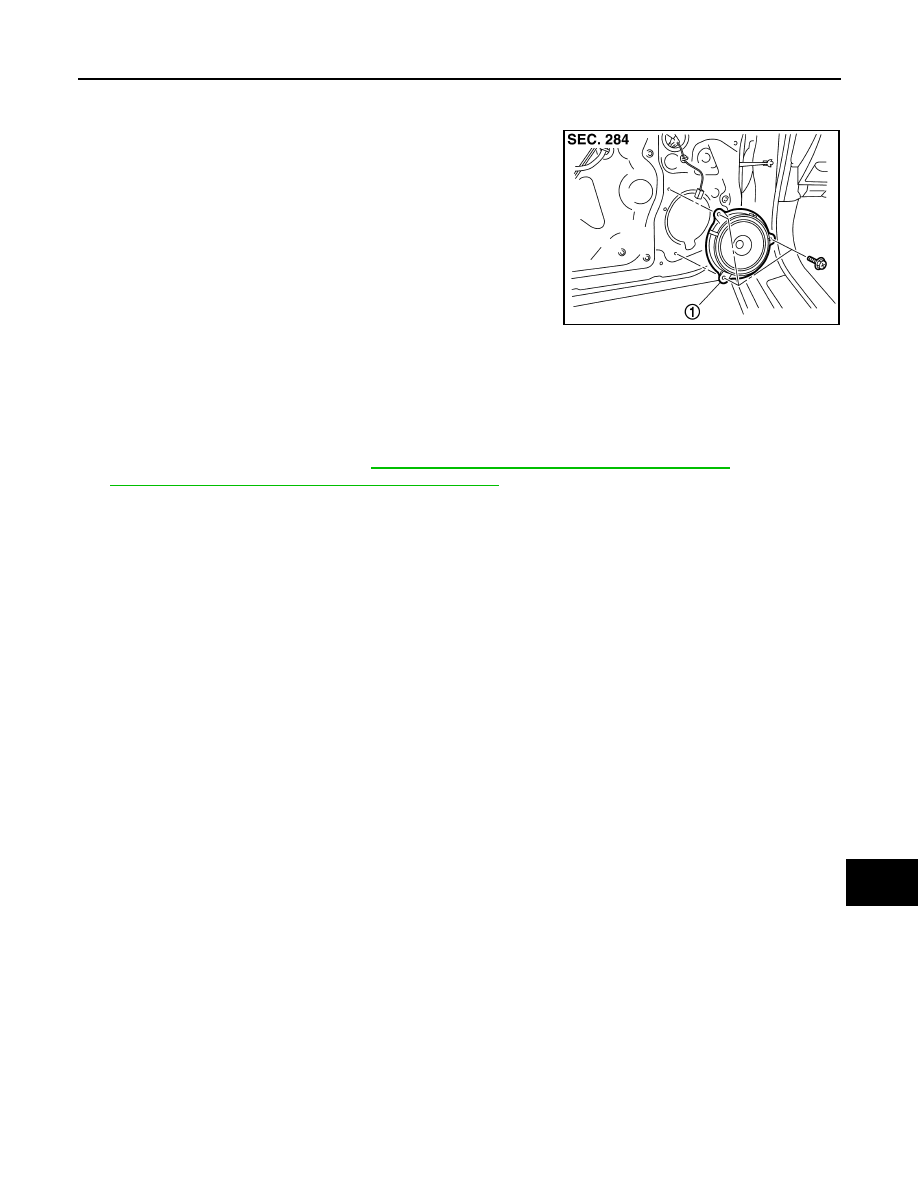

FRONT DOOR SPEAKER

Exploded View

INFOID:0000000003765615

Removal and Installation

INFOID:0000000003765616

REMOVAL

1.

Remove front door finisher. Refer to

INT-30, "DRIVER SIDE : Removal and Installation"

 (driver side) or

INT-33, "PASSENGER SIDE : Removal and Installation"

 (passenger side).

2.

Remove front door speaker screws, then disconnect front door speaker connector and remove front door
speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA1030ZZ

1.

Front door speaker

AV-40

< ON-VEHICLE REPAIR >

[AUDIO SYSTEM]

REAR DOOR SPEAKER

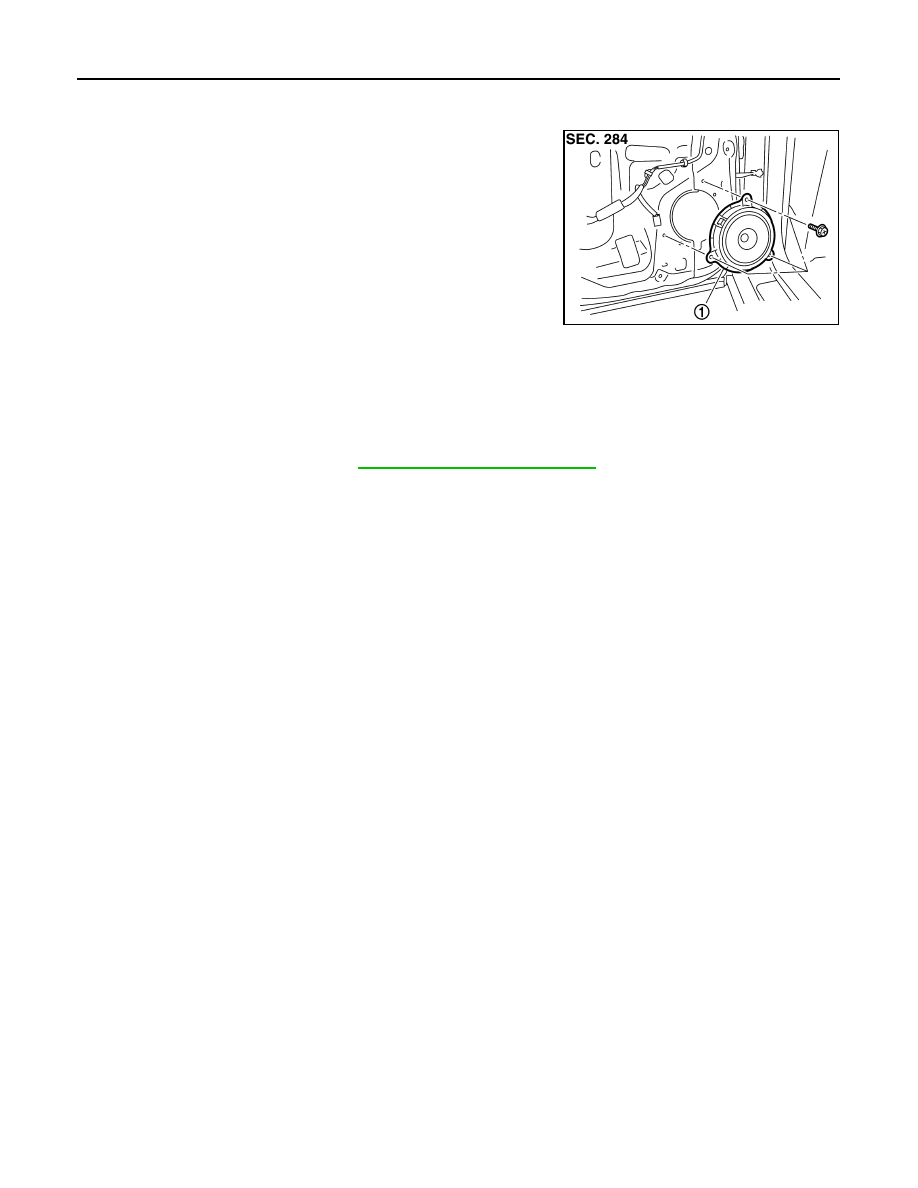

REAR DOOR SPEAKER

Exploded View

INFOID:0000000003765617

Removal and Installation

INFOID:0000000003765618

REMOVAL

1.

Remove rear door finisher. Refer to

INT-36, "Removal and Installation"

.

2.

Remove rear door speaker screws, then disconnect rear door speaker connector and remove rear door
speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA1031ZZ

1.

Rear door speaker

AV

FRONT SQUAWKER

AV-41

< ON-VEHICLE REPAIR >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

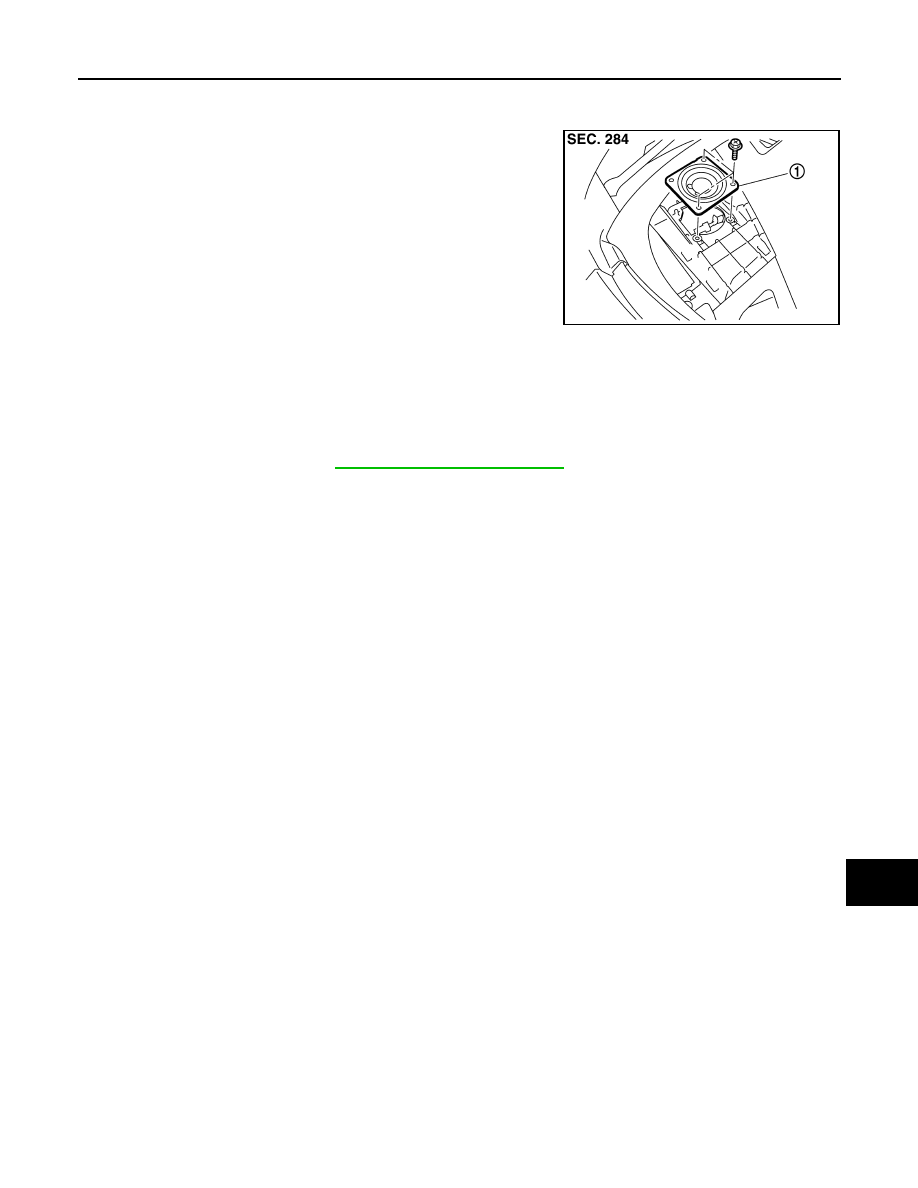

FRONT SQUAWKER

Exploded View

INFOID:0000000003765619

Removal and Installation

INFOID:0000000003765620

REMOVAL

1.

Remove speaker grille. Refer to

IP-12, "Removal and Installation"

.

2.

Remove front squawker screws, lift up the front squawker and disconnect front squawker connector. Then
remove the front squawker.

INSTALLATION

Install in the reverse order of removal.

JPNIA1038ZZ

1.

Front squawker

AV-42

< ON-VEHICLE REPAIR >

[AUDIO SYSTEM]

STEERING SWITCH

STEERING SWITCH

Exploded View

INFOID:0000000003765621

Refer to

ST-12, "Exploded View"

.

Removal and Installation

INFOID:0000000003765622

REMOVAL

Refer to

ST-12, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.
