INTELLIGENT KEY INTERLOCK FUNCTION DOES NOT OPERATE

Diagnosis Procedure

INFOID:0000000003759234

1.

CHECK DOOR LOCK FUNCTION

Check door lock function.
Refer to

DLK-7, "Work Flow"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

PERFORM MEMORY STORING PROCEDURE

1.

Perform memory storing procedure.
Refer to

ADP-9, "MEMORY STORING : Special Repair Requirement"

.

2.

Check Intelligent Key interlock function.
Refer to

ADP-31, "INTELLIGENT KEY INTERLOCK FUNCTION : System Description"

.

Is the inspection result normal?

YES

>> Intelligent Key inter lock function is normal.

NO

>> Replace driver seat control unit. Refer to

ADP-136, "Removal and Installation"

.

ADP-134

< SYMPTOM DIAGNOSIS >

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

Description

INFOID:0000000003759236

The following symptoms are normal operations, and they do not indicate a malfunction.

Symptom

Cause

Action to take

Reference page

Entry/exit assist function and
seat synchronization do not op-
erate.

No initialization has been performed.

Perform initialization.

ADP-8

Entry/exit assist function is disabled.
NOTE:
The entry/exit assist function and seat
synchronization function are disabled be-
fore delivery (initial setting).

Change the settings.

ADP-9

Entry assist function does not op-
erate.

Manual operation with power seat switch
was performed after exit assist function
execution.

Perform the memory

function.

ADP-27

Memory function, entry/exit as-
sist function, or Intelligent Key in-
terlock function does not
operate.

The operating conditions are not fulfilled.

Fulfill the operation

conditions.

Memory function:

ADP-19

Exit assist function:

ADP-23

Entry assist function:

ADP-27

Intelligent Key interlock

function:

ADP-31

PRECAUTIONS

ADP-135

< PRECAUTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003940050

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIRBAG” and
“SEAT BELT” of this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

ADP-136

< ON-VEHICLE REPAIR >

DRIVER SEAT CONTROL UNIT

ON-VEHICLE REPAIR

DRIVER SEAT CONTROL UNIT

Exploded View

INFOID:0000000003759238

Refer to

SE-89, "Exploded View"

.

Removal and Installation

INFOID:0000000003759239

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

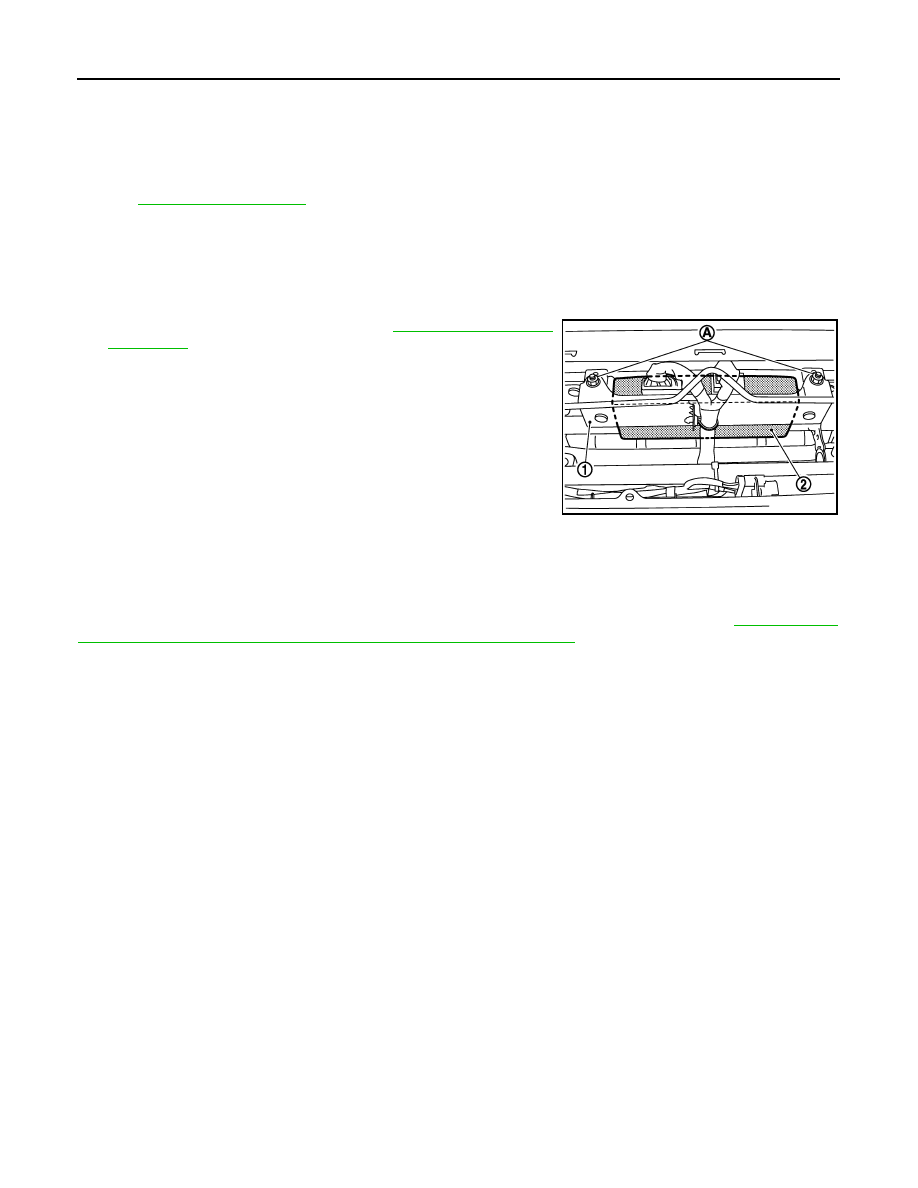

Remove the driver seat (1). Refer to

SE-92, "Removal and

Installation"

.

2.

Remove the mounting nut (A).

3.

Remove driver seat control unit (2).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to clump the harness to the right place.
NOTE:
After installing the driver seat, perform additional service when replacing control unit. Refer to

ADP-7, "ADDI-

TIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description"

.

JMJIA1449ZZ
