Nissan Teana J32. Manual - part 32

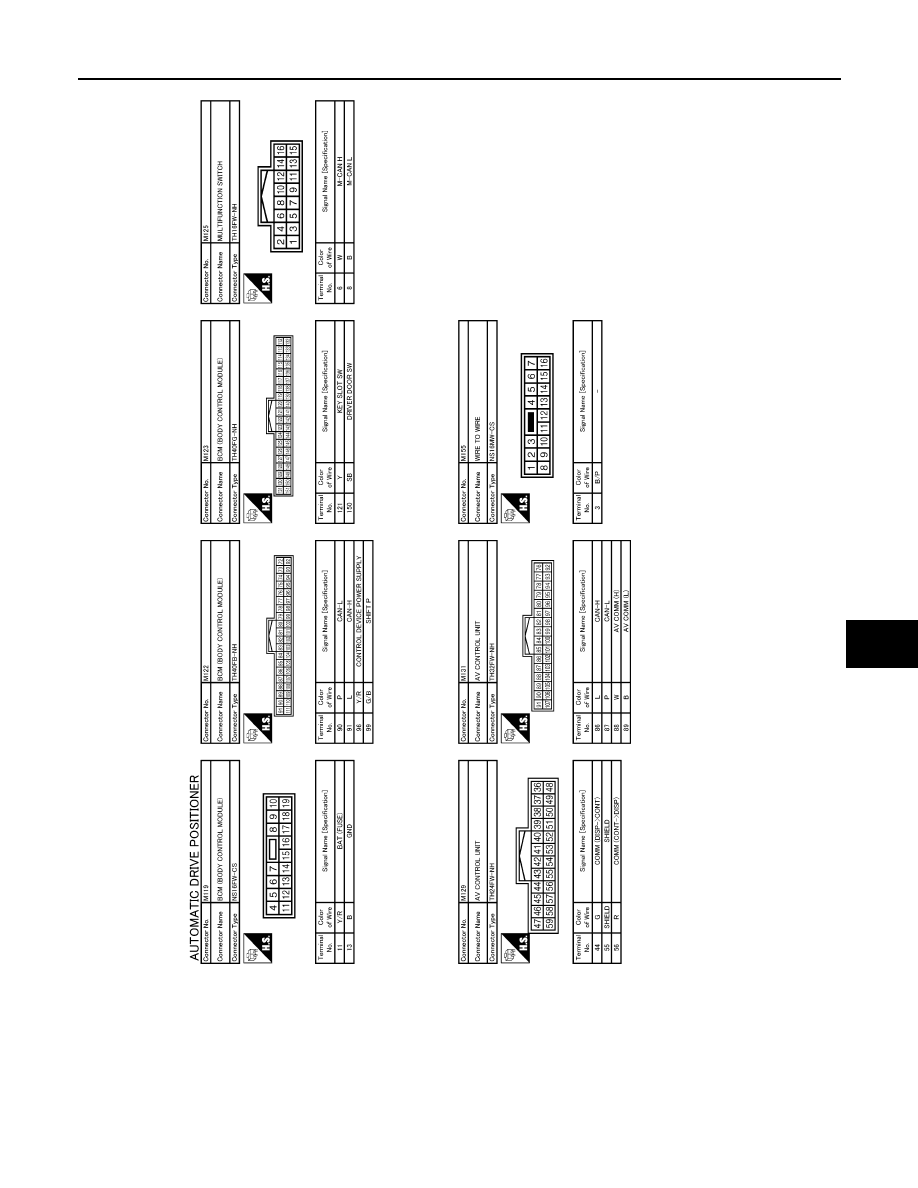

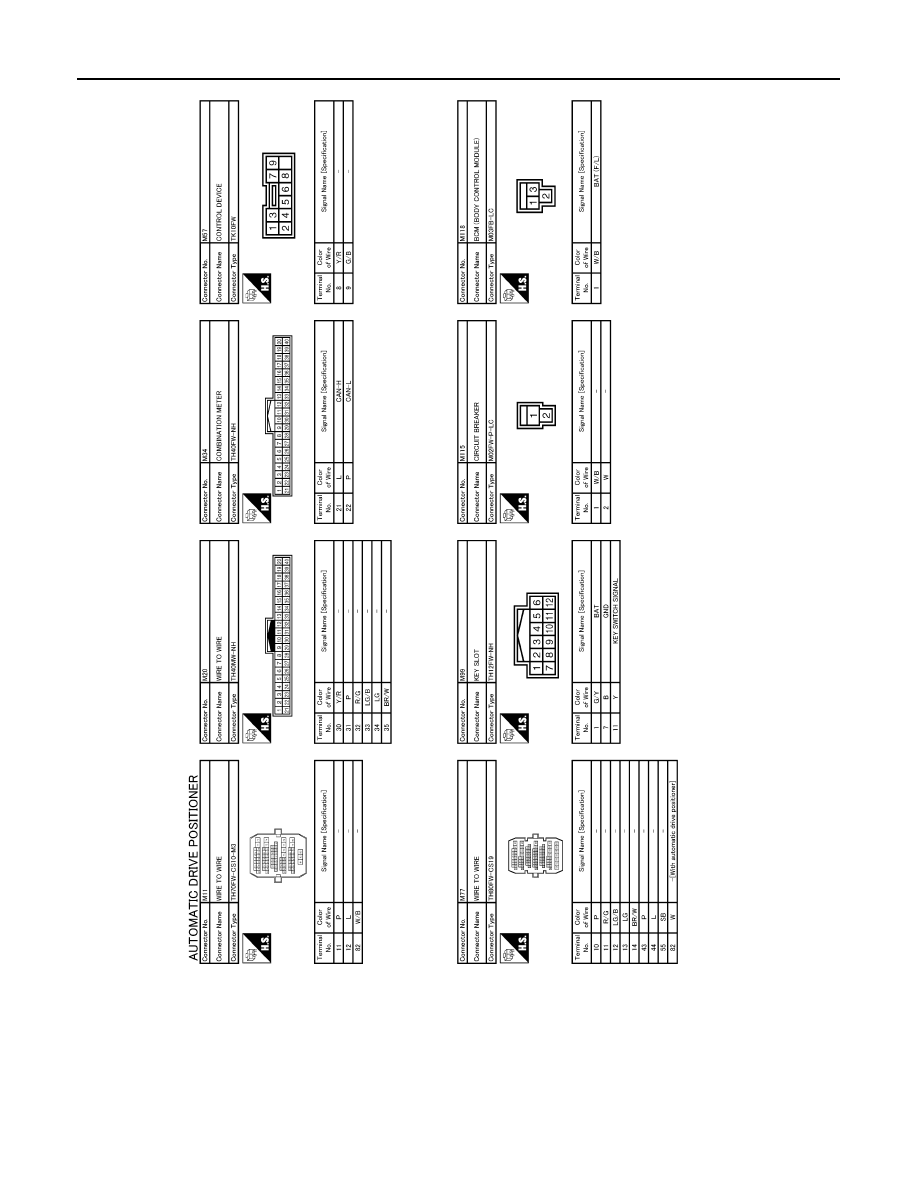

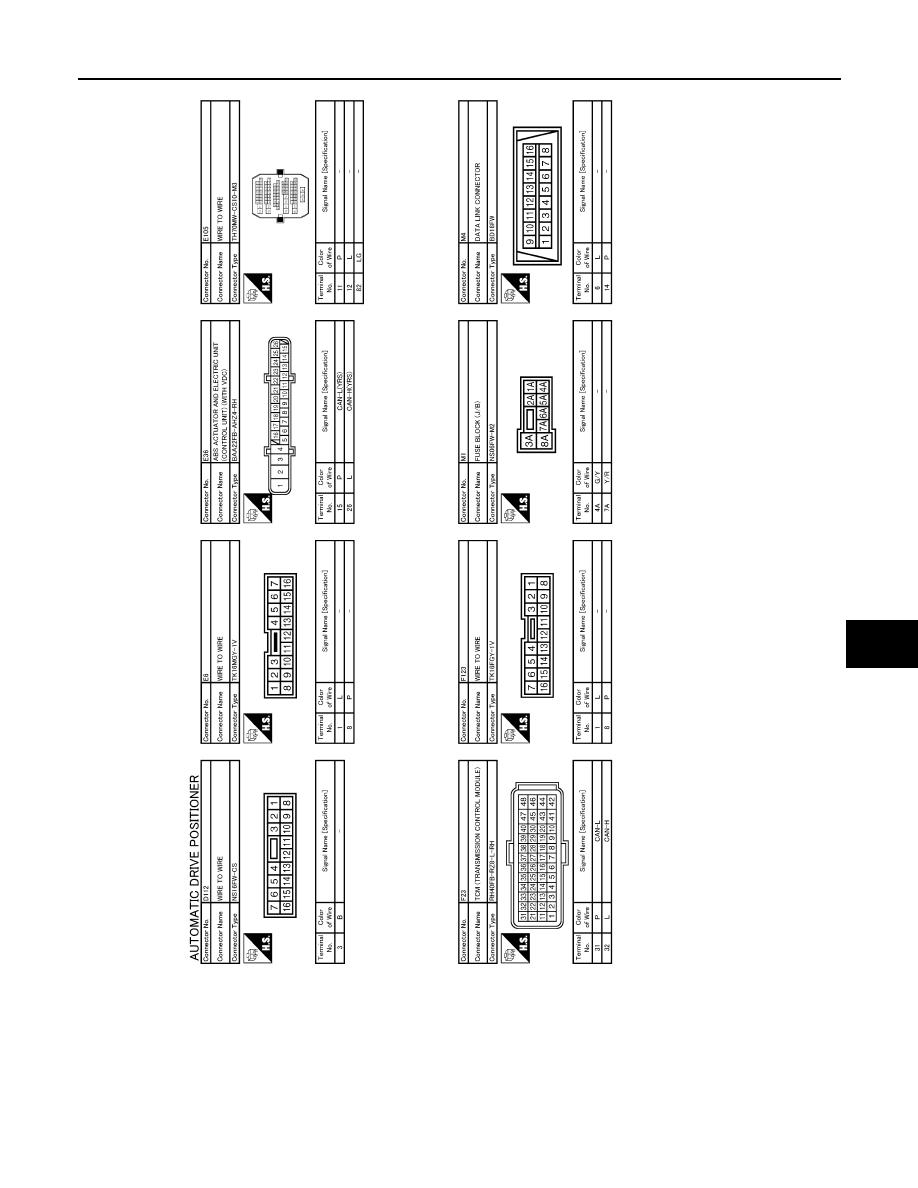

DRIVER SEAT CONTROL UNIT

ADP-121

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

JCJWM0307GB

ADP-122

< ECU DIAGNOSIS >

DRIVER SEAT CONTROL UNIT

JCJWM0308GB

DRIVER SEAT CONTROL UNIT

ADP-123

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

Fail-safe

INFOID:0000000003759213

The fail-safe mode may be activated if the following symptoms are observed.

JCJWM0309GB

ADP-124

< ECU DIAGNOSIS >

DRIVER SEAT CONTROL UNIT

DTC Index

INFOID:0000000003759214

*1

:

• 0: Current malfunction is present

• 1-39: Displayed if any previous malfunction is present when current condition is normal. The numeral value increases by one at each

IGN ON to OFF cycle from 1 to 39. The counter remains at 39 even if the number of cycles exceeds it. However, the counter is reset
to 1 if any malfunction is detected again, the normal operation is resumed and the ignition switch is turned from OFF to ON.

Operating in

fail-safe mode

Malfunction Item

Related

DTC

Diagnosis

Only manual functions operate normally

CAN communication

U1000

ADP-38

CONTROL UNIT

U1010

ADP-39

EEPROM

B2130

ADP-40

Only manual functions, except seat sliding, operate normally

Seat sliding output

B2112

ADP-41

Only manual functions, except seat reclining, operate normally

Seat reclining output

B2113

ADP-43

CONSULT-III

display

Timing

*1

Item

Reference page

Current mal-

function

Previous mal-

function

CAN COMM CIRCUIT
[U1000]

0

1-39

CAN communication

ADP-38

CONTROL UNIT
[U1010]

0

1-39

Control unit

ADP-39

SEAT SLIDE
[B2112]

0

1-39

Seat slide motor output

ADP-41

SEAT RECLINING
[B2113]

0

1-39

Seat reclining motor output

ADP-43

EEPROM
[B2130]

0

1-39

EEPROM

ADP-40
