DRIVER SEAT CONTROL UNIT
ADP-113
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
K
L
M
A
B
ADP
N
O
P
*
: The value at the position attained when the battery is connected is regarded as 32768.
TERMINAL LAYOUT

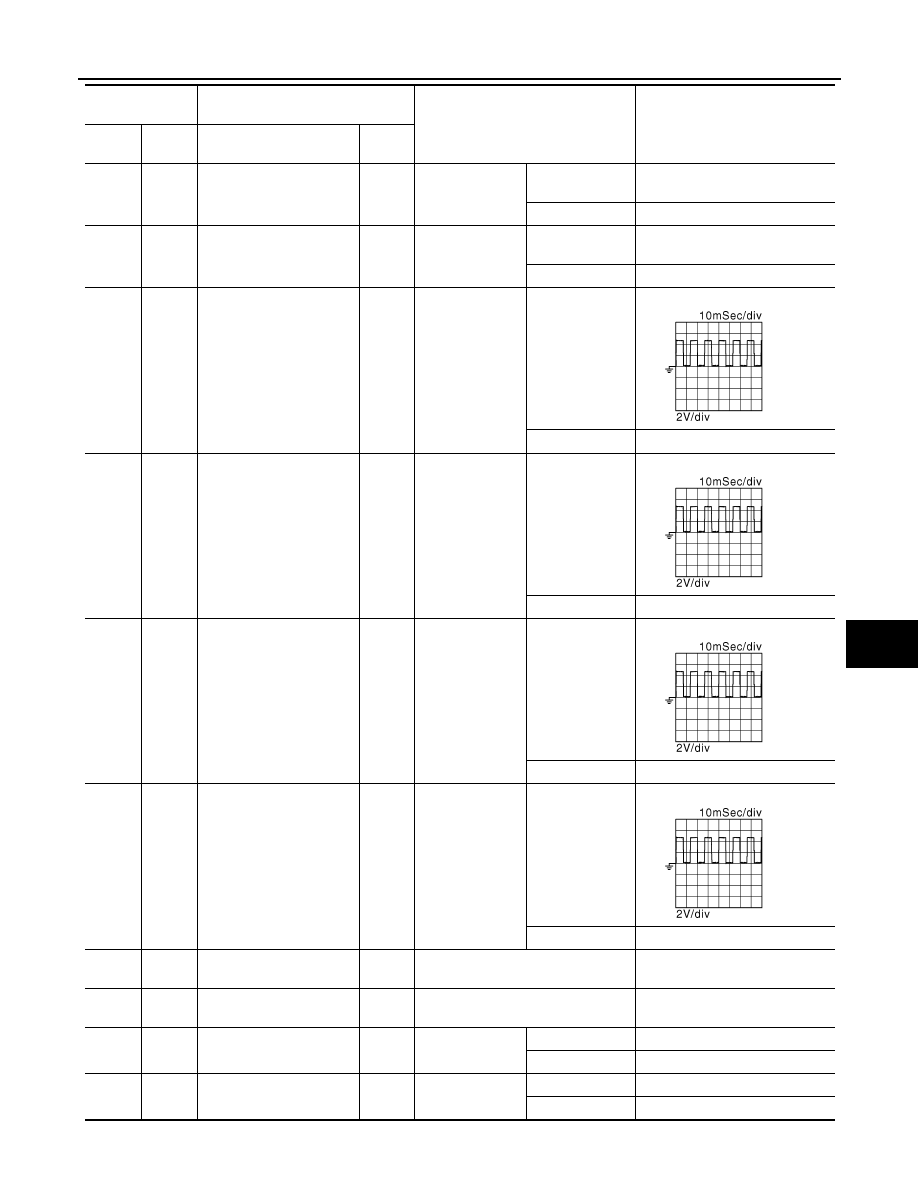

PHYSICAL VALUES
LIFT RR PULSE
Seat lifter (rear)
Up
The numeral value decreases
*
Down
The numeral value increases
*
Other than above
No change to numeral value
*
STEERING STATUS
Steering lock unit
LOCK
LOCK
unlock
UNLOCK
VEHICLE SPEED
The condition of vehicle speed is displayed
km/h
P RANG SW CAN
Selector lever
P position
ON
Other than above
OFF
R RANGE (CAN)
Selector lever
R position
ON
Other than above
OFF
DOOR SW-FL
Driver door
Open
ON
Close
OFF
DOOR SW-FR
Passenger door
Open
ON
Close
OFF
IGN ON SW
Ignition switch
ON position
ON
Other than above
OFF
ACC ON SW
Ignition switch
ACC or ON position
ON
Other than above
OFF
KEY ON SW
Intelligent Key
Inserted is key slot
ON
Inserted is not key slot
OFF
KEYLESS ID
UNLOCK button of Intelligent Key is pressed
1,2,3,4or5
KYLS DR UNLK
Intelligent Key or driver
side door request switch
ON
ON
OFF
OFF
VHCL SPEED (ABS)
Can signal from ABS
Received
ON
Not received
OFF
HANDLE
The BCM for handle position is displayed
LHD
RHD
TRANSMISSION
Transmission type is dis-
played
CVT
Monitor Item
Condition
Value/Status
