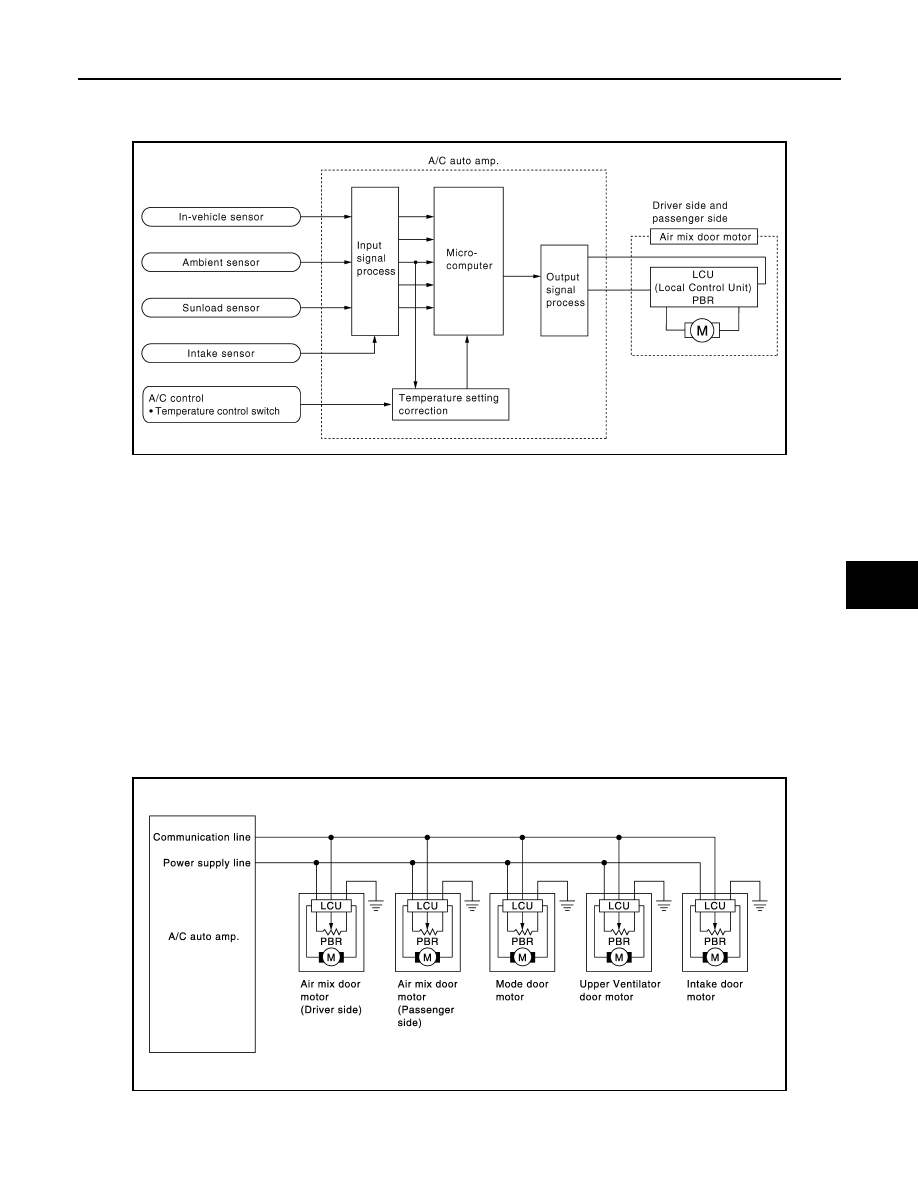

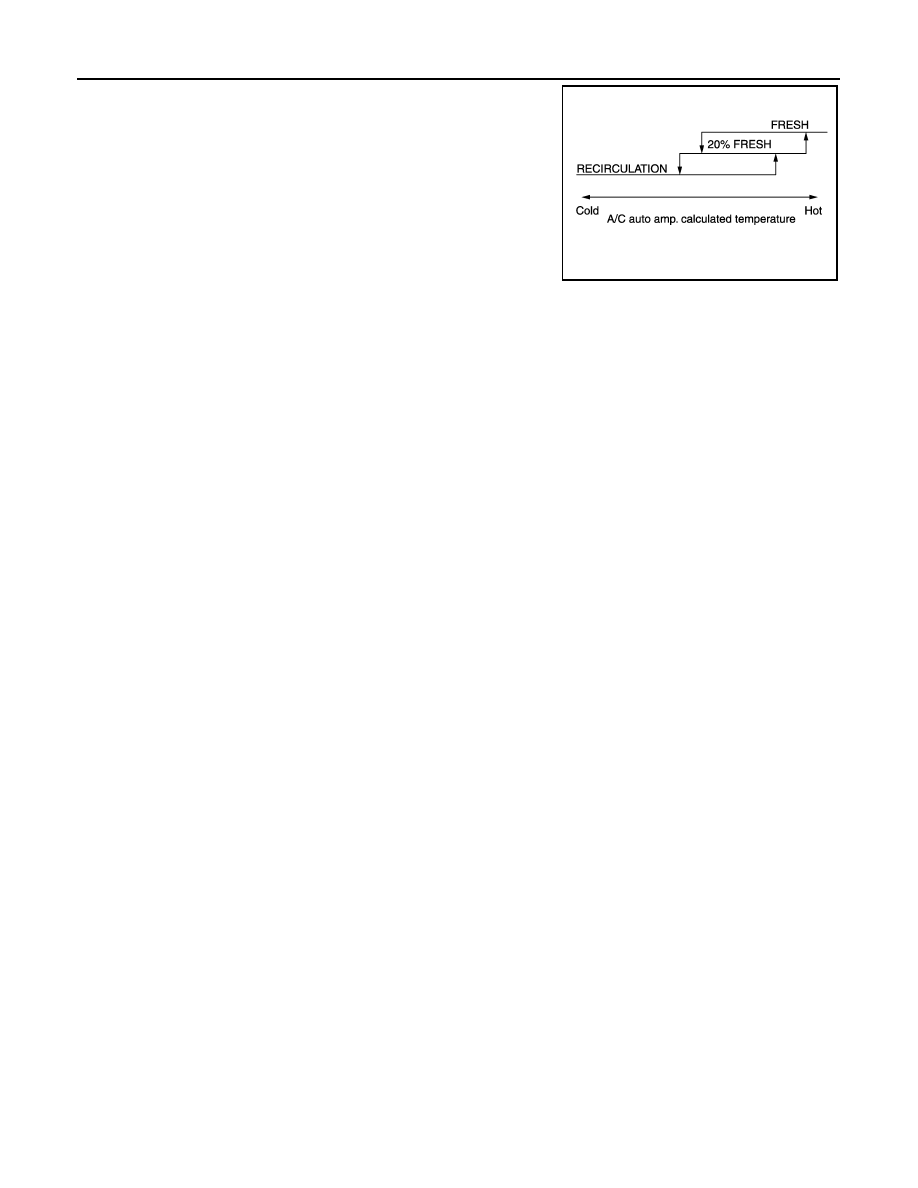

AIR MIX DOOR CONTROL SYSTEM HAC-31 < SYSTEM DESCRIPTION > [WITHOUT 7 INCH DISPLAY] C D E F G H J K L M A B HAC N O P AIR MIX DOOR CONTROL SYSTEM System Diagram INFOID:0000000005514586 System Description INFOID:0000000005514587 The air mix doors are automatically controlled so that in-vehicle temperature is maintained at a predetermined SYSTEM OPERATION • The A/C auto amp. receives data from each of the sensors. angle data to the air mix door motor LCU(s), the mode door motor LCU, the upper ventilator door motor LCU • The air mix door motor(s), the mode door motor, the upper ventilator door motor and the intake door motor read their respective signals according to the address signal. Opening angle indication signals received from • Next, HOT/COLD, DEF/VENT, OPEN/SHUT or FRE/REC operation is selected. The newly selected data is returned to the A/C auto amp. Door Motor Circuit Air Mix Door Control Specification JPIIA0498GB JPIIA0495GB |
