FRONT REGULATOR

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and guide rail
mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.

REAR DOOR GLASS

GW-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

REAR DOOR GLASS

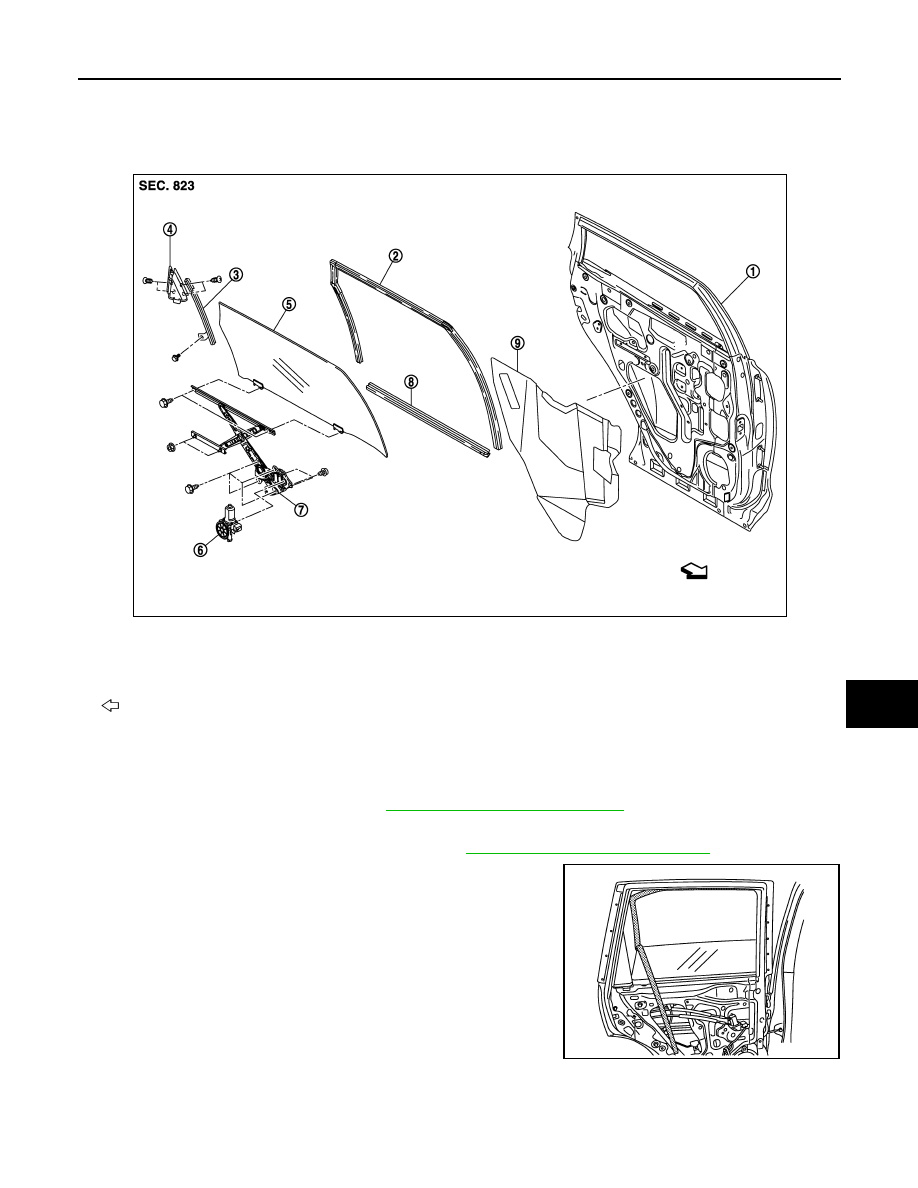

Exploded View

INFOID:0000000005513270

Removal and Installation

INFOID:0000000005513271

REMOVAL

1.

Remove the rear door finisher. Refer to

INT-20, "Removal and Installation"

.

2.

Disconnect the rear door speaker connector.

3.

Remove the rear door outside sash cover. Refer to

EXT-40, "Removal and Installation"

.

4.

Remove partially the rear door glass run.

5.

Remove the corner piece assembly fixing screws, then remove the corner piece assembly.

6.

Remove the rear door inside seal

7.

Remove the sealing screen with a cutter tool.

1.

Rear door panel

2.

Rear door glass run

3.

Rear door sash (lower)

4.

Corner piece

5.

Rear door glass

6.

Power window motor

7.

Regulator assembly

8.

Rear door inside seal

9.

Sealing screen

: Vehicle front

JMKIA3605ZZ

JMKIA0631ZZ

GW-26

< REMOVAL AND INSTALLATION >

REAR DOOR GLASS

NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

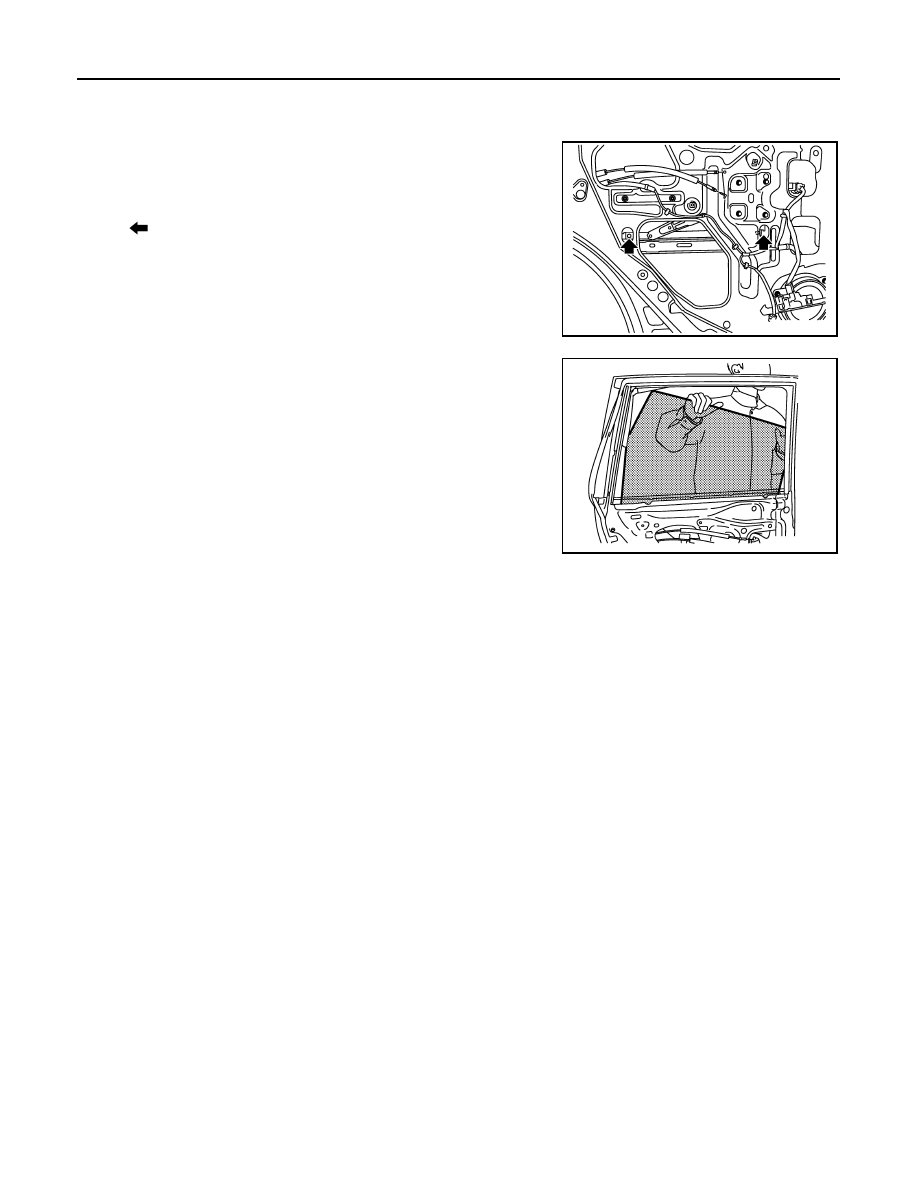

8.

Operate the power window switch to raise/lower the door win-
dow until the glass mounting bolts can be seen.

9.

Remove the glass mounting bolts.

10. Remove the rear door glass from inside or outside of door panel.

11. Remove the rear door glass run and rear door sash (lower).

INSTALLATION

Install in the reverse order of removal.

Inspection and Adjustment

INFOID:0000000005513272

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and carrier plate
mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.

: Bolt

JMKIA1789ZZ

JMKIA0640ZZ

REAR REGULATOR

GW-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

REAR REGULATOR

Exploded View

INFOID:0000000005513273

Removal and Installation

INFOID:0000000005513274

REMOVAL

1.

Remove the rear door glass. Refer to

GW-25, "Removal and Installation"

.

2.

Disconnect the connector for the regulator assembly.

3.

Remove the regulator mounting bolts, disconnect the power win-
dow motor harness connector (A) and then remove the regulator
from the door panel.

INSTALLATION

Install in the reverse order of removal.

1.

Rear door panel

2.

Rear door glass run

3.

Rear door sash (lower)

4.

Corner piece

5.

Rear door glass

6.

Power window motor

7.

Regulator assembly

8.

Rear door inside seal

9.

Sealing screen

: Vehicle front

JMKIA3605ZZ

: Bolt

JMKIA1790ZZ
