GW-12

< REMOVAL AND INSTALLATION >

WINDSHIELD GLASS

REMOVAL AND INSTALLATION

WINDSHIELD GLASS

Exploded View

INFOID:0000000005513254

JMKIA1782GB

WINDSHIELD GLASS

GW-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

Removal and Installation

INFOID:0000000005513255

REMOVAL

CAUTION:

Replace the windshield glass assembly with a new part after removal as it cannot be reused.

1.

Remove the front pillar garnish (LH/RH). Refer to

INT-20, "Removal and Installation"

.

2.

Remove partially the headlining (front edge). Refer to the following.
• For normal roof. Refer to

INT-27, "NORMAL ROOF : Removal and Installation"

.

• For sunroof. Refer to

INT-30, "SUNROOF : Removal and Installation"

.

3.

Remove the front wiper arms (LH/RH). Refer to

WW-130, "Removal and Installation"

.

4.

Remove the cowl top cover. Refer to

EXT-21, "Removal and Installation"

.

5.

Remove the roof side molding. Refer to

EXT-32, "SUNROOF : Removal and Installation"

.

6.

Remove glass using piano wire or power cutting tool (A) and an inflatable pump bag (B) after removing
moldings.

WARNING:

Always wear safety glasses and heavy gloves to prevent injury.

CAUTION:

• Be careful not to scratch the glass when removing.
• Never set or stand the glass on its edge. Small chips may develop into cracks.

INSTALLATION

• The dam rubber and insulator should be installed in position.
• Use a genuine Nissan Urethane Adhesive Kit (if available) or equivalent and follow the instructions provided

with it.

• Open a door window while the urethane adhesive is curing. This prevents the glass from being forced out by

passenger room air pressure when all door windows are closed.

• The molding must be installed securely so that it is in position and leaves no clearance.
• Inform the customer that the vehicle should remain stationary until the urethane adhesive is completely

cured (approximately 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.

1.

Windshield glass

2.

Fastener

3.

Windshield molding (side)

4.

Windshield molding (upper)

5.

Spacer

6.

Mirror base

7.

Rain sensor bracket

8.

Insulator

9.

Dam sealant rubber

10.

Roof

11.

Headlining ASSY

12. Adhesive

13.

Primer

14. Roof rail

15. Cowl top center

16.

Insulator dash lower

17. Body side outer

18. Front pillar garnish

19.

Cowl top cover

:Clip

Unit:

mm (in)

Note: •  D and E on the exploded view are sections of sunroof models.

• The windshield glass, windshield molding upper, spacer, mirror base, rain sensor bracket, insulator and dam sealant rub-

ber constitute the windshield glass assembly.

Refer to

GI-4, "Components"

 for symbols in the figure.

PIIB5779E

GW-14

< REMOVAL AND INSTALLATION >

WINDSHIELD GLASS

• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Never let

them in contact with the skin and eyes.

• Use in an open, well ventilated location. Never breathe the vapors. They may be harmful if inhaled.

Move immediately to an area with fresh air if affected by vapor inhalation.

• Driving the vehicle before the urethane adhesive is completely cured may affect the performance of

the windshield in case of an accident.

CAUTION:

• Perform adjustment of front wiper arms stop location. Refer to

WW-130, "Adjustment"

.

• Never use an adhesive which is past its usable term. Shelf life of this product is limited to six months

after the date of manufacture. Carefully adhere to the expiration or manufacture date printed on the
box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.
• Never leave primers or adhesive cartridge unattended with their caps open or off.
• The vehicle should not be driven for at least 24 hours or until the urethane adhesive is completely

cured. Curing time varies depending on temperature and humidity. The curing time increases under
lower temperature and lower humidity.

Inspection

INFOID:0000000005513256

REPAIRING WATER LEAKAGE FOR WINDSHIELD

Leakage can be repaired without removing the glass.
Determine the extent of leakage if water is leaking between the urethane adhesive material and body or glass.
This can be done by applying water to the windshield area while pushing glass outward.
Apply primer (if necessary) and then urethane adhesive to the leakage point to stop the leakage.

SIDE WINDOW GLASS

GW-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

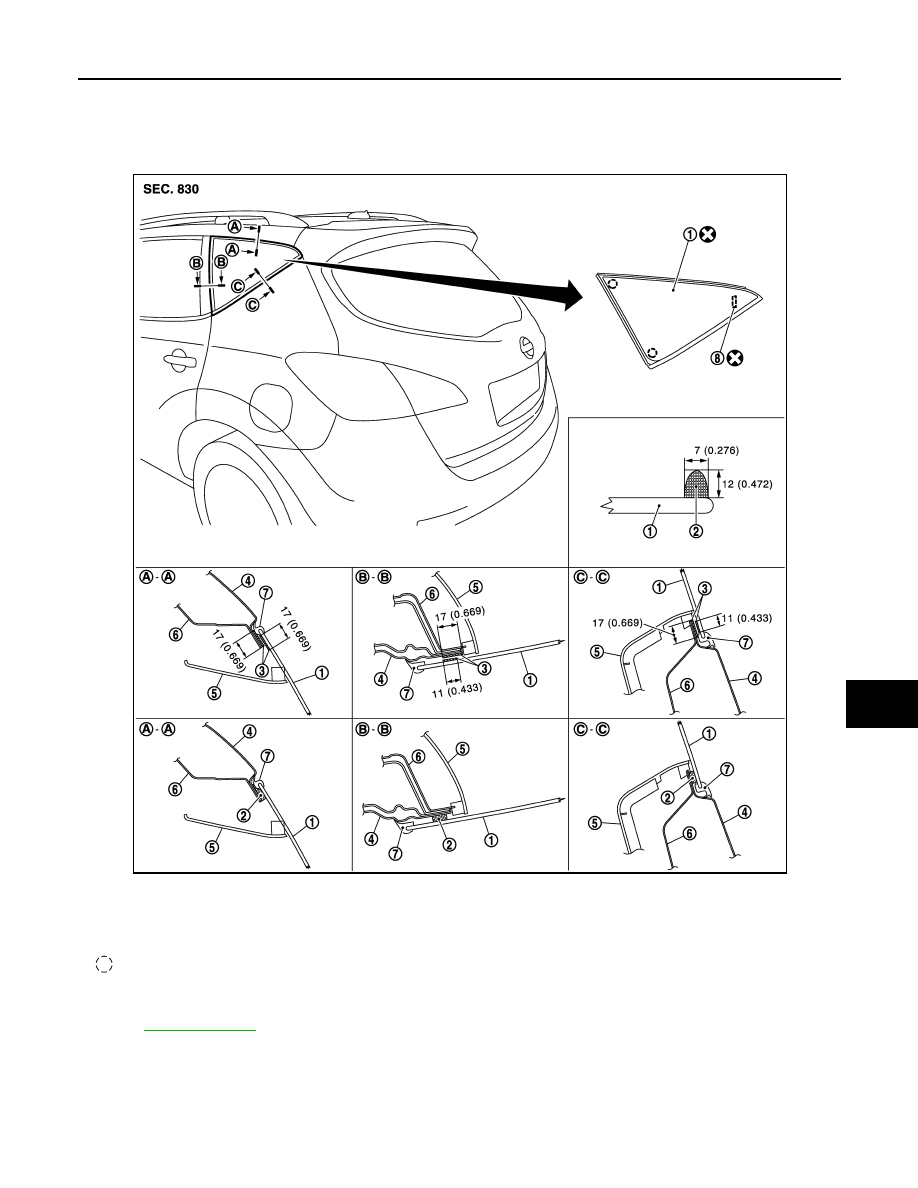

SIDE WINDOW GLASS

Exploded View

INFOID:0000000005513257

Removal and Installation

INFOID:0000000005513258

REMOVAL

CAUTION:

Replace the side window glass with a new part after removal as it cannot be reused.

1.

Side window glass

2.

Adhesive

3.

Primer

4.

Body side outer panel

5.

Luggage side upper finisher

6.

Rear pillar inner

7.

Molding

8.

Spacer

: Clip

Unit:

mm (in)

Note: The side window glass, molding, spacer and clip constitute the side window glass assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3415GB
