EM-88

< UNIT REMOVAL AND INSTALLATION >

ENGINE ASSEMBLY

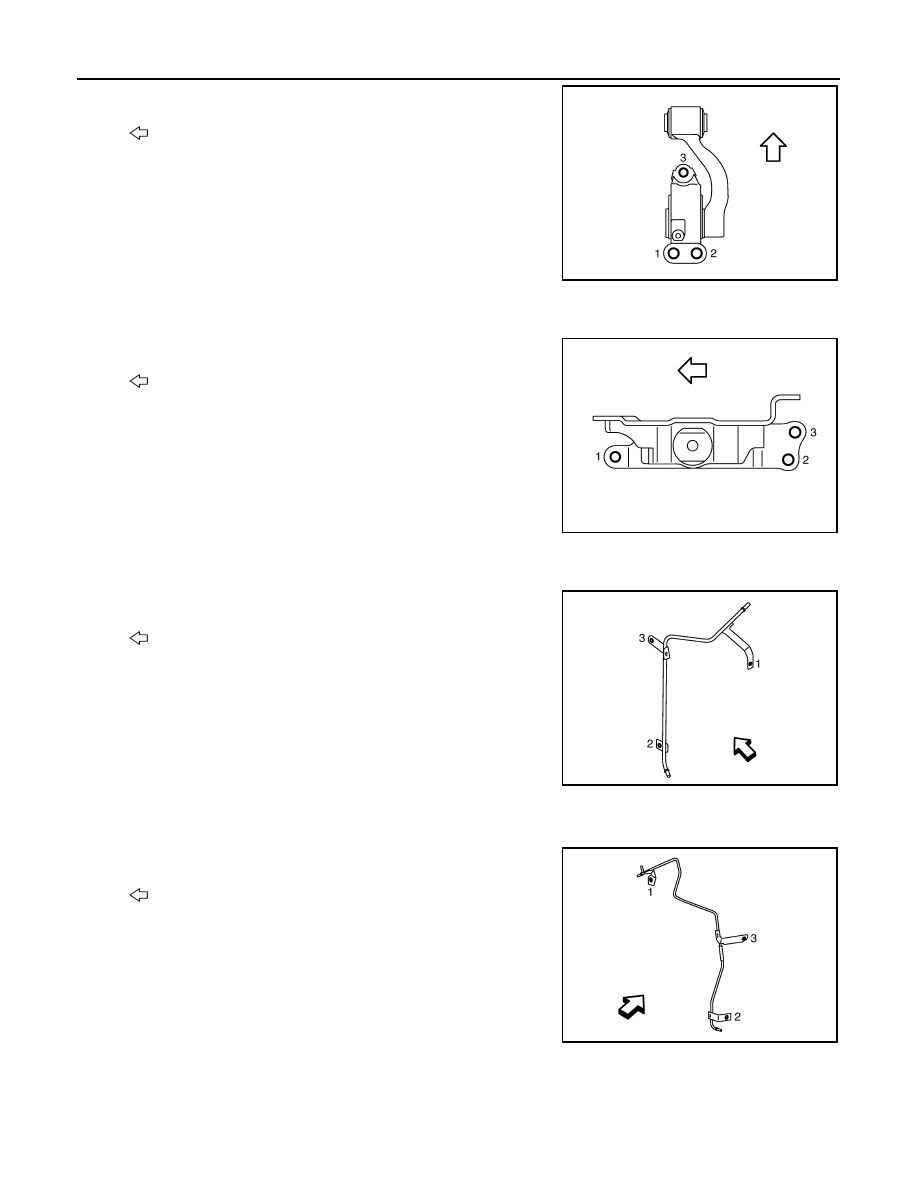

a.

Tighten the bolt No. 3 as shown in the figure. (temporarily)

b.

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

9.

Install the engine mounting brackets (front and rear) to the engine mounting insulators (front and rear).

10. Install the engine mounting insulator (LH) to the front suspension member.

• Tighten the bolts in numerical order as shown in the figure.

11. Install the rear torque rod to the rear torque rod bracket.

12. Install the vacuum tube (front) as follows:

a.

Tighten the bolt No. 3 as shown in the figure. (temporarily)

b.

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

With vacuum tube (rear) models

13. Install the vacuum tube (rear) as follows:

a.

Tighten the bolt No. 3 as shown in the figure. (temporarily)

b.

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

Installation

1.

Install the engine mounting insulator (RH) as follows:

: Vehicle front

JPBIA1738ZZ

: Vehicle front

JPBIA1739ZZ

: Engine front

JPBIA1740ZZ

: Engine front

JPBIA1747ZZ

ENGINE ASSEMBLY

EM-89

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

a.

Tighten the bolt No. 1 as shown in the figure. (temporarily)

b.

Tighten the bolts No. 2, 3 in numerical order as shown in the fig-
ure. (specified torque)

c.

Tighten the bolt No. 1 as shown in the figure. (specified torque)

d.

Tighten the bolts No. 4, 5, 6 in numerical order as shown in the
figure. (specified torque)

2.

Install the upper torque rod as follows:

a.

Tighten the bolt No. 2 as shown in the figure. (temporarily)

b.

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

AWD : Inspection

INFOID:0000000005515955

INSPECTION AFTER INSTALLATION

Inspection for Leakage

The following are procedures for checking fluids leakage, lubricates leakage, and exhaust gases leakage.

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-15, "FOR NORTH AMERICA : Fluids and Lubricants"

 (for

North America) or

MA-16, "FOR MEXICO : Fluids and Lubricants"

 (for Mexico).

• Use procedure below to check for fuel leakage.
- Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-

age at connection points.

- Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.
• Warm up engine thoroughly to check there is no leakage of fuel, exhaust gases, or any oil/fluids including

engine oil and engine coolant.

• Bleed air from lines and hoses of applicable lines, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the

specified level, if necessary.

Summary of the inspection items:

*: Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.

: Vehicle front

JPBIA1742ZZ

: Vehicle front

JPBIA1743ZZ

Items

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Other oils and fluid*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

Exhaust gases

—

Leakage

—

EM-90

< UNIT DISASSEMBLY AND ASSEMBLY >

ENGINE STAND SETTING

UNIT DISASSEMBLY AND ASSEMBLY

ENGINE STAND SETTING

Setting

INFOID:0000000005515956

NOTE:
Explained here is how to disassemble with engine stand supporting transaxle surface. When using different
type of engine stand, note with difference in steps and etc.
1.

Remove the engine assembly from the vehicle. Refer to

EM-72, "2WD : Exploded View"

 (2WD models) or

EM-81, "AWD : Exploded View"

 (AWD models).

2.

Remove the parts that may restrict installation of engine to widely use engine stand.
NOTE:
The procedure is described assuming that you use a widely use engine stand holding the surface, to
which transaxle is installed.
• Remove drive plate. Fix crankshaft pulley with the pulley holder (commercial service tool), and remove

mounting bolts.

• Loosen mounting bolts in diagonal order.
• Check for deformation or damage drive plate.

CAUTION:

• Never disassemble drive plate.
• Never place drive plate with signal plate facing down.
• When handling signal plate, take care not to damage or scratch it.
• Handle signal plate in a manner that prevents it from becoming magnetized.

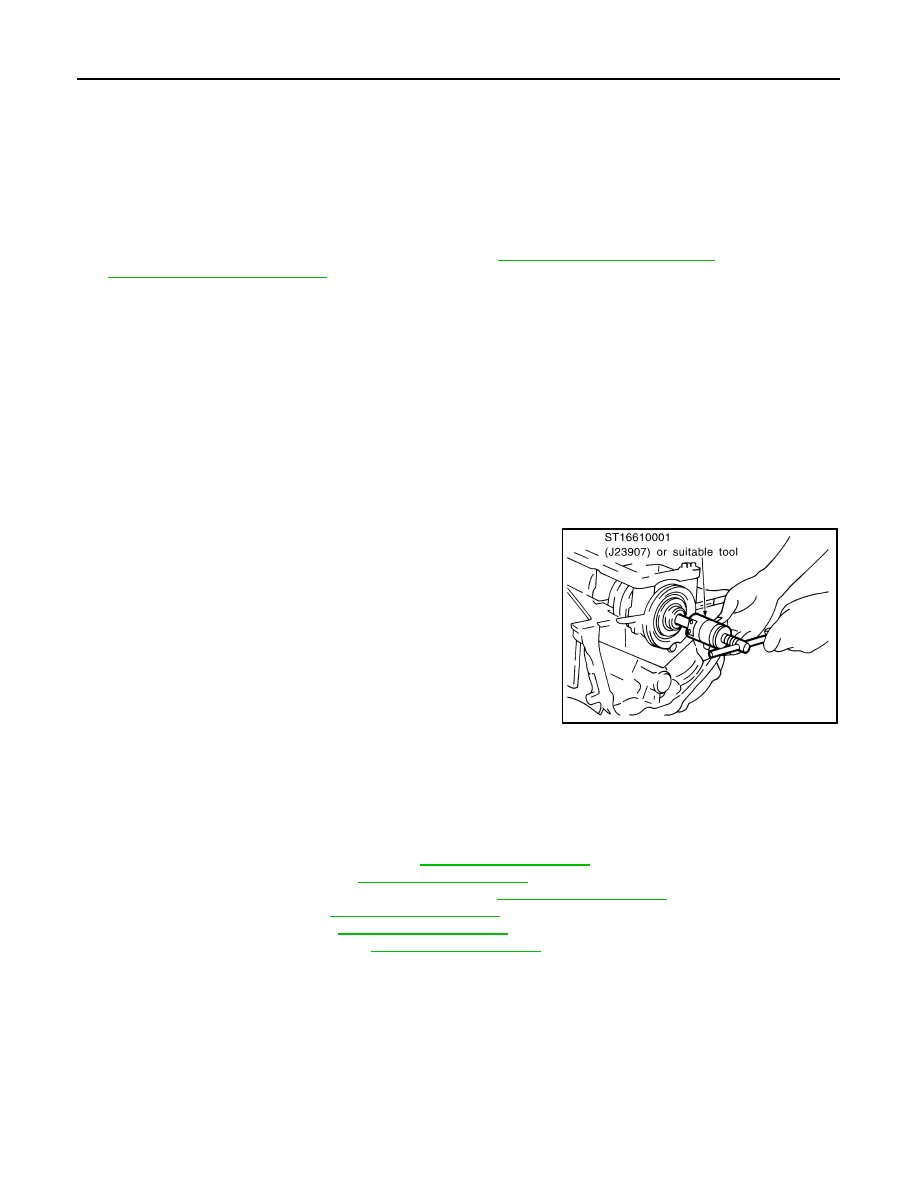

3.

Remove pilot converter using the pilot bushing puller (SST) if
necessary.

4.

Lift the engine with hoist to install it onto the widely use engine stand.

CAUTION:

Use an engine stand that has a load capacity [220 kg (485 lb) or more] large enough for supporting
the engine weight.
• If the load capacity of the stand is not adequate, remove the following parts beforehand to reduce the

potential risk of overturning the stand.

- Remove intake manifold collector. Refer to

EM-33, "Exploded View"

.

- Remove intake manifold. Refer to

EM-36, "Exploded View"

.

- Remove fuel injector and fuel tube assembly. Refer to

EM-49, "Exploded View"

.

- Remove ignition coil. Refer to

EM-54, "Exploded View"

.

- Remove rocker cover. Refer to

EM-54, "Exploded View"

.

- Remove exhaust manifold. Refer to

EM-38, "Exploded View"

.

- Other removable brackets.

NOTE:

SEM005G

ENGINE STAND SETTING

EM-91

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

The figure shows an example of widely use engine stand (A)
that can hold mating surface of transaxle with drive plate
removed.

CAUTION:

Before removing the hanging chains, check the engine
stand is stable and there is no risk of overturning.

5.

Drain engine oil. Refer to

LU-8, "Draining"

.

6.

Drain engine coolant by removing water drain plugs (A) and (B)
from cylinder block both sides as shown in the figure.

NOTE:
For Canada, water drain plug (A) in the figure is not water drain
plug but block heater. Refer to

EM-121, "Exploded View"

.

JPBIA0190ZZ

C

:  Plug

D

: Connector bolt

Tightening torque

: Refer to

EM-122, "Disassem-

bly and Assembly"

.

PBIC2487E
