EM-52

< REMOVAL AND INSTALLATION >

FUEL INJECTOR AND FUEL TUBE

3.

Install fuel injector to fuel tube as follows:

a.

Insert clip (3) into clip mounting groove (F) on fuel injector (5).

• Insert clip so that protrusion (E) of fuel injector matches cutout

(C) of clip.

CAUTION:

• Never reuse clip. Replace it with new one.
• Be careful to keep clip from interfering with O-ring. If

interference occurs, replace O-ring.

b.

Insert fuel injector into fuel tube (1) with clip attached.
• Insert it while matching it to the axial center.
• Insert fuel injector so that protrusion (A) of fuel tube matches

cutout (B) of clip.

• Check that fuel tube flange (G) is securely fixed in flange fixing

groove (D) on clip.

c.

Check that installation is complete by checking that fuel injector
does not rotate or come off.
• Check that protrusions of fuel injectors and fuel tubes are

aligned with cutouts of clips after installation.

4.

Install fuel tube and fuel injector assembly to intake manifold.

CAUTION:

Be careful not to let tip of injector nozzle come in contact with other parts.
• Tighten mounting bolts in two steps in numerical order as

shown in the figure.

5.

Connect fuel injector harness.

6.

Install intake manifold collector. Refer to

EM-33, "Exploded View"

.

7.

Connect quick connector between fuel feed hose and fuel tube connection with the following procedure:

a.

Check no foreign substances are deposited in and around fuel tube and quick connector, and no damage
on them.

b.

Thinly apply new engine oil around fuel tube from tip end to spool end.

c.

Align center to insert quick connector straightly into fuel tube.
• Insert quick connector (1) to fuel tube until top spool (2) is

completely inside quick connector, and 2nd level spool (3)
exposes right below quick connector.

CAUTION:

• Hold (A) position as shown in the figure when inserting

fuel tube into quick connector.

• Carefully align center to avoid inclined insertion to pre-

vent damage to O-ring inside quick connector.

2

: O-ring (black)

4

: O-ring (green)

JPBIA1959ZZ

: Engine front

 1st step

: 10.1 N·m (1.0 kg-m, 7 ft-lb)

 2nd step

: 22.0 N·m (2.2 kg-m, 16 ft-lb)

JPBIA1715ZZ

B

: Fitted condition

: Upright insertion

JPBIA0275ZZ

FUEL INJECTOR AND FUEL TUBE

EM-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• Insert until you hear a “click” sound and actually feel the engagement.
• To avoid misidentification of engagement with a similar sound, be sure to perform the next step.

d.

Pull quick connector by hand holding position. Check it is completely engaged (connected) so that it does
not come out from fuel tube.

e.

Install quick connector cap (3) to quick connector.

• Install quick connector cap with arrow (A) on surface facing in

direction of quick connector (fuel feed hose side).

CAUTION:

If quick connector cap cannot be installed smoothly, quick
connector may have not been installed correctly. Check
connection again.

f.

Secure fuel feed hose to clamp of quick connector cap.

8.

Install in the reverse order of removal after this step.

Inspection

INFOID:0000000005515944

INSPECTION AFTER INSTALLATION

Check on Fuel Leakage

1.

Turn ignition switch “ON” (with the engine stopped). With fuel pressure applied to fuel piping, check there
are no fuel leakage at connection points.
NOTE:
Use mirrors for checking at points out of clear sight.

2.

Start the engine. With engine speed increased, check again that there are no fuel leakage at connection
points.

CAUTION:

Never touch the engine immediately after stopped, as the engine becomes extremely hot.

1

: Fuel feed hose

2

: Fuel tube

B

: Upper view

JPBIA0039ZZ

EM-54

< REMOVAL AND INSTALLATION >

IGNITION COIL, SPARK PLUG AND ROCKER COVER

IGNITION COIL, SPARK PLUG AND ROCKER COVER

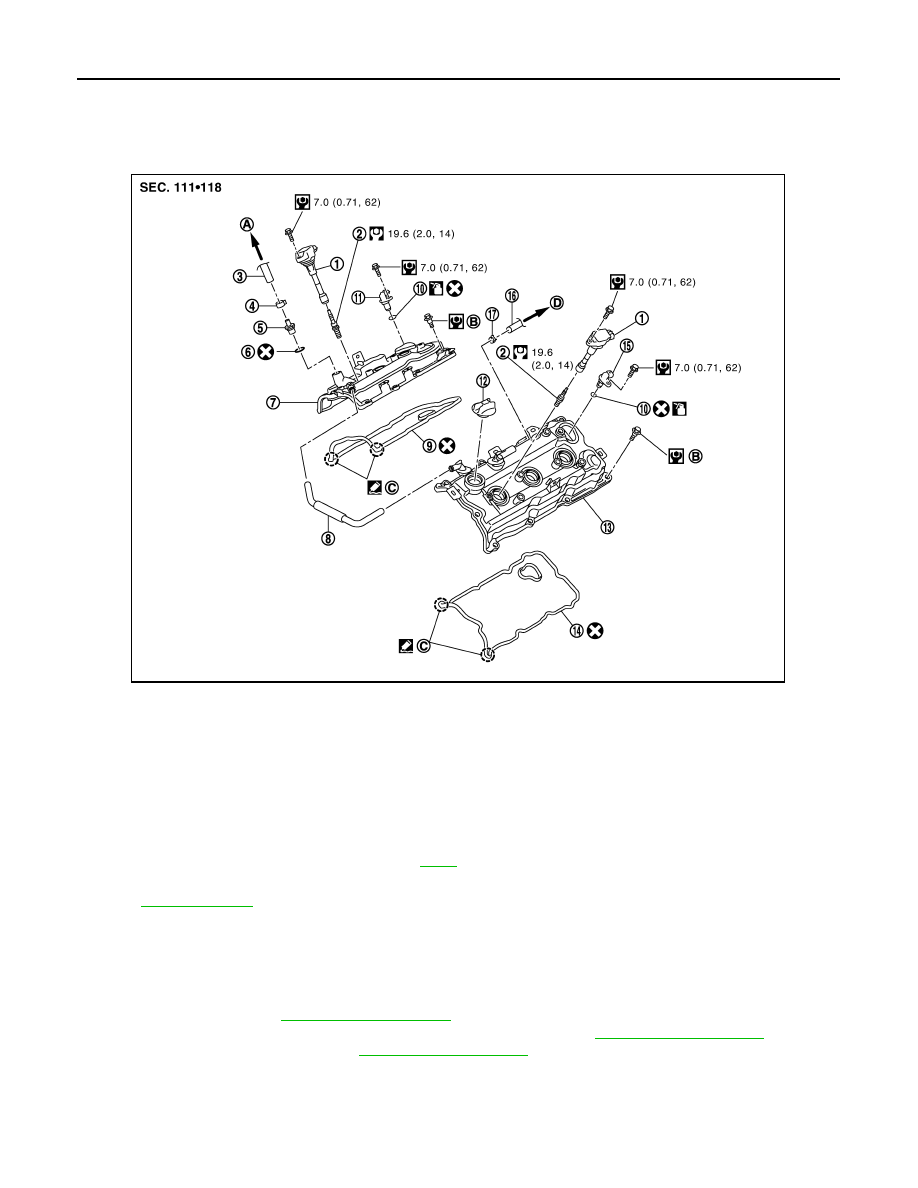

Exploded View

INFOID:0000000005515945

Removal and Installation

INFOID:0000000005515946

REMOVAL

1.

Remove the following parts:
• Engine cover: Refer to

EM-29, "Exploded View"

.

• Air cleaner cases (upper and lower) and air duct assembly: Refer to

EM-31, "Exploded View"

.

• Intake manifold collector: Refer to

EM-33, "Exploded View"

.

2.

Disconnect PCV hose from rocker cover.

1.

Ignition coil

2.

Spark plug

3.

PCV hose

4.

Clamp

5.

PCV valve

6.

O-ring

7.

Rocker cover (bank 1)

8.

PCV hose

9.

Rocker cover gasket (bank 1)

10.

O-ring

11.

Camshaft position sensor (PHASE)
(bank 1)

12. Oil filler cap

13.

Rocker cover (bank 2)

14.

Rocker cover gasket (bank 2)

15.

Camshaft position sensor (PHASE)
(bank 2)

16.

PCV hose

17.

Clamp

A.

To intake manifold collector

B.

Refer to

EM-54

C.

Camshaft bracket side

D.

To air duct assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA1637GB

IGNITION COIL, SPARK PLUG AND ROCKER COVER

EM-55

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

3.

Remove camshaft position sensor (PHASE) (bank 1 and bank
2).

CAUTION:

• Handle carefully to avoid dropping and shocks.
• Never disassemble
• Never allow metal powder to adhere to magnetic part at

sensor tip.

• Never place sensors in a location where they are exposed

to magnetism.

4.

Remove PCV valve and O-ring from rocker cover, if necessary.

5.

Remove oil filler cap from rocker cover, if necessary.

6.

Remove ignition coil.

CAUTION:

Never shock ignition coil.

7.

Remove harness clips on the rocker cover.

8.

Loosen bolts in the reverse order shown in the figure.

9.

Remove rocker cover gasket from rocker cover.

10. Use scraper to remove all traces of liquid gasket from cylinder head and camshaft bracket (No. 1).

CAUTION:

Never scratch or damage the mating surface when cleaning off old liquid gasket.

INSTALLATION

A

: Keep off any magnetic materials

: Engine front

JPBIA0454ZZ
