Nissan Murano Z51. Manual - part 530





EC-128

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

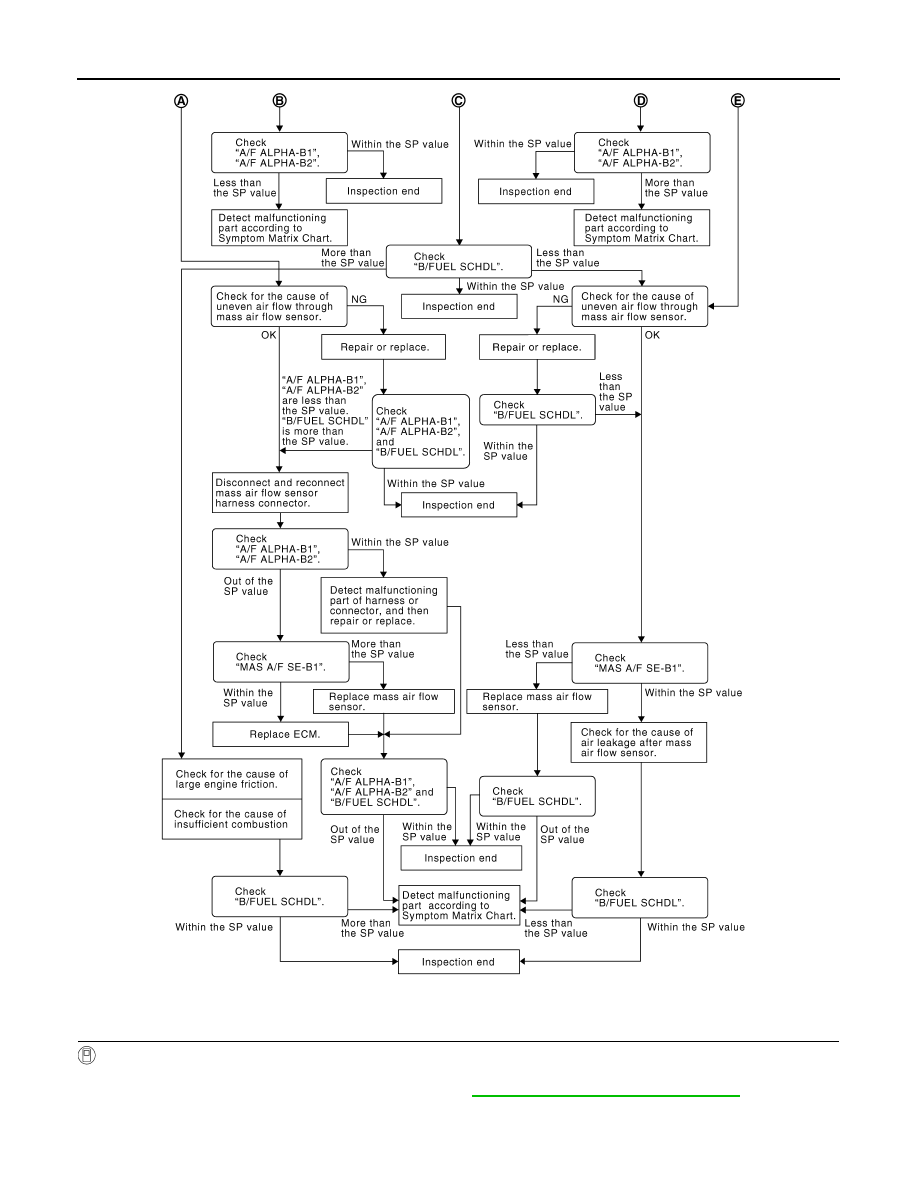

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

DETAILED PROCEDURE

1.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

With CONSULT-III

1.

Start engine.

2.

Confirm that the testing conditions are met. Refer to

EC-126, "Component Function Check"

.

3.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “SPEC” of “DATA MONITOR” mode, and check that each
indication is within the SP value.

PBIB3214E

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

EC-129

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

NOTE:
Check “A/F ALPHA-B1”, “A/F ALPHA-B2” for approximately 1 minute because they may fluctuate. It is NG
if the indication is out of the SP value even a little.

Is the measurement value within the SP value?

YES

>> GO TO 17.

NO-1

>> Less than the SP value: GO TO 2.

NO-2

>> More than the SP value: GO TO 3.

2.

CHECK “B/FUEL SCHDL”

Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and check that the indication is within the SP
value.

Is the measurement value within the SP value?

YES

>> GO TO 4.

NO

>> More than the SP value: GO TO 19.

3.

CHECK “B/FUEL SCHDL”

Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and check that the indication is within the SP
value.

Is the measurement value within the SP value?

YES

>> GO TO 6.

NO-1

>> More than the SP value: GO TO 6.

NO-2

>> Less than the SP value: GO TO 25.

4.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

1.

Stop the engine.

2.

Disconnect PCV hose, and then plug it.

3.

Start engine.

4.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “SPEC” of “DATA MONITOR” mode, and check that each
indication is within the SP value.

Is the measurement value within the SP value?

YES

>> GO TO 5.

NO

>> GO TO 6.

5.

CHANGE ENGINE OIL

1.

Stop the engine.

2.

Change engine oil.
NOTE:
This symptom may occur when a large amount of gasoline is mixed with engine oil because of driving
conditions (such as when engine oil temperature does not rise enough since a journey distance is too
short during winter). The symptom will not be detected after changing engine oil or changing driving con-
ditions.

>> INSPECTION END

6.

CHECK FUEL PRESSURE

Check fuel pressure. (Refer to

EC-530, "Inspection"

.)

Is the inspection result normal?

YES

>> GO TO 9.

NO-1

>> Fuel pressure is too high: Replace “fuel filter and fuel pump assembly” and then. GO TO 8.

NO-2

>> Fuel pressure is too low: GO TO 7.

7.

DETECT MALFUNCTIONING PART

Check fuel hoses and fuel tubes for clogging.
Is the inspection result normal?

YES

>> Replace “fuel filter and fuel pump assembly” and then GO TO 8.

NO

>> Repair or replace malfunctioning part and then GO TO 8.

8.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

EC-130

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

1.

Start engine.

2.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “SPEC” of “DATA MONITOR” mode, and check that each
indication is within the SP value.

Is the measurement value within the SP value?

YES

>> INSPECTION END

NO

>> GO TO 9.

9.

PERFORM POWER BALANCE TEST

1.

Perform “POWER BALANCE” in “ACTIVE TEST” mode.

2.

Check that the each cylinder produces a momentary engine speed drop.

Is the inspection result normal?

YES

>> GO TO 12.

NO

>> GO TO 10.

10.

DETECT MALFUNCTIONING PART

Check the following below.
• Ignition coil and its circuit (Refer to

EC-445, "Component Function Check"

.)

• Fuel injector and its circuit (Refer to

EC-438, "Component Function Check"

.)

• Intake air leakage
• Low compression pressure (Refer to

EM-27, "Inspection"

.)

Is the inspection result normal?

YES

>> Replace fuel injector and then GO TO 11.

NO

>> Repair or replace malfunctioning part and then GO TO 11.

11.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

1.

Start engine.

2.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “SPEC” of “DATA MONITOR” mode, and check that each
indication is within the SP value.

Is the measurement value within the SP value?

YES

>> INSPECTION END

NO

>> GO TO 12.

12.

CHECK A/F SENSOR 1 FUNCTION

Perform all DTC CONFIRMATION PROCEDURE related with A/F sensor 1.
• For DTC P0130, P0150, refer to

EC-182, "DTC Logic"

.

• For DTC P0131, P0151, refer to

EC-186, "DTC Logic"

.

• For DTC P0132, P0152, refer to

EC-190, "DTC Logic"

.

• For DTC P0133, P0153, refer to

EC-194, "DTC Logic"

.

• For DTC P2A00, P2A03, refer to

EC-421, "DTC Logic"

.

Are any DTCs detected?

YES

>> GO TO 15.

NO

>> GO TO 13.

13.

CHECK A/F SENSOR 1 CIRCUIT

Perform Diagnostic Procedure according to corresponding DTC.

>> GO TO 14.

14.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

1.

Start engine.

2.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “SPEC” of “DATA MONITOR” mode, and check that each
indication is within the SP value.

Is the measurement value within the SP value?

YES

>> INSPECTION END

NO

>> GO TO 15.

15.

DISCONNECT AND RECONNECT ECM HARNESS CONNECTOR

1.

Stop the engine.

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

EC-131

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

2.

Disconnect ECM harness connector. Check pin terminal and connector for damage, and then reconnect it.

>> GO TO 16.

16.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

1.

Start engine.

2.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “SPEC” of “DATA MONITOR” mode, and check that each
indication is within the SP value.

Is the measurement value within the SP value?

YES

>> INSPECTION END

NO

>> Detect malfunctioning part according to

EC-514, "Symptom Table"

.

17.

CHECK “B/FUEL SCHDL”

Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and check that the indication is within the SP
value.

Is the measurement value within the SP value?

YES

>> INSPECTION END

NO-1

>> More than the SP value: GO TO 18.

NO-2

>> Less than the SP value: GO TO 25.

18.

DETECT MALFUNCTIONING PART

1.

Check for the cause of large engine friction. Refer to the following.

-

Engine oil level is too high

-

Engine oil viscosity

-

Belt tension of power steering, alternator, A/C compressor, etc. is excessive

-

Noise from engine

-

Noise from transmission, etc.

2.

Check for the cause of insufficient combustion. Refer to the following.

-

Valve clearance malfunction

-

Intake valve timing control function malfunction

-

Camshaft sprocket installation malfunction, etc.

>> Repair or replace malfunctioning part, and then GO TO 30.

19.

CHECK INTAKE SYSTEM

Check for the cause of uneven air flow through mass air flow sensor. Refer to the following.
• Crushed air ducts
• Malfunctioning seal of air cleaner element
• Uneven dirt of air cleaner element
• Improper specification of intake air system

Is the inspection result normal?

YES

>> GO TO 21.

NO

>> Repair or replace malfunctioning part, and then GO TO 20.

20.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”, AND “B/FUEL SCHDL”

Select “A/F ALPHA-B1”, “A/F ALPHA-B2”, and “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and
check that each indication is within the SP value.

Is the measurement value within the SP value?

YES

>> INSPECTION END

NO

>> “B/FUEL SCHDL” is more, “A/F ALPHA-B1”, “A/F ALPHA-B2” are less than the SP value: GO TO

21.

21.

DISCONNECT AND RECONNECT MASS AIR FLOW SENSOR HARNESS CONNECTOR

1.

Stop the engine.

2.

Disconnect mass air flow sensor harness connector. Check pin terminal and connector for damage and
then reconnect it again.

>> GO TO 22.
