EC-36

< SYSTEM DESCRIPTION >

[VQ35DE]

MULTIPORT FUEL INJECTION SYSTEM

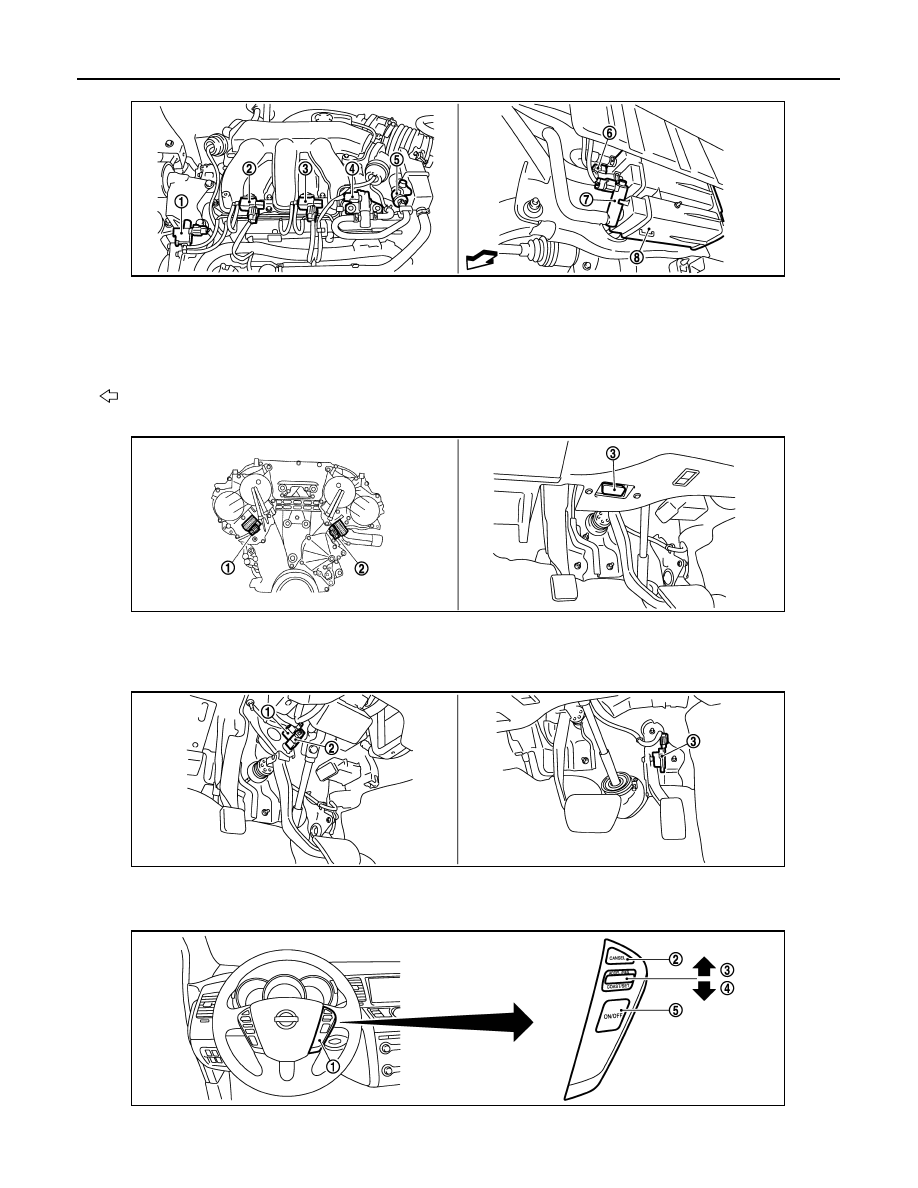

1.

Electronic controlled engine mount
control solenoid valve

2.

VIAS control solenoid valve 1

3.

VIAS control solenoid valve 2

4.

EVAP canister purge volume control
solenoid valve

5.

EVAP service port

6.

EVAP control system pressure sen-
sor

7.

EVAP canister vent control valve

8.

EVAP canister

: Vehicle front

1.

Intake valve timing control solenoid
valve (bank 1)

2.

Intake valve timing control solenoid
valve (bank 2)

3.

Data link connector

1.

Stop lamp switch

2.

ASCD brake switch

3.

Accelerator pedal position sensor

JMBIA1111ZZ

JMBIA1118ZZ

JMBIA1119ZZ

JMBIA1120ZZ

MULTIPORT FUEL INJECTION SYSTEM

EC-37

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Component Description

INFOID:0000000005536492

1.

ASCD steering switch

2.

CANSEL switch

3.

RESUME/ACCELERATE switch

4.

SET/COAST switch

5.

MAIN switch

1.

Fuel level sensor unit and fuel pump
harness connector

2.

Fuel level sensor unit and fuel pump 3.

Fuel pressure regulator

: Vehicle front

JMBIA1121ZZ

Component

Reference

A/F sensor 1

EC-182, "Description"

Accelerator pedal position sensor

EC-407, "Description"

Camshaft position sensor (PHASE)

EC-258, "Description"

Crankshaft position sensor (POS)

EC-254, "Description"

Engine coolant temperature sensor

EC-167, "Description"

Fuel injector

EC-438, "Description"

Heated oxygen sensor 2

EC-199, "Description"

Intake air temperature sensor

EC-164, "Description"

Knock sensor

EC-251, "Description"

Mass air flow sensor

EC-153, "Description"

Power steering pressure sensor

EC-335, "Description"

TCM

EC-346, "Description"

Throttle position sensor

EC-172, "Description"

EC-38

< SYSTEM DESCRIPTION >

[VQ35DE]

ELECTRIC IGNITION SYSTEM

ELECTRIC IGNITION SYSTEM

System Diagram

INFOID:0000000005536493

System Description

INFOID:0000000005536494

INPUT/OUTPUT SIGNAL CHART

*1: This signal is sent to the ECM via the CAN communication line.

*2: ECM determines the start signal status by the signals of engine speed and battery voltage.

SYSTEM DESCRIPTION

Ignition order: 1 - 2 - 3 - 4 - 5 - 6
The ignition timing is controlled by the ECM to maintain the best air-fuel ratio for every running condition of the
engine. The ignition timing data is stored in the ECM.
The ECM receives information such as the injection pulse width and camshaft position sensor (PHASE) sig-
nal. Computing this information, ignition signals are transmitted to the power transistor.
During the following conditions, the ignition timing is revised by the ECM according to the other data stored in
the ECM.
• At starting
• During warm-up
• At idle
• At low battery voltage
• During acceleration
The knock sensor retard system is designed only for emergencies. The basic ignition timing is programmed
within the anti-knocking zone, if recommended fuel is used under dry conditions. The retard system does not

JMBIA1834GB

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)

Engine speed*

2

Piston position

Ignition timing
control

Ignition coil
(with power transistor)

Camshaft position sensor (PHASE)

Mass air flow sensor

Amount of intake air

Engine coolant temperature sensor

Engine coolant temperature

Throttle position sensor

Throttle position

Accelerator pedal position sensor

Accelerator pedal position

TCM

Gear position

Battery

Battery voltage*

2

Knock sensor

Engine knocking

Combination meter

Vehicle speed*

1

ELECTRIC IGNITION SYSTEM

EC-39

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

operate under normal driving conditions. If engine knocking occurs, the knock sensor monitors the condition.
The signal is transmitted to the ECM. The ECM retards the ignition timing to eliminate the knocking condition.

Component Parts Location

INFOID:0000000005536495

1.

Intake valve timing control solenoid
valve (bank 1)

2.

Intake valve timing control solenoid
valve (bank 2)

3.

Electronic controlled engine mount
control solenoid valve

4.

Fuel injector (bank 2)

5.

A/F sensor 1 (bank 2)

6.

Cooling fan motor-2

7.

Ignition coil (with power transistor)
and spark plug (bank 2)

8.

Camshaft position sensor (PHASE)
(bank 2)

9.

Crankshaft position sensor (POS)

10. Engine coolant temperature sensor

11.

Cooling fan motor-1

12. ECM

13. Refrigerant pressure sensor

14. Battery current sensor

15. IPDM E/R

16. Mass air flow sensor (with intake air

temperature sensor)

17. Electric throttle control actuator

18. EVAP service port

19. Power valve actuator 2

20. EVAP canister purge volume control

solenoid valve

21. Camshaft position sensor (PHASE)

(bank 1)

22. Ignition coil (with power transistor)

and spark plug (bank 1)

23. A/F sensor 1 (bank 1)

24. Fuel injector (bank 1)

25. VIAS control solenoid valve 1 and 2

26. Power valve actuator 1

JMBIA1108ZZ
