Nissan Murano Z51. Manual - part 481





DLN-58

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY20A]

ADAPTER CASE

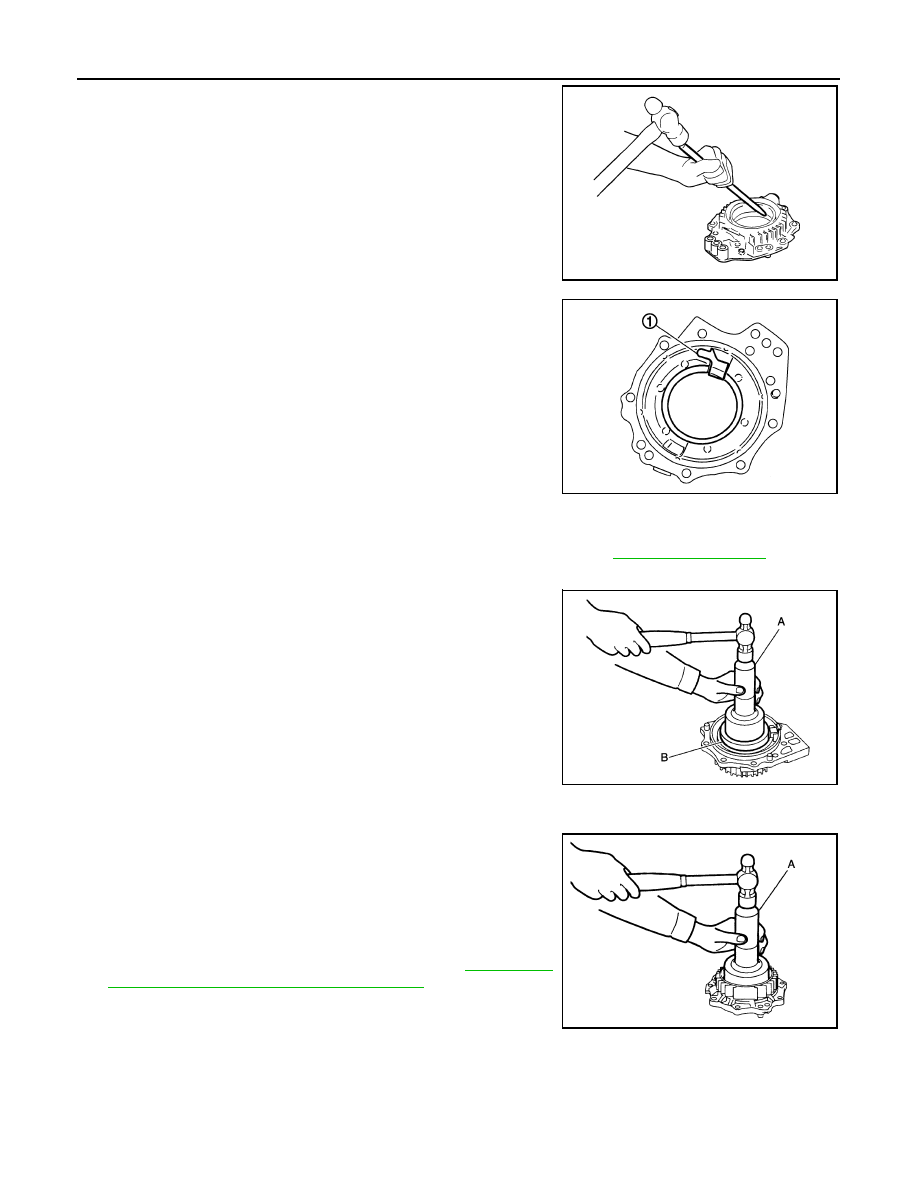

5.

Using a brass rod, tap the gear ring bearing adjusting shim at
the cutout on the adapter case to remove the gear ring bearing
adjusting shim (adapter case side) and gear ring bearing outer
race (adapter case side).

6.

Remove the oil gutter (1).

7.

Remove the drain plug.

Assembly

INFOID:0000000005514216

1.

Select the gear ring bearing adjusting shim (adapter case side). Refer to

DLN-68, "Adjustment"

.

2.

Install the oil gutter.

3.

Using the drifts, install the selected gear ring bearing adjusting
shim (adapter case side) and gear ring bearing outer race
(adapter case side).

4.

Using the drift (A) [SST: KV38101700 (   —   )], drive the adapter case oil seal until it becomes flush with
the case end.
Apply multi-purpose grease onto oil seal lips, and gear oil onto
the circumference of the oil seal.

CAUTION:

• When checking the total preload torque, measure it with-

out the oil seal, then install the oil seal.

• Never reuse the oil seal.

5.

Apply sealant on drain plug and install it to the adapter case.
Use Genuine Silicone RTV or equivalent. Refer to

GI-18, "Rec-

ommended Chemical Products and Sealants"

.

6.

Apply multi-purpose grease lightly and evenly onto an O-ring,
and install it to the adapter case.

CAUTION:

Never reuse the O-ring.

SDIA1531E

JPDIE0029ZZ

A

: Drift [SST: ST30720000 (J-25405)]

B

: Drift (Commercial Service Tool)

JPDIE0041ZZ

JPDIE0042ZZ

ADAPTER CASE

DLN-59

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY20A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

7.

Install the adapter case to the transfer case, and apply anti-cor-
rosive oil onto threads and seats on the mounting bolts. Tighten
to the specified torque.

8.

Check backlash, tooth contact, total preload and companion
flange runout. Refer to

DLN-68, "Adjustment"

.

CAUTION:

Measure the total preload without the adapter case oil seal.

Inspection After Disassembly

INFOID:0000000005514217

Check items below. If necessary, replace them with new ones.

CASE

Check the bearing mounting surface for wear, cracks and damages.

Bolt symbol

Bolt length “

” mm (in)

Tightening torque

N·m (kg-m, ft-lb)

A

45 (1.77)

15.2 (1.6, 11)

B

30 (1.18)

SDIA1847E

DLN-60

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY20A]

GEAR RING

GEAR RING

Exploded View

INFOID:0000000005514218

1.

Pinion lock nut

2.

Companion flange

3.

Pinion sleeve oil seal

4.

Pinion rear bearing

5.

Dust cover

6.

Pinion sleeve

7.

O-ring

8.

Collapsible spacer

9.

Pinion front bearing

10. Drive pinion

11.

Pinion sleeve shim

12. Adapter case oil seal

13. Drain plug

14. Adapter case

15. Oil gutter

16. O-ring

17. Gear ring bearing adjusting shim

(adapter case side)

18. Gear ring bearing

(adapter case side)

19. Gear ring oil seal

20. Gear ring

21. Drive gear

22. Gear ring bearing

(transfer case side)

23. Gear ring bearing adjusting shim

(transfer case side)

24. Oil defense

25. Filler plug

26. Transfer case oil seal

27. Transfer case

JPDIE0022GB

GEAR RING

DLN-61

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY20A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

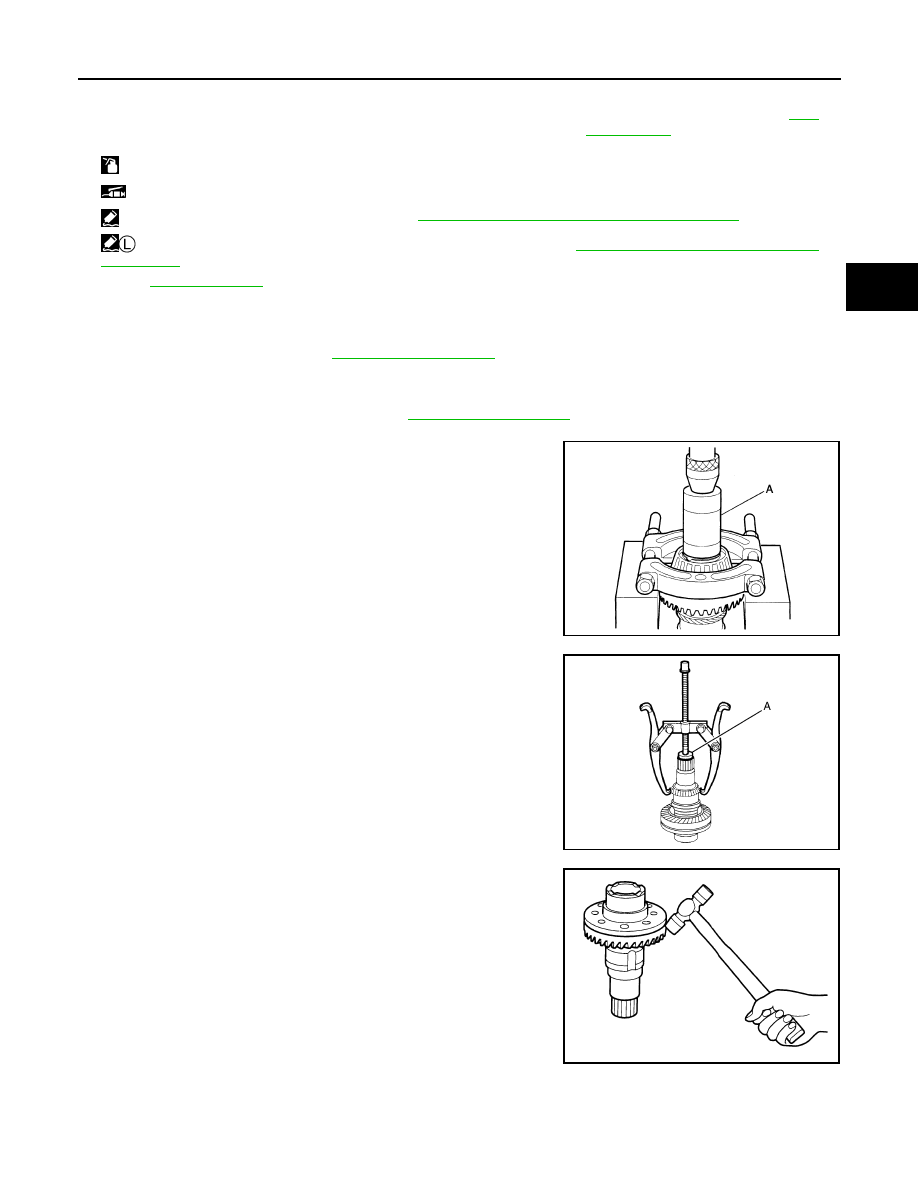

Disassembly

INFOID:0000000005514219

1.

Remove adapter case. Refer to

DLN-57, "Disassembly"

.

2.

Remove drive gear assembly from the transfer case.

3.

Remove gear ring bearing outer race (transfer case side) and gear ring bearing adjusting shim (transfer
case side) from the transfer case. Refer to

DLN-76, "Disassembly"

.

4.

Remove gear ring bearing inner race (adapter case side) from
ring gear shaft with the drift (A) [SST: ST33200000 (J-26082)]
and a replacer.

5.

Remove gear ring bearing inner race (transfer case side) from
gear ring with the drift (A) [SST: ST33061000 (J-8107-2)] and a
puller.

6.

Remove the drive gear mounting bolts.

7.

Lightly tap adapter case with a plastic hammer to remove drive
gear from the gear ring.

28. Breather tube

29. Plug

A. Oil seal lip

B. Screw hole

C. For the tightening torque, refer to

DLN-

62, "Assembly"

.

: Apply gear oil.

: Apply multi-purpose grease.

: Apply Genuine Silicone RTV or equivalent. Refer to

GI-18, "Recommended Chemical Products and Sealants"

.

: Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to

GI-18, "Recommended Chemical Products

and Sealants"

.

Refer to

GI-4, "Components"

 for symbols not described above.

JPDIE0030ZZ

JPDIE0031ZZ

SDIA1807J
